Front Acceleration Sensor: Installation: Installation

  1. INSTALL FRONT ACCELERATION SENSOR
    1. Install the front acceleration sensor with the bolt as shown in the illustration.

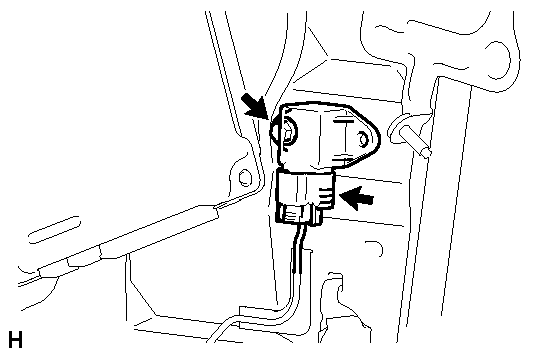

      Fig 1: Identifying Front Acceleration Sensor
      GTY259574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:
      • Replace the front acceleration sensor with a new one if it is dropped.
      • Make sure that the front acceleration sensor is oriented correctly.
    2. Connect the connector to the front acceleration sensor.
      NOTE:

      Securely connect the connector.

  2. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    1. Install the lower No. 1 instrument panel airbag assembly. Refer to INSTALLATION .
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
