Adaptive Front-Lighting System: Notes

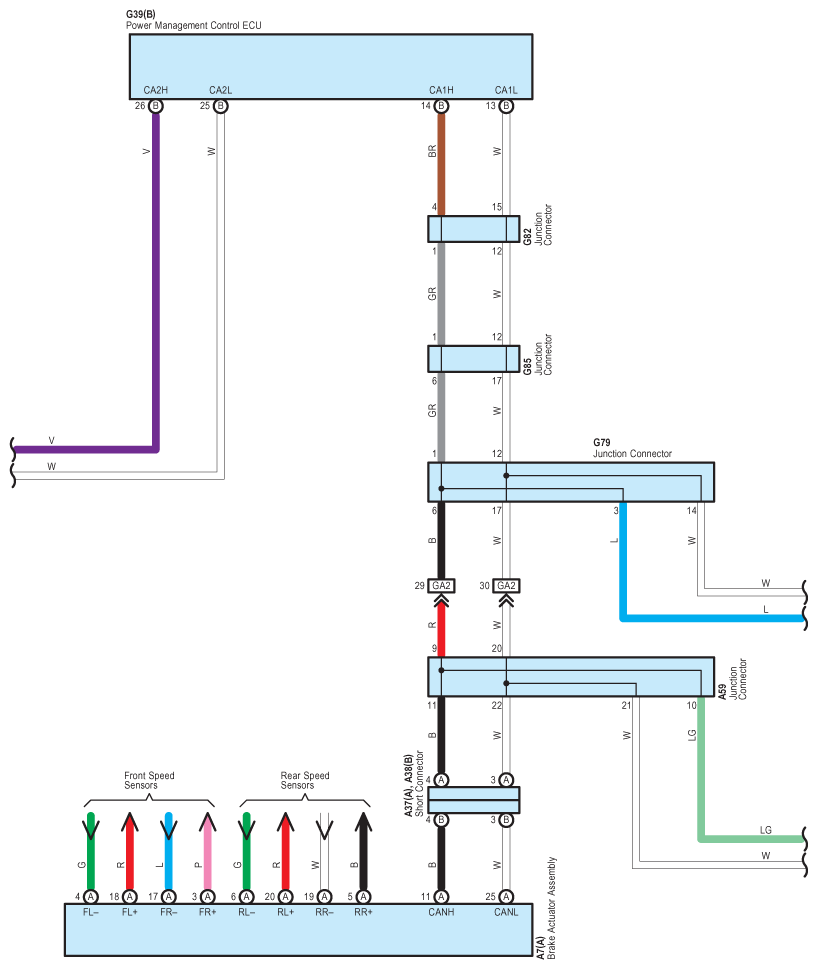

Fig 1: Adaptive Front-Lighting System - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

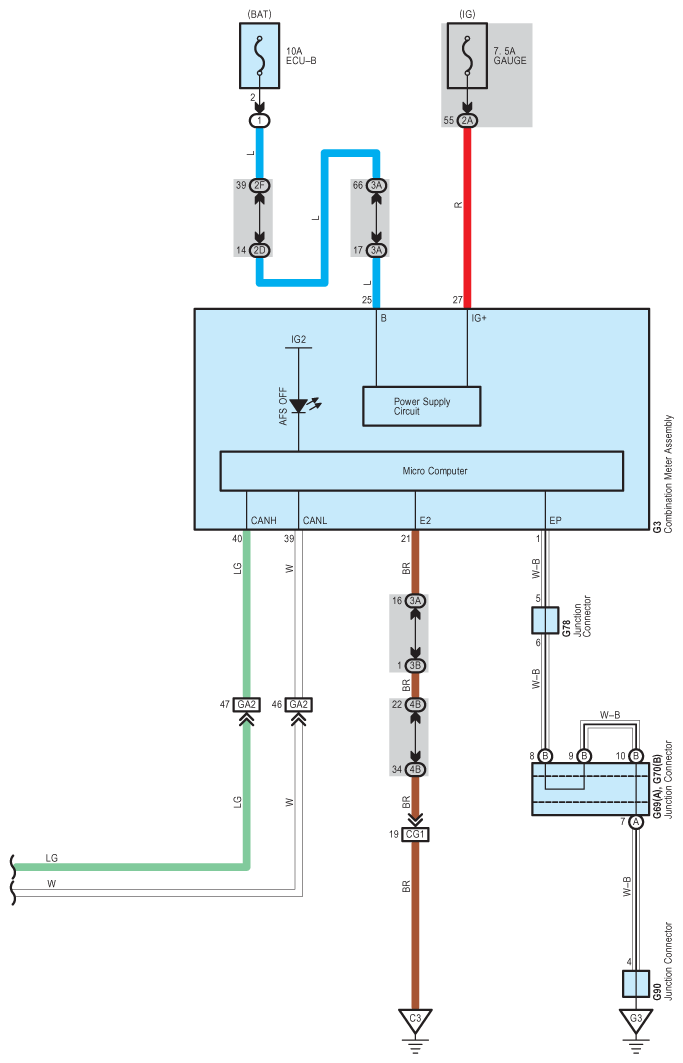

Fig 2: Adaptive Front-Lighting System - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

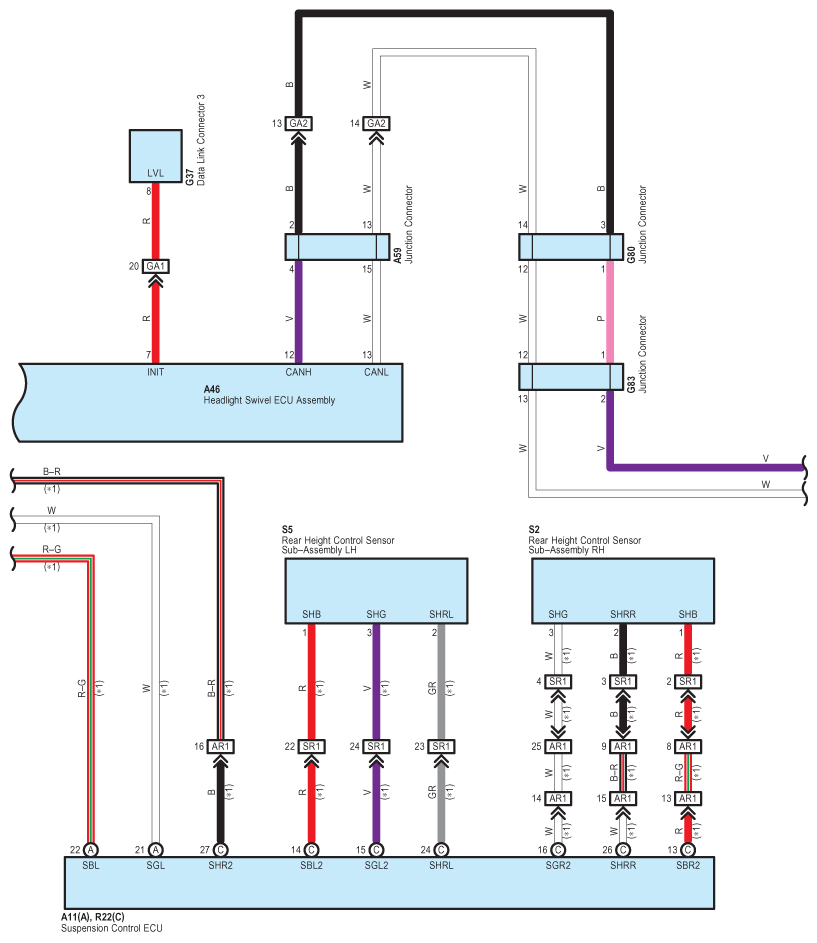

Fig 3: Adaptive Front-Lighting System - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

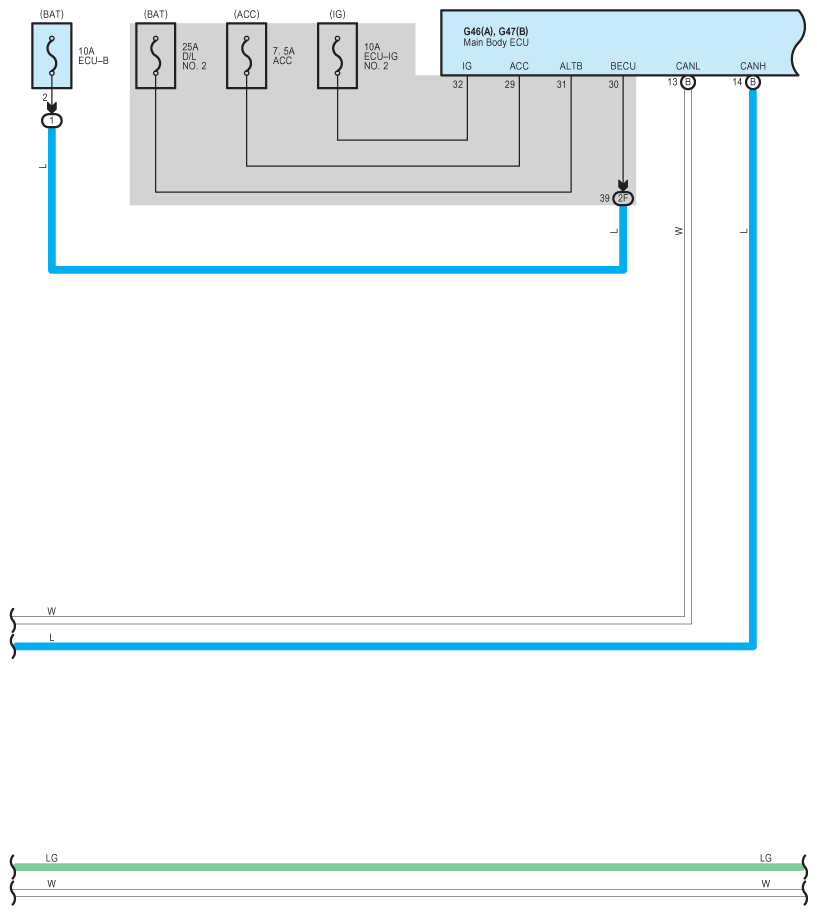

Fig 4: Adaptive Front-Lighting System - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

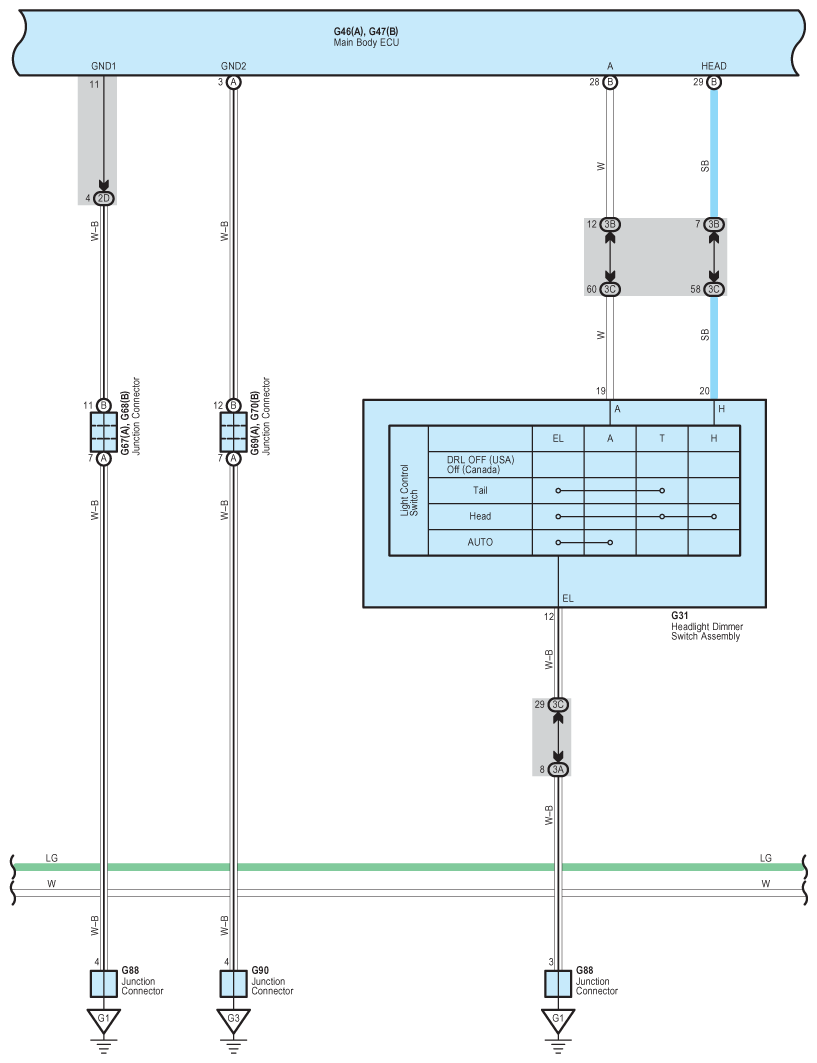

Fig 5: Adaptive Front-Lighting System - Circuit Diagram (5 Of 7)

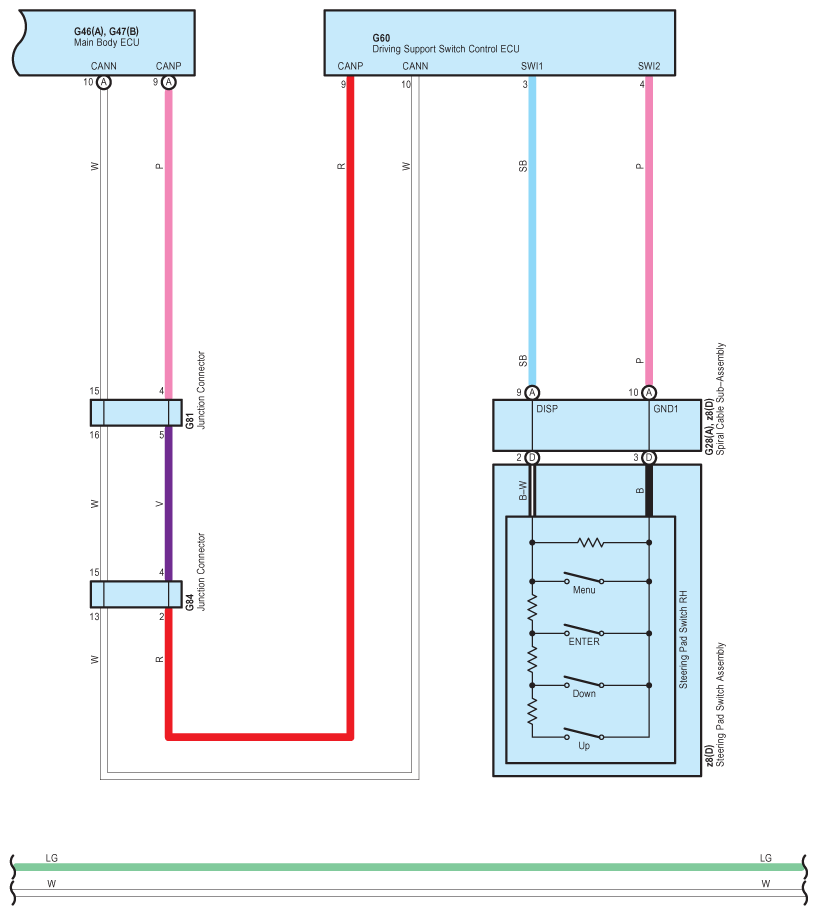

Fig 6: Adaptive Front-Lighting System - Circuit Diagram (6 Of 7)

Fig 7: Adaptive Front-Lighting System - Circuit Diagram (7 Of 7)
