Electronic Modulated Air Suspension: Notes

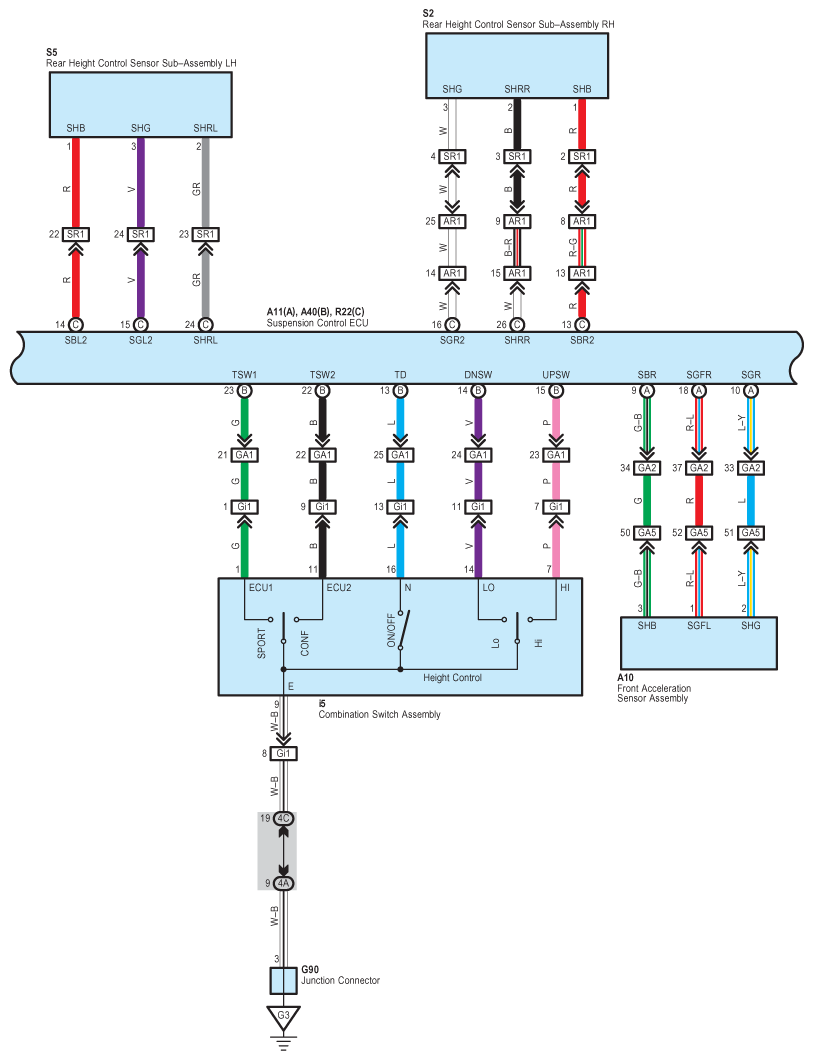

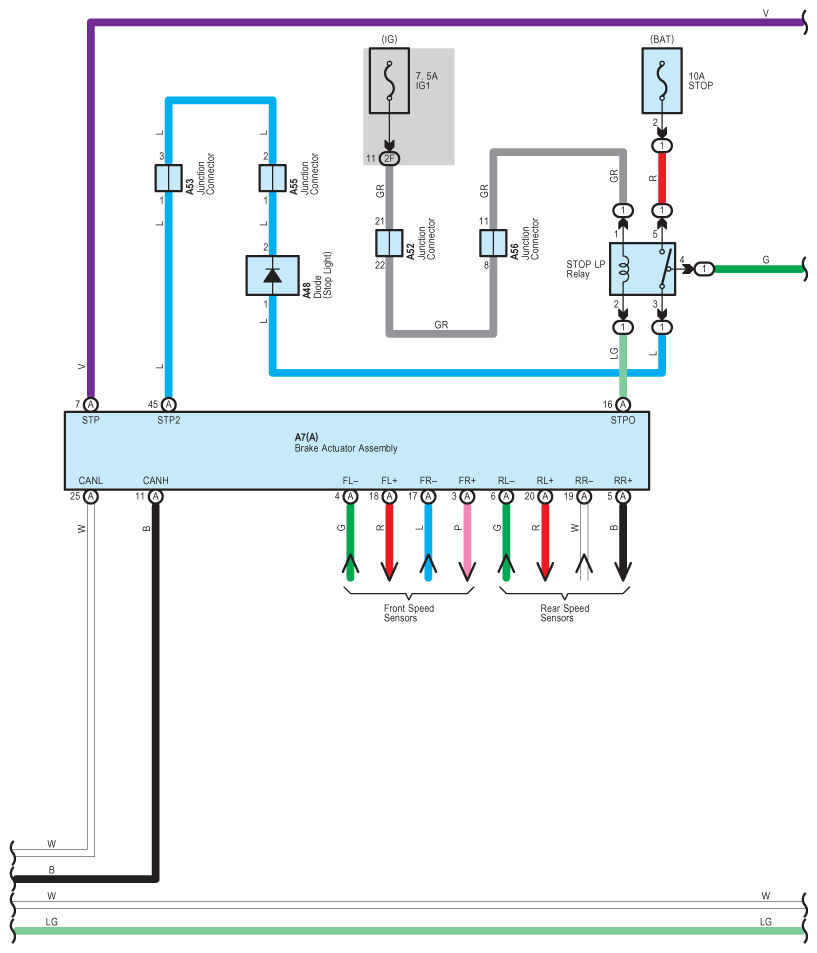

Fig 1: Electronic Modulated Air Suspension - Circuit Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

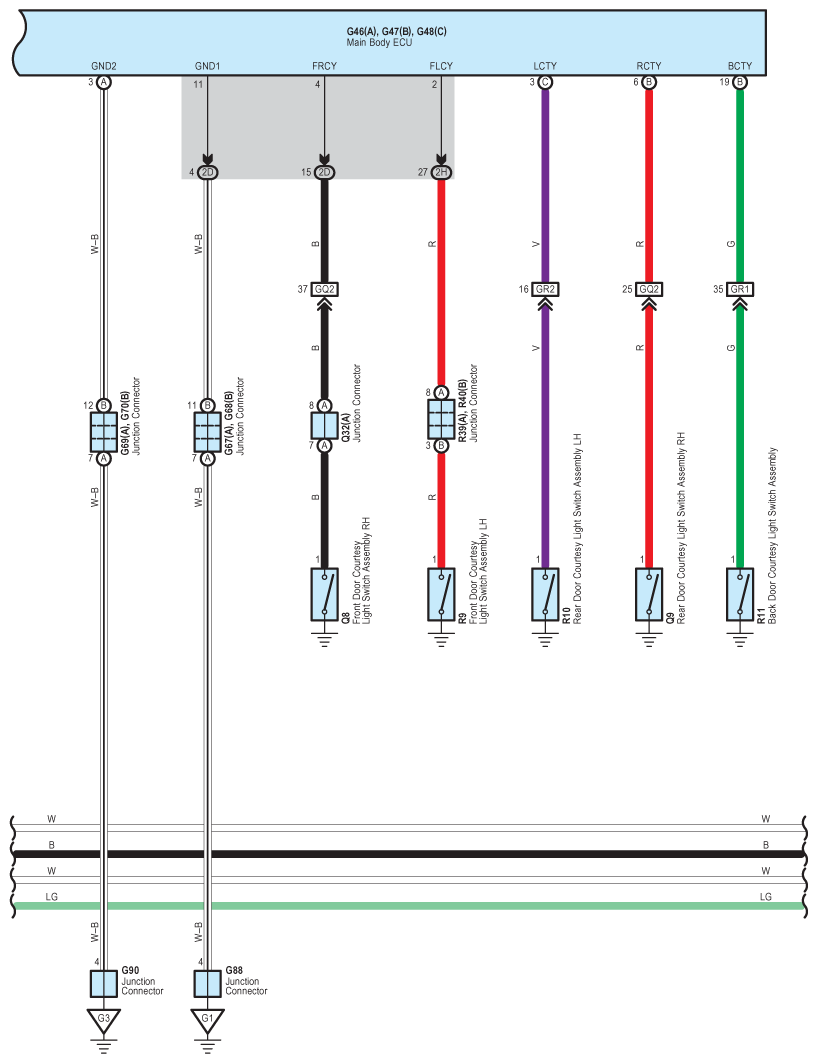

Fig 2: Electronic Modulated Air Suspension - Circuit Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

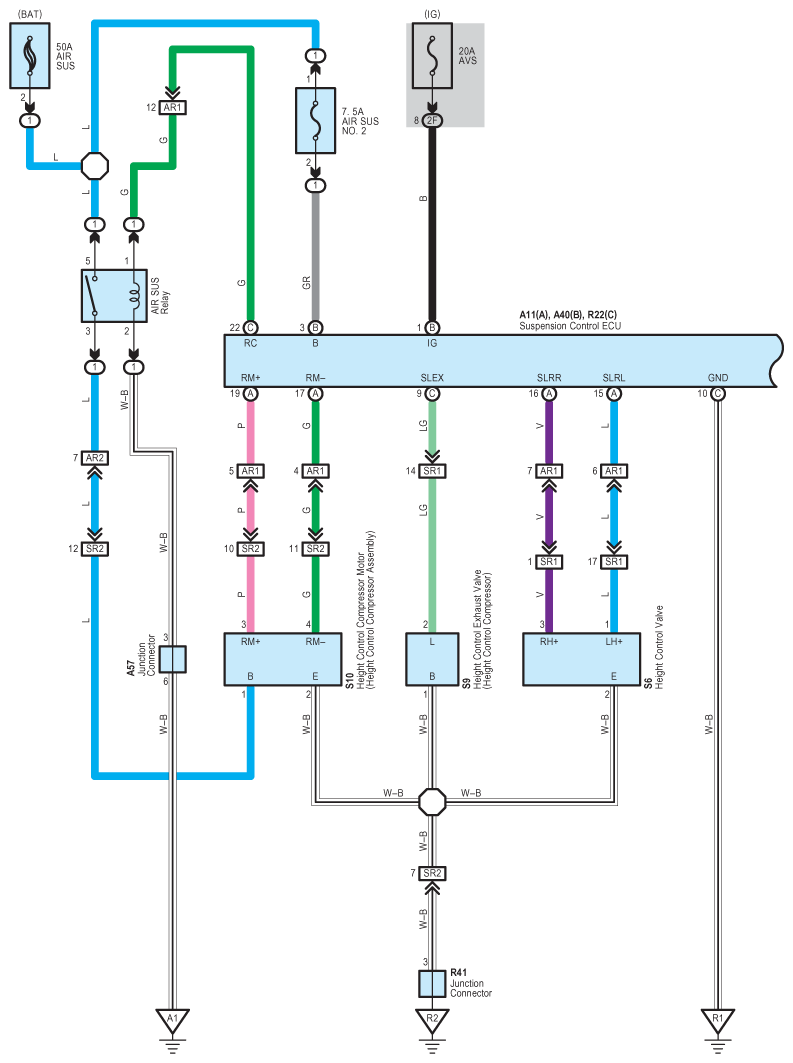

Fig 3: Electronic Modulated Air Suspension - Circuit Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

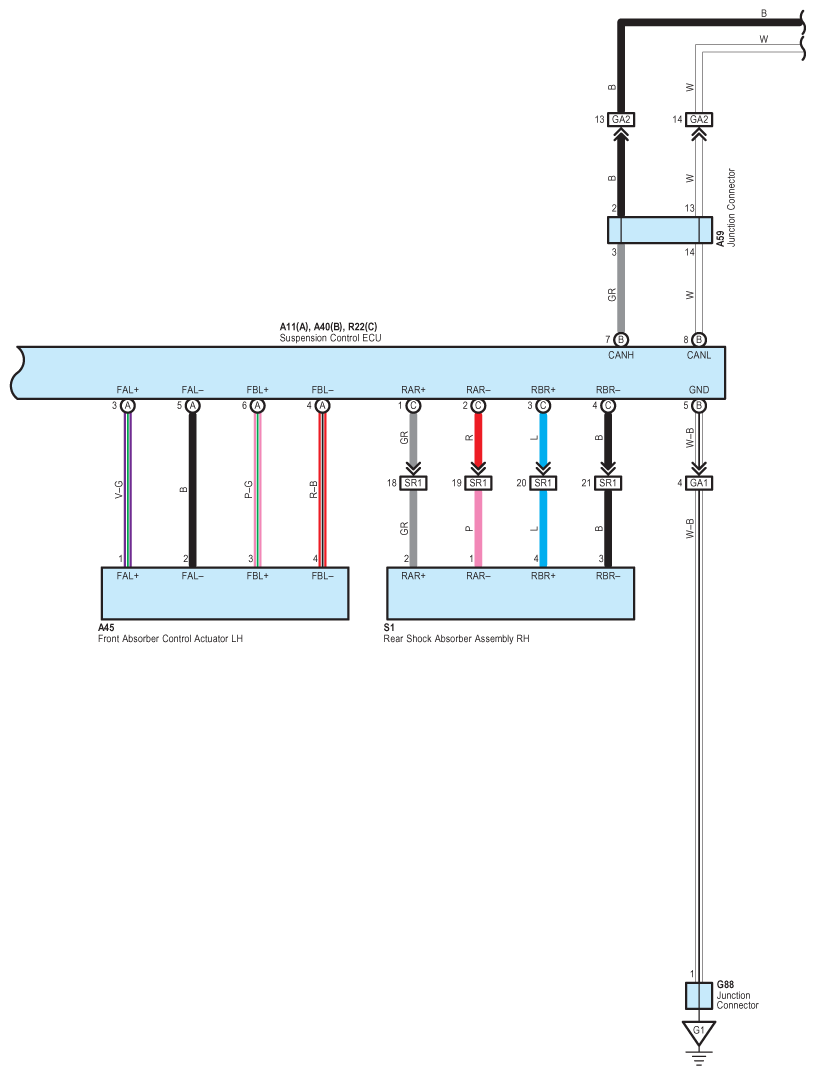

Fig 4: Electronic Modulated Air Suspension - Circuit Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

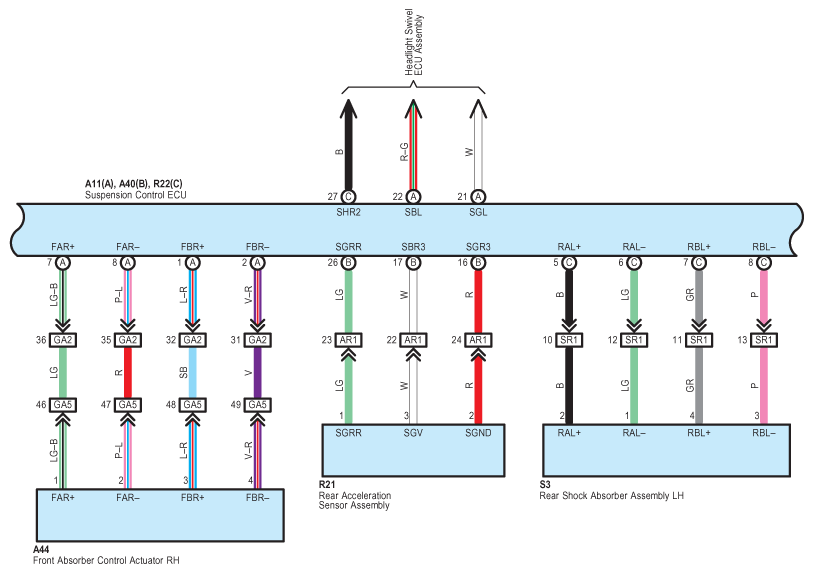

Fig 5: Electronic Modulated Air Suspension - Circuit Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

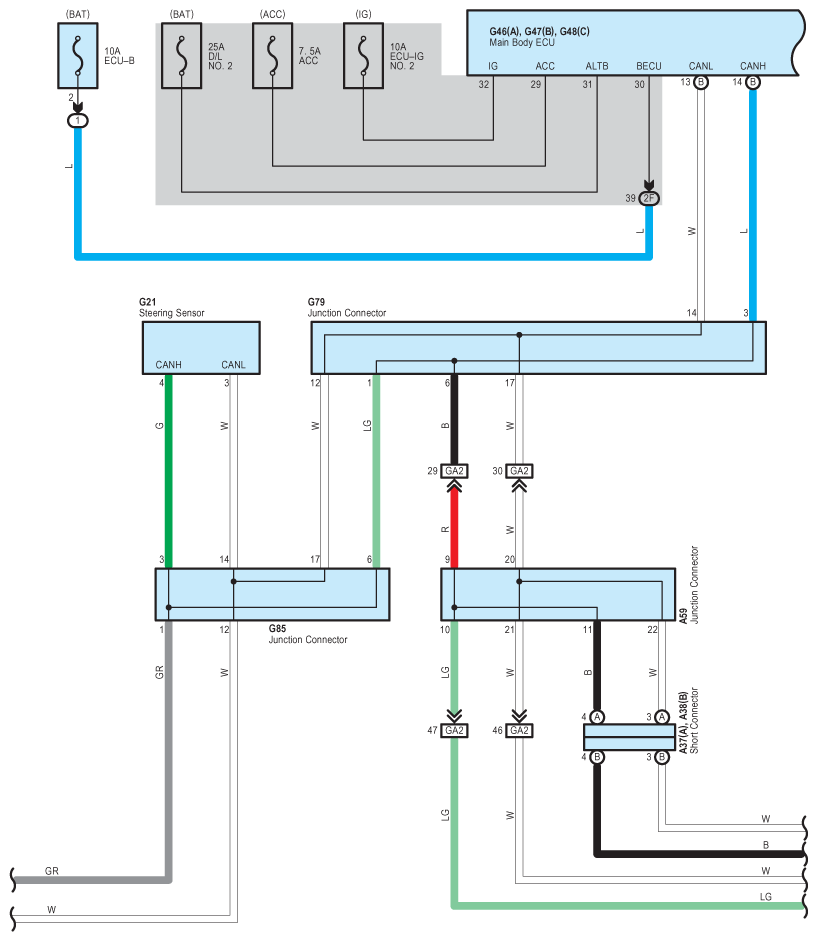

Fig 6: Electronic Modulated Air Suspension - Circuit Diagram (6 Of 9)

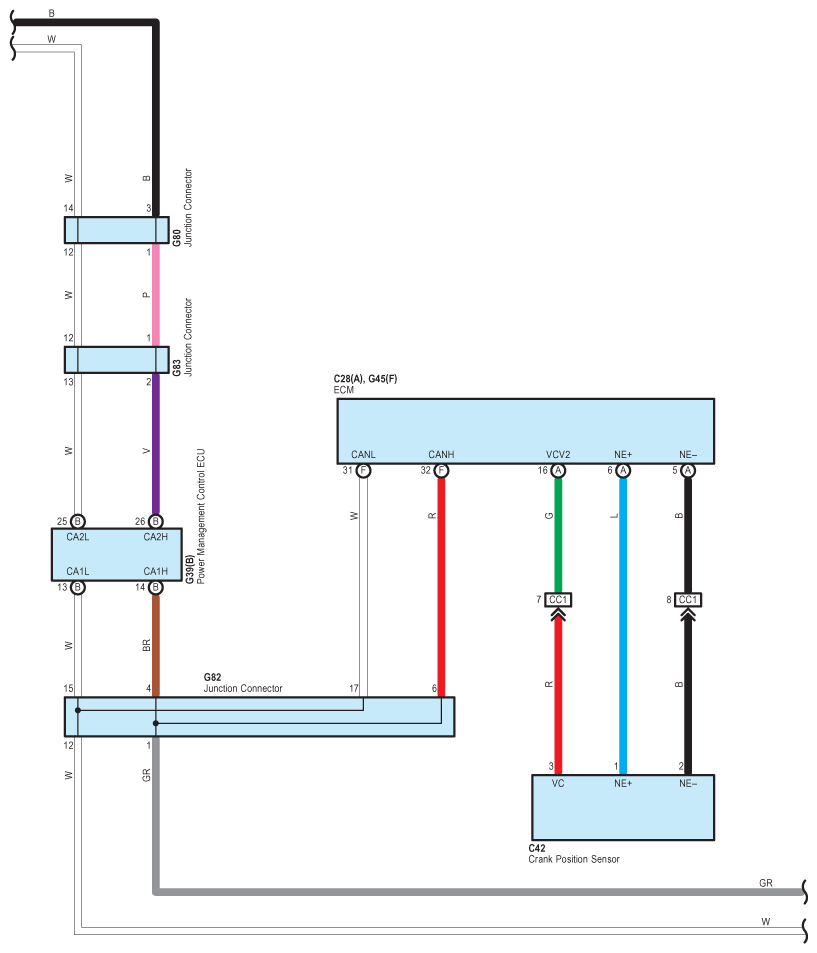

Fig 7: Electronic Modulated Air Suspension - Circuit Diagram (7 Of 9)

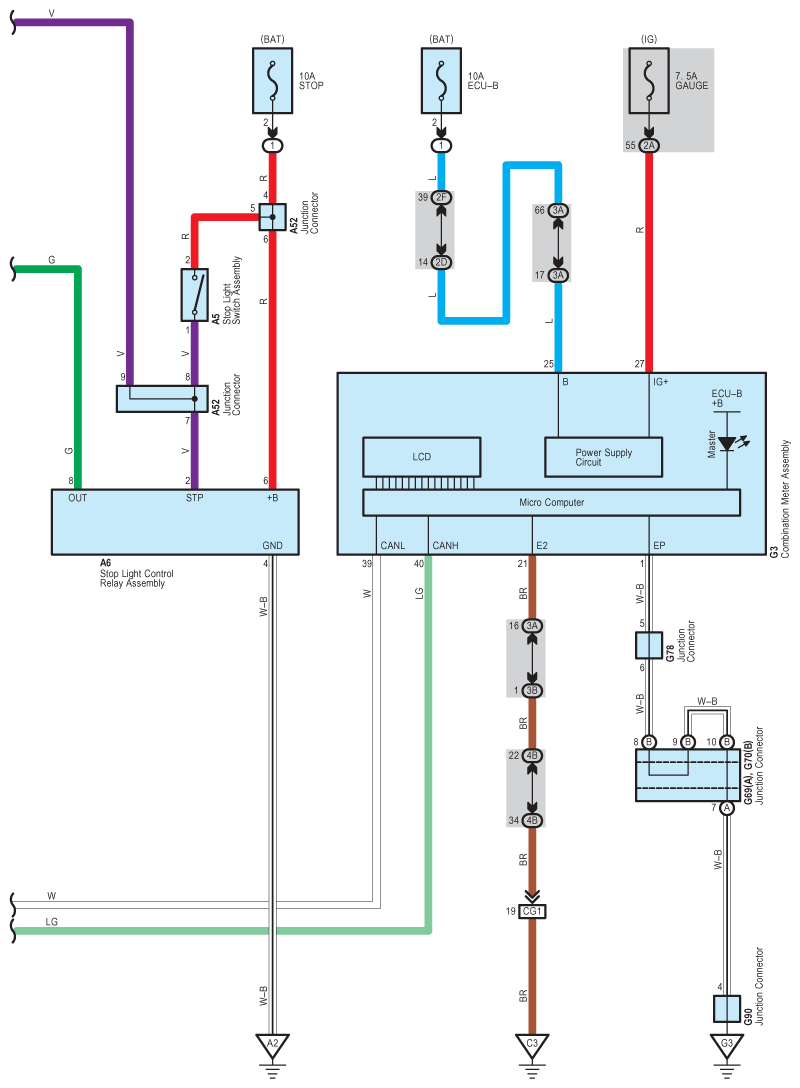

Fig 8: Electronic Modulated Air Suspension - Circuit Diagram (8 Of 9)

Fig 9: Electronic Modulated Air Suspension - Circuit Diagram (9 Of 9)
