Heat Steering Wheel System: Notes

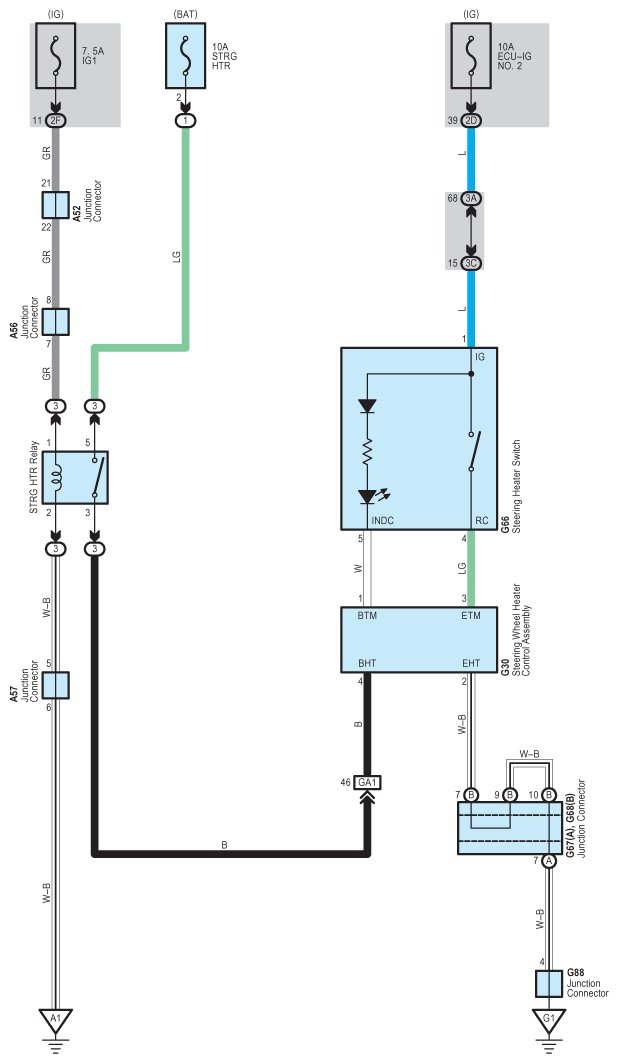

Fig 1: Heat Steering Wheel System - Circuit Diagram
G07580738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
