OEM System Circuits: Ignition: Notes

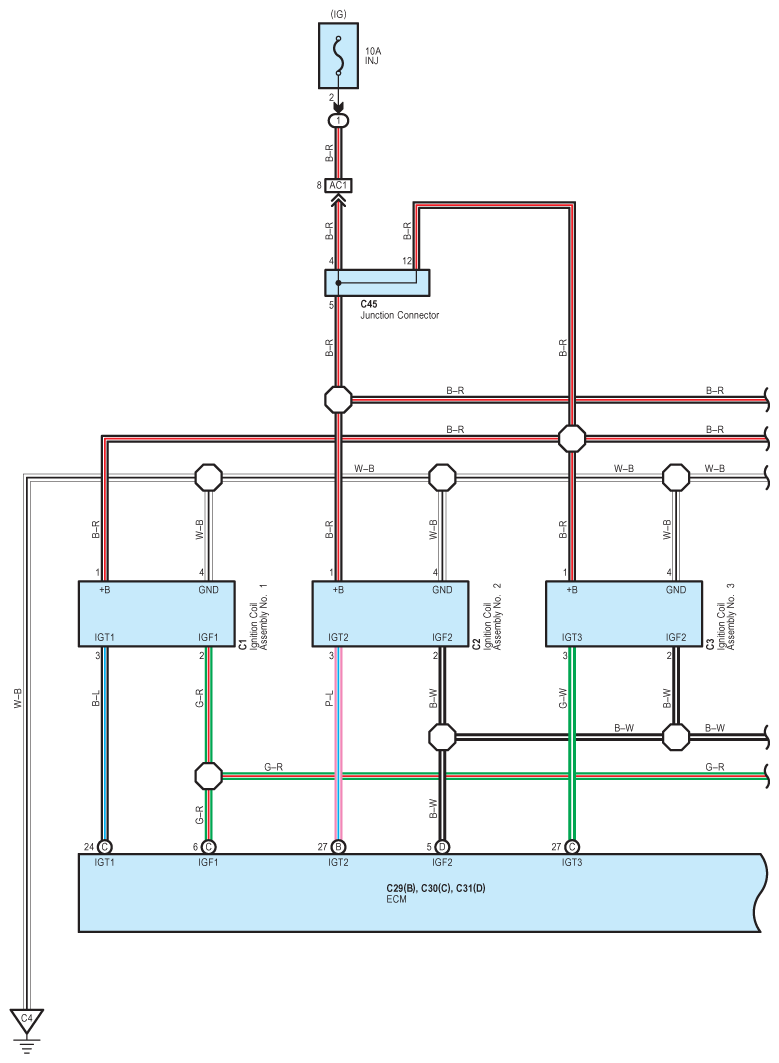

Fig 1: Ignition - Circuit Diagram (1 Of 3)
G07580491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

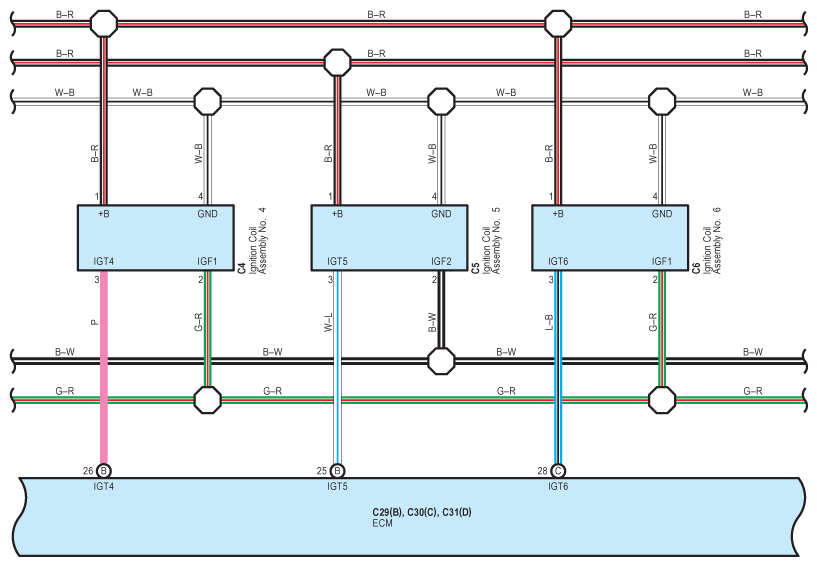

Fig 2: Ignition - Circuit Diagram (2 Of 3)
G07580492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

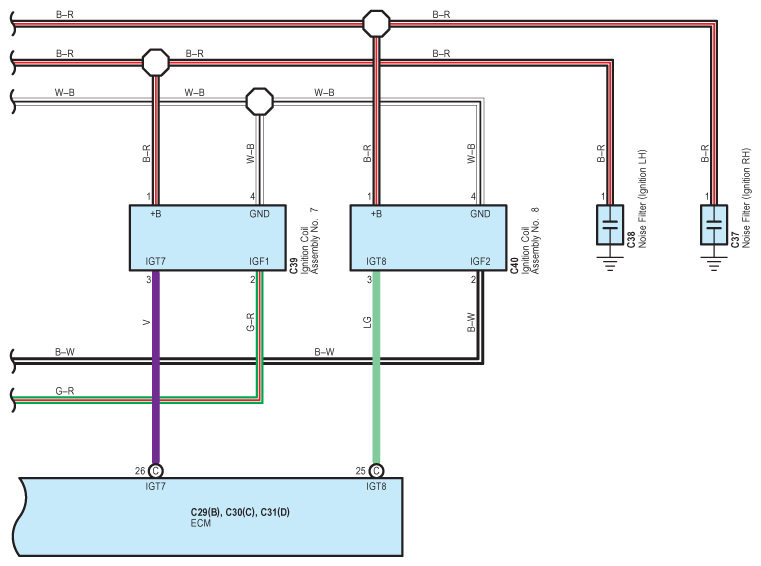

Fig 3: Ignition - Circuit Diagram (3 Of 3)
G07580493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
