Smart Access System with Push-Button Start: Notes

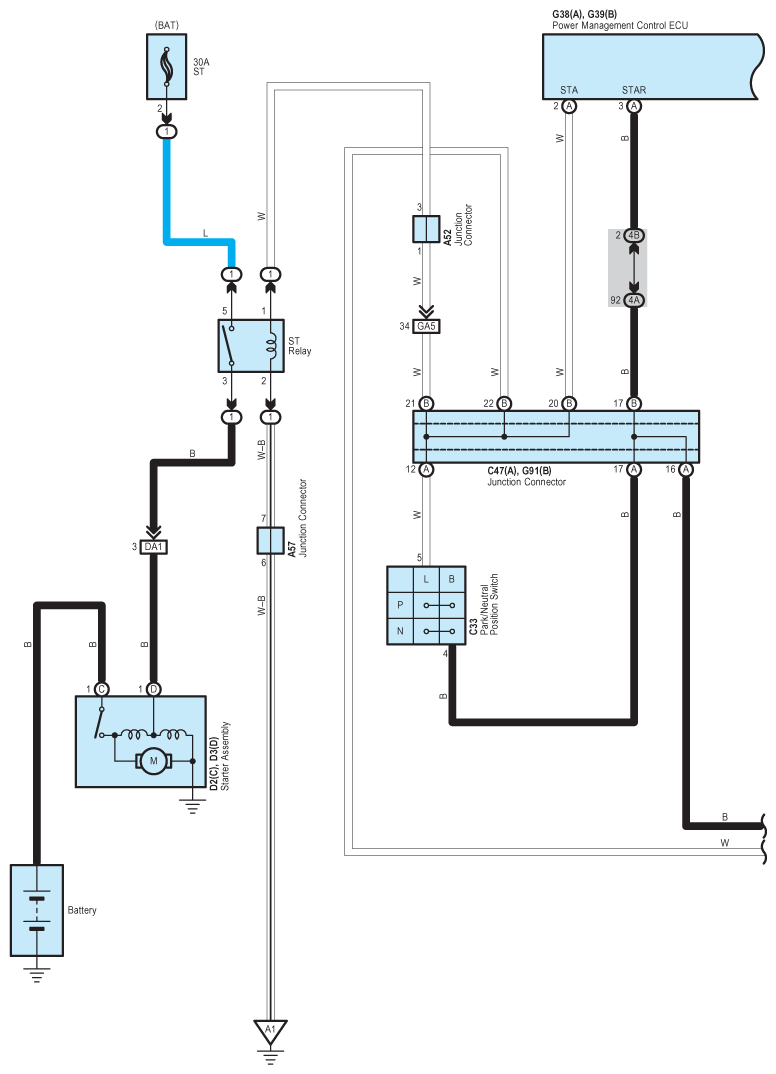

Fig 1: Smart Access System With Push-Button Start - Circuit Diagram (1 Of 24)

G07580465

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

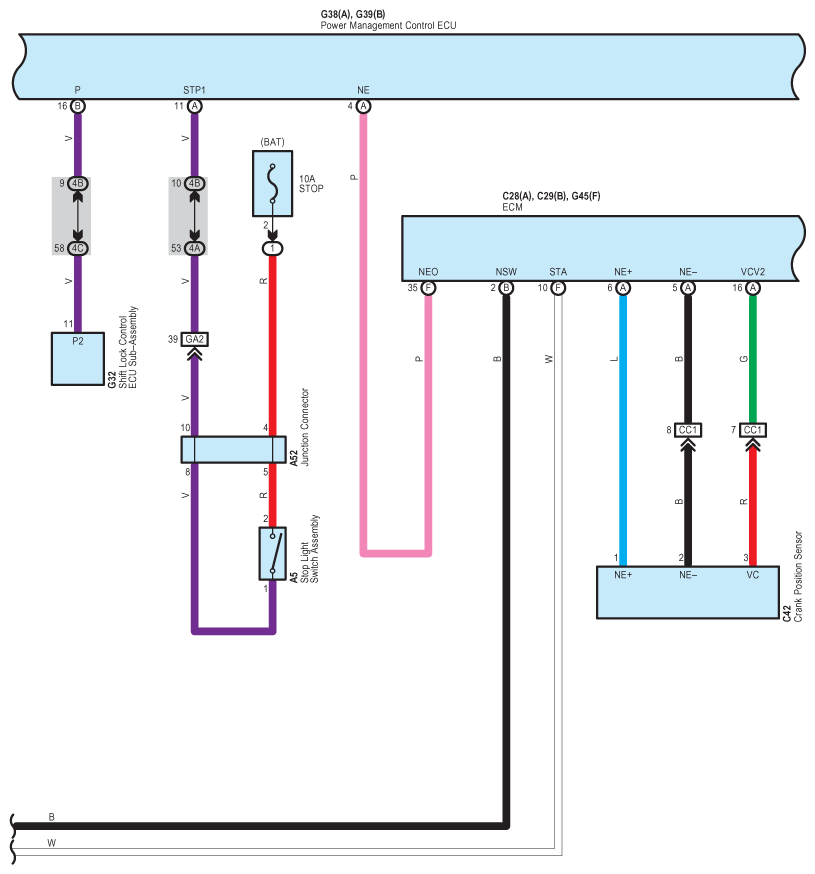

Fig 2: Smart Access System With Push-Button Start - Circuit Diagram (2 Of 24)

G07580466

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

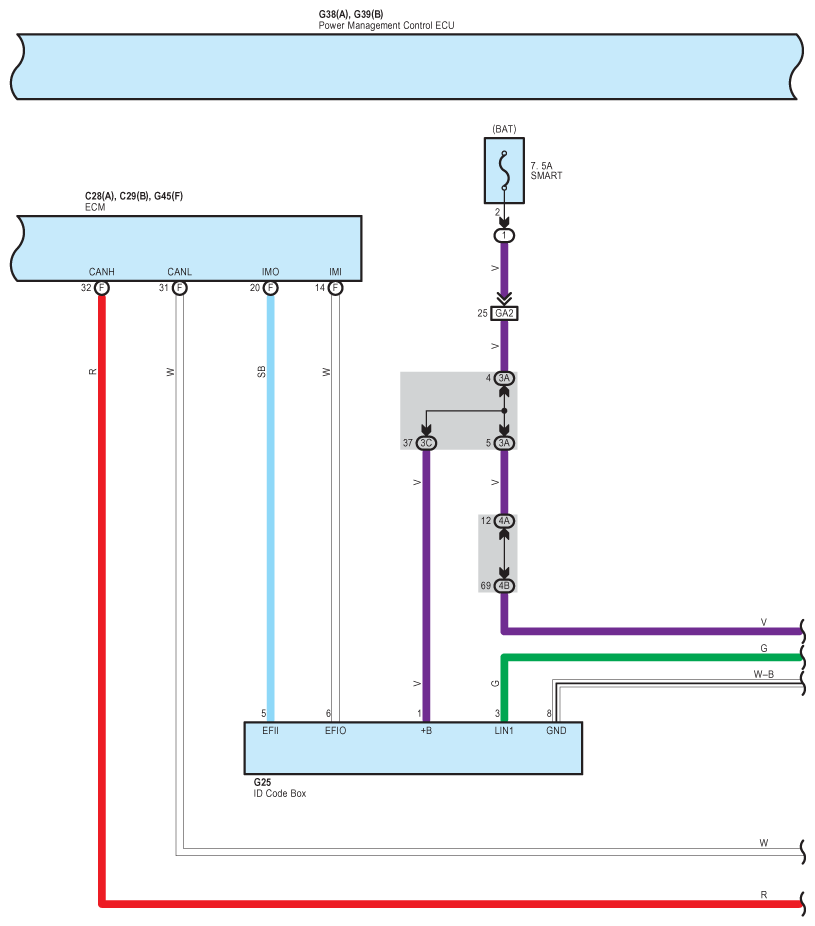

Fig 3: Smart Access System With Push-Button Start - Circuit Diagram (3 Of 24)

G07580467

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

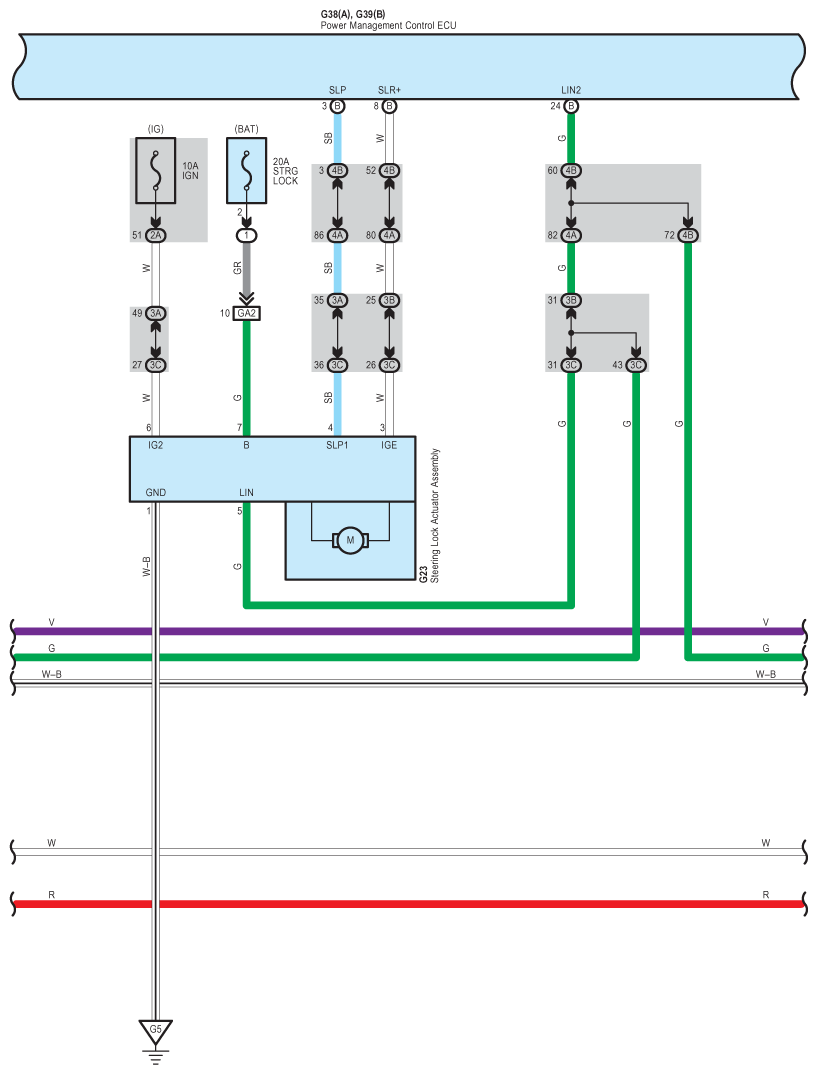

Fig 4: Smart Access System With Push-Button Start - Circuit Diagram (4 Of 24)

G07580468

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

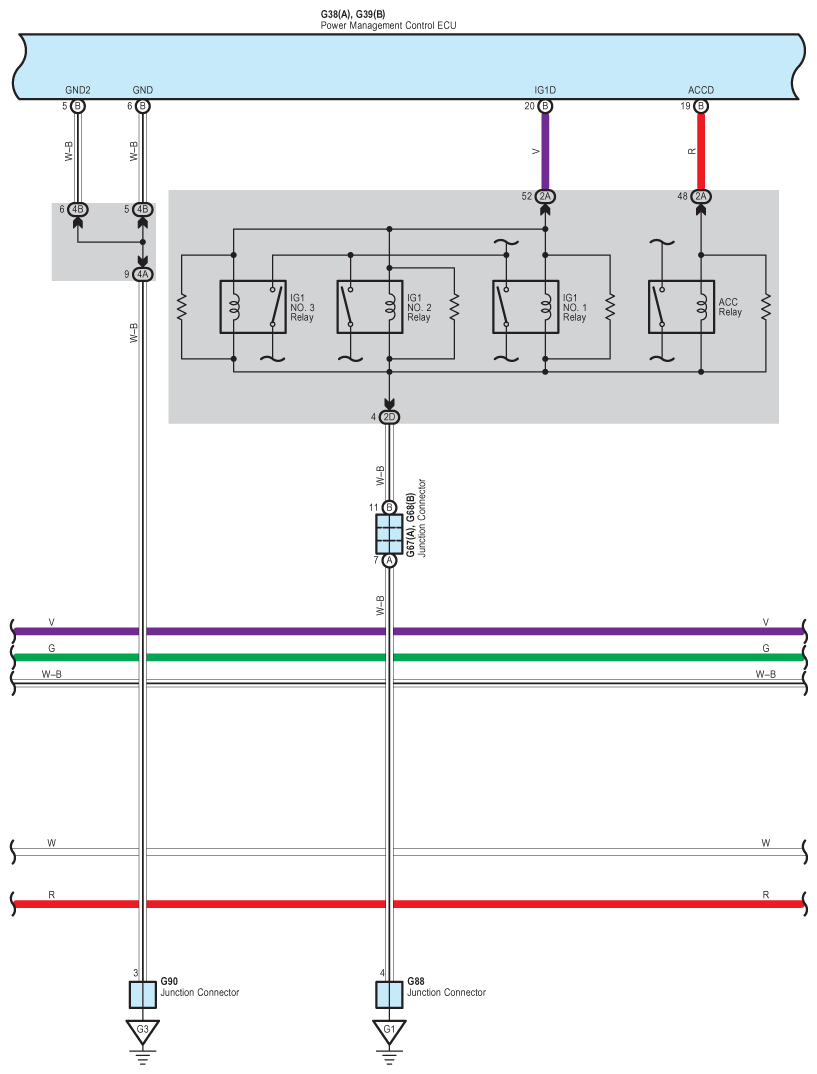

Fig 5: Smart Access System With Push-Button Start - Circuit Diagram (5 Of 24)

G07580469

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

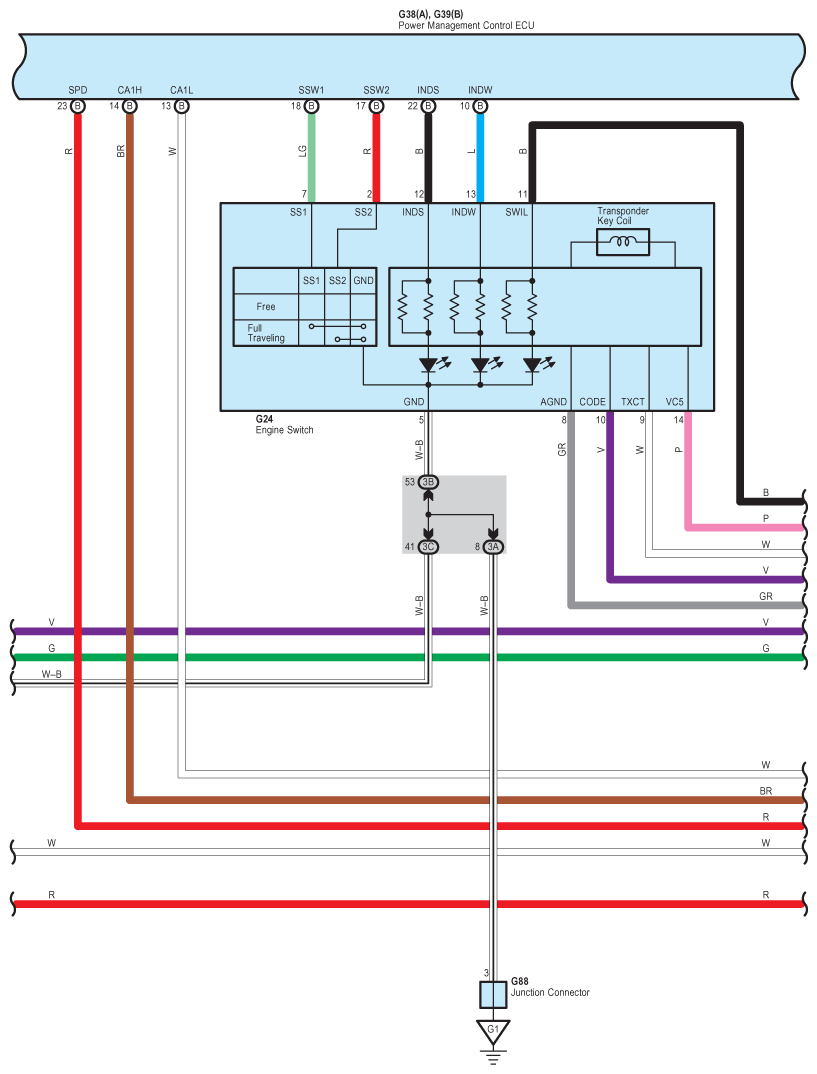

Fig 6: Smart Access System With Push-Button Start - Circuit Diagram (6 Of 24)

G07580470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

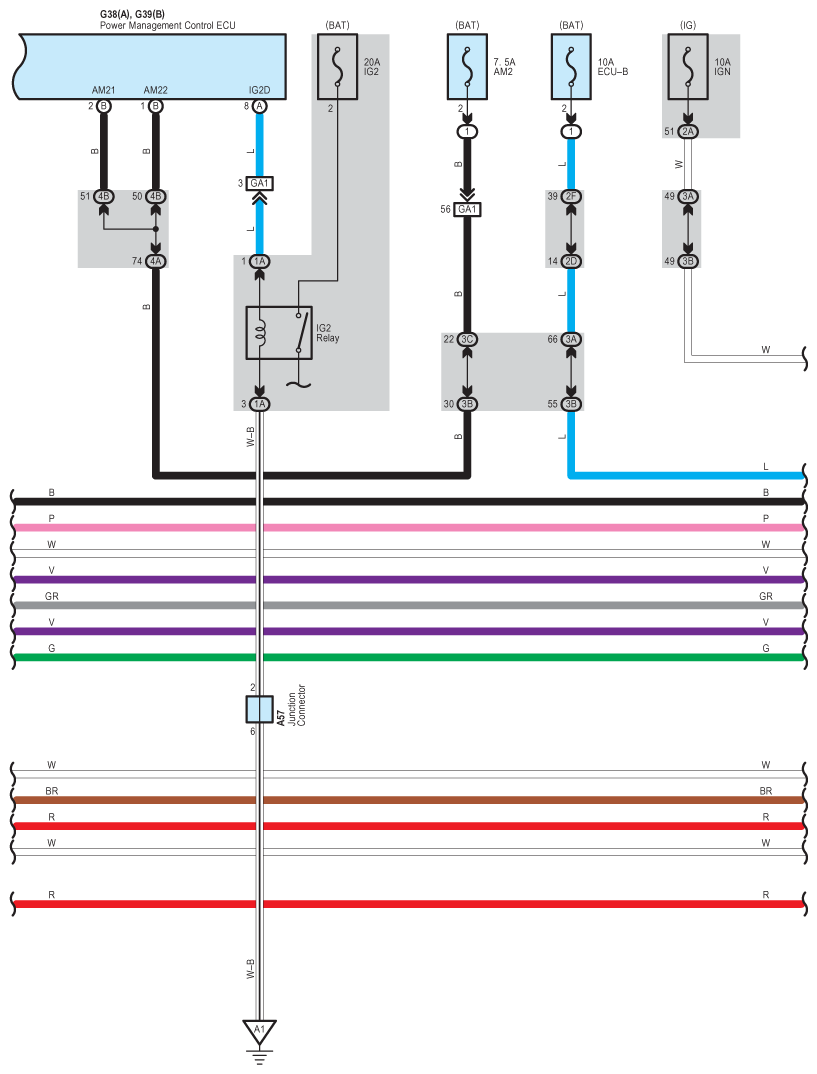

Fig 7: Smart Access System With Push-Button Start - Circuit Diagram (7 Of 24)

G07580471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

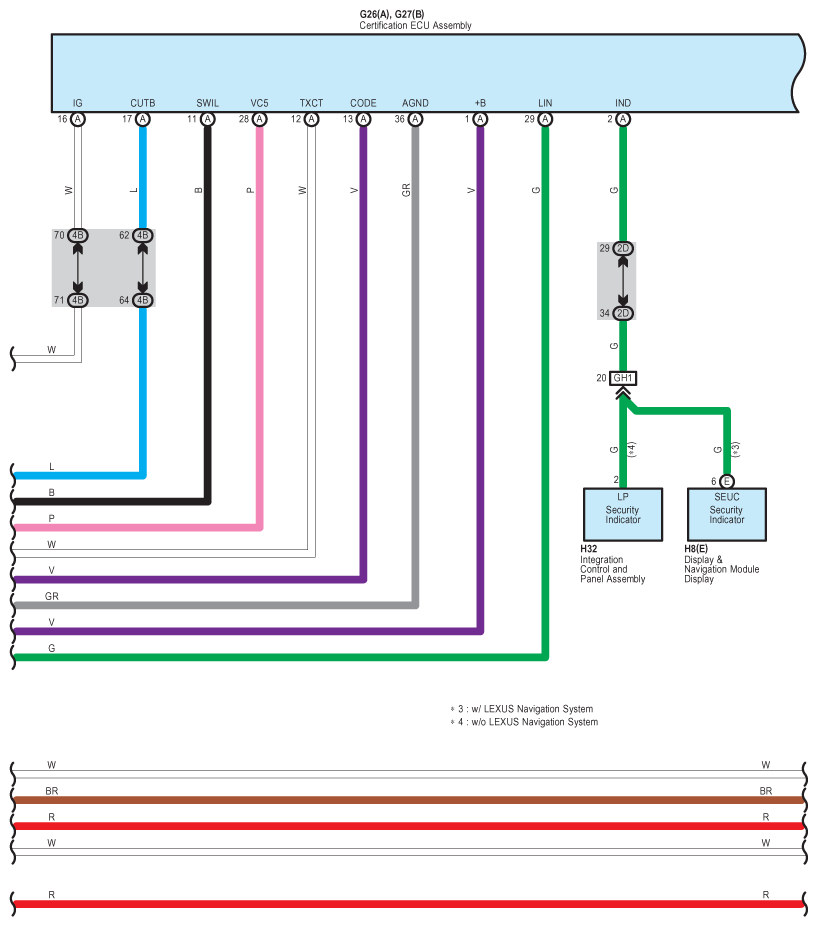

Fig 8: Smart Access System With Push-Button Start - Circuit Diagram (8 Of 24)

G07580472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

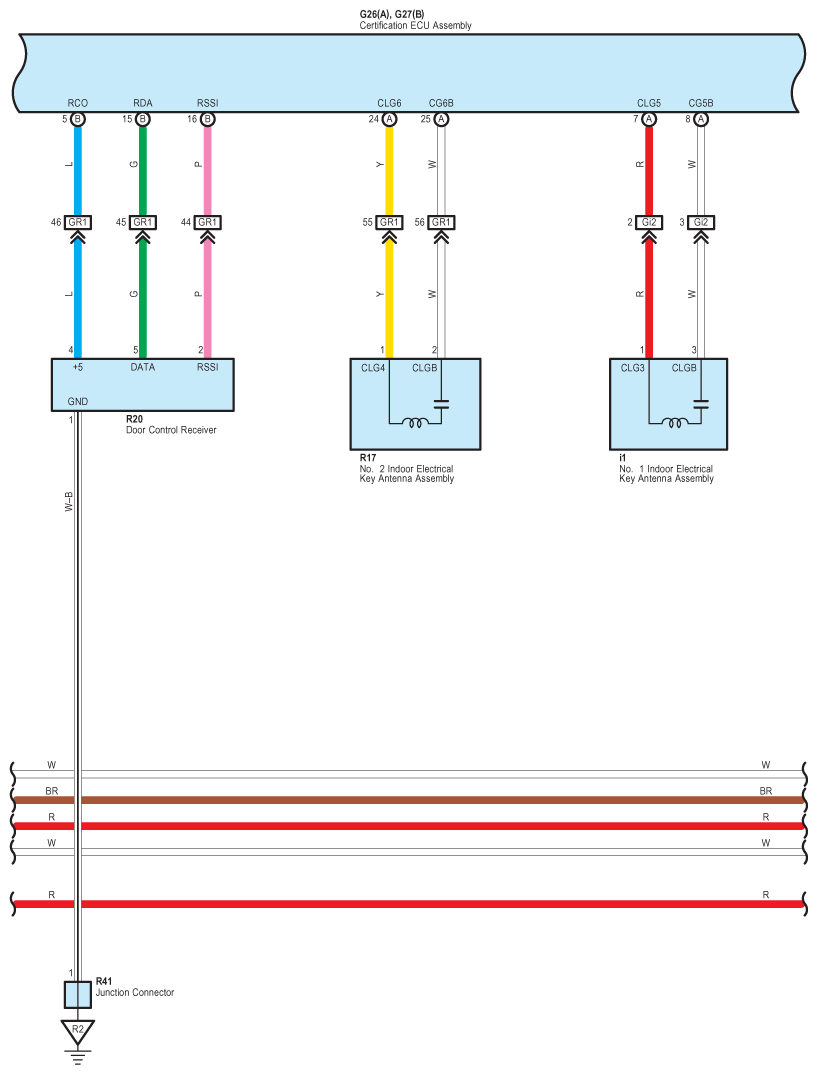

Fig 9: Smart Access System With Push-Button Start - Circuit Diagram (9 Of 24)

G07580473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

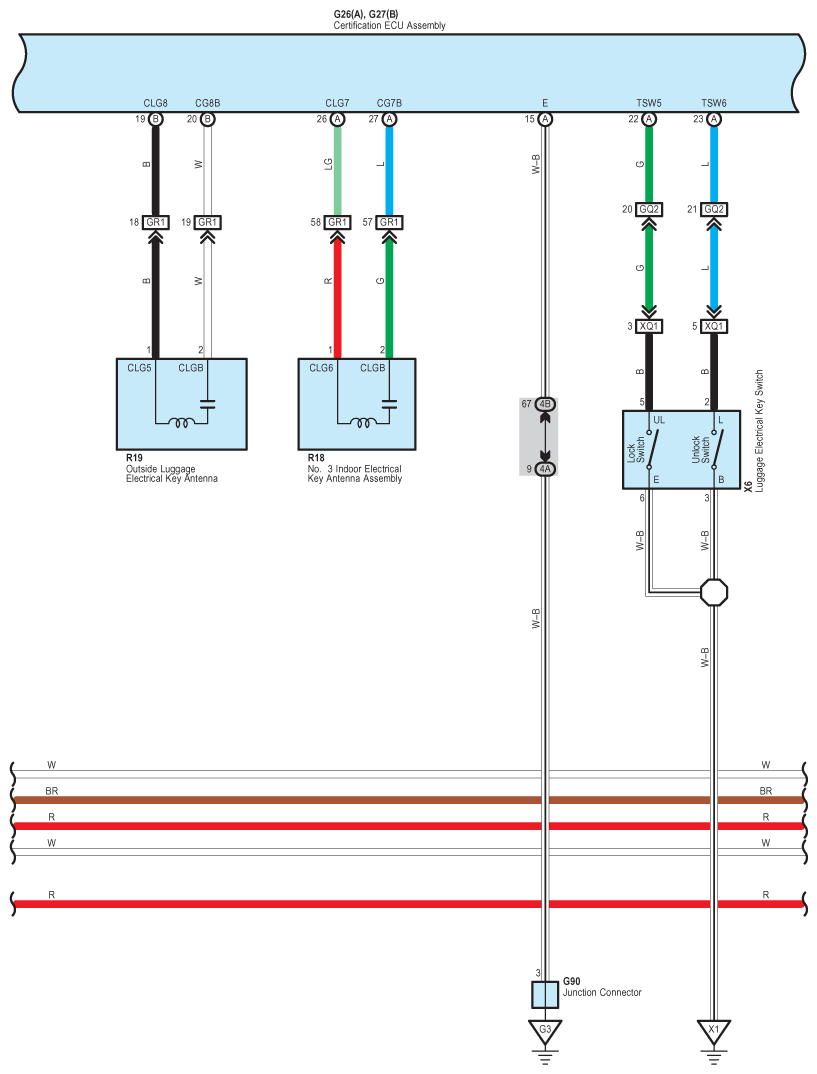

Fig 10: Smart Access System With Push-Button Start - Circuit Diagram (10 Of 24)

G07580474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

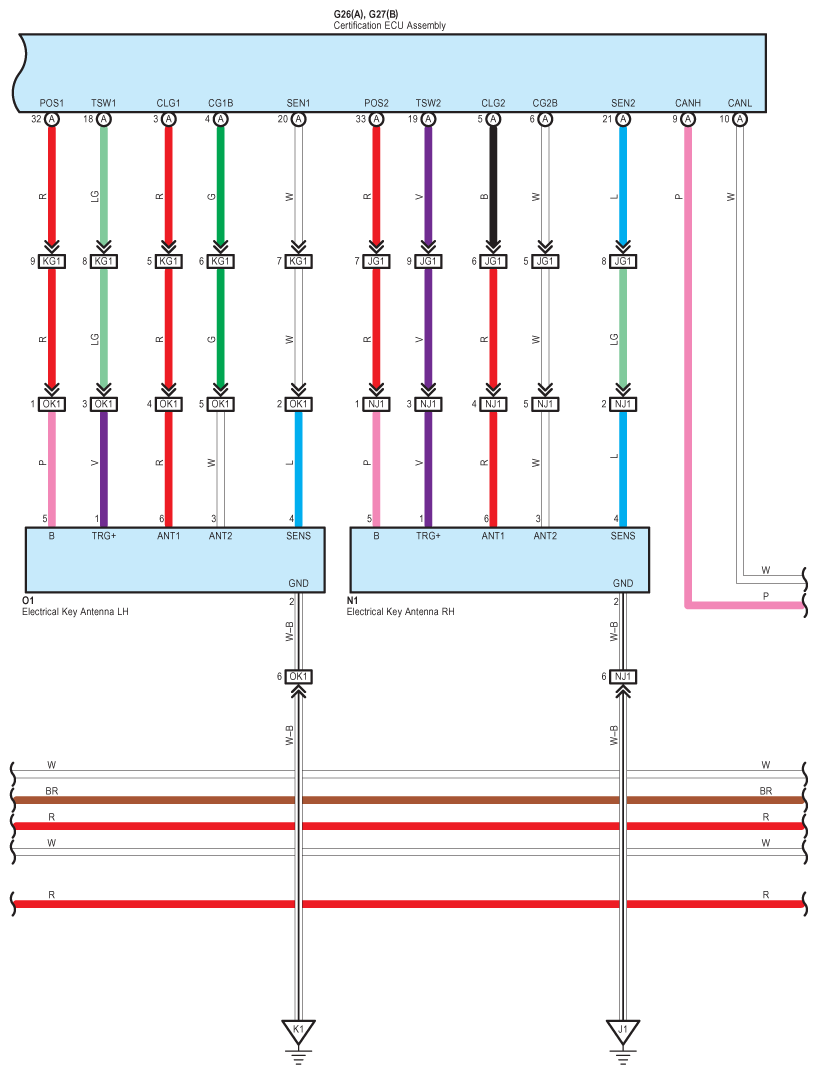

Fig 11: Smart Access System With Push-Button Start - Circuit Diagram (11 Of 24)

G07580475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

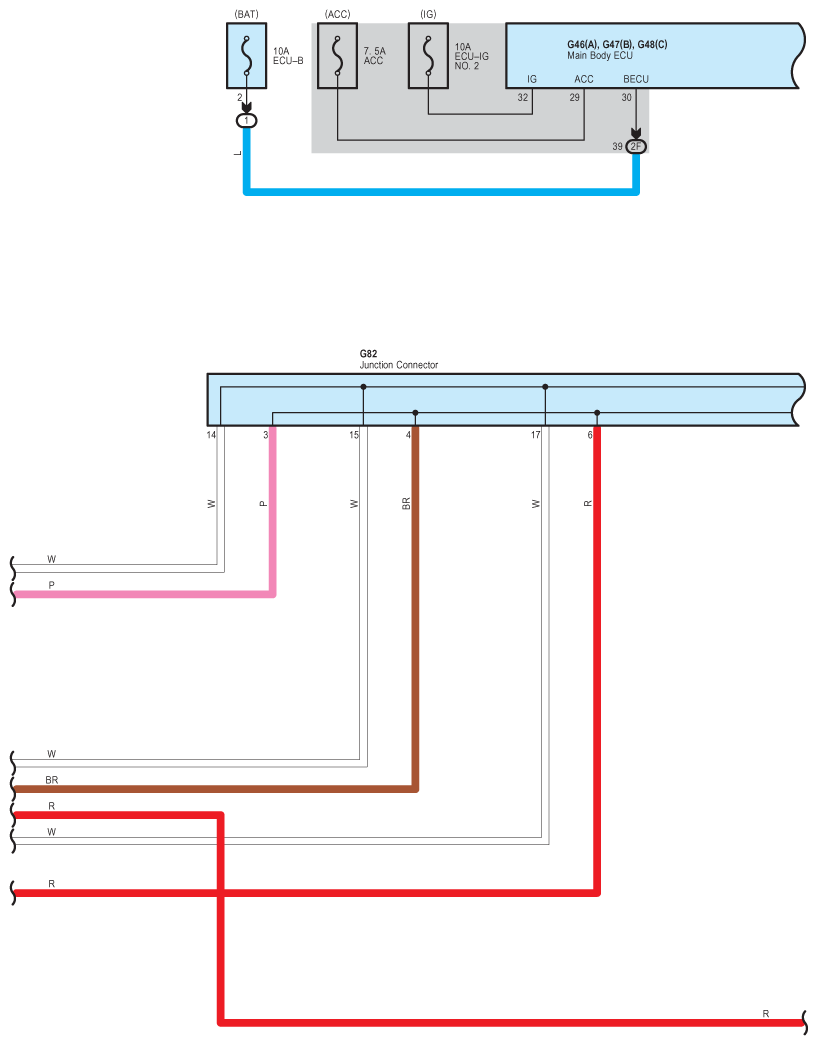

Fig 12: Smart Access System With Push-Button Start - Circuit Diagram (12 Of 24)

G07580476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

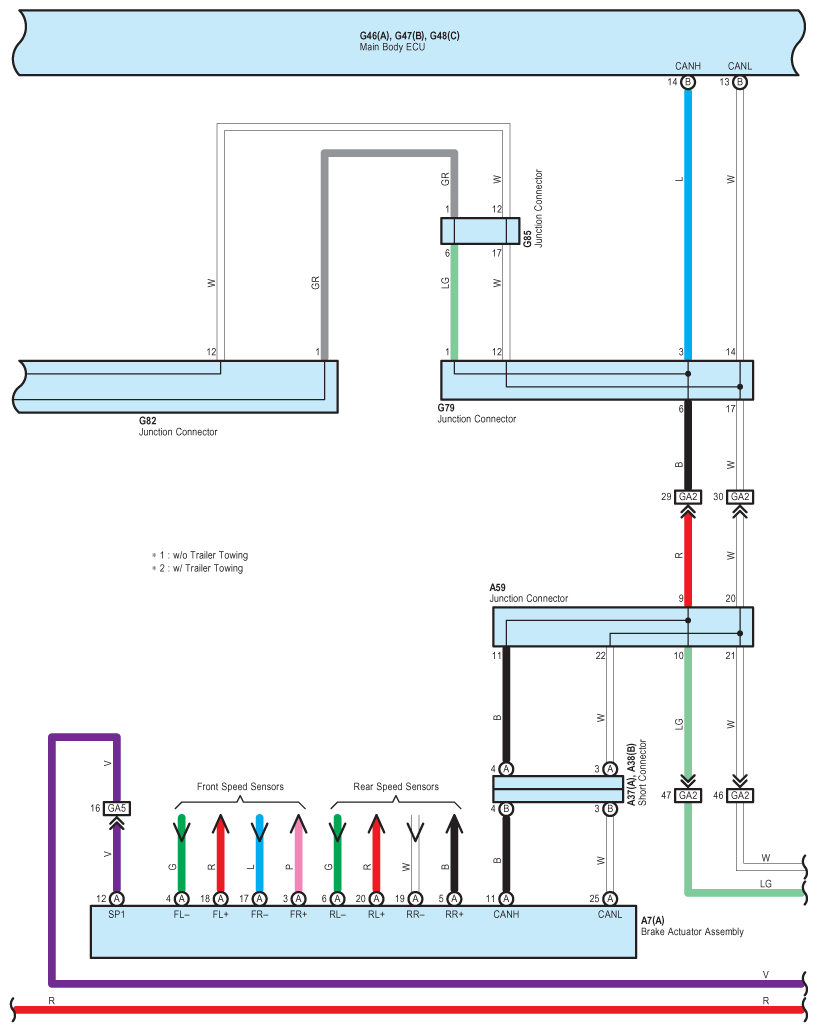

Fig 13: Smart Access System With Push-Button Start - Circuit Diagram (13 Of 24)

G07580477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

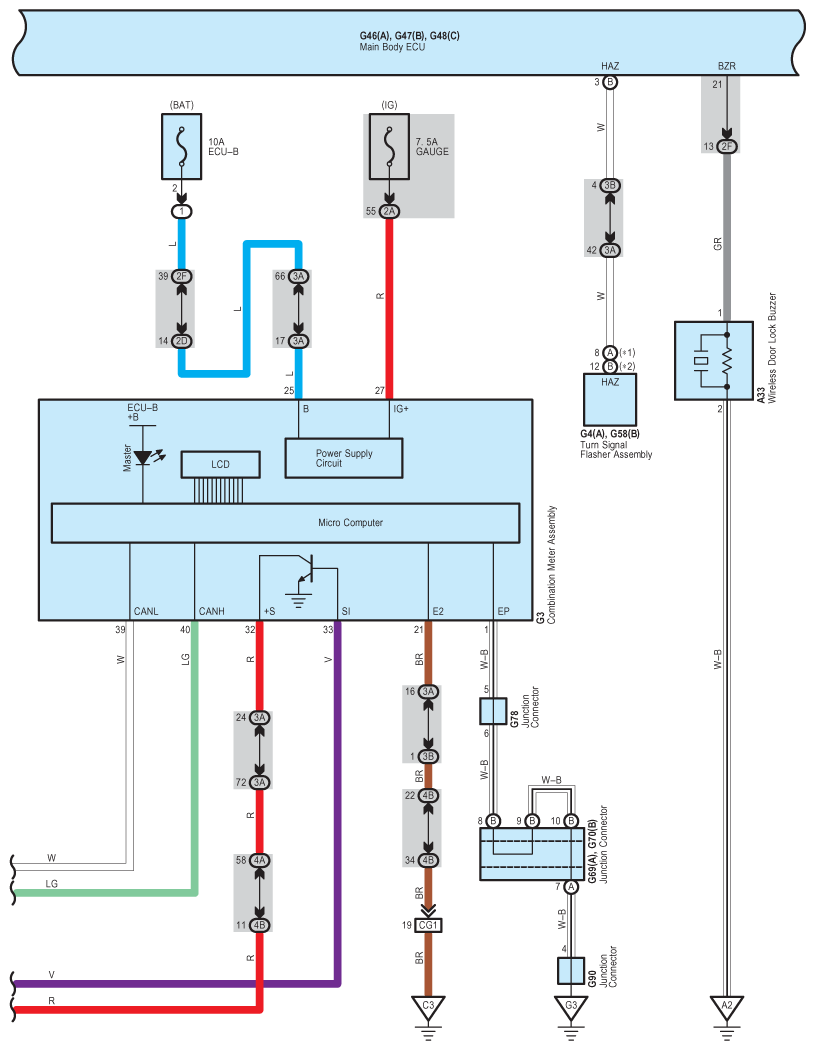

Fig 14: Smart Access System With Push-Button Start - Circuit Diagram (14 Of 24)

G07580478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

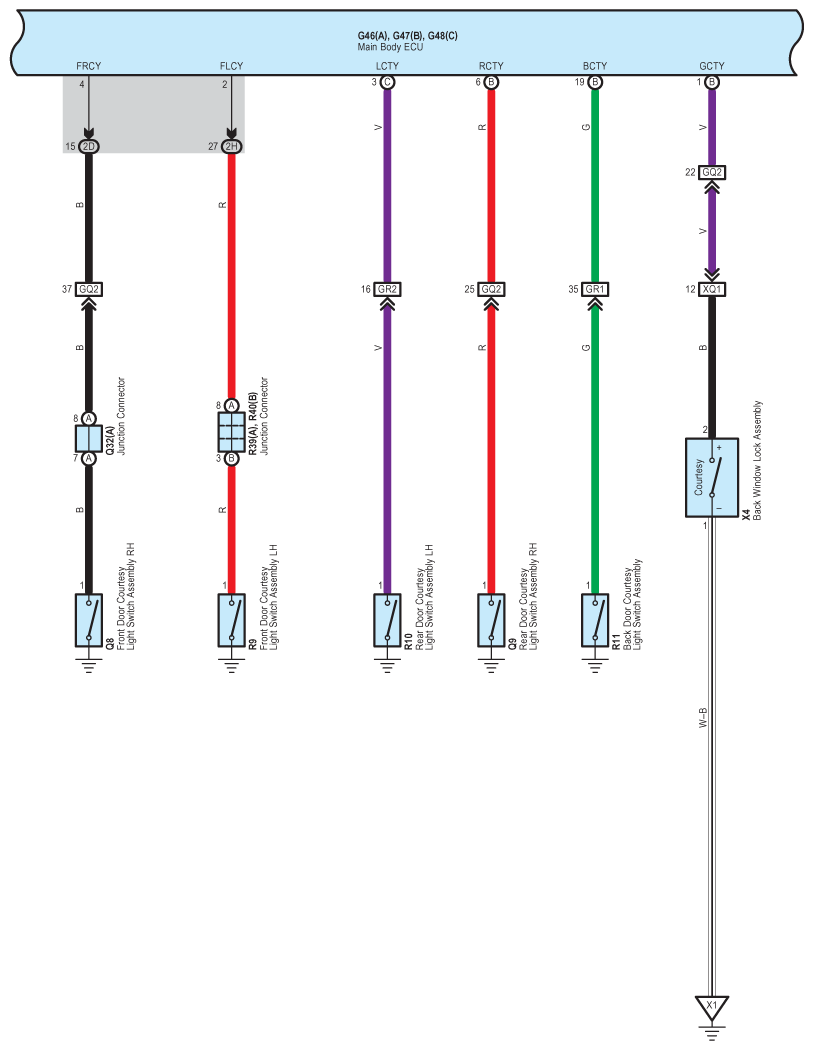

Fig 15: Smart Access System With Push-Button Start - Circuit Diagram (15 Of 24)

G07580479

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

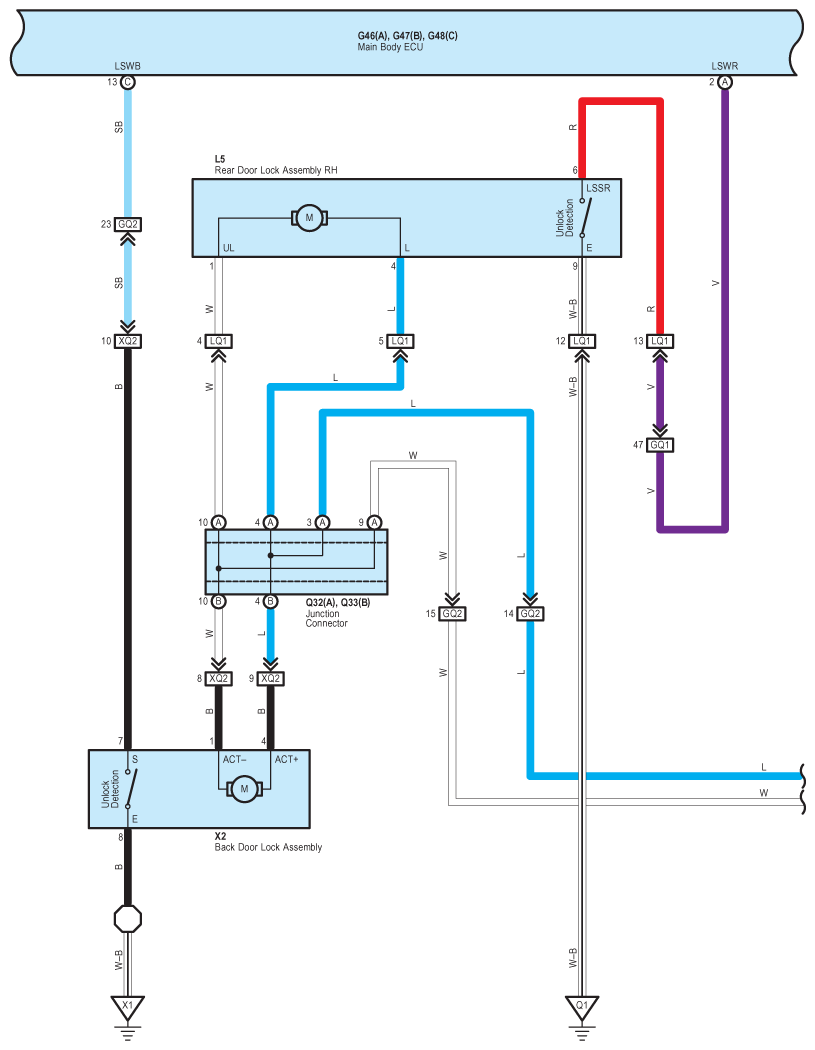

Fig 16: Smart Access System With Push-Button Start - Circuit Diagram (16 Of 24)

G07580480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

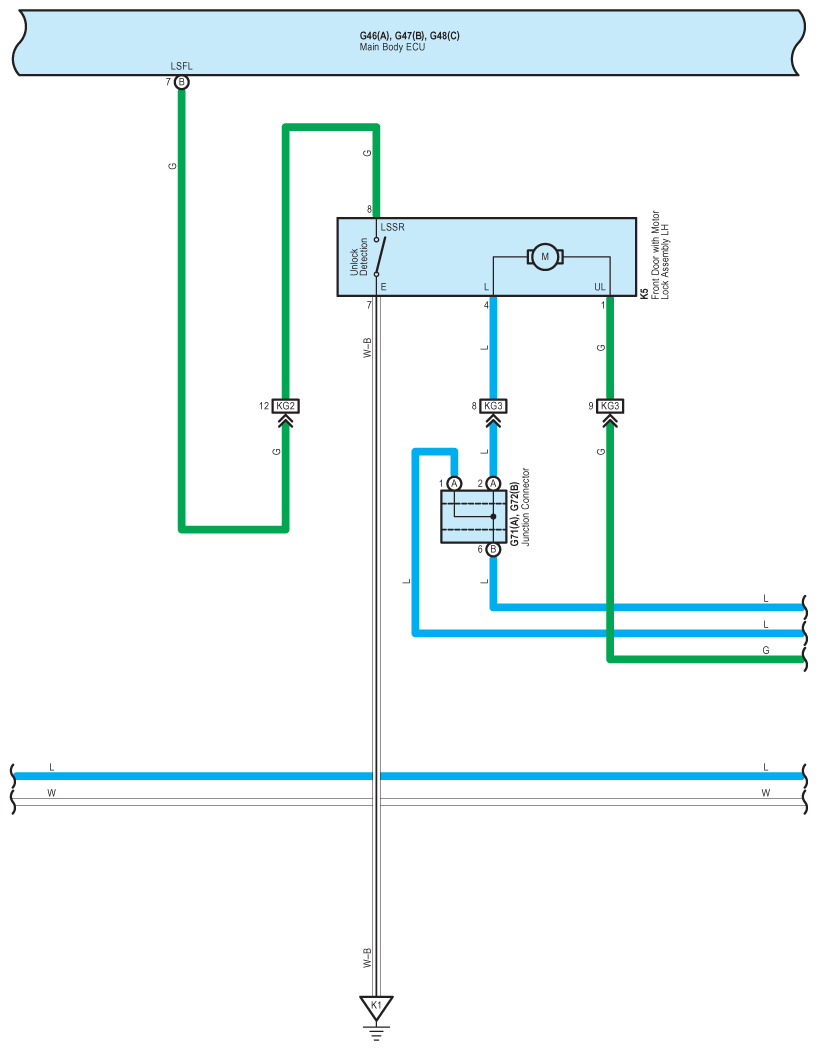

Fig 17: Smart Access System With Push-Button Start - Circuit Diagram (17 Of 24)

G07580481

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

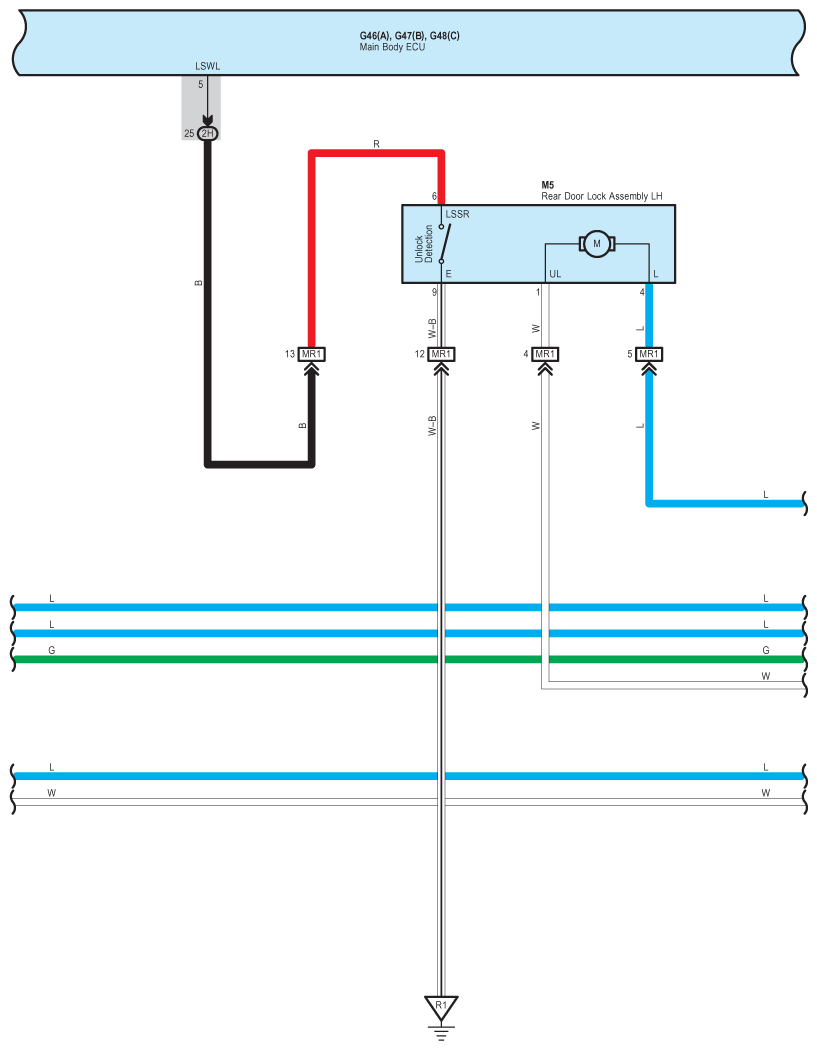

Fig 18: Smart Access System With Push-Button Start - Circuit Diagram (18 Of 24)

G07580482

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

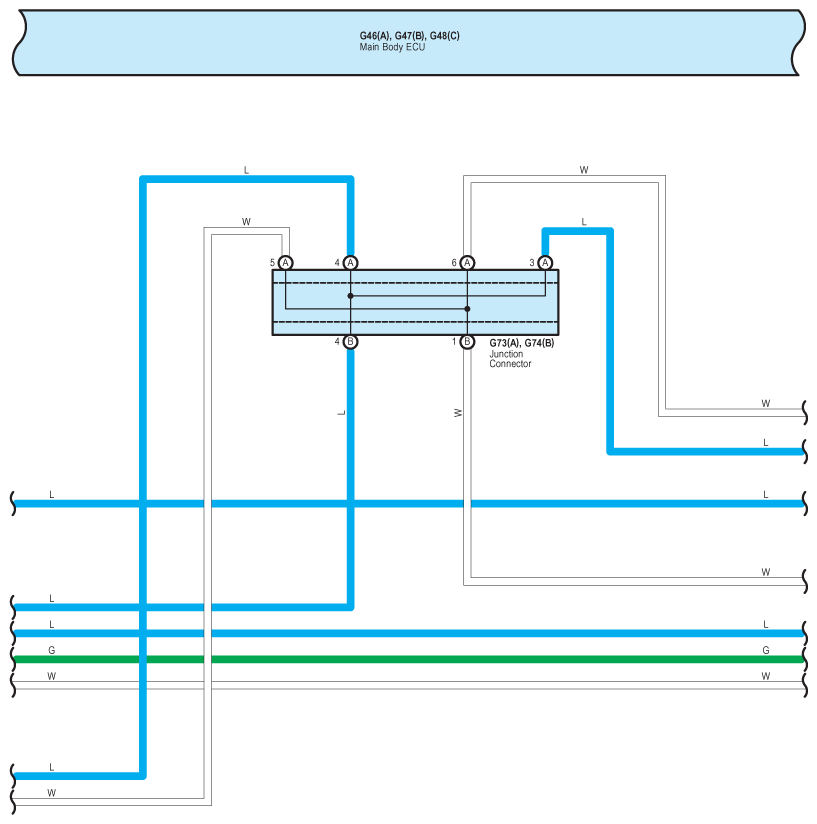

Fig 19: Smart Access System With Push-Button Start - Circuit Diagram (19 Of 24)

G07580483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

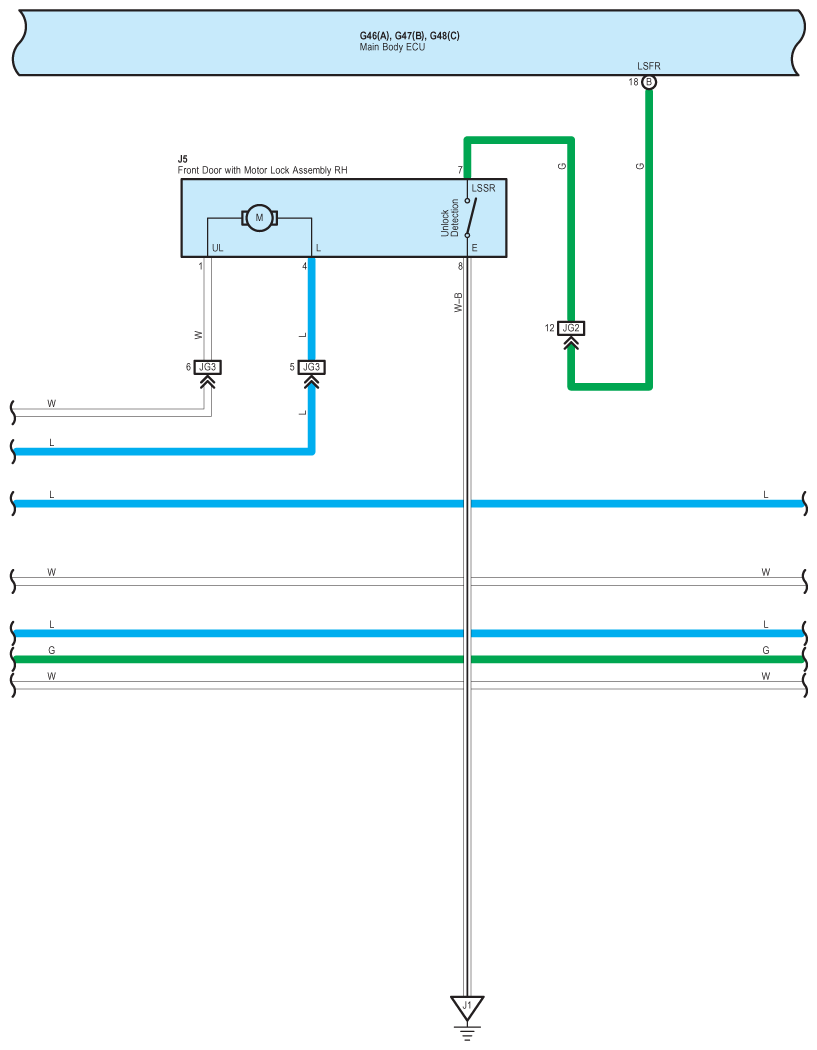

Fig 20: Smart Access System With Push-Button Start - Circuit Diagram (20 Of 24)

G07580484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

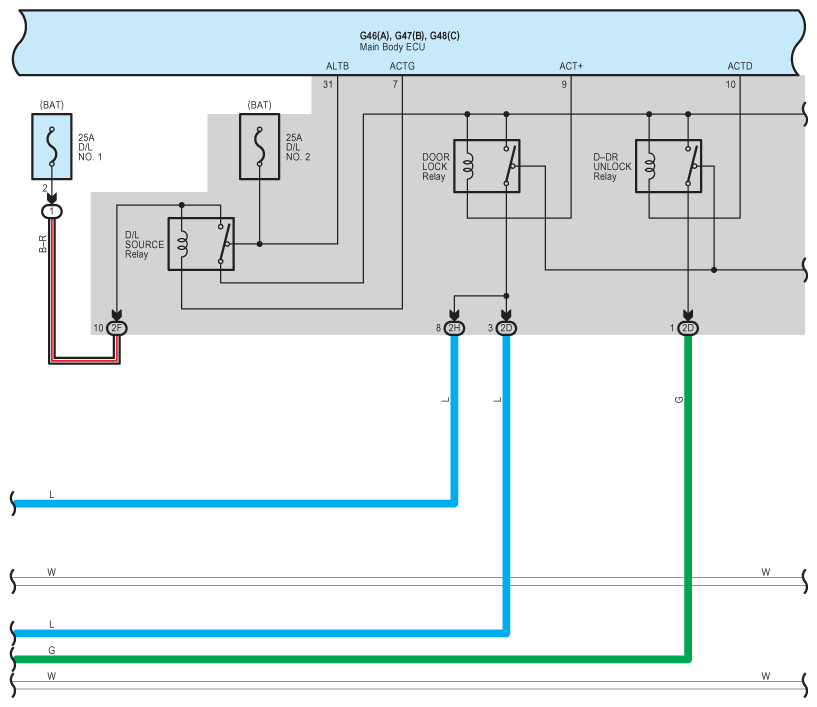

Fig 21: Smart Access System With Push-Button Start - Circuit Diagram (21 Of 24)

G07580485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

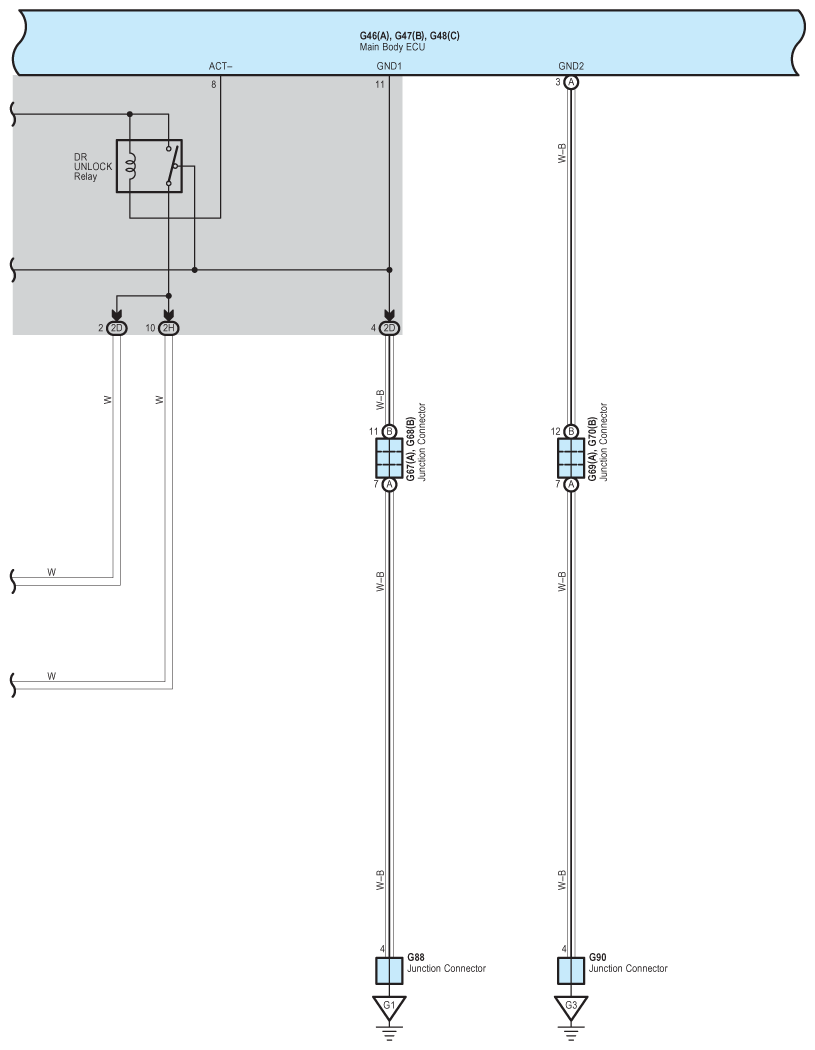

Fig 22: Smart Access System With Push-Button Start - Circuit Diagram (22 Of 24)

G07580486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

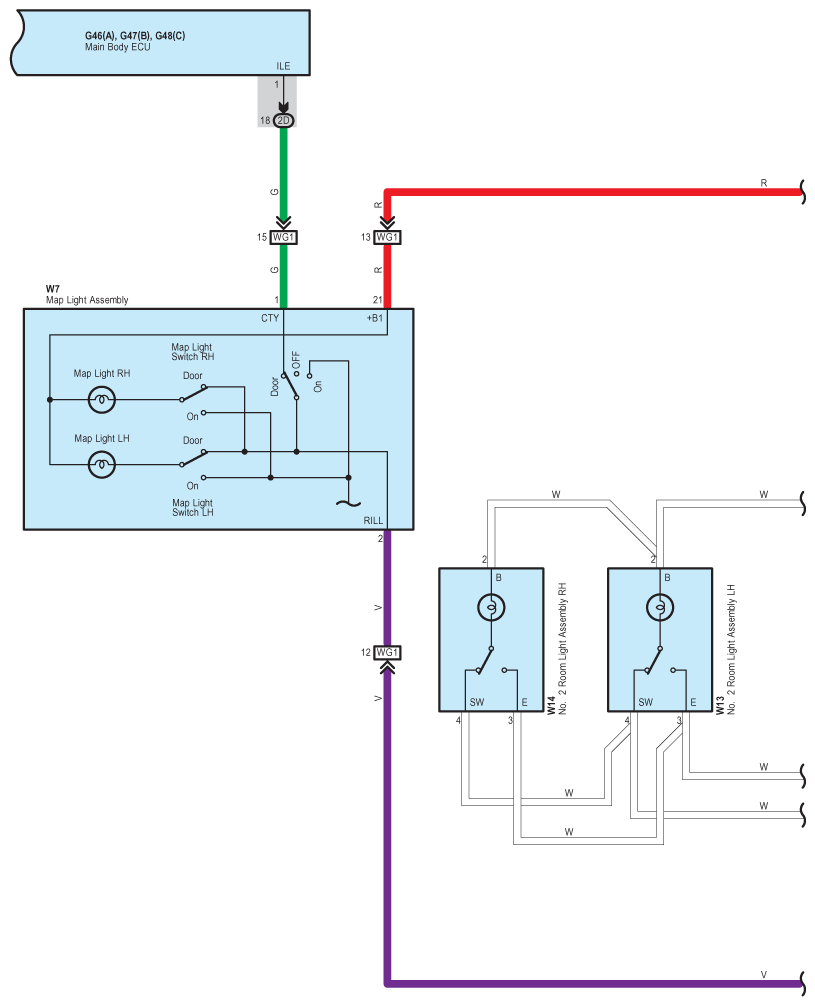

Fig 23: Smart Access System With Push-Button Start - Circuit Diagram (23 Of 24)

G07580487

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

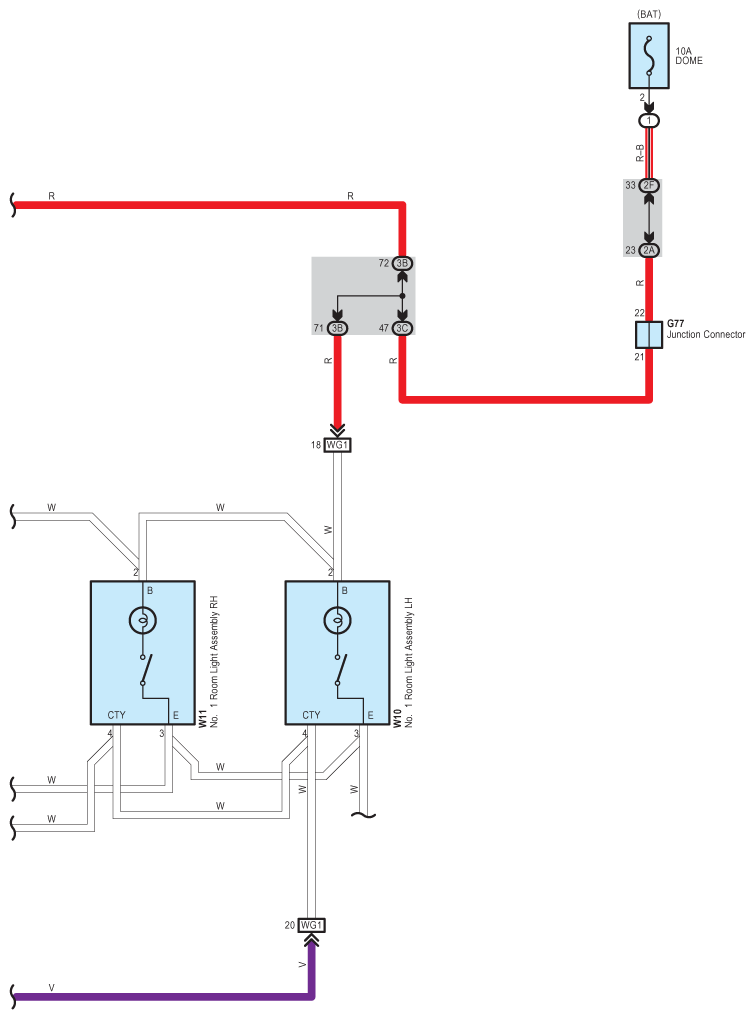

Fig 24: Smart Access System With Push-Button Start - Circuit Diagram (24 Of 24)

G07580488

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
