Trailer Towing: Notes

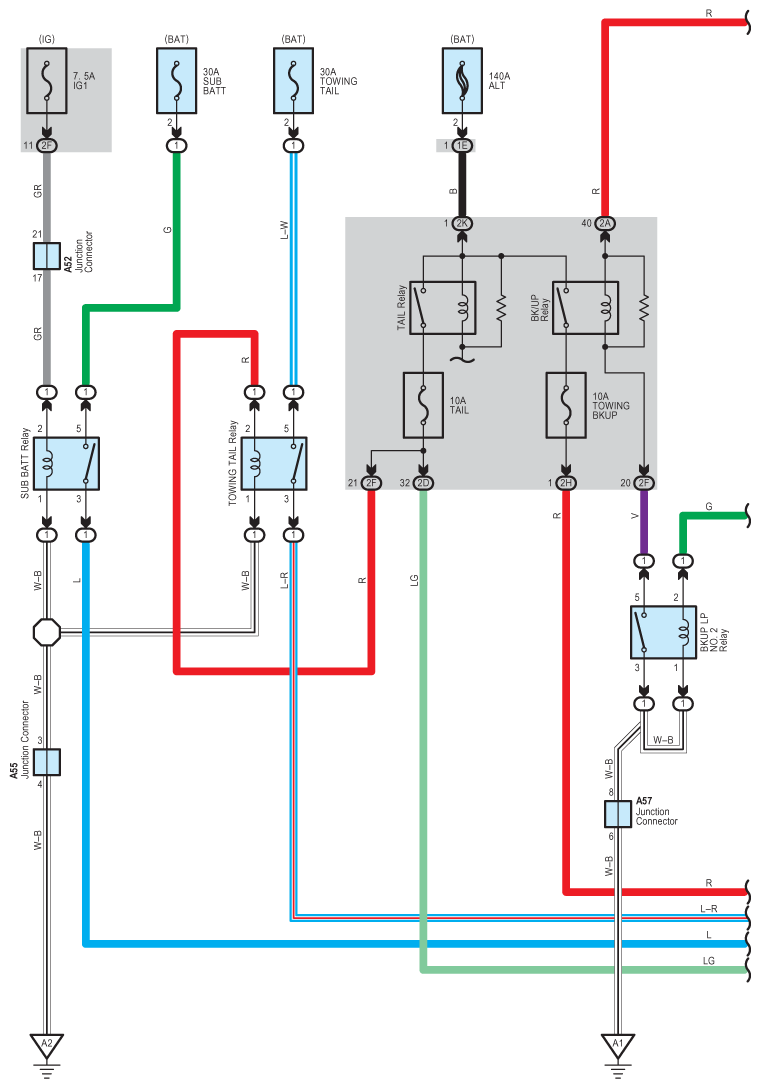

Fig 1: Trailer Towing - Circuit Diagram (1 Of 5)
G07580743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

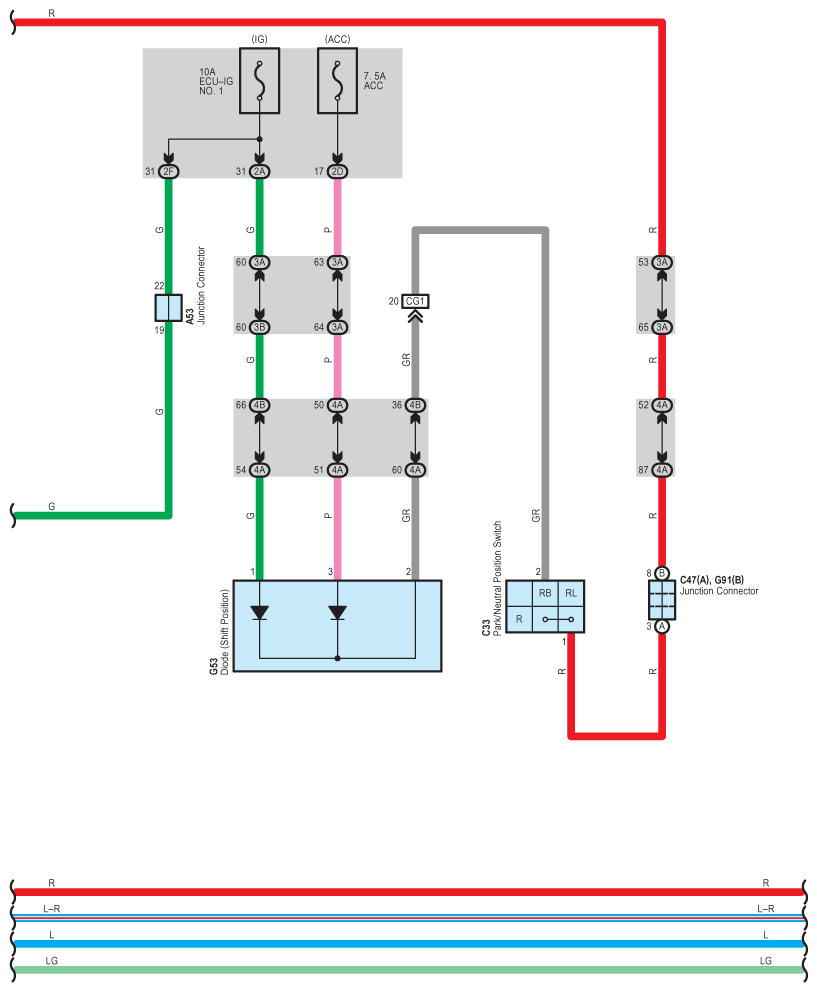

Fig 2: Trailer Towing - Circuit Diagram (2 Of 5)
G07580744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

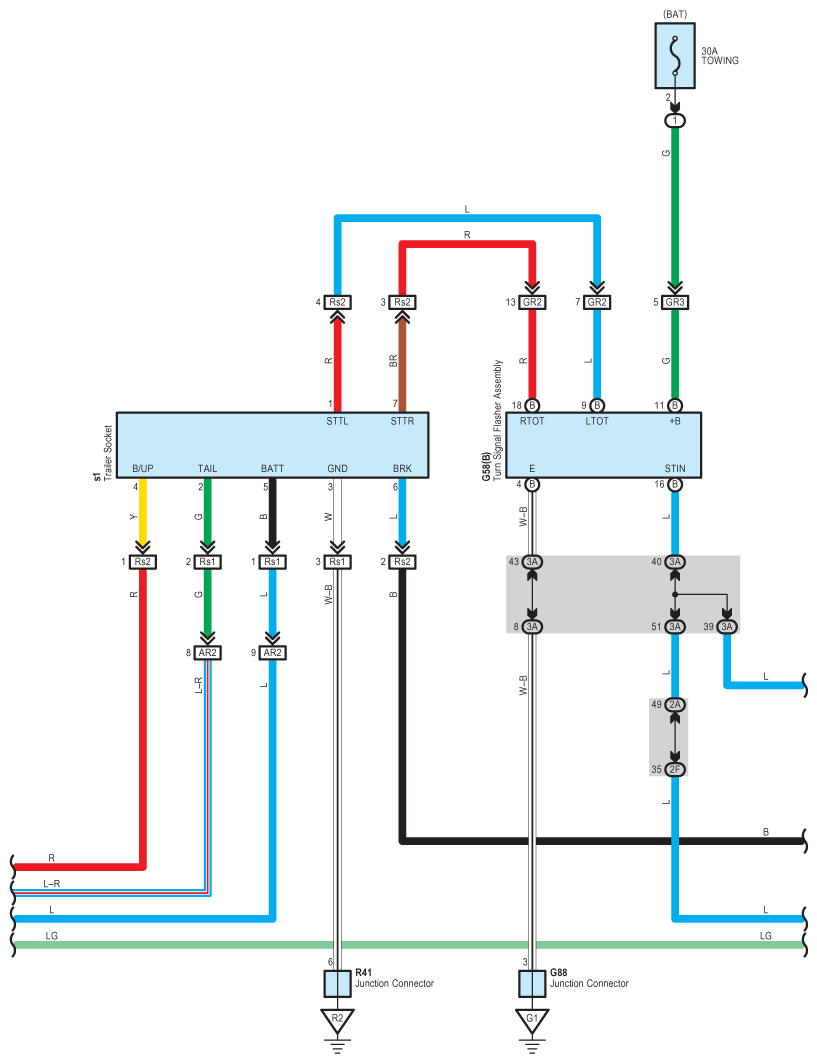

Fig 3: Trailer Towing - Circuit Diagram (3 Of 5)
G07580745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

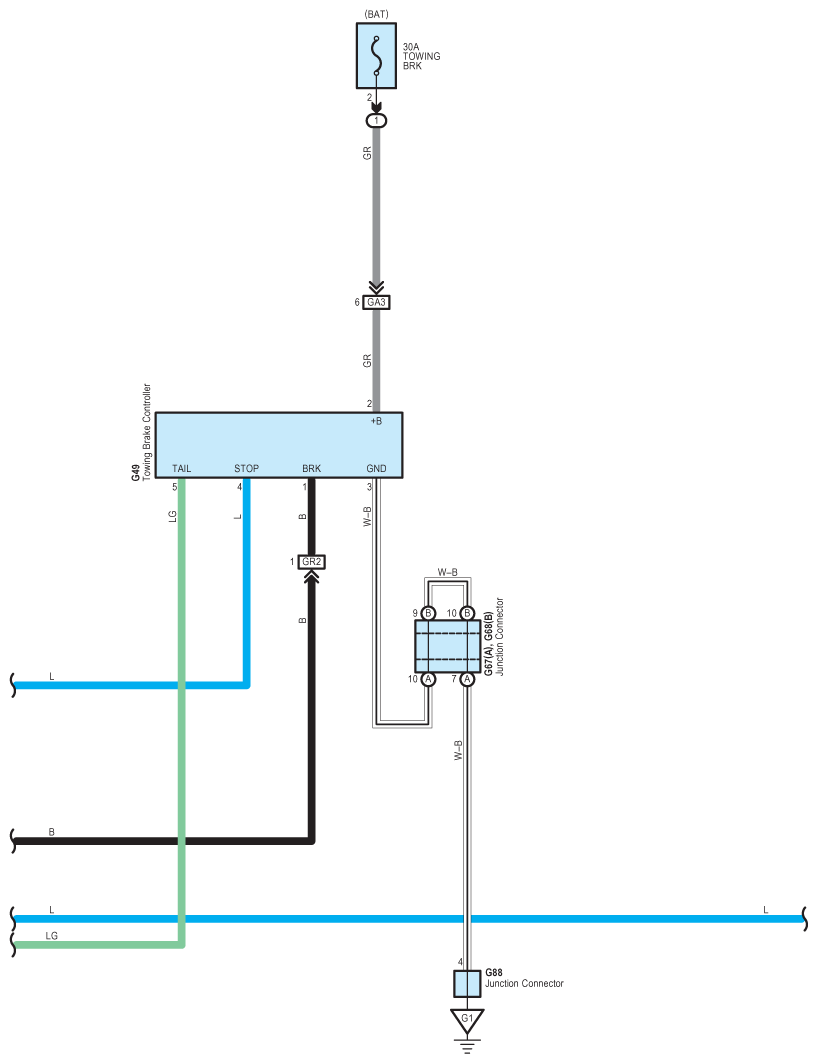

Fig 4: Trailer Towing - Circuit Diagram (4 Of 5)
G07580746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

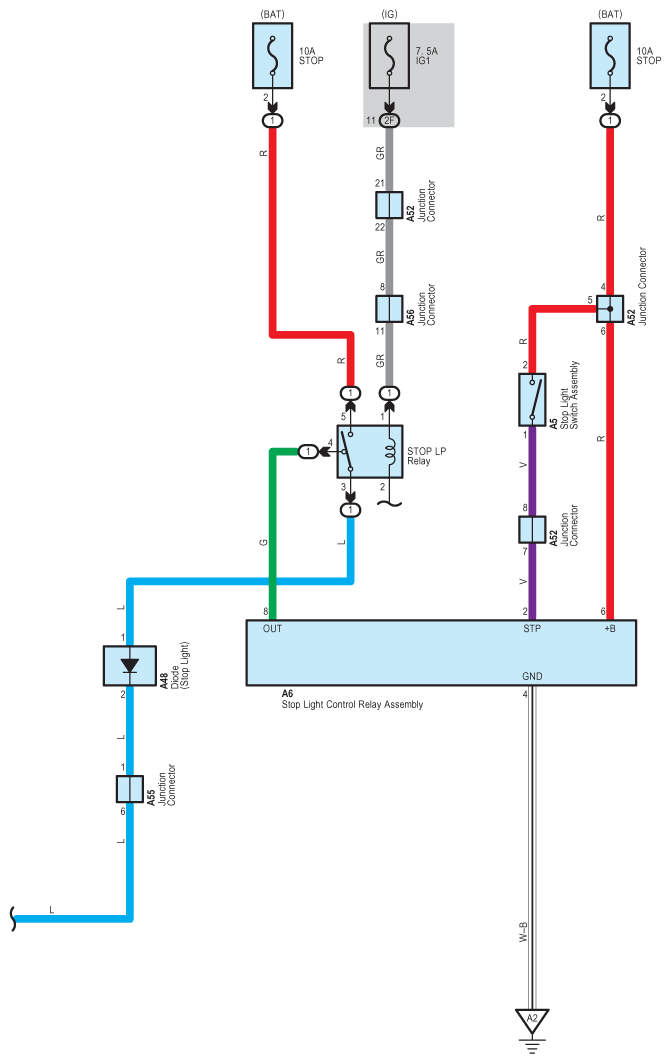

Fig 5: Trailer Towing - Circuit Diagram (5 Of 5)
G07580747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
