System Diagram

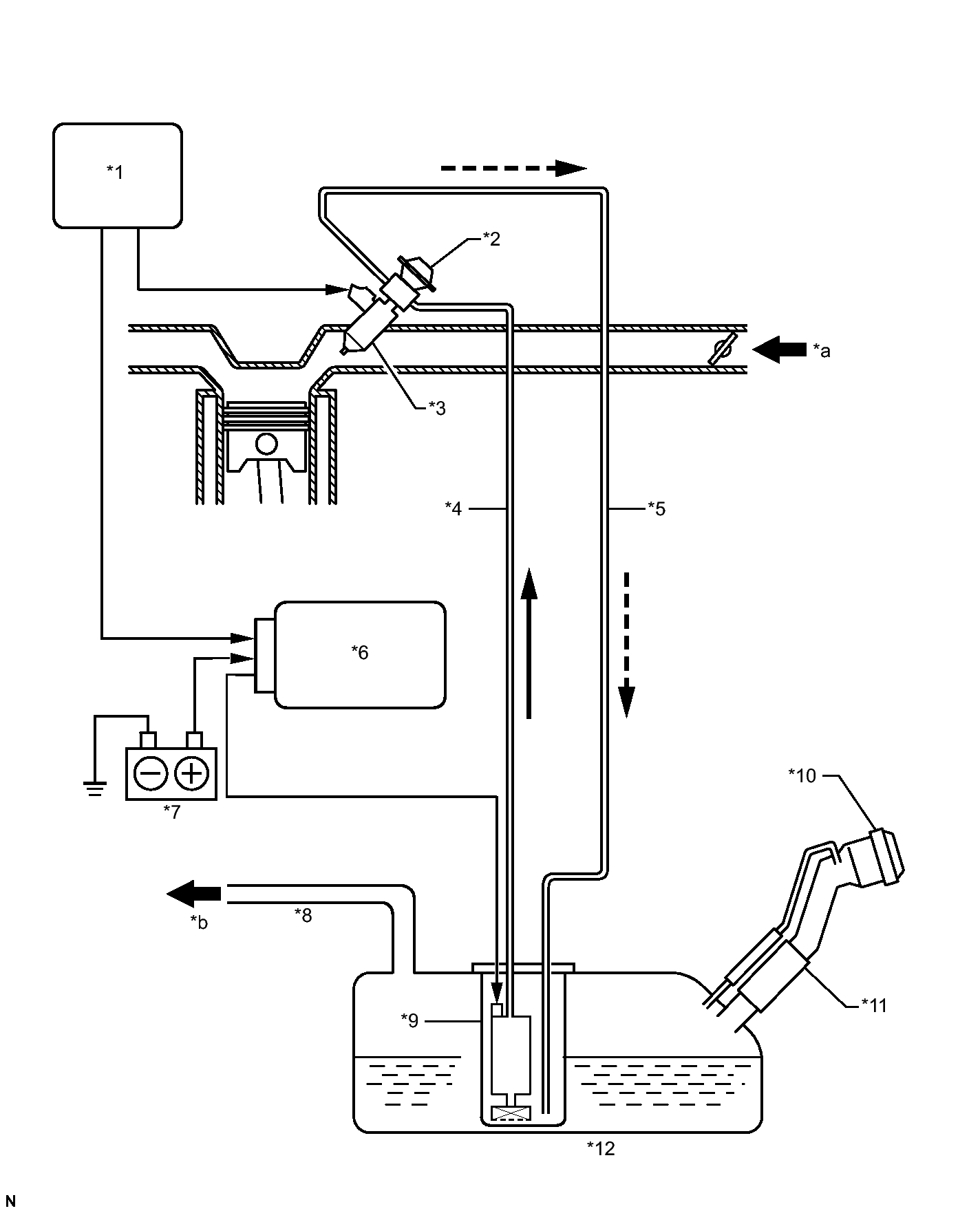

FUEL FLOW DIAGRAM

Fig 1: Identifying Fuel Flow System Diagram

GTY264641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	ECM	*2	Fuel Pressure Regulator
*3	Fuel Injector	*4	Fuel Main Tube
*5	Fuel Return Tube	*6	Fuel Pump ECU
*7	Battery	*8	Vent Line
*9	Fuel Suction with Pump and Gauge Tube - Fuel Pump - Fuel Sender Gauge	*10	Fuel Tank Cap
*11	Fuel Filler Pipe	*12	Fuel Tank
*a	Intake Air	*b	to Canister

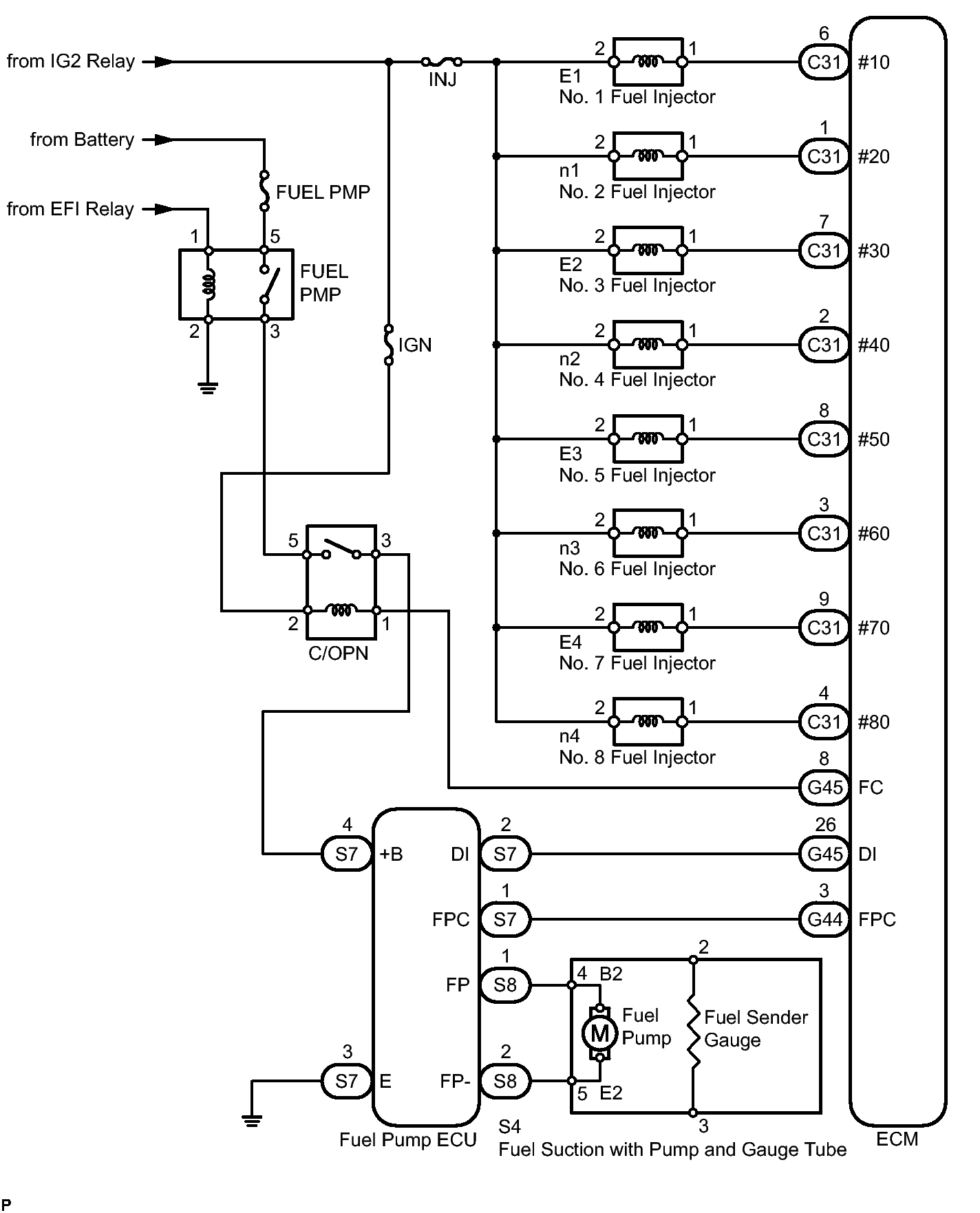

ELECTRICAL CONTROL DIAGRAM

Fig 2: Identifying Electrical Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
