Engine Controls - MIL ON/DTC P0136 Set

L-TCI-3140

May 11, 2012

MIL "ON" DTC P0136

Service Category
Engine/Hybrid System

Section
Engine Control

Market
Canada

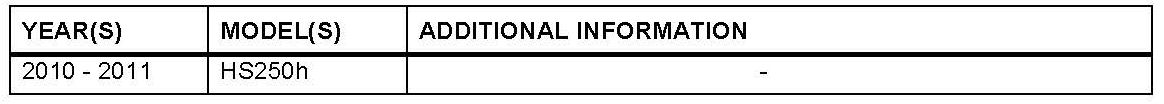

APPLICABILITY:

INTRODUCTION:

Some 2010 - 2011 model year HS250 vehicles equipped with a 2AZ-FXE engine may exhibit a MIL "ON" condition with Diagnostic Trouble Code (DTC) P0136 Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2). The oxygen sensor and Hybrid Vehicle ECU (HV ECU) logic have been modified to reduce the possibility of this condition occurring. Use the following repair procedure to address this condition.

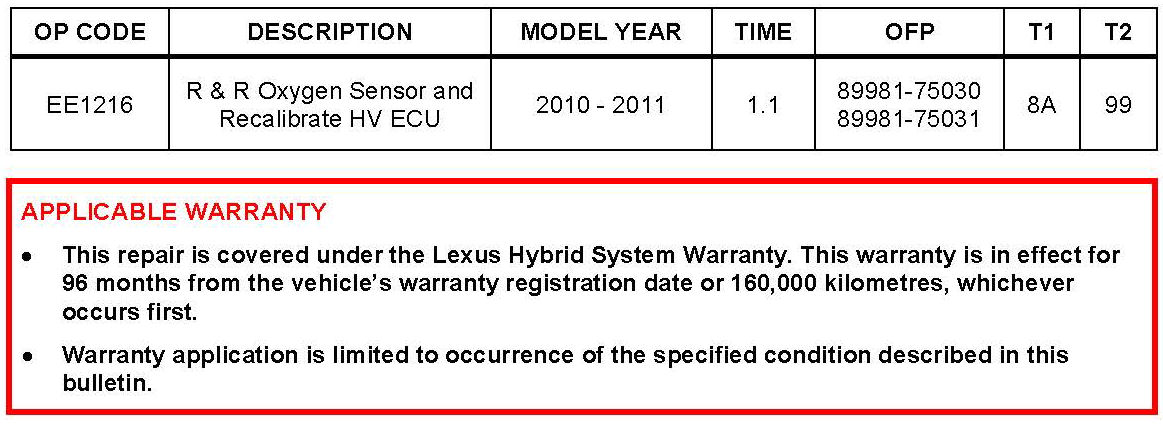

WARRANTY INFORMATION:

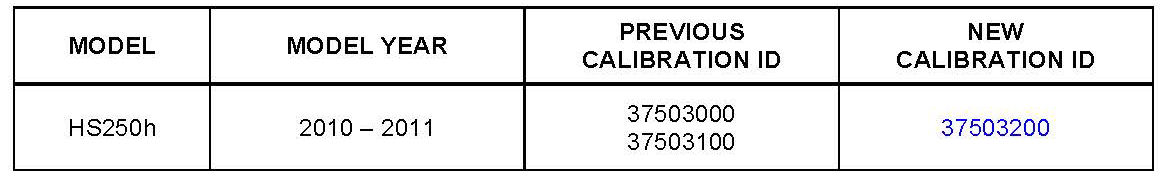

CALIBRATION INFORMATION:

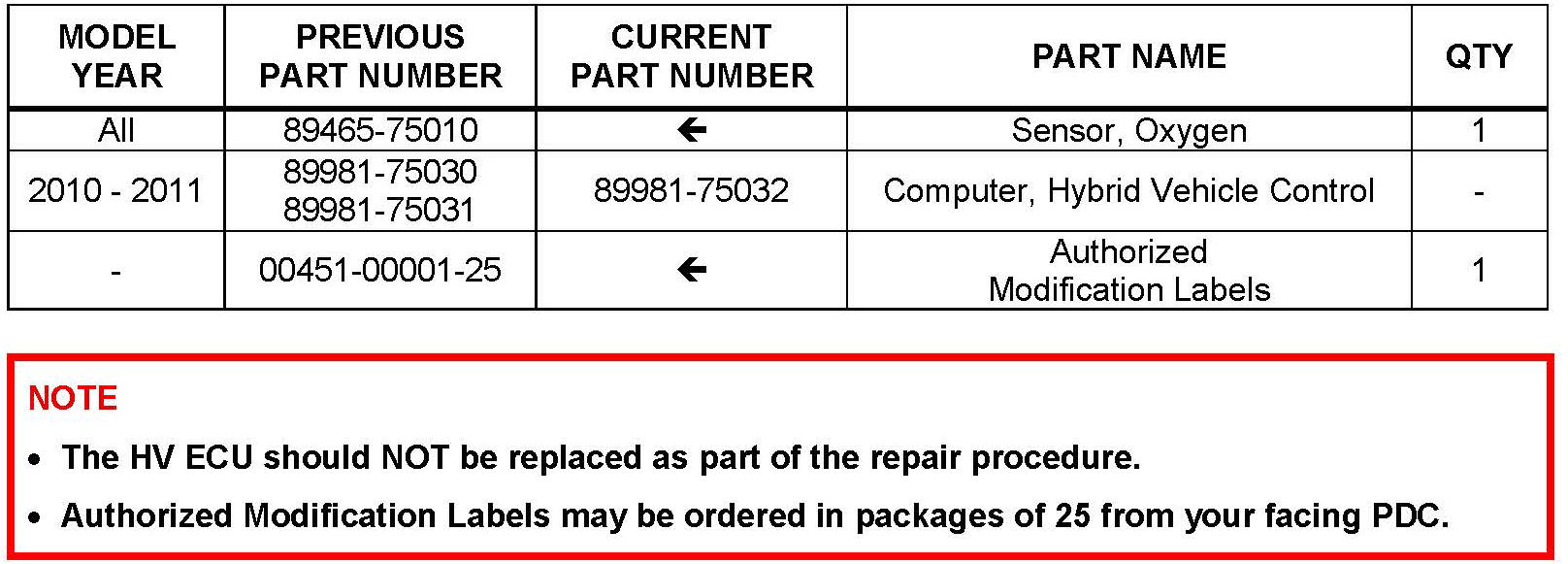

PARTS INFORMATION:

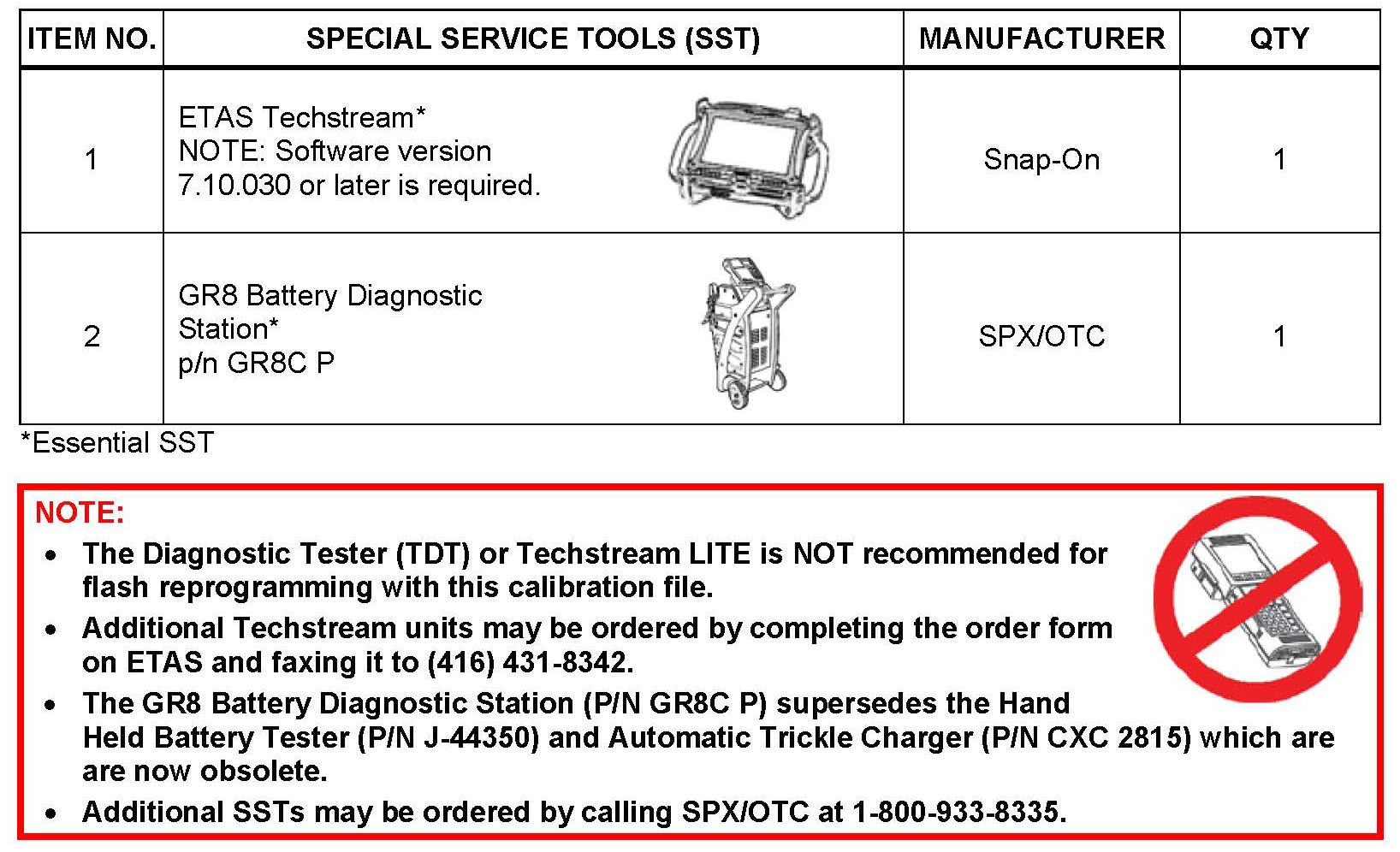

REQUIRED TOOLS & EQUIPMENT:
