Heated Oxygen Sensor: Inspection: Inspection

INSPECT OXYGEN SENSOR

Measure the resistance according to the value(s) in the table below.

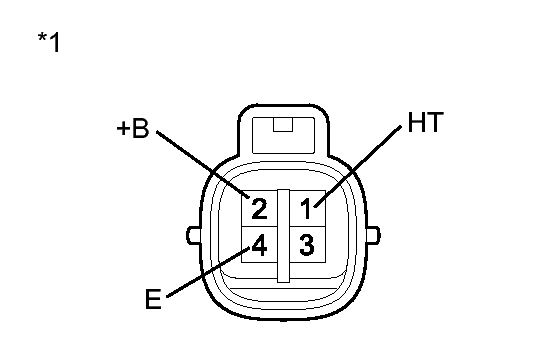

Fig 1: Identifying Oxygen Sensor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Component without harness connected (Oxygen Sensor)

Standard Resistance

Tester Connection	Condition	Specified Condition
1 (HT) - 2 (+B)	20°C (68°F)	11 to 16 Ω
1 (HT) - 4 (E)	-	10 kΩ or higher

If the resistance is not as specified, replace the sensor.
