Skid Control Buzzer: Inspection: Inspection
- INSPECT SKID CONTROL BUZZER ASSEMBLY

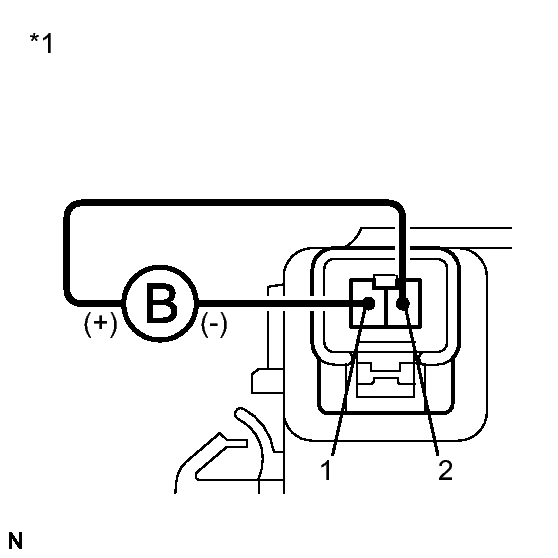

- Connect a negative (-) lead from the battery to terminal 1, and a positive (+) lead to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*1 Component without harness connected
(Skid Control Buzzer)OK
The skid control buzzer sounds.
If the result is not as specified, replace the skid control buzzer assembly.
- Connect a negative (-) lead from the battery to terminal 1, and a positive (+) lead to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
