Hybrid System: Notes

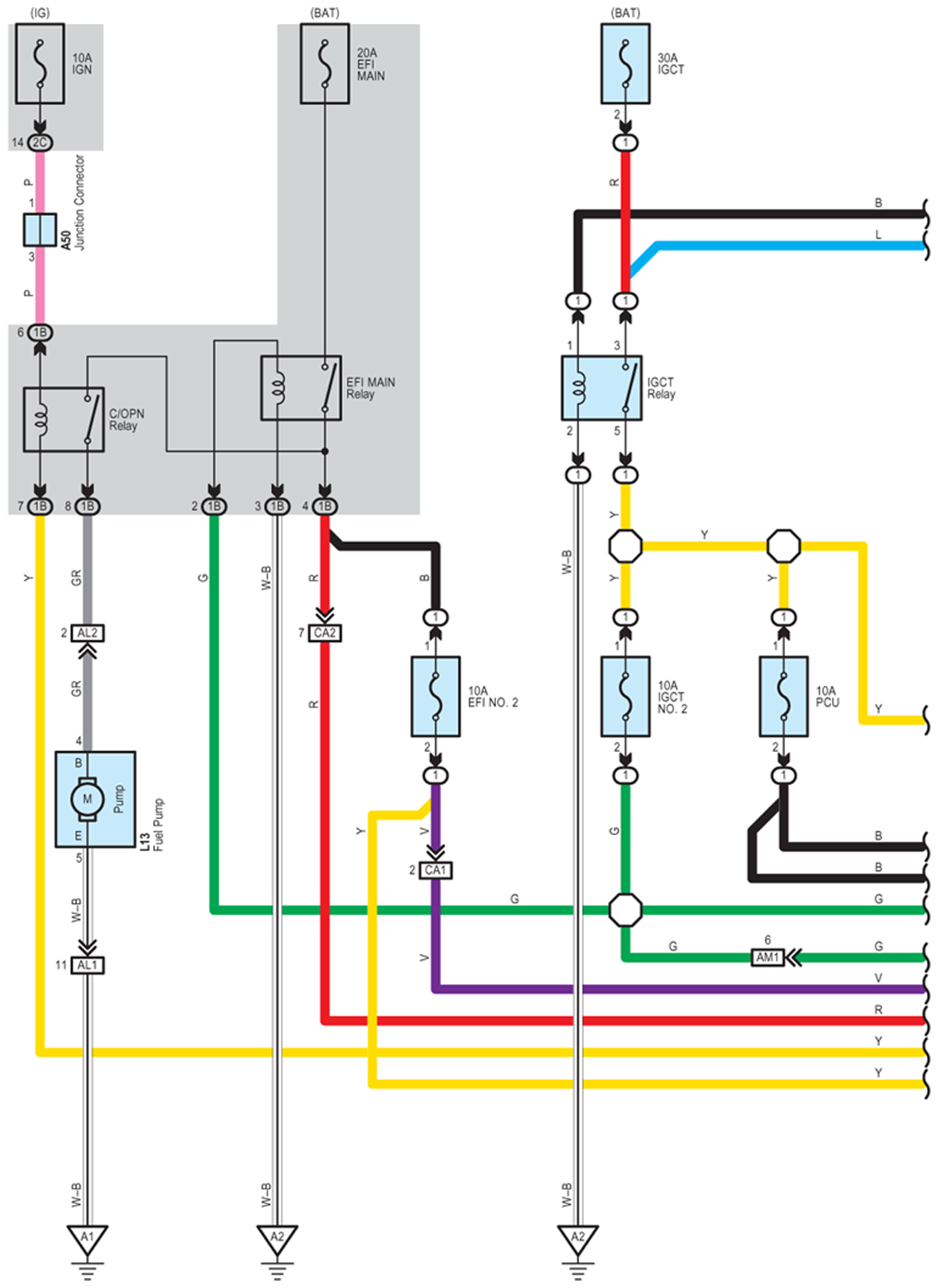

Fig 1: Hybrid System - Circuit Diagram (1 Of 30)

G07578199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

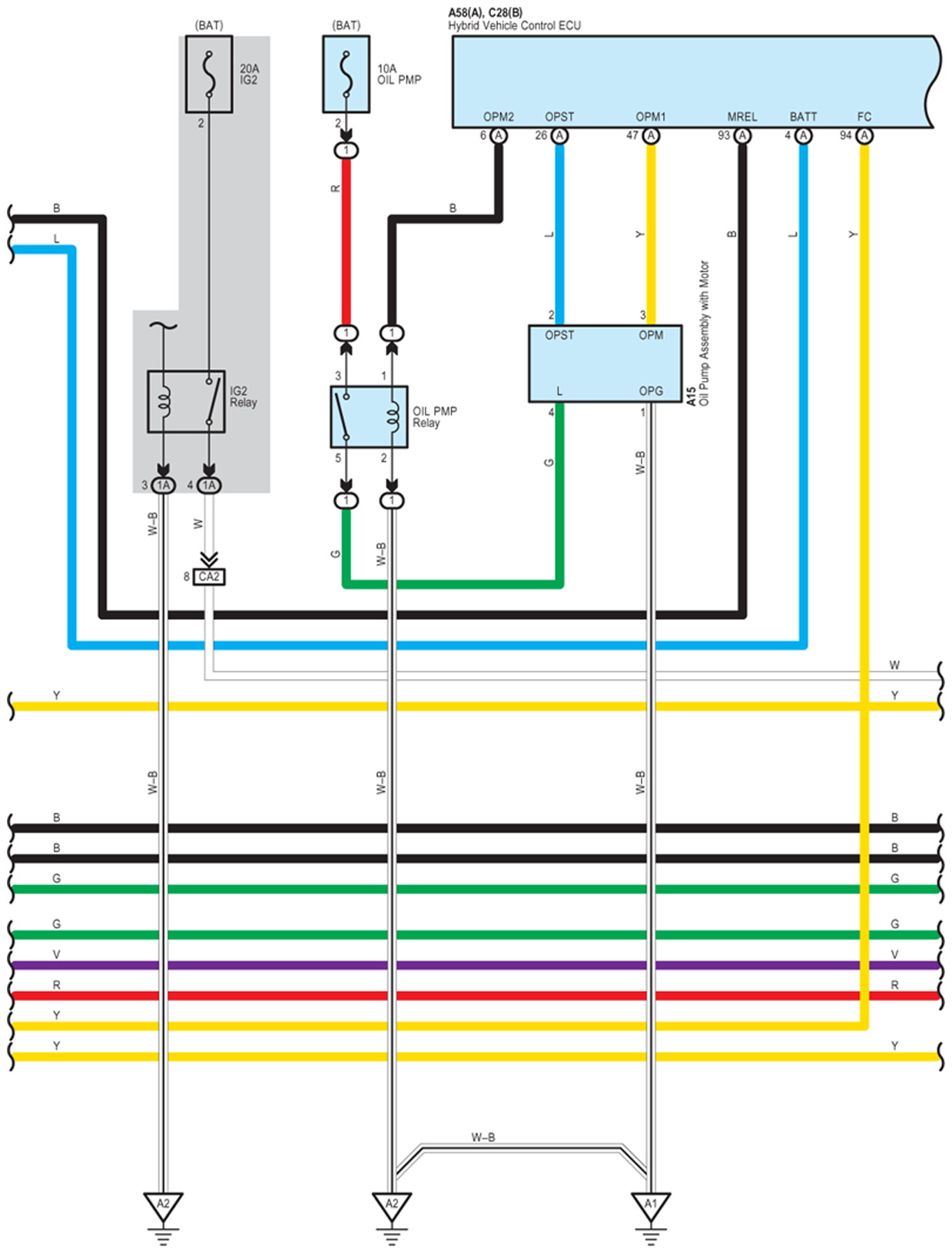

Fig 2: Hybrid System - Circuit Diagram (2 Of 30)

G07578200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

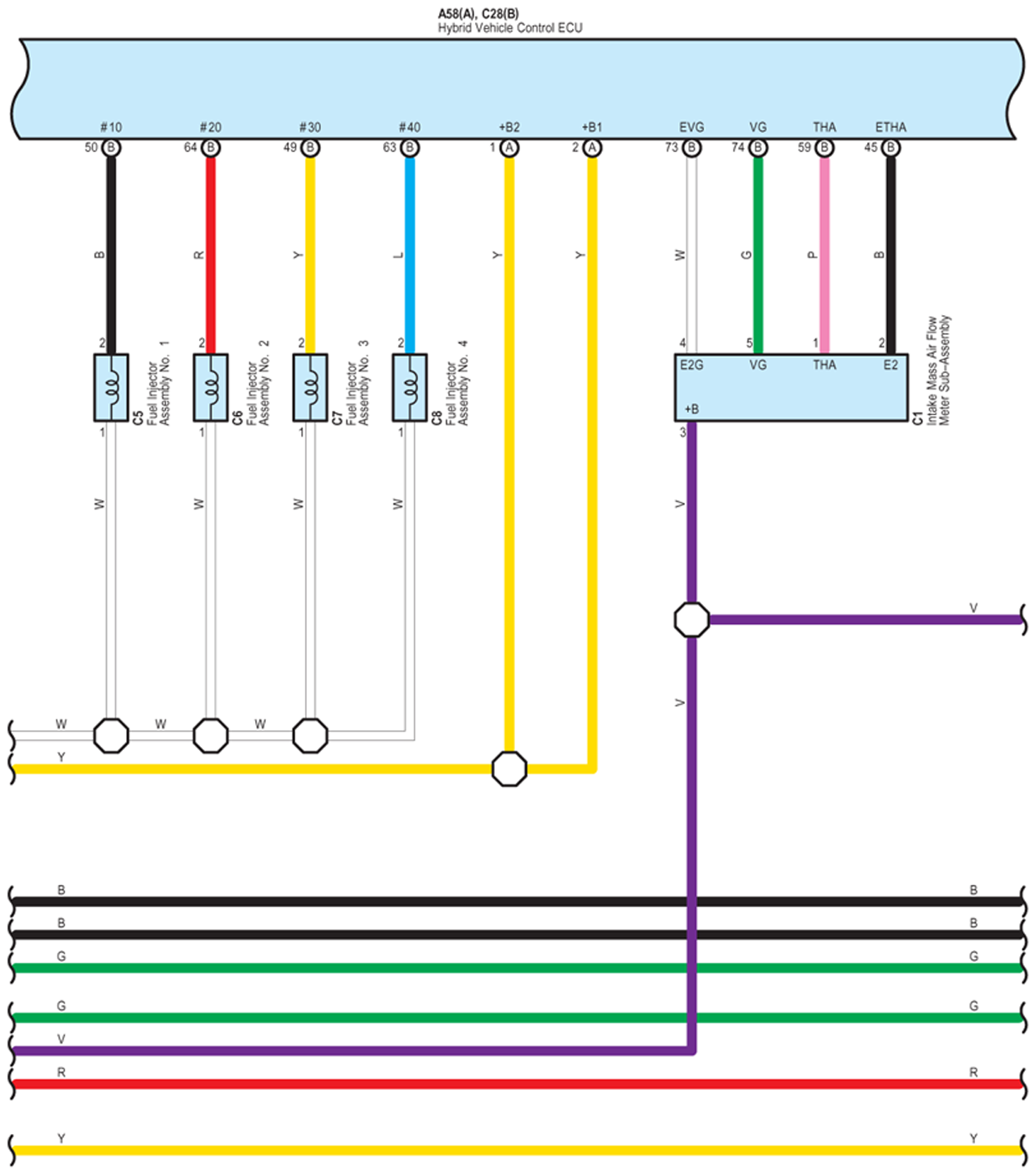

Fig 3: Hybrid System - Circuit Diagram (3 Of 30)

G07578201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

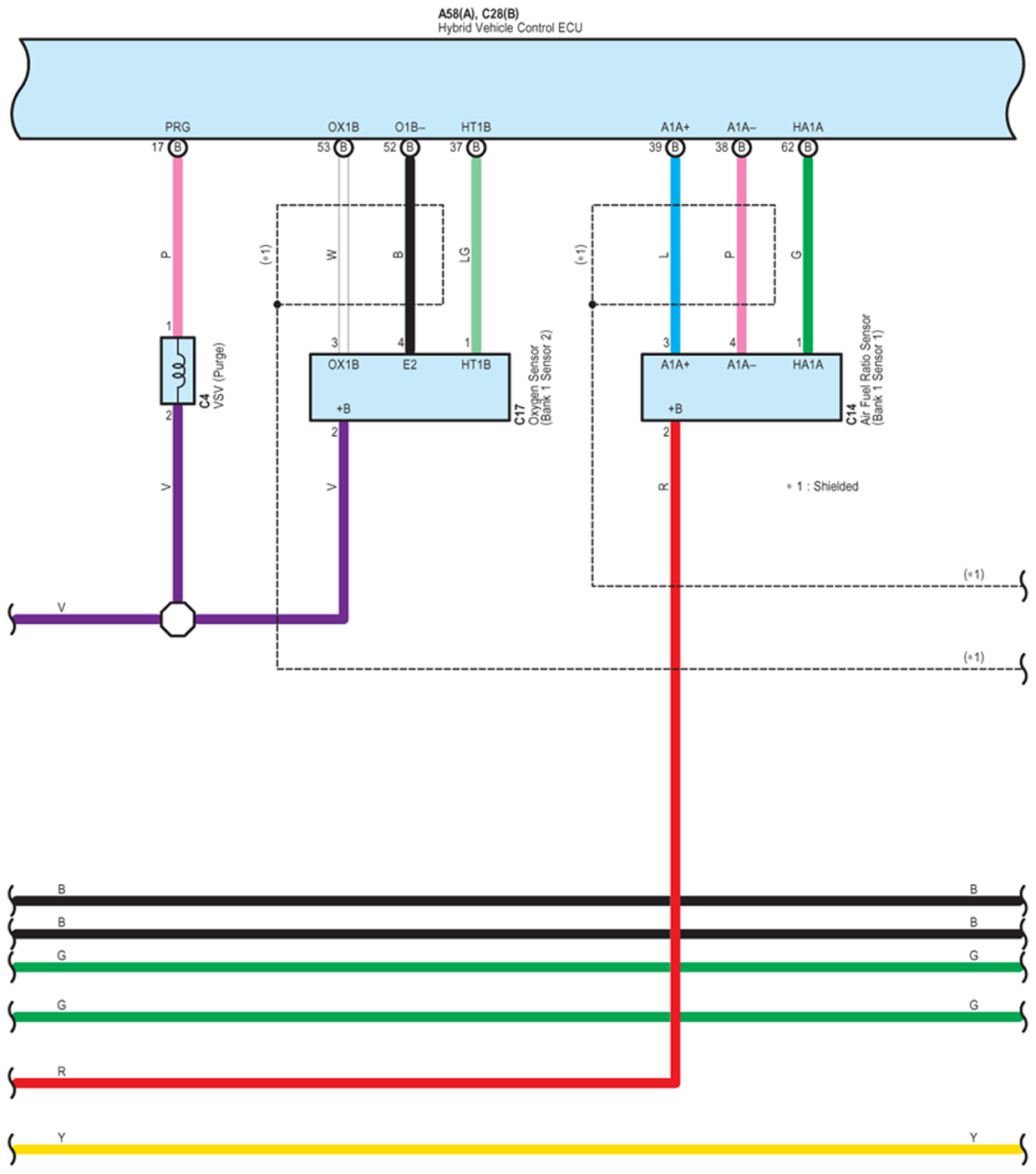

Fig 4: Hybrid System - Circuit Diagram (4 Of 30)

G07578202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

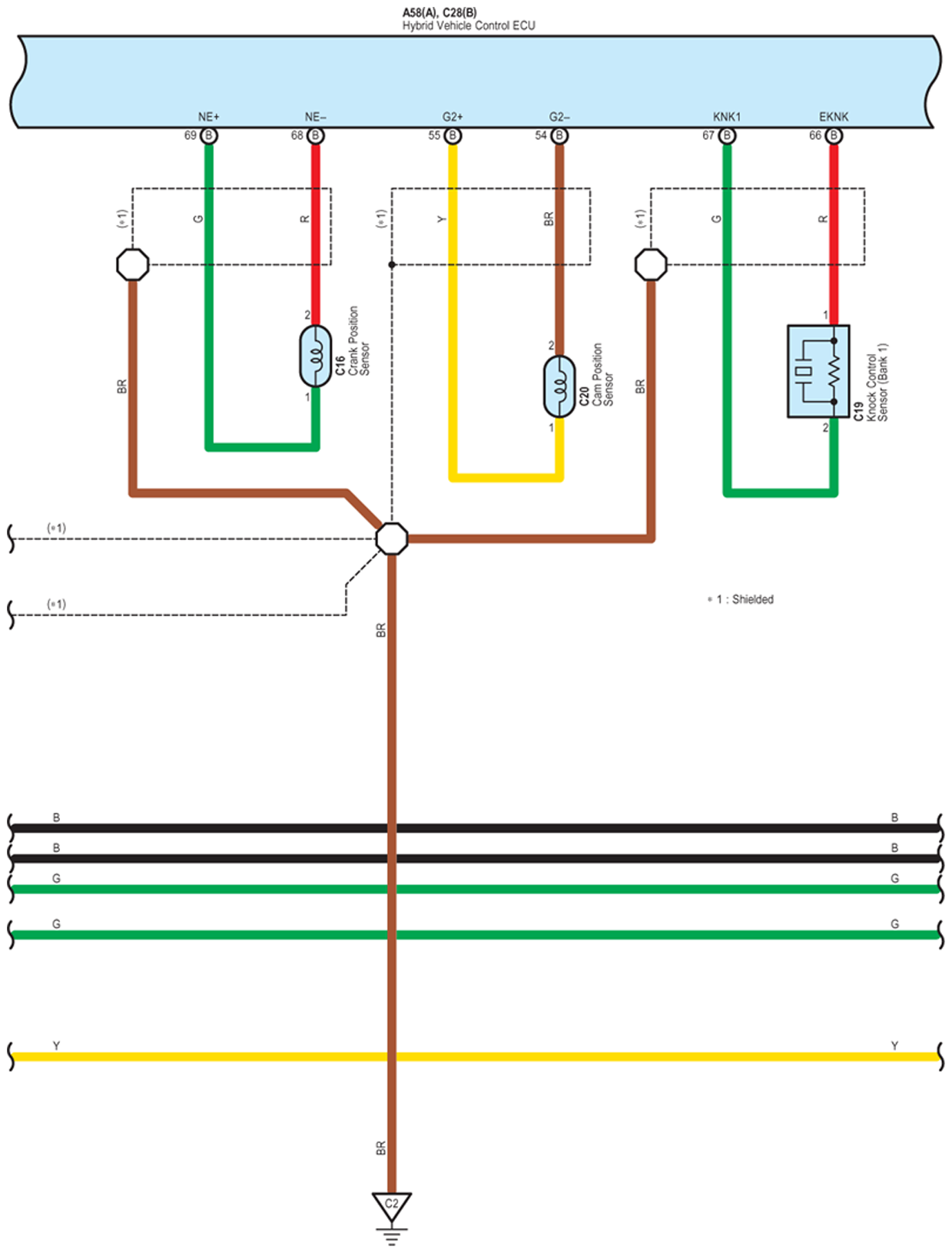

Fig 5: Hybrid System - Circuit Diagram (5 Of 30)

G07578203

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

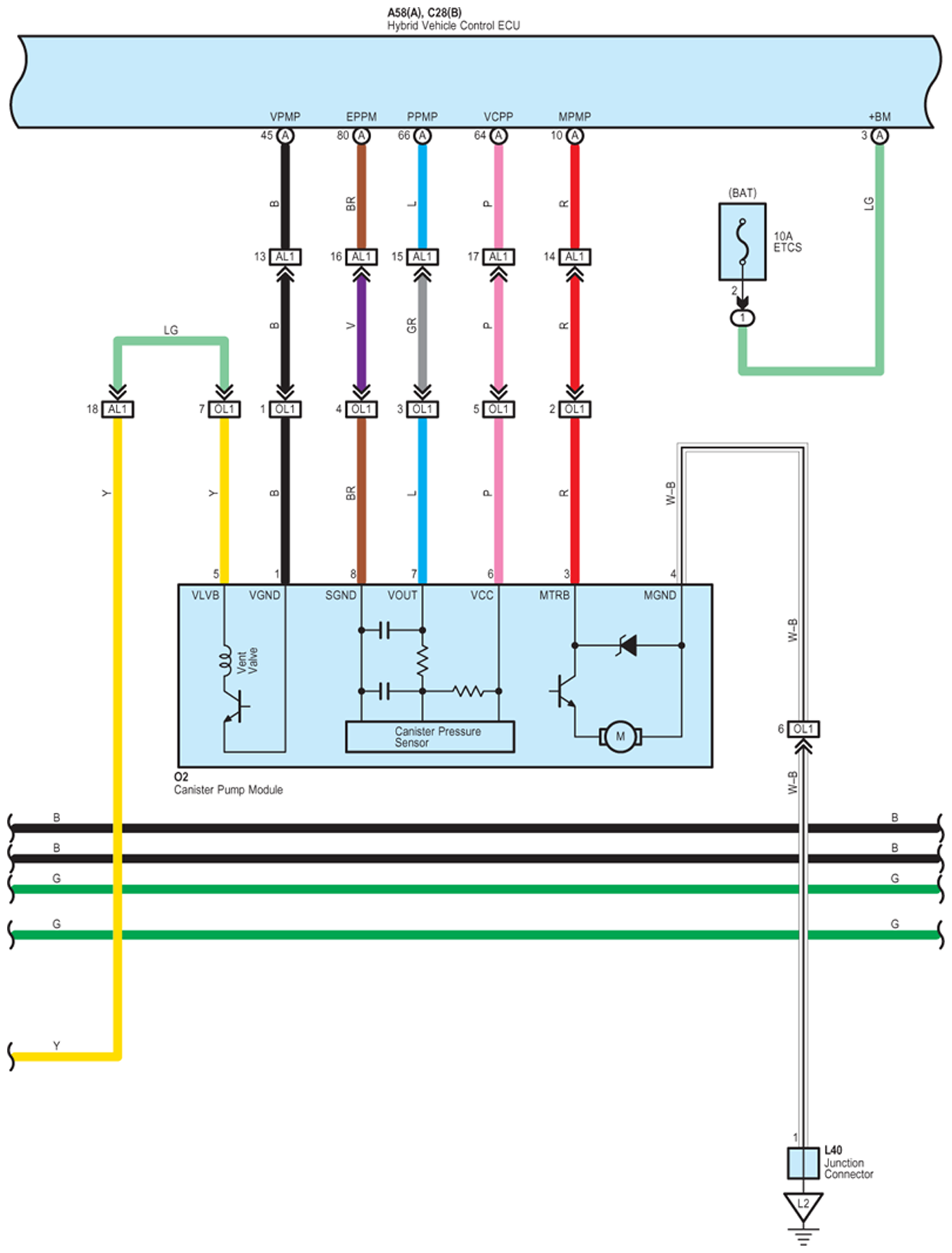

Fig 6: Hybrid System - Circuit Diagram (6 Of 30)

G07578204

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

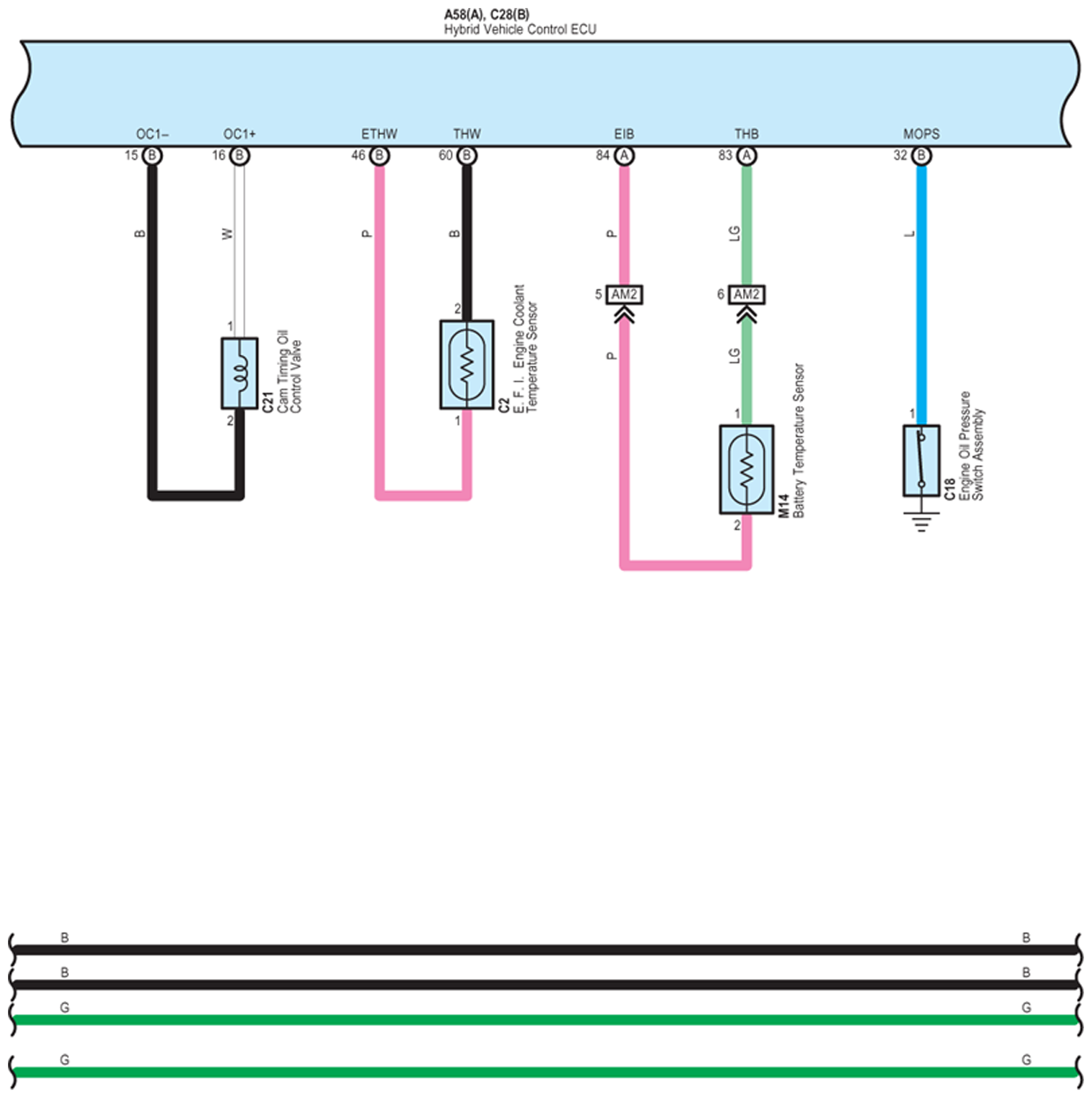

Fig 7: Hybrid System - Circuit Diagram (7 Of 30)

G07578205

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

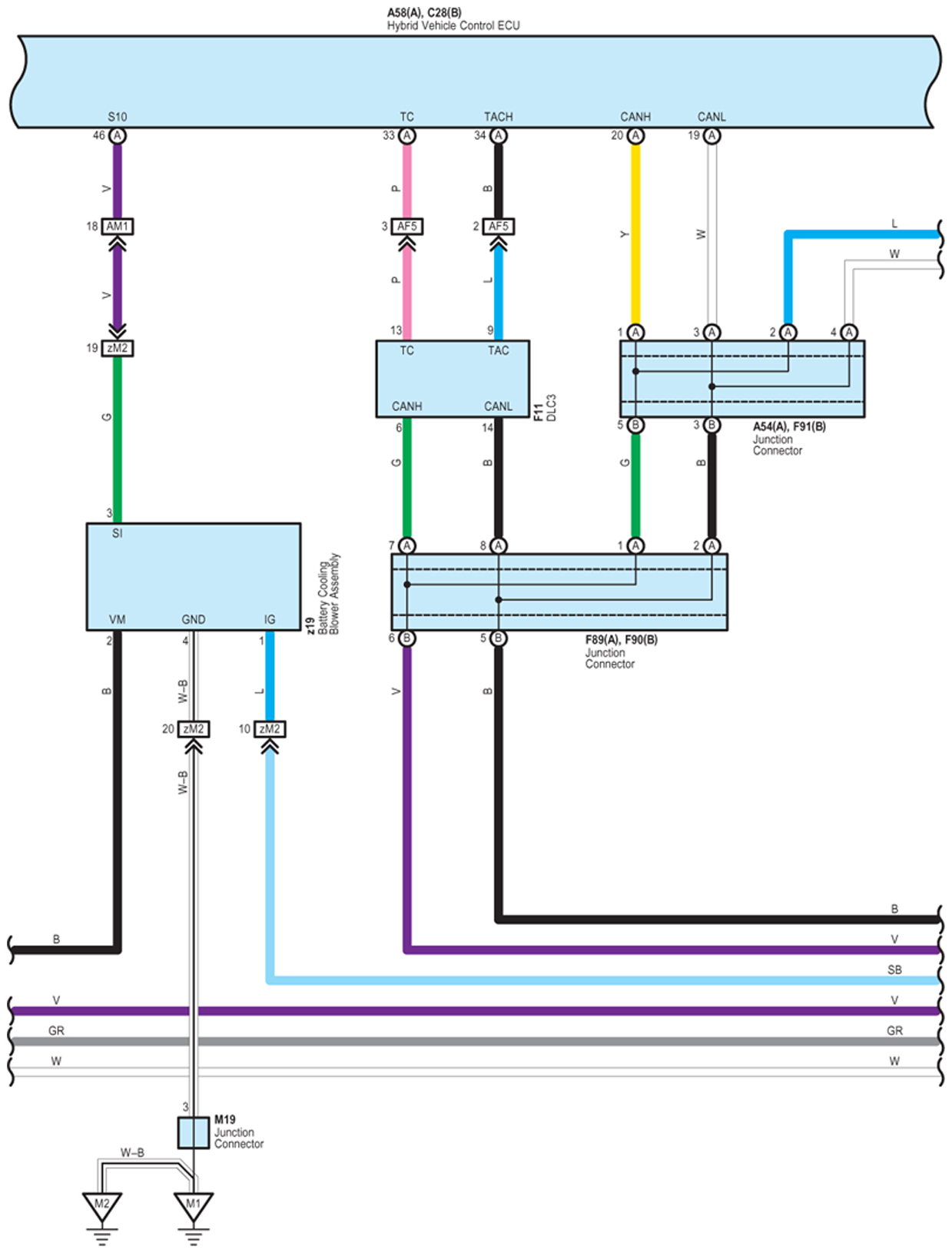

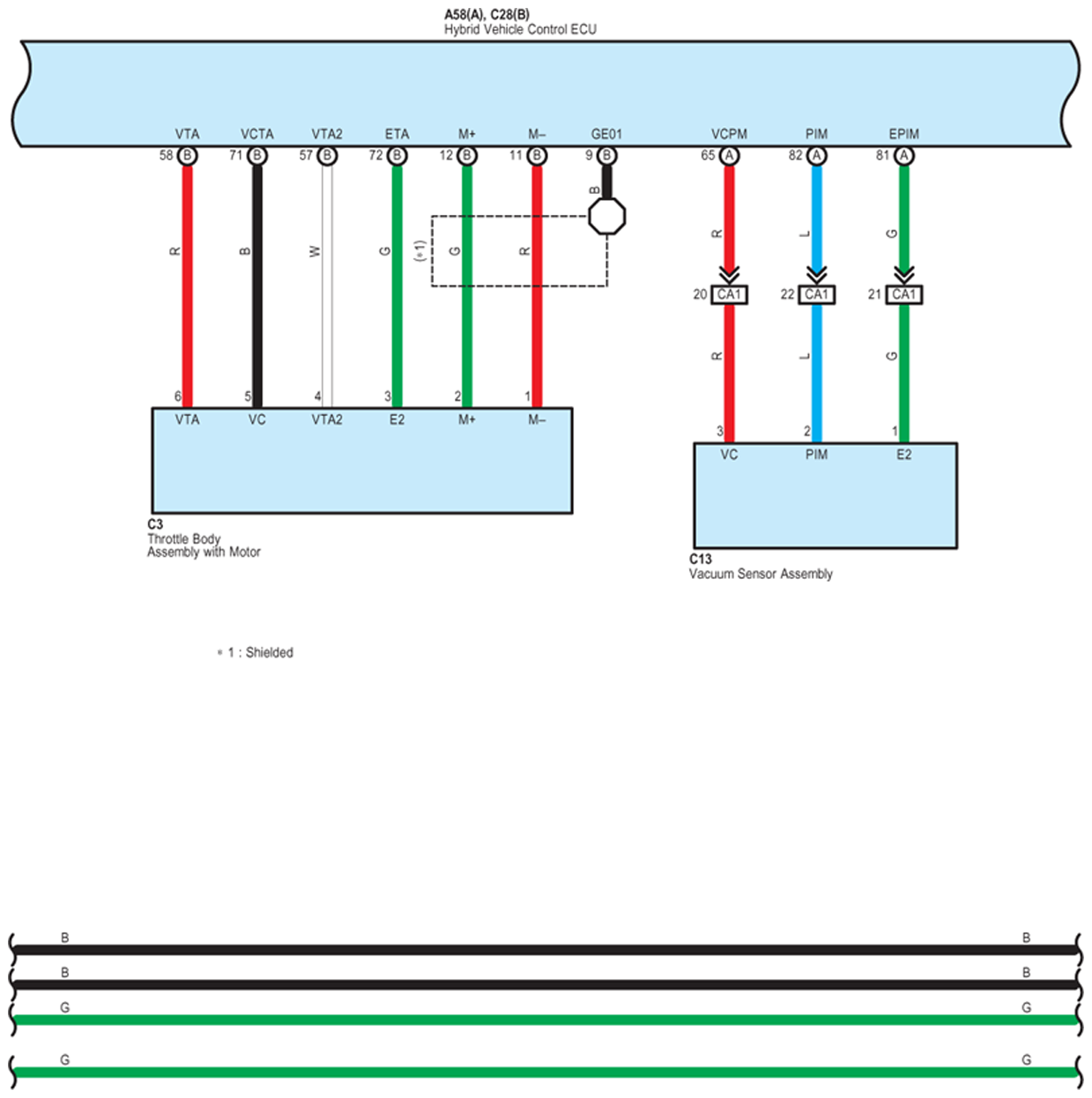

Fig 8: Hybrid System - Circuit Diagram (8 Of 30)

G07578206

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

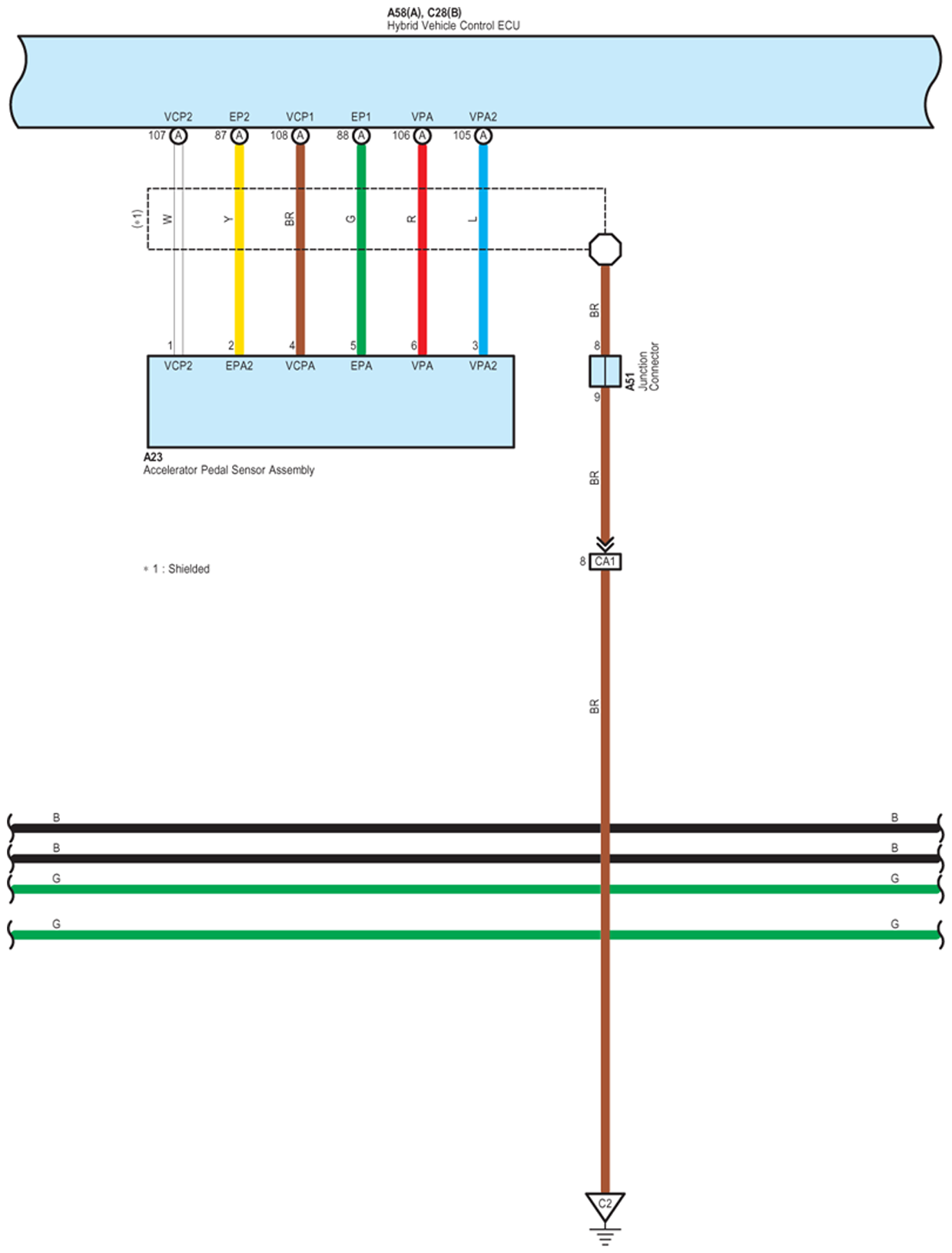

Fig 9: Hybrid System - Circuit Diagram (9 Of 30)

G07578207

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

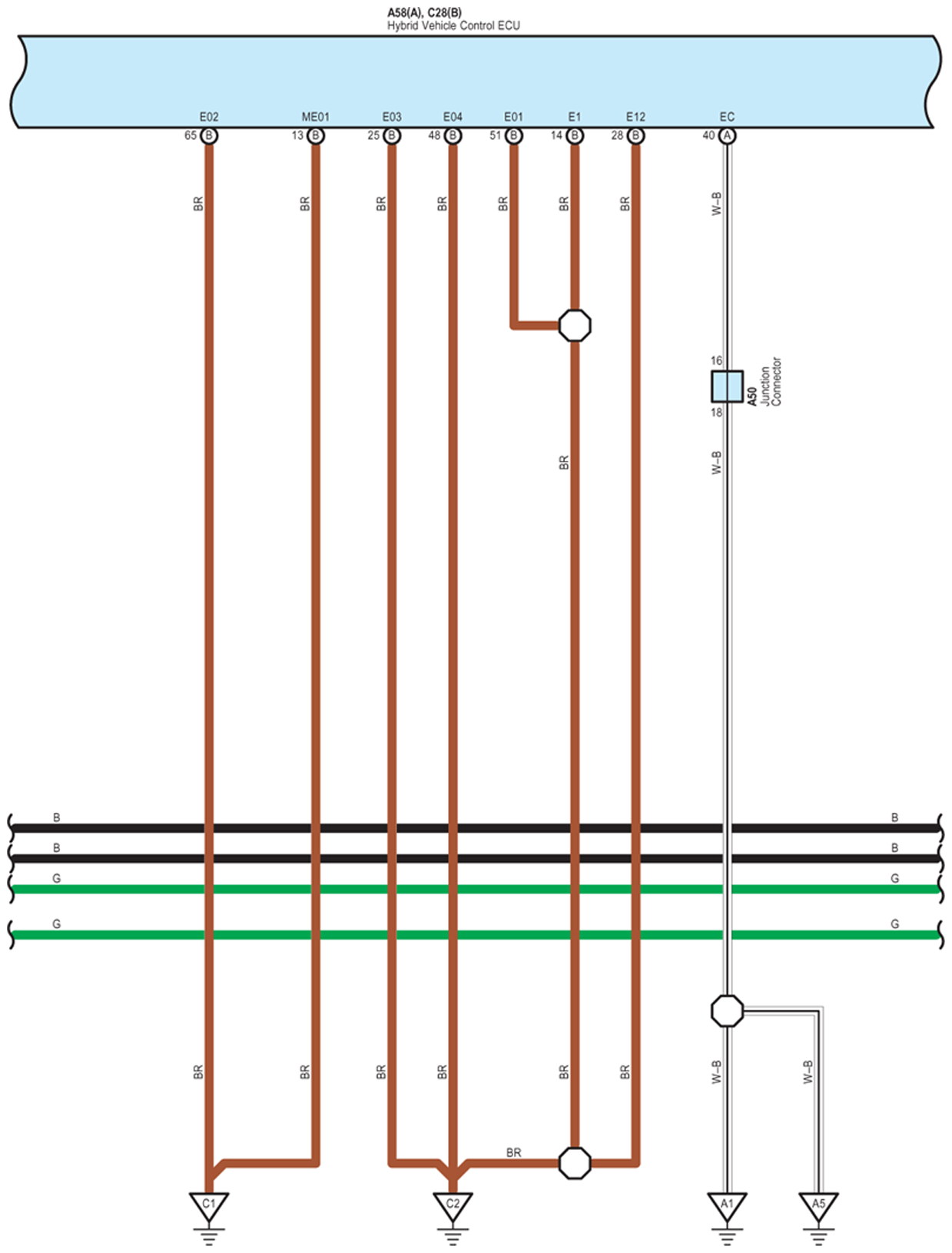

Fig 10: Hybrid System - Circuit Diagram (10 Of 30)

G07578208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

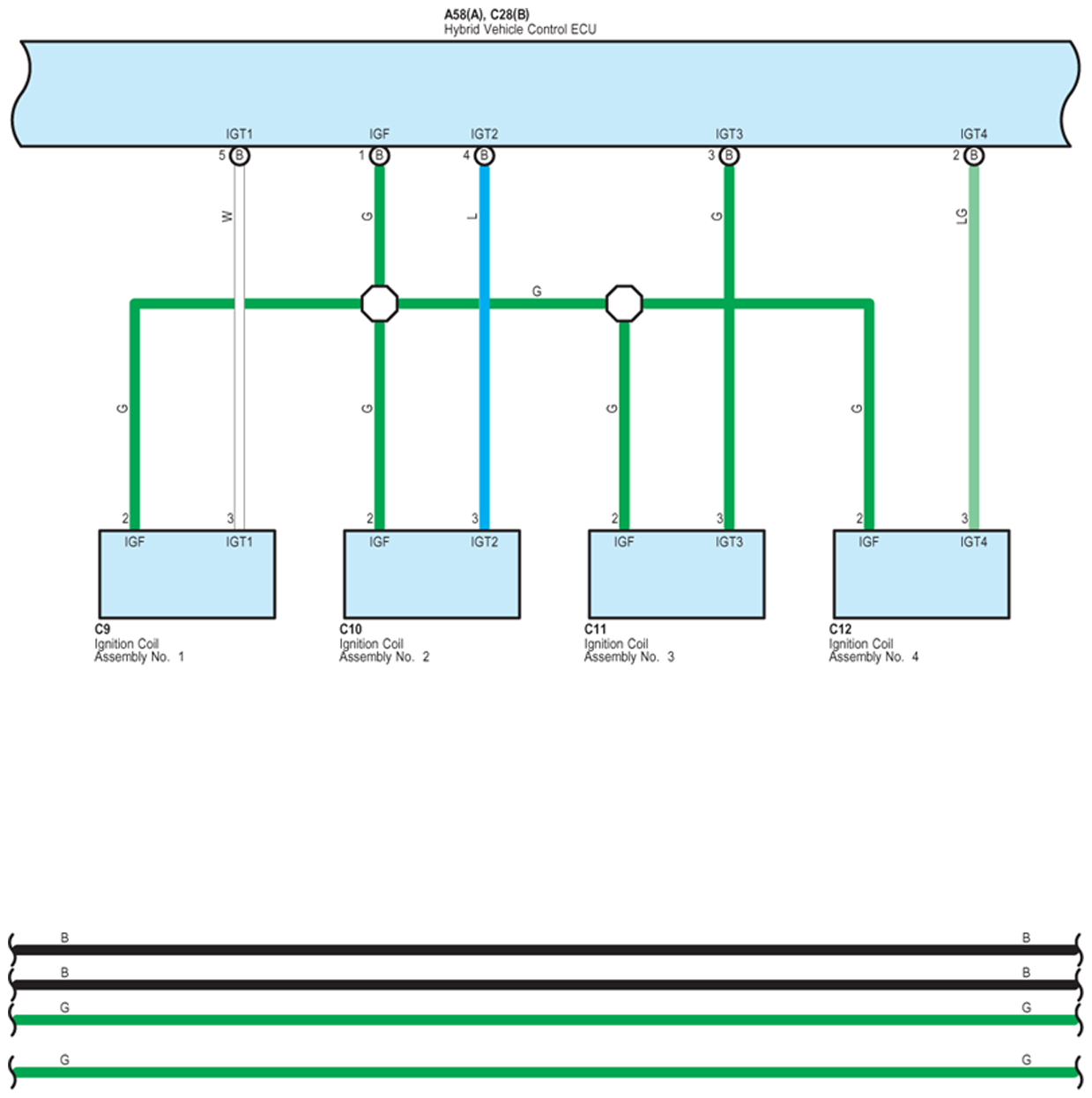

Fig 11: Hybrid System - Circuit Diagram (11 Of 30)

G07578209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

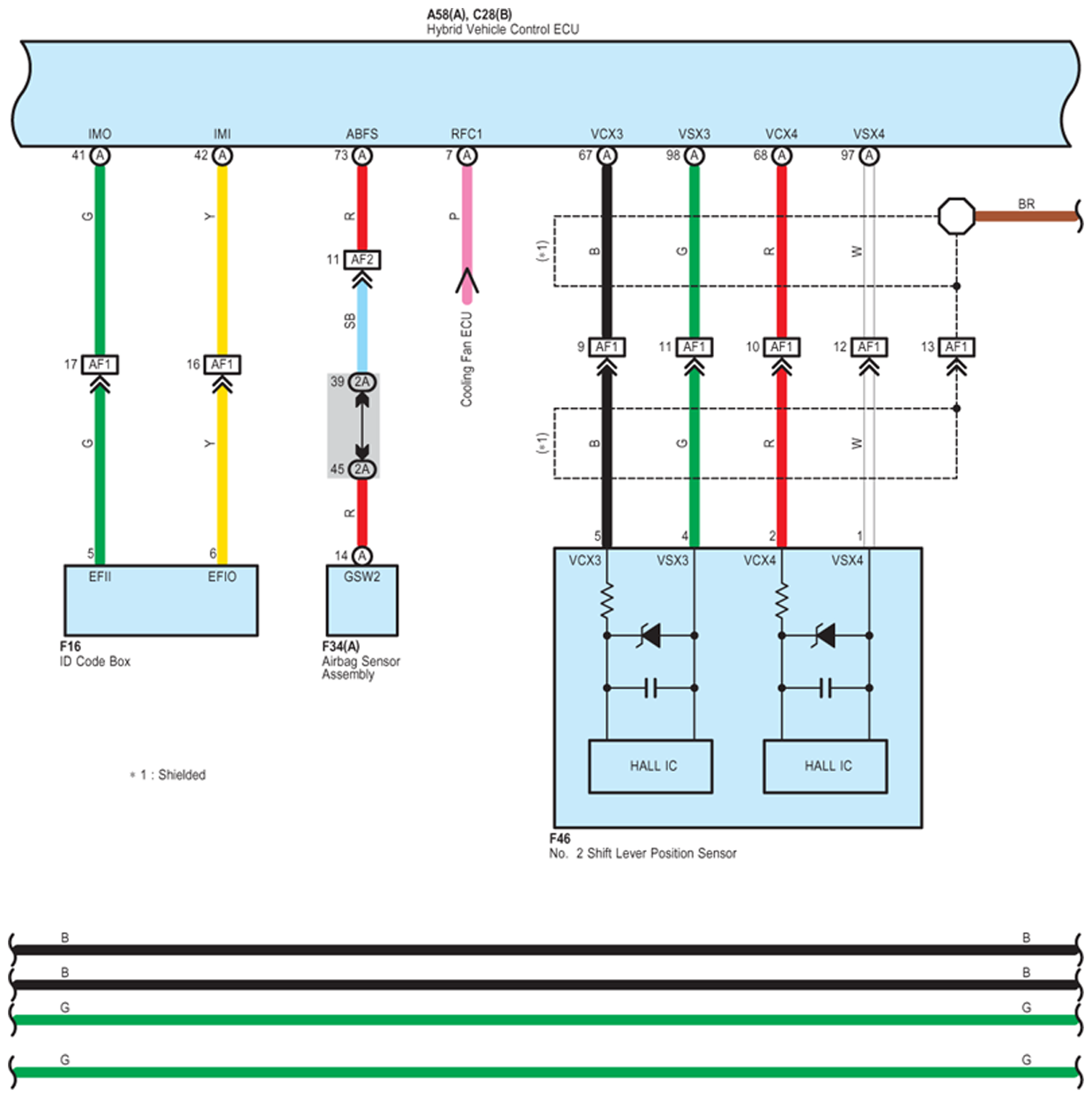

Fig 12: Hybrid System - Circuit Diagram (12 Of 30)

G07578210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

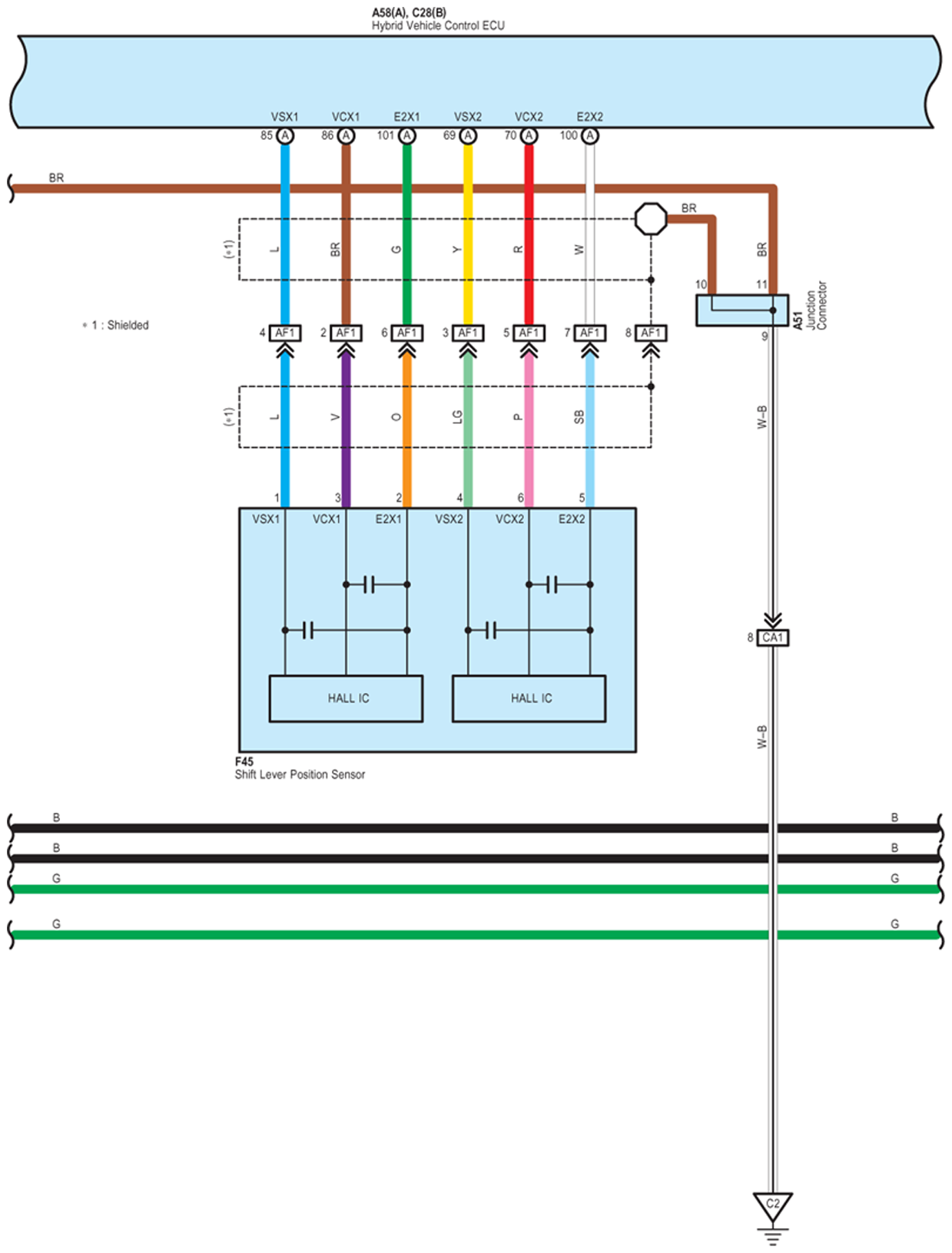

Fig 13: Hybrid System - Circuit Diagram (13 Of 30)

G07578211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

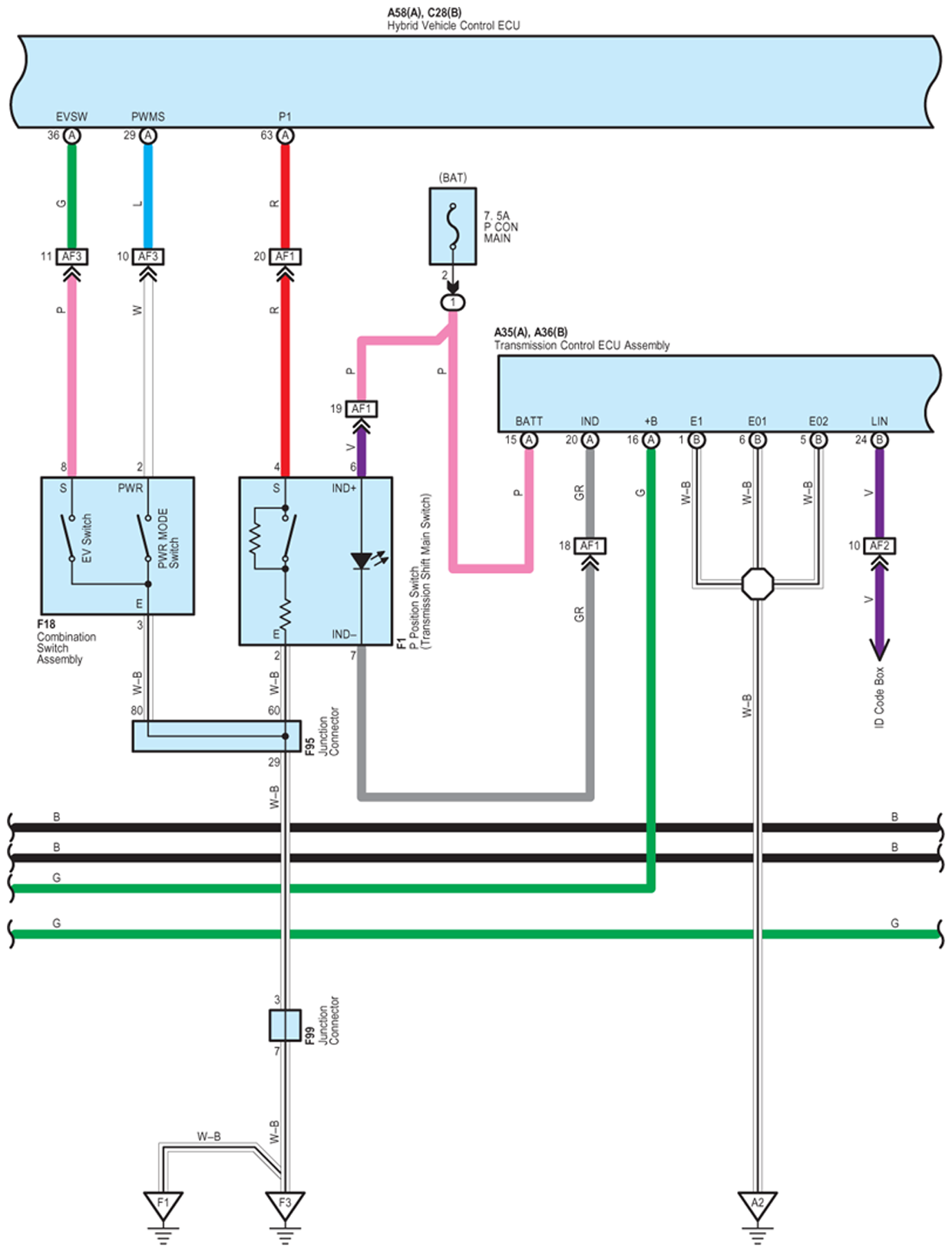

Fig 14: Hybrid System - Circuit Diagram (14 Of 30)

G07578212

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

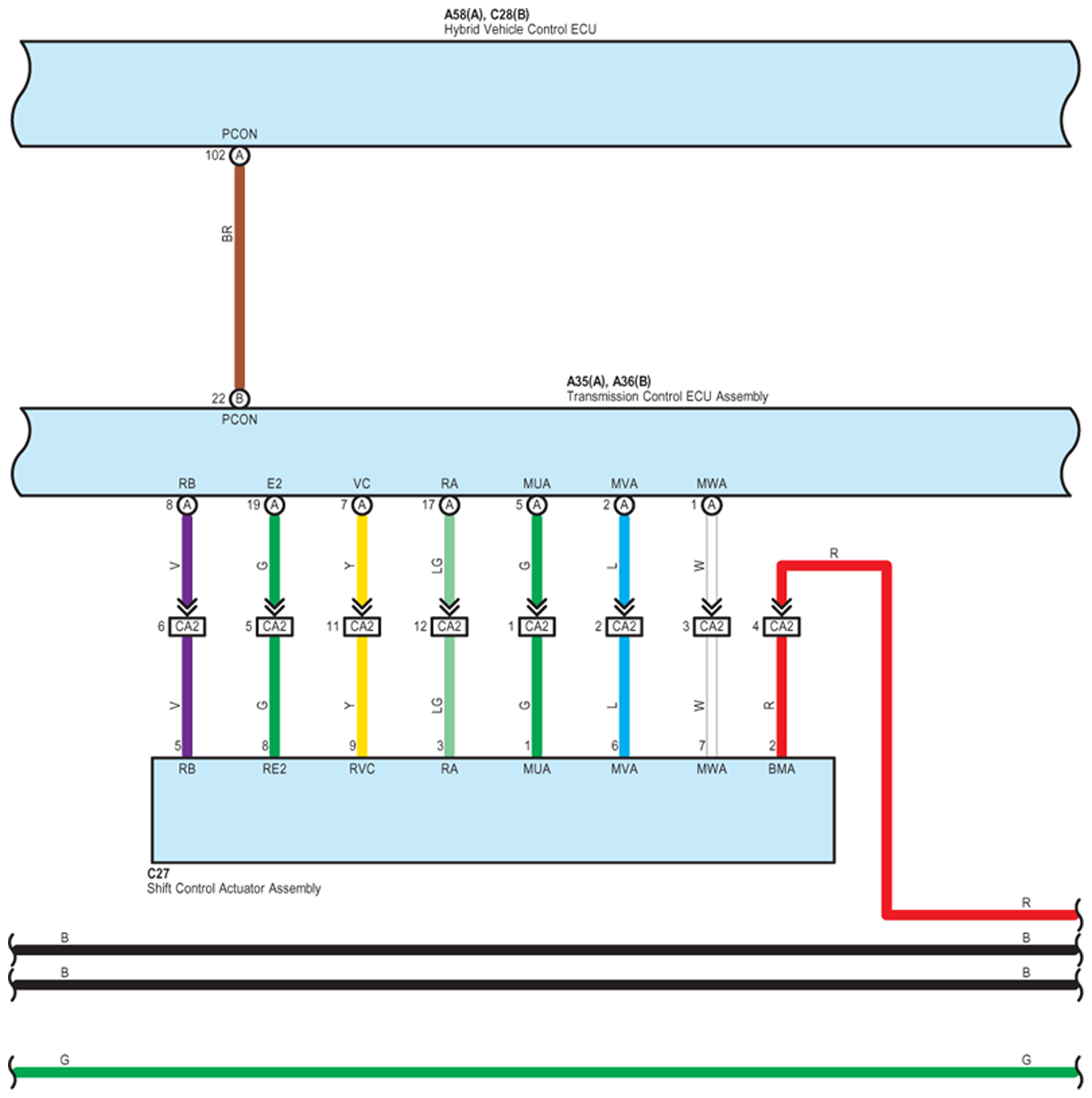

Fig 15: Hybrid System - Circuit Diagram (15 Of 30)

G07578213

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

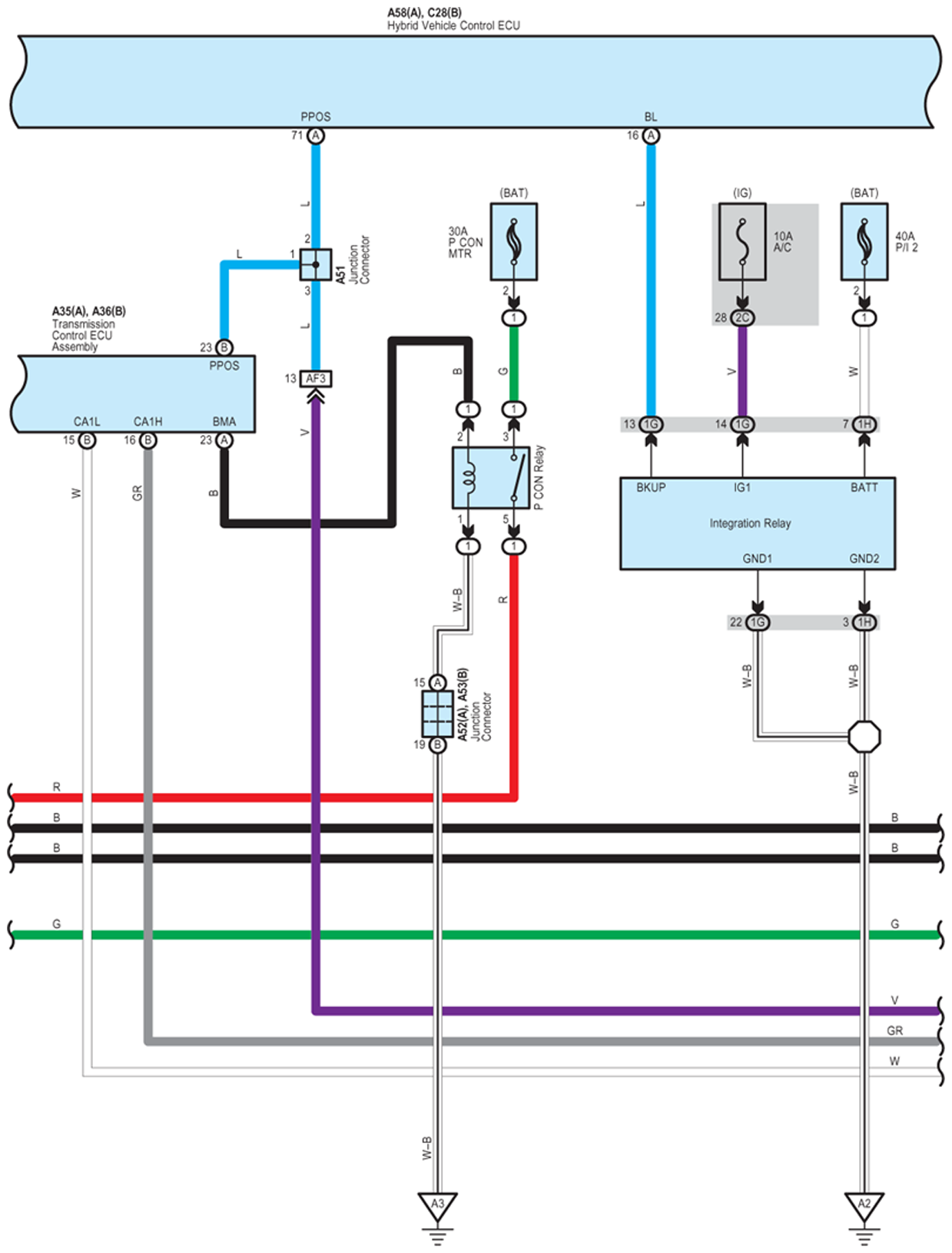

Fig 16: Hybrid System - Circuit Diagram (16 Of 30)

G07578214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

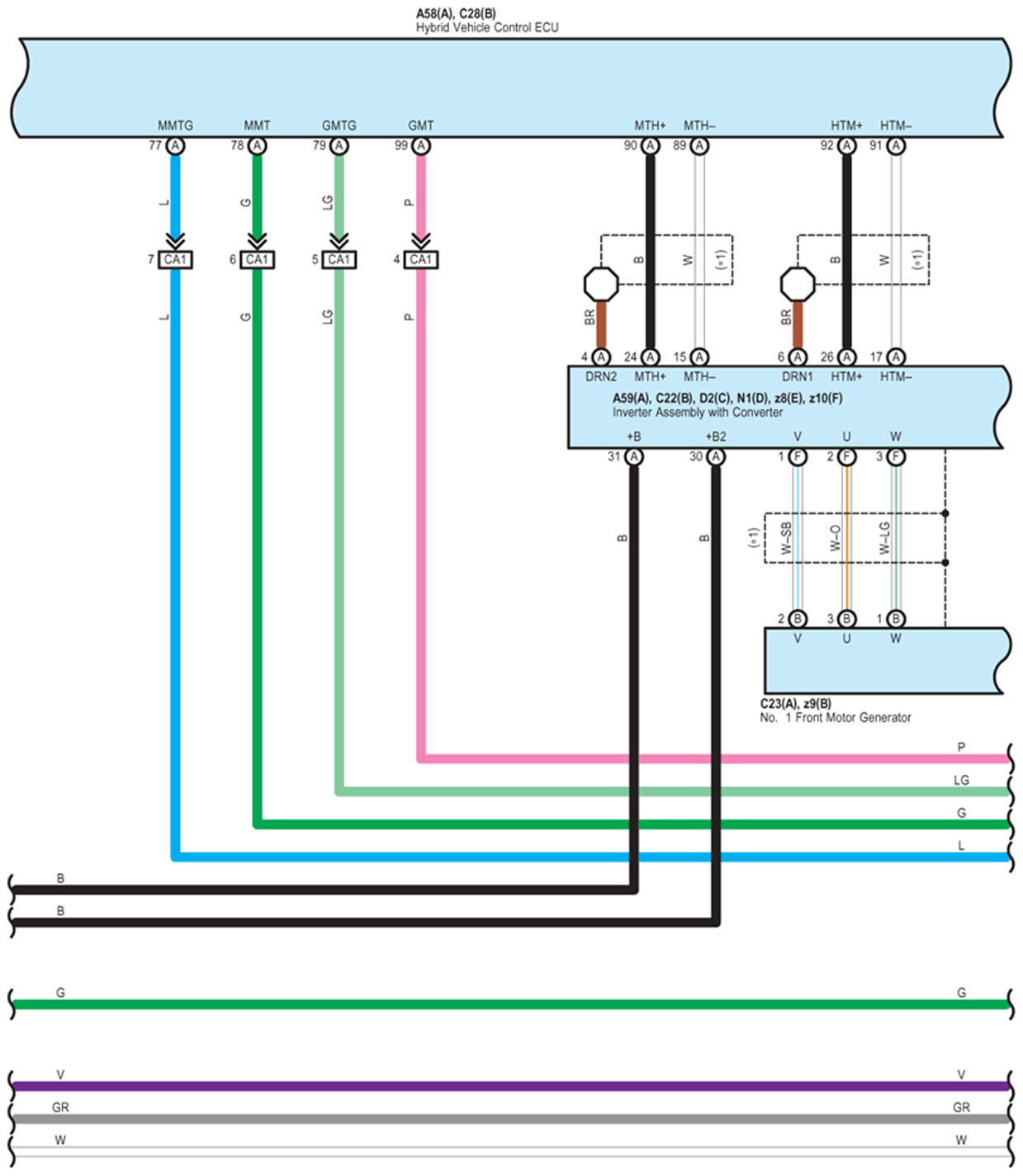

Fig 17: Hybrid System - Circuit Diagram (17 Of 30)

G07578215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

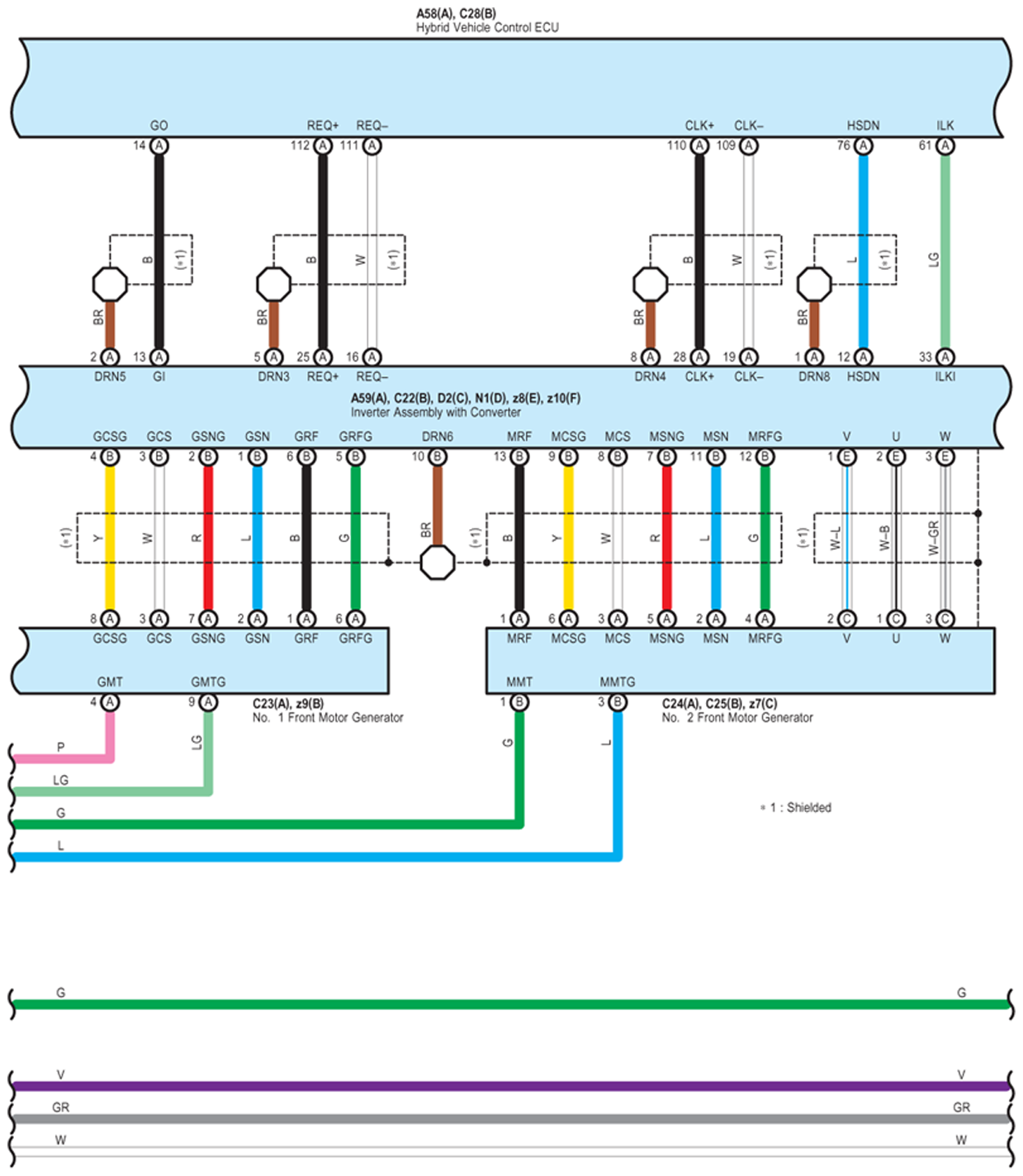

Fig 18: Hybrid System - Circuit Diagram (18 Of 30)

G07578216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

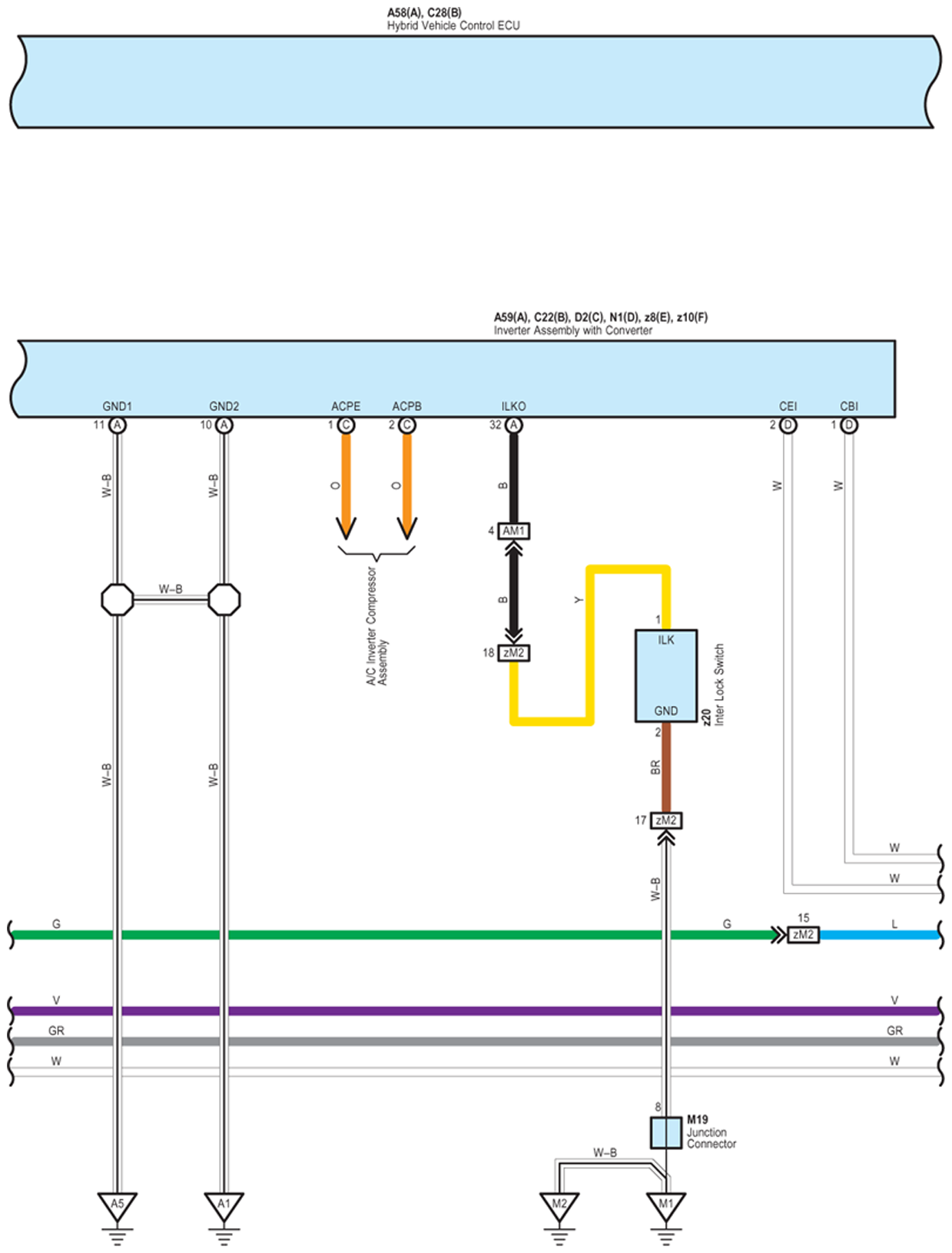

Fig 19: Hybrid System - Circuit Diagram (19 Of 30)

G07578217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

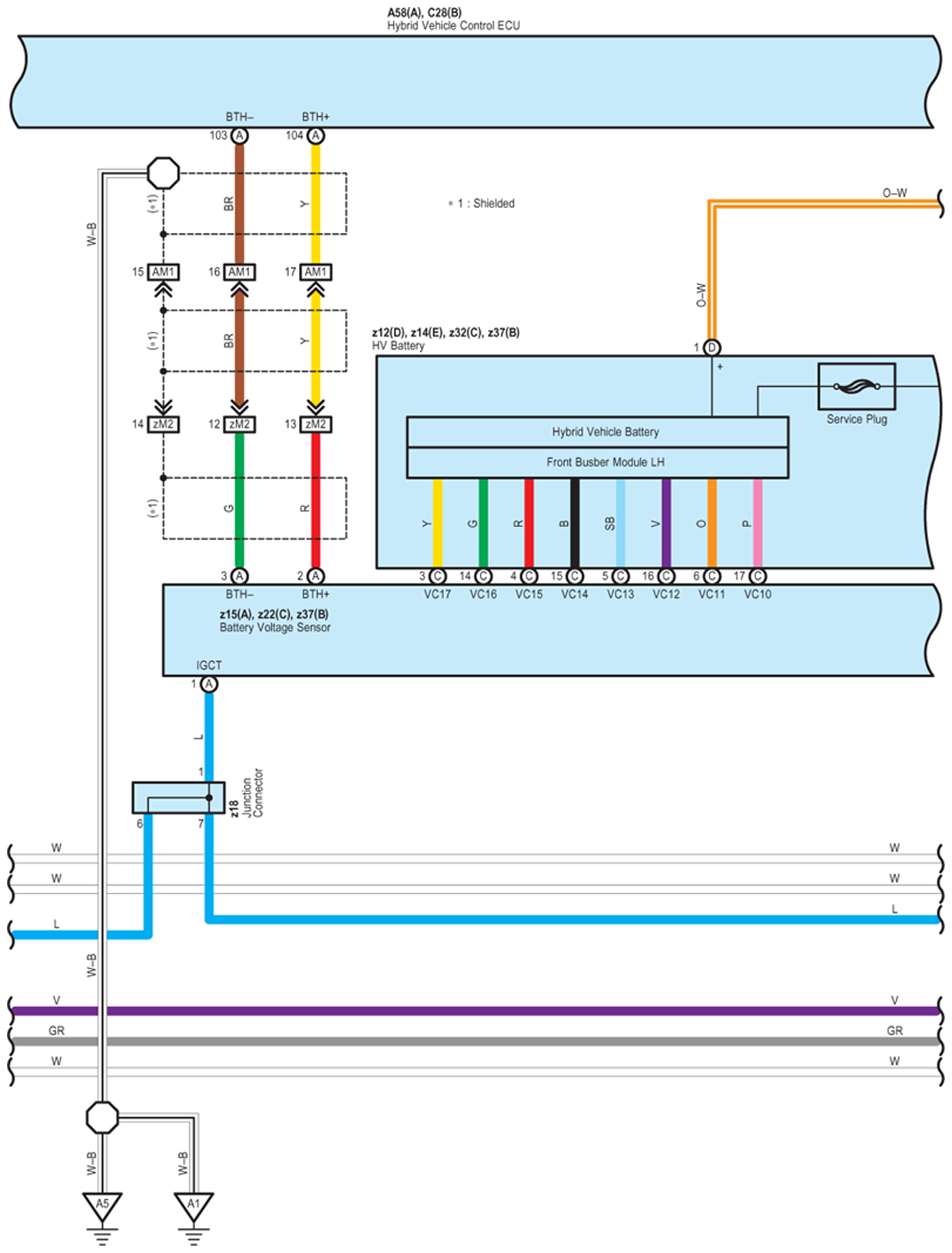

Fig 20: Hybrid System - Circuit Diagram (20 Of 30)

G07578218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

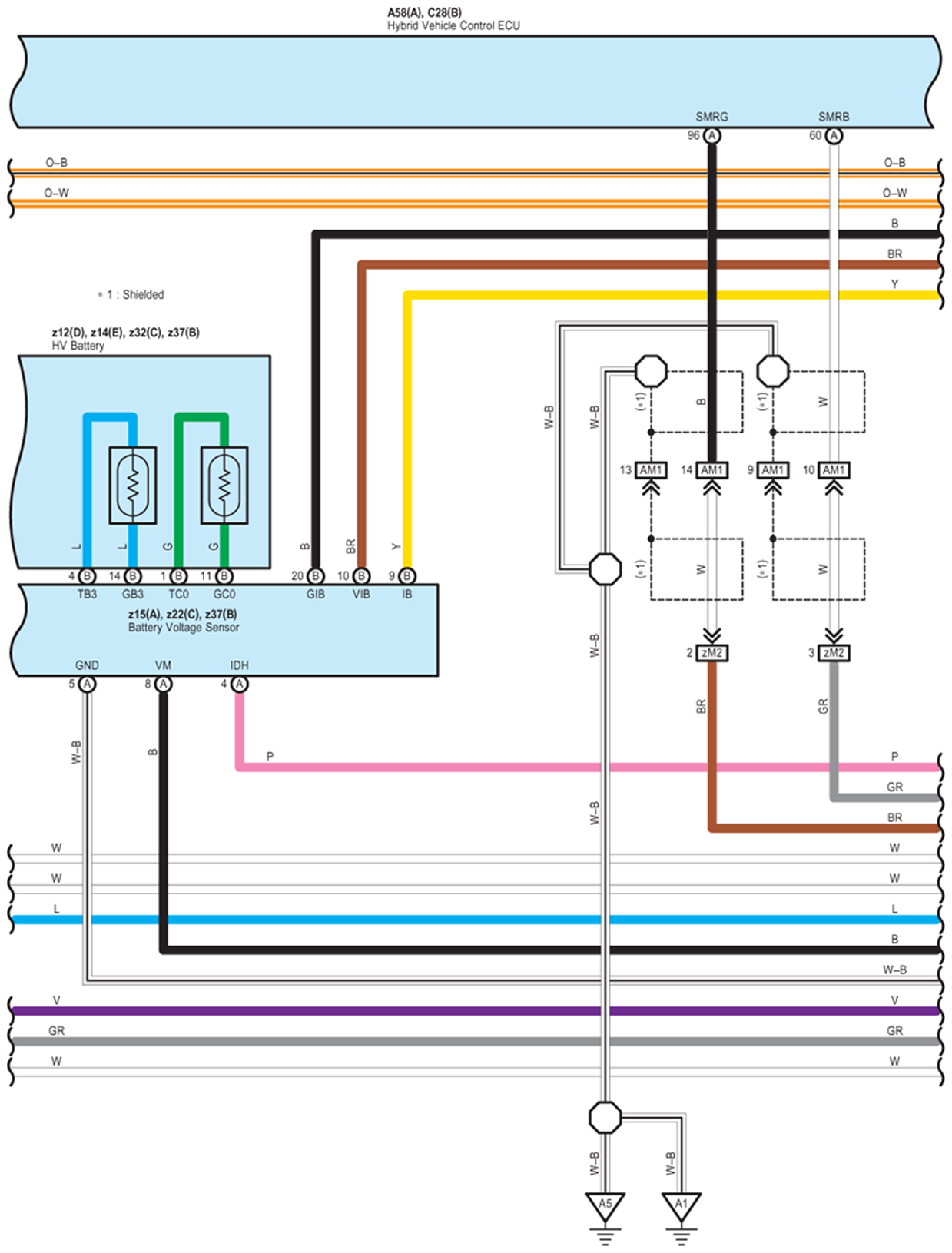

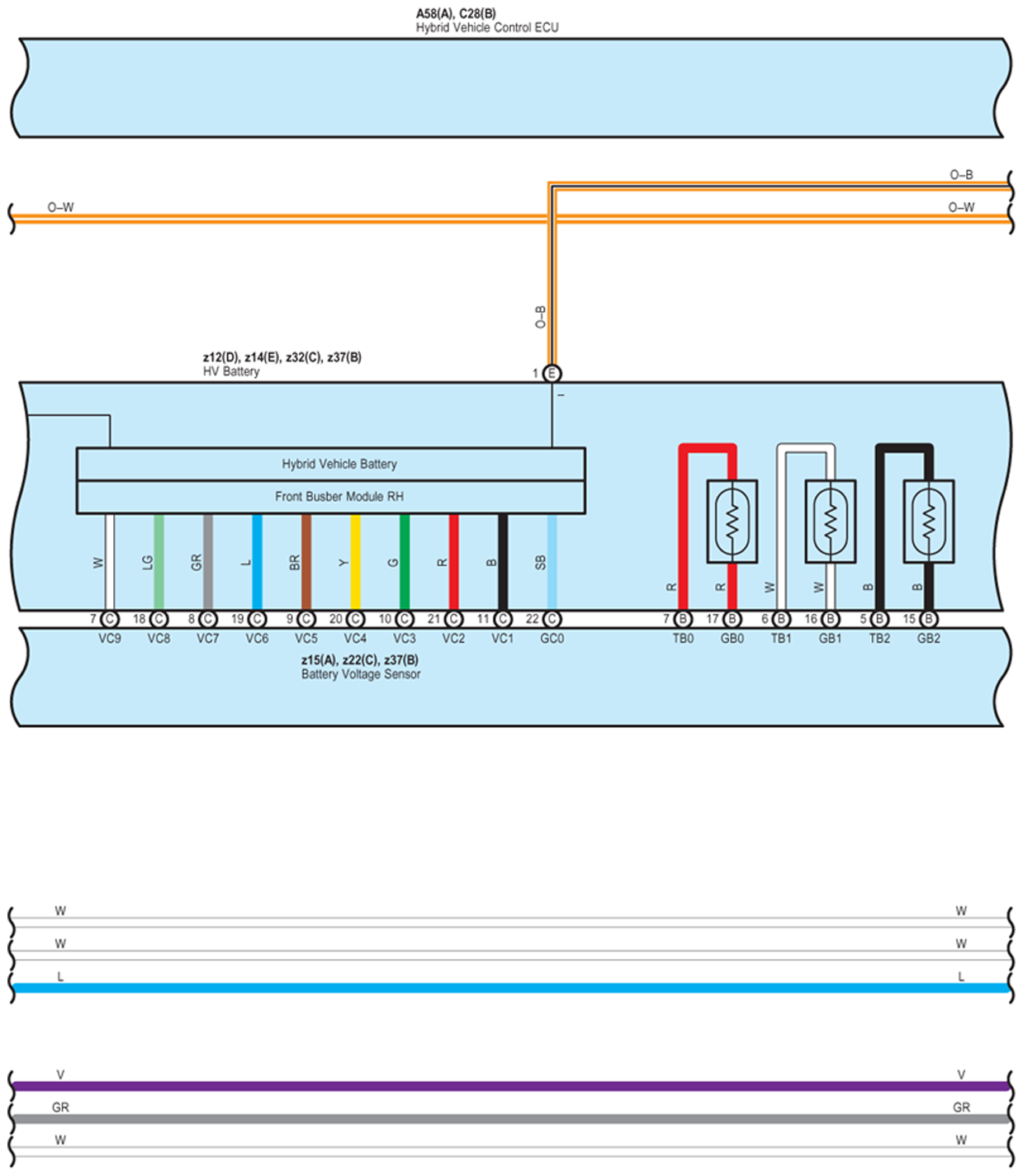

Fig 21: Hybrid System - Circuit Diagram (21 Of 30)

G07578219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

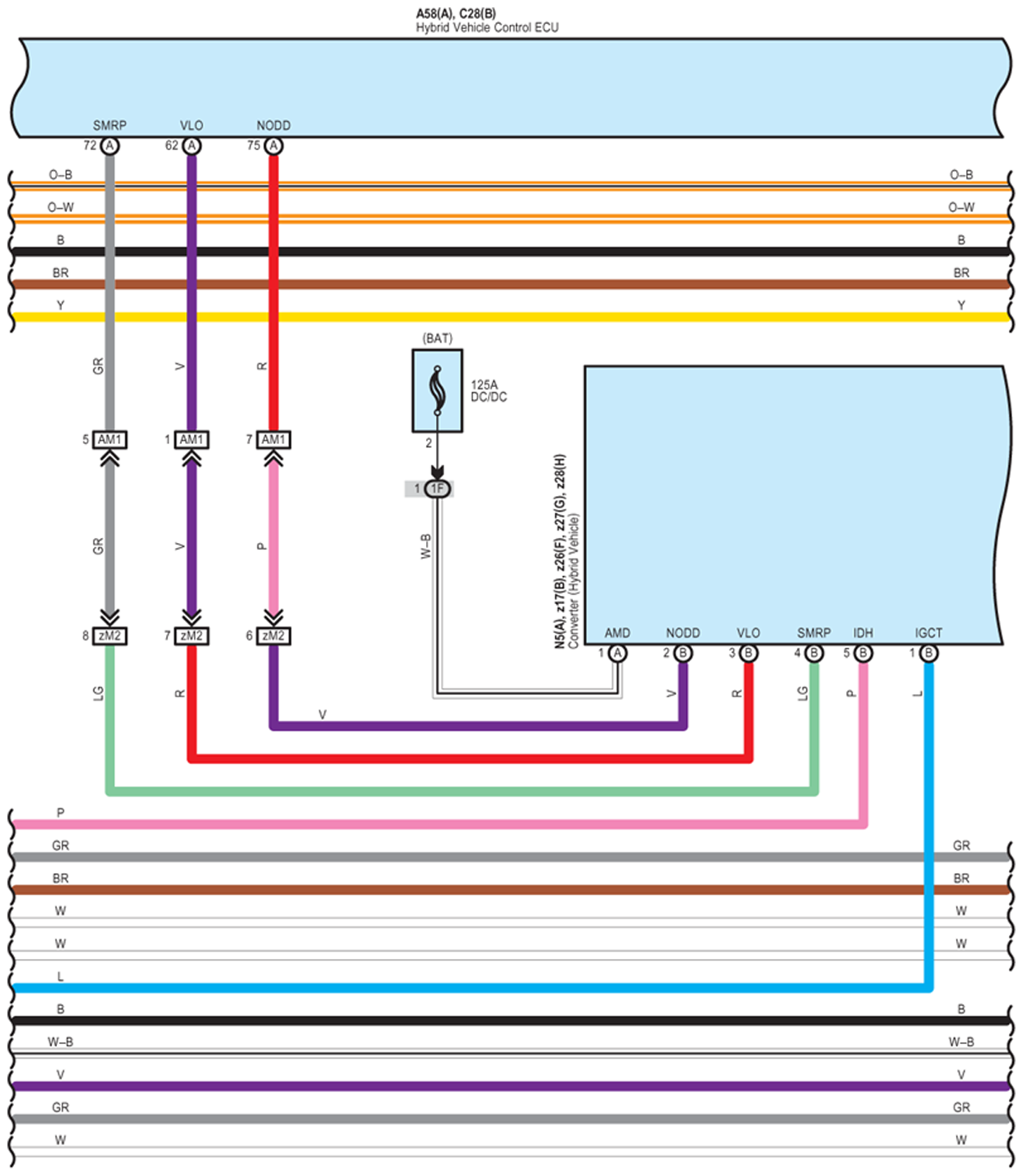

Fig 22: Hybrid System - Circuit Diagram (22 Of 30)

G07578220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

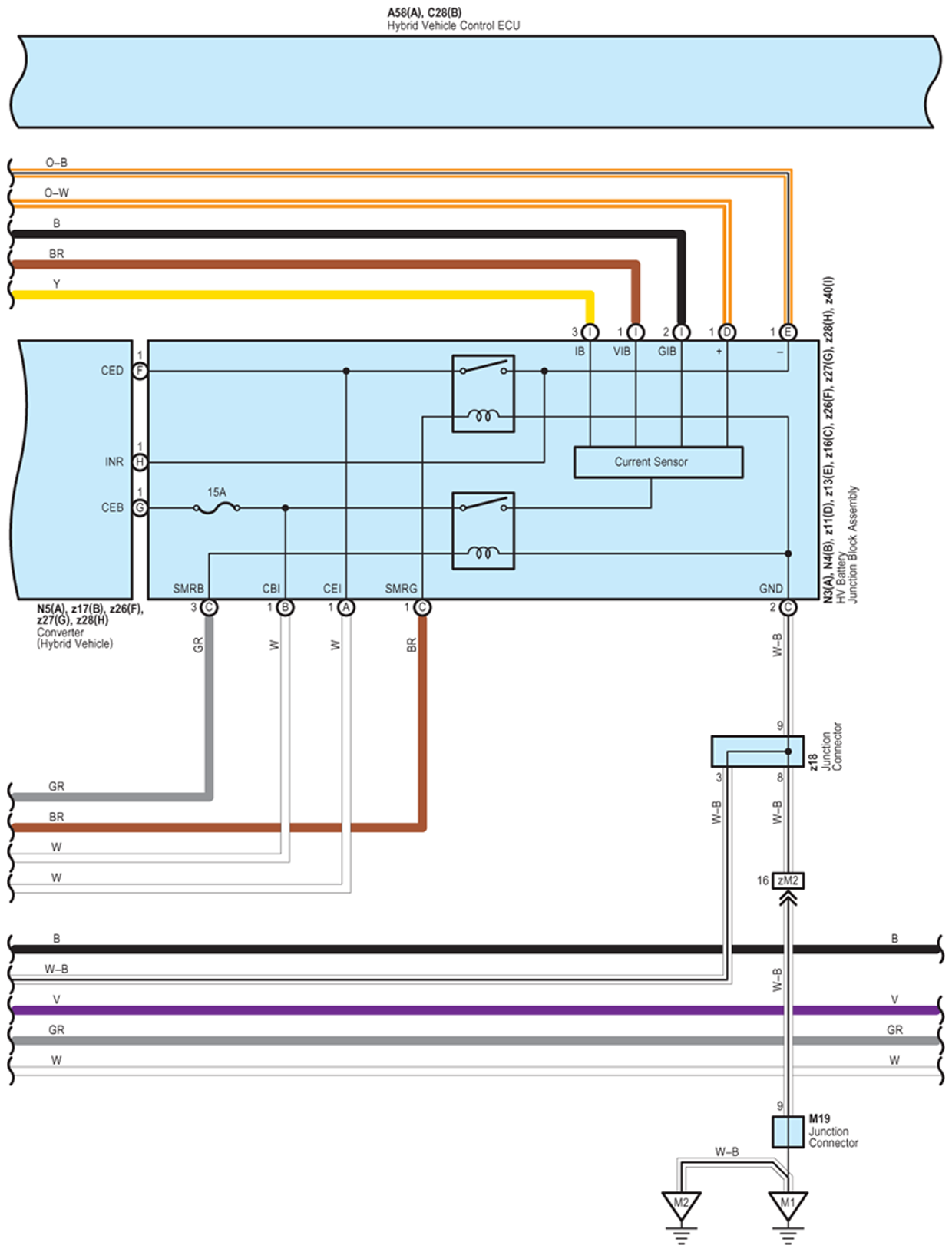

Fig 23: Hybrid System - Circuit Diagram (23 Of 30)

G07578221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Hybrid System - Circuit Diagram (24 Of 30)

G07578222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Hybrid System - Circuit Diagram (25 Of 30)

G07578223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

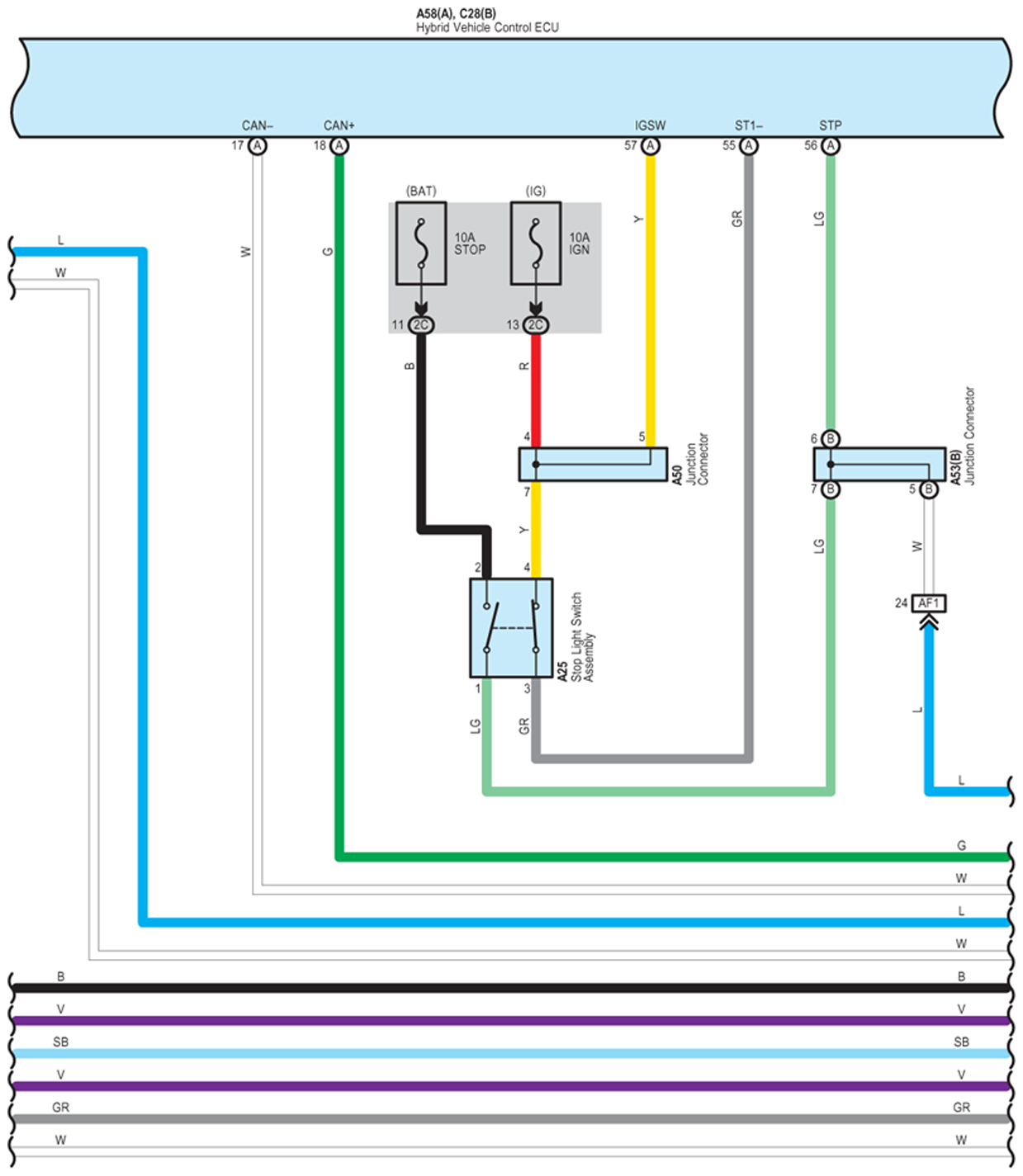

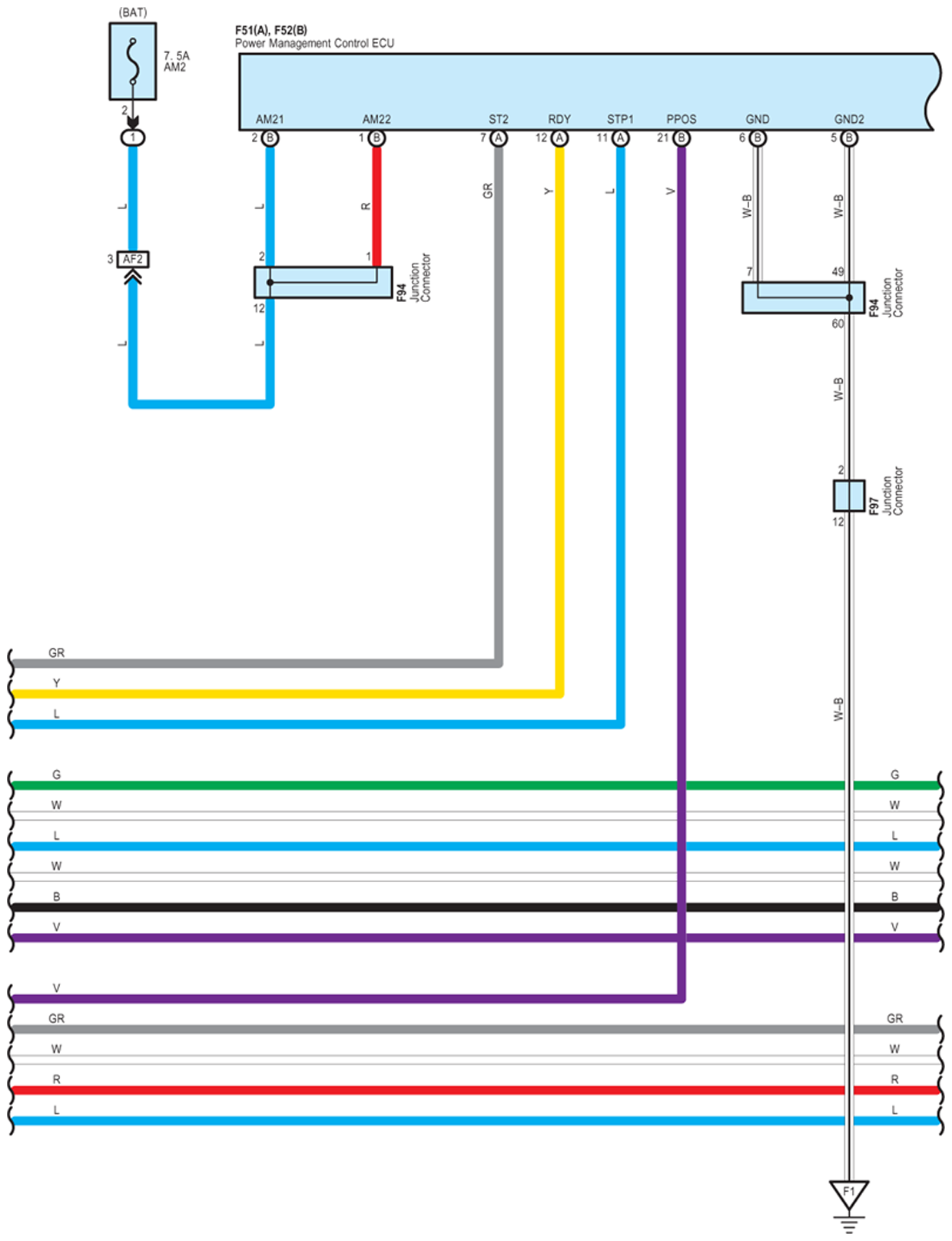

Fig 26: Hybrid System - Circuit Diagram (26 Of 30)

G07578224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

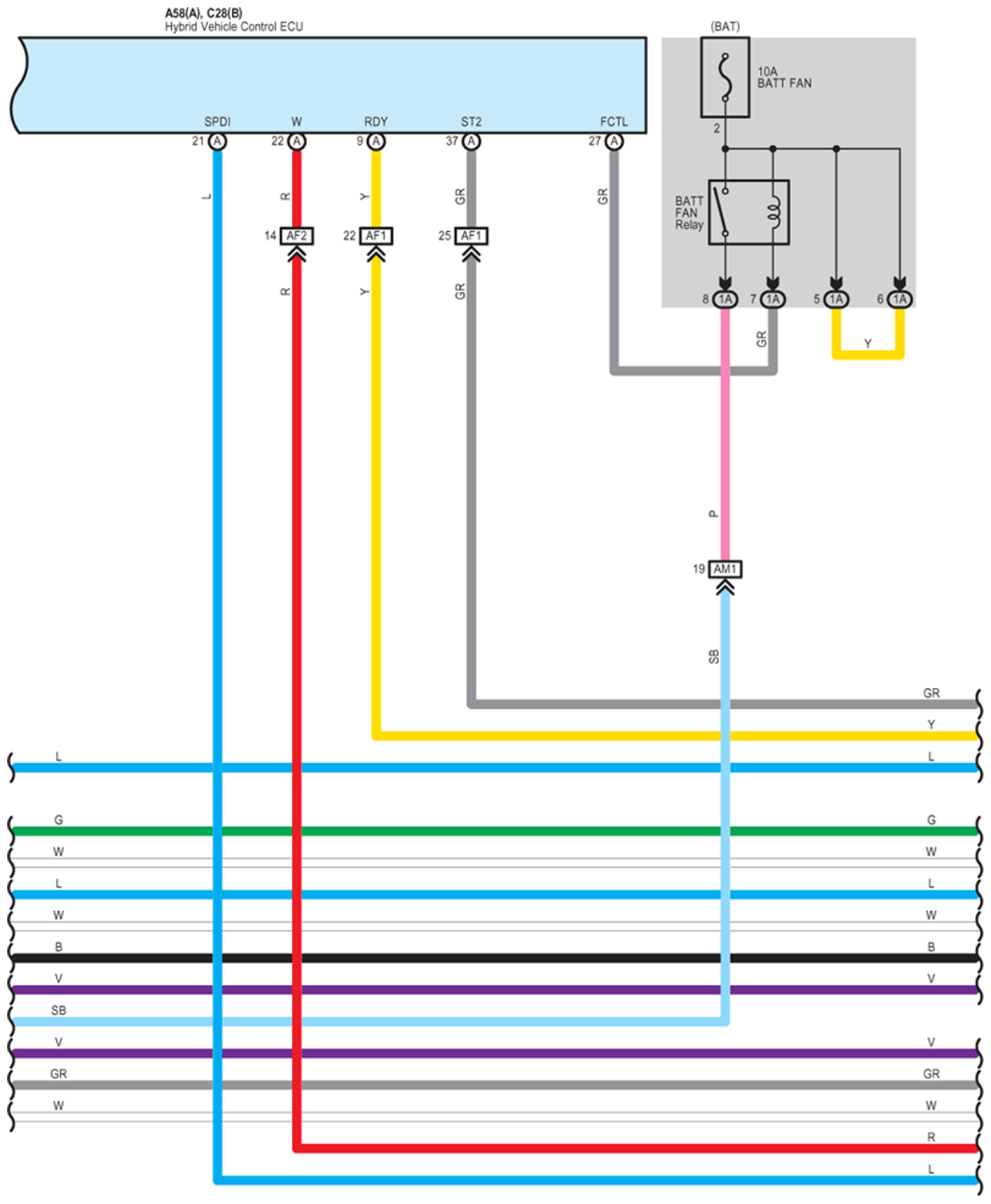

Fig 27: Hybrid System - Circuit Diagram (27 Of 30)

G07578225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Hybrid System - Circuit Diagram (28 Of 30)

G07578226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

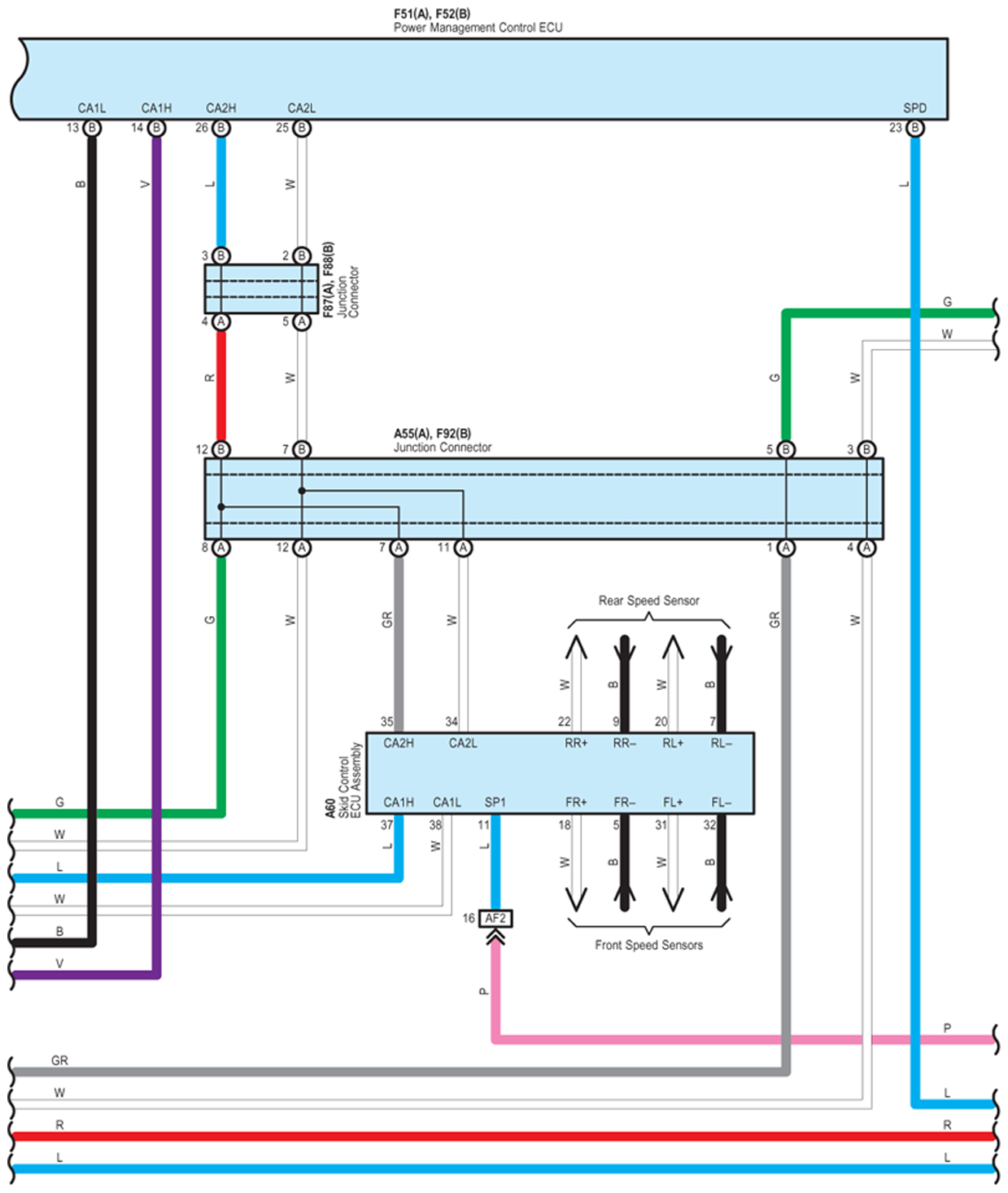

Fig 29: Hybrid System - Circuit Diagram (29 Of 30)

G07578227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

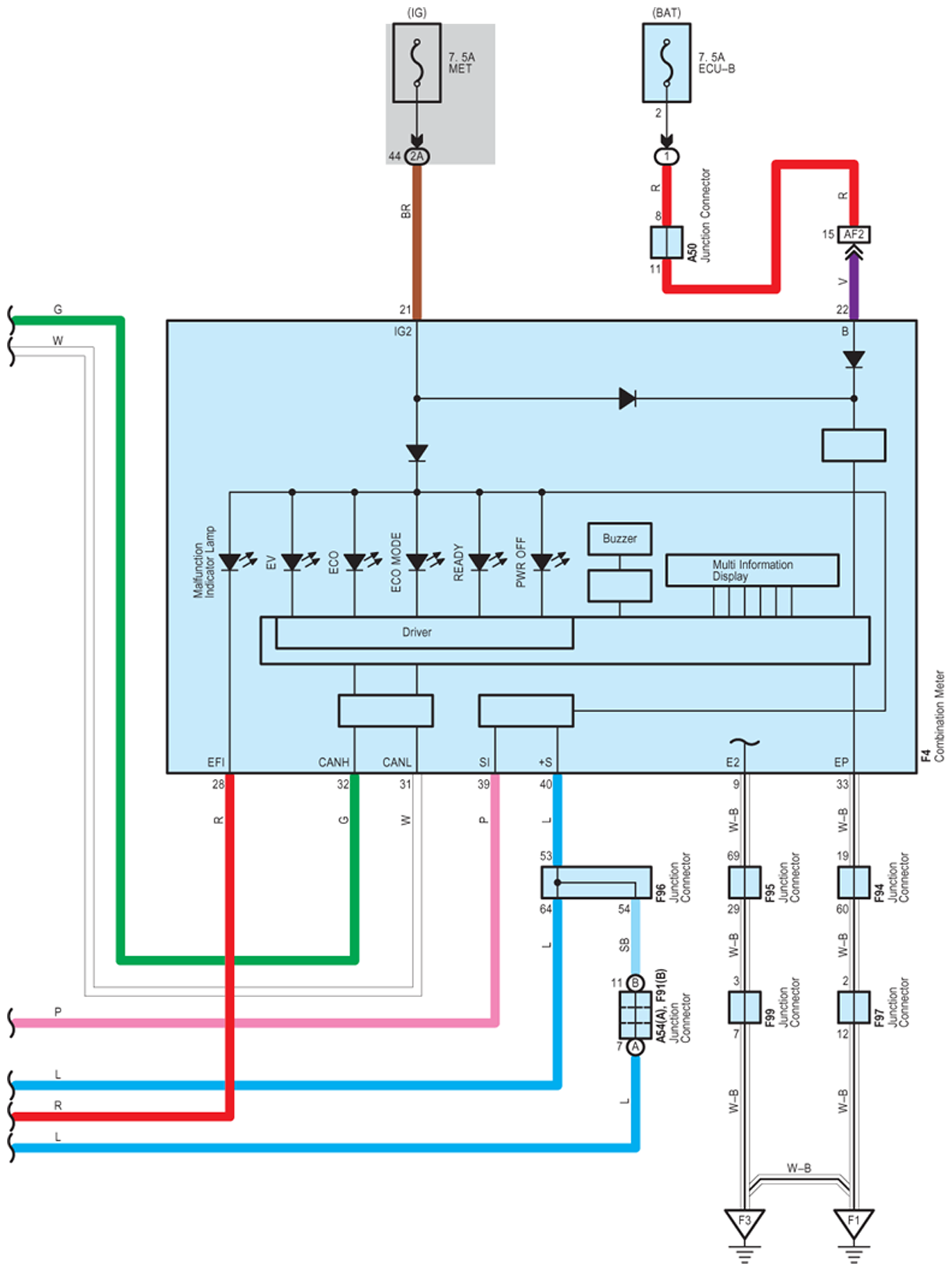

Fig 30: Hybrid System - Circuit Diagram (30 Of 30)

G07578228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
