Remote Control Mirror (w/ Seat Position Memory): Notes

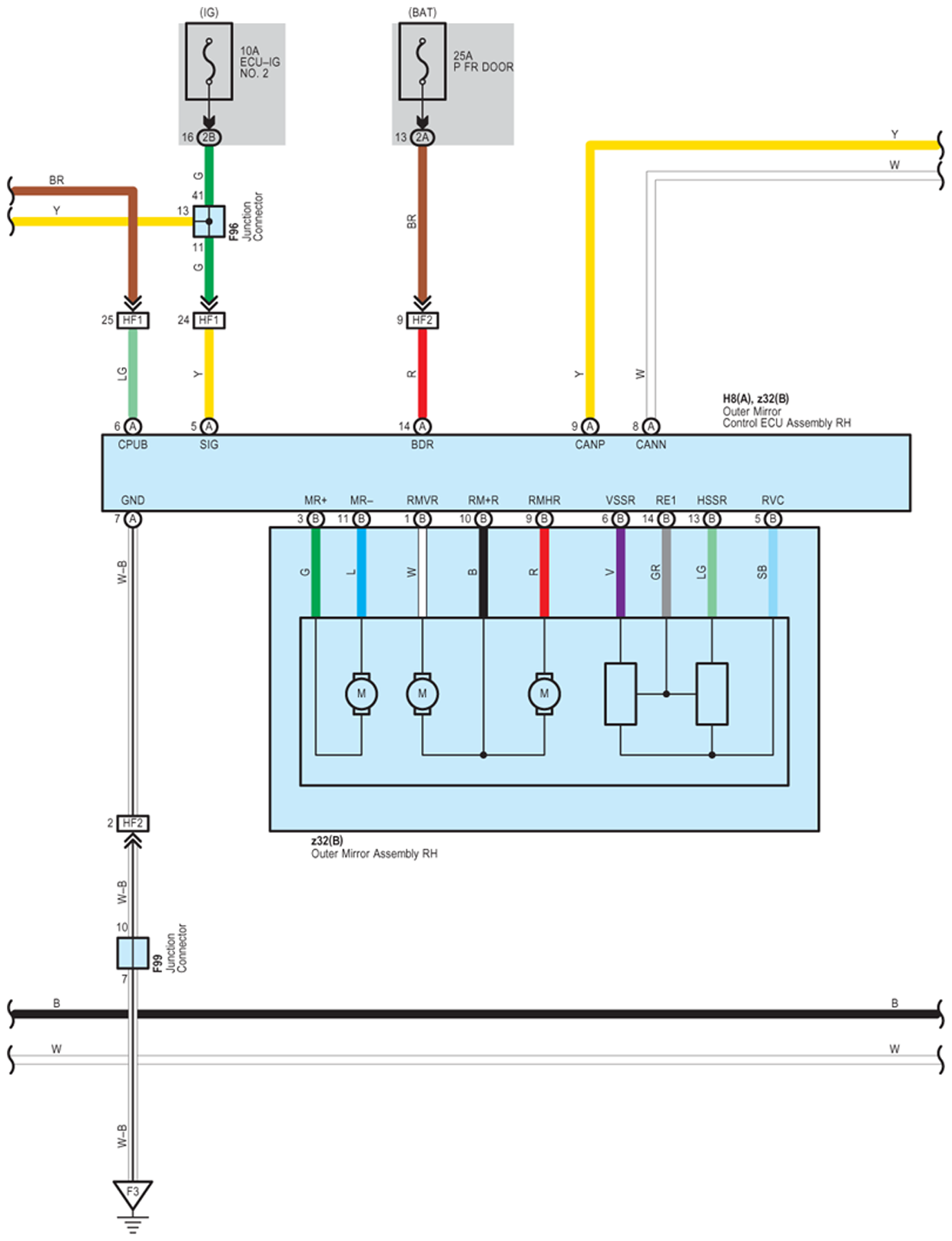

Fig 1: Remote Control Mirror (W/ Seat Position Memory) - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

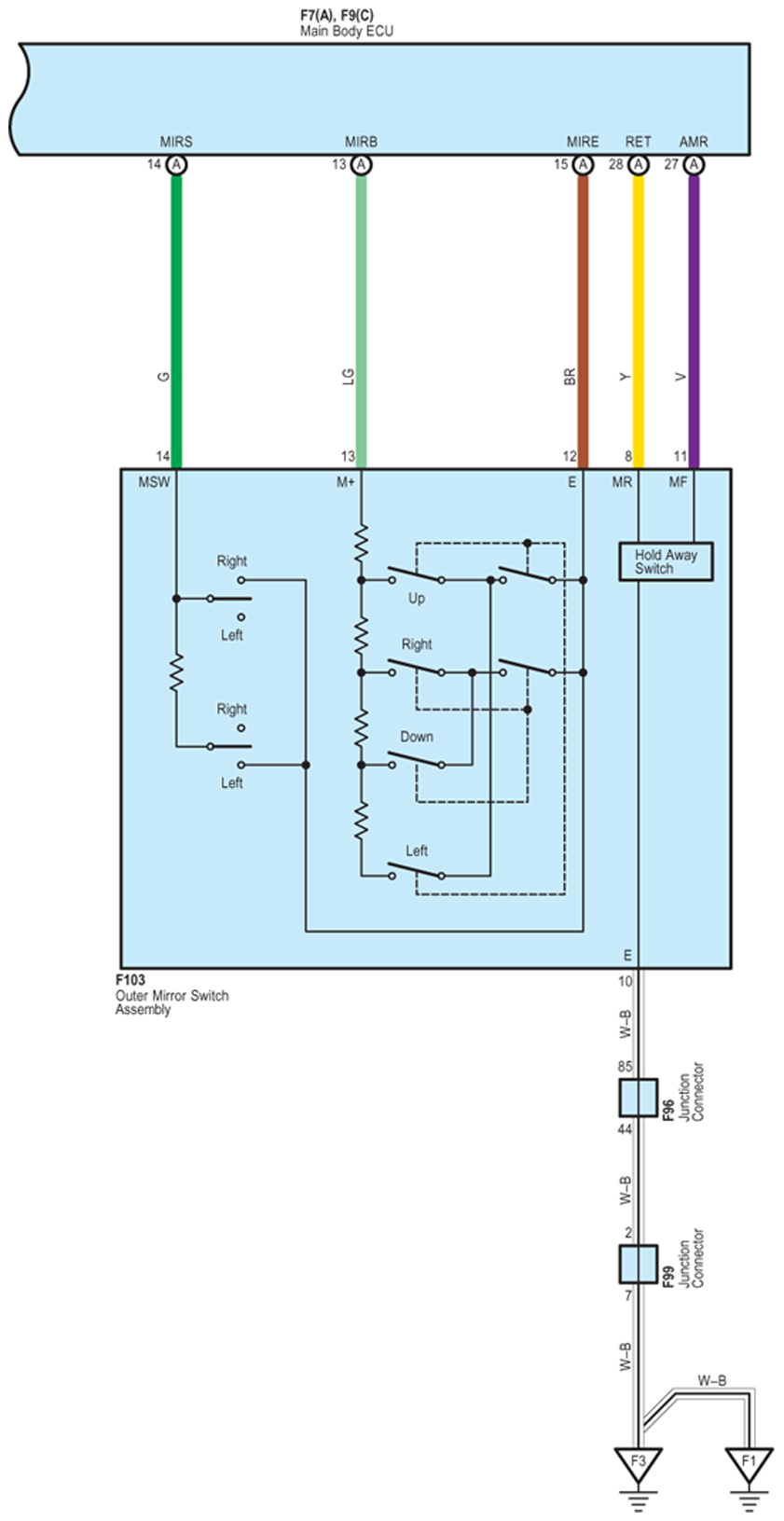

Fig 2: Remote Control Mirror (W/ Seat Position Memory) - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

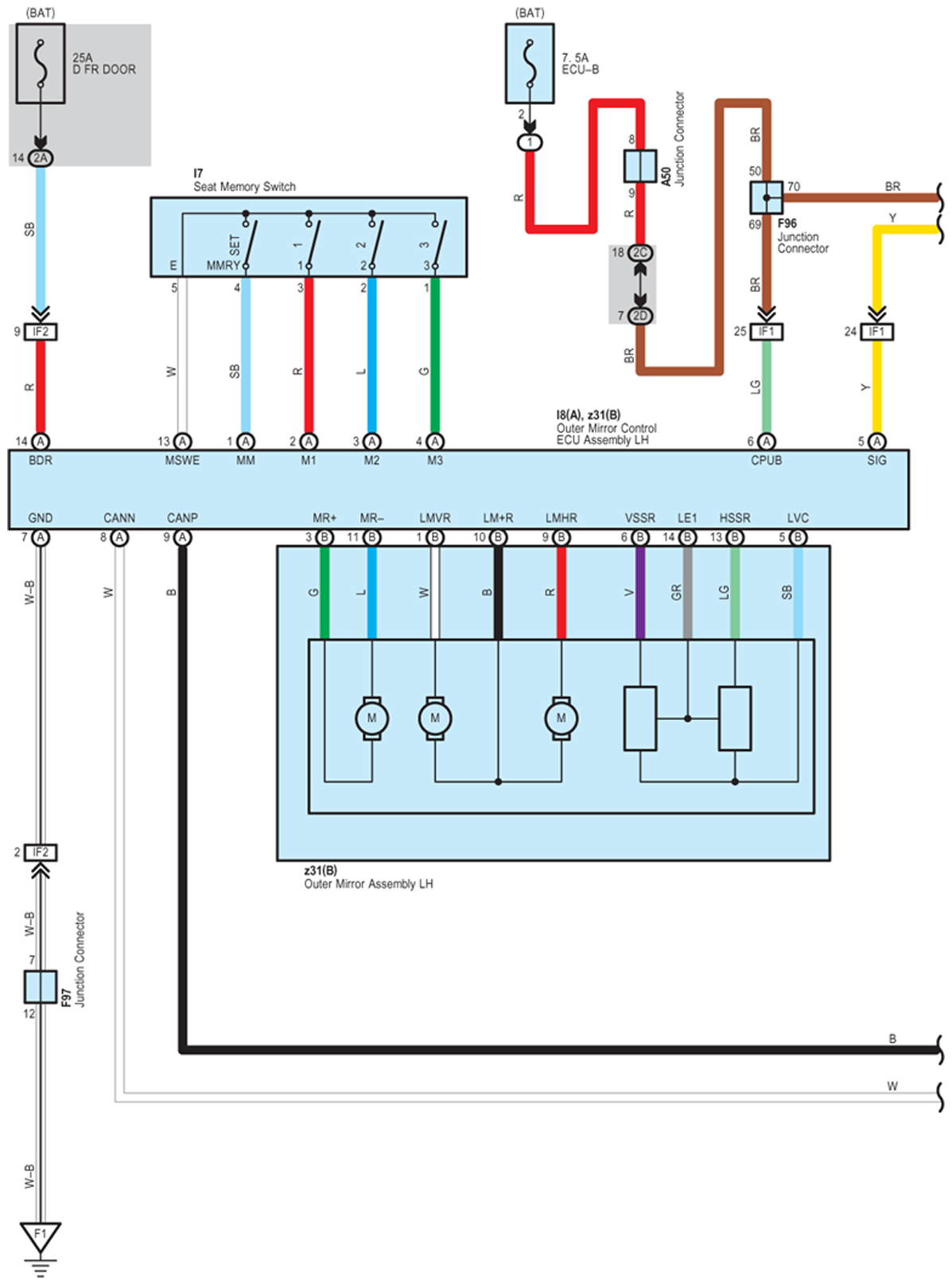

Fig 3: Remote Control Mirror (W/ Seat Position Memory) - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

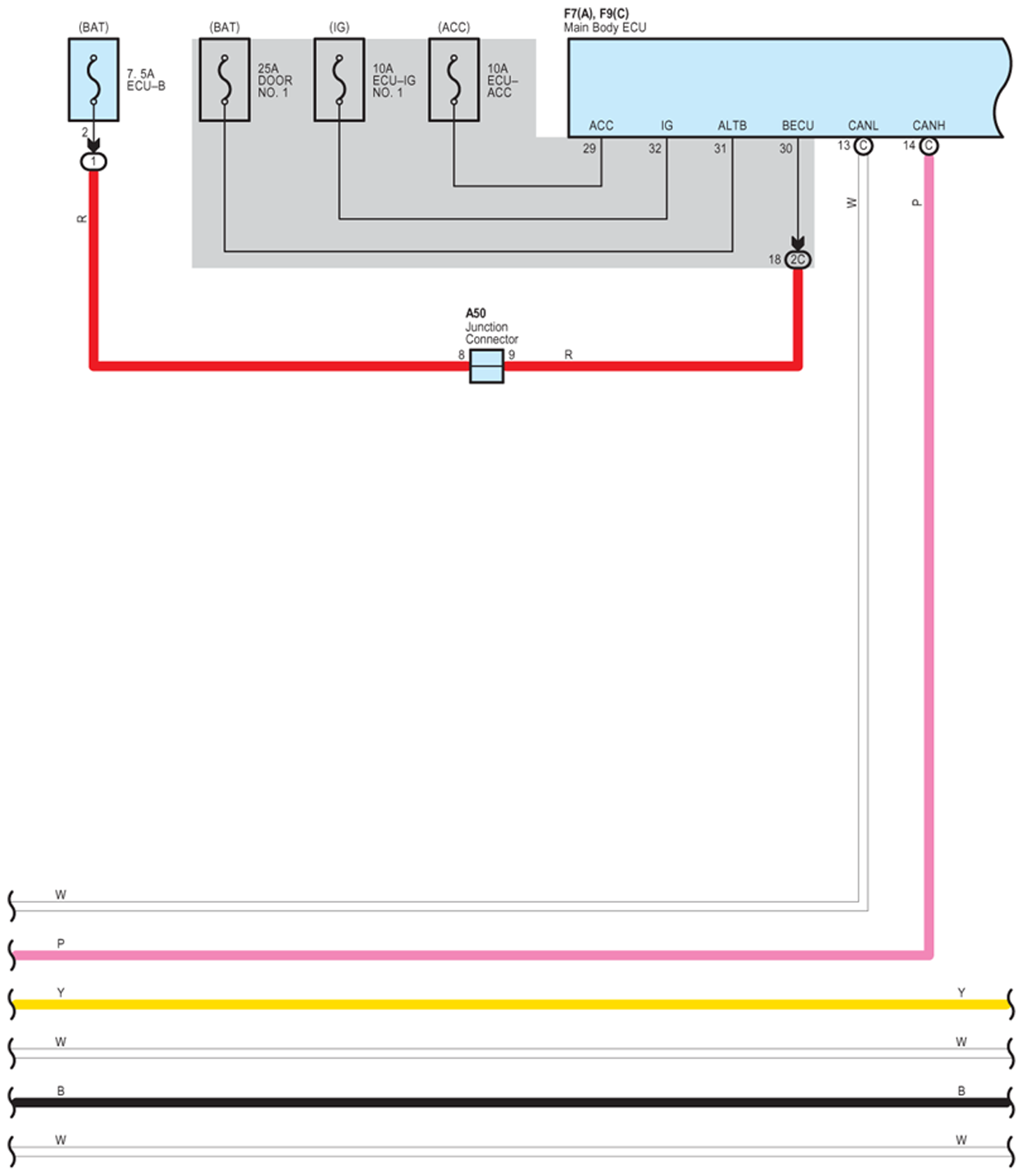

Fig 4: Remote Control Mirror (W/ Seat Position Memory) - Circuit Diagram (4 Of 6)

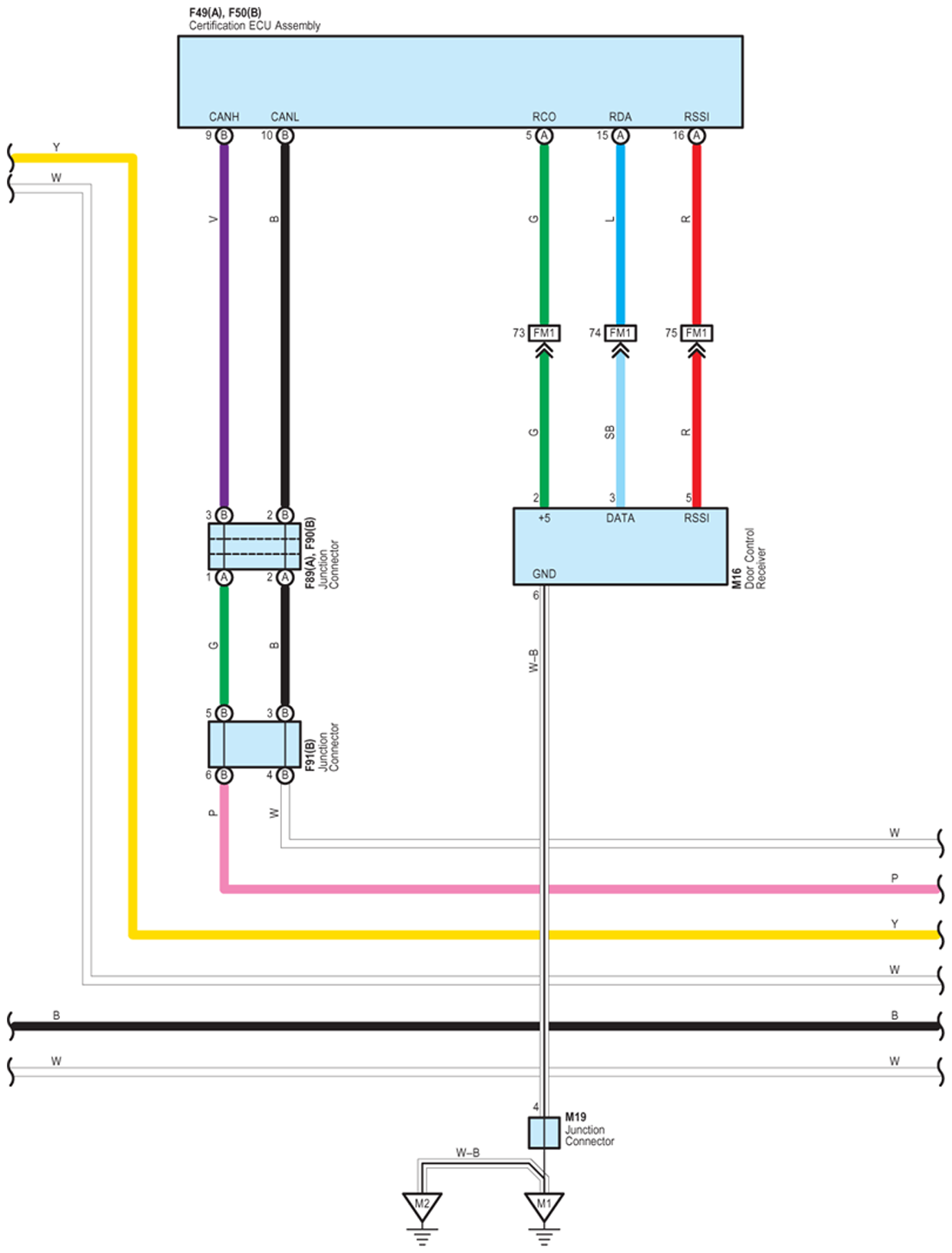

Fig 5: Remote Control Mirror (W/ Seat Position Memory) - Circuit Diagram (5 Of 6)

Fig 6: Remote Control Mirror (W/ Seat Position Memory) - Circuit Diagram (6 Of 6)
