Smart Access System with Push-Button Start and Luggage Compartment Door Opener: Notes

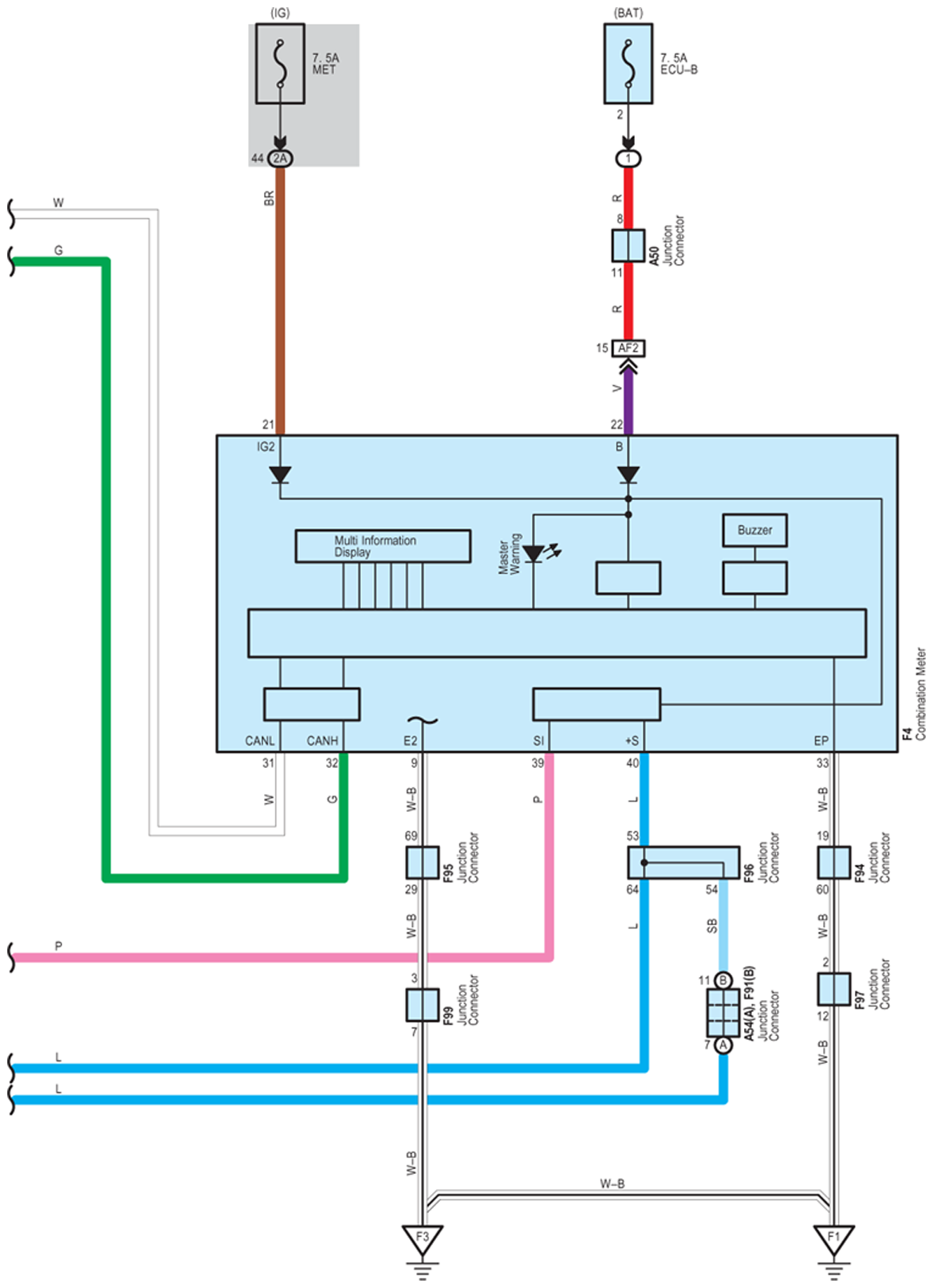

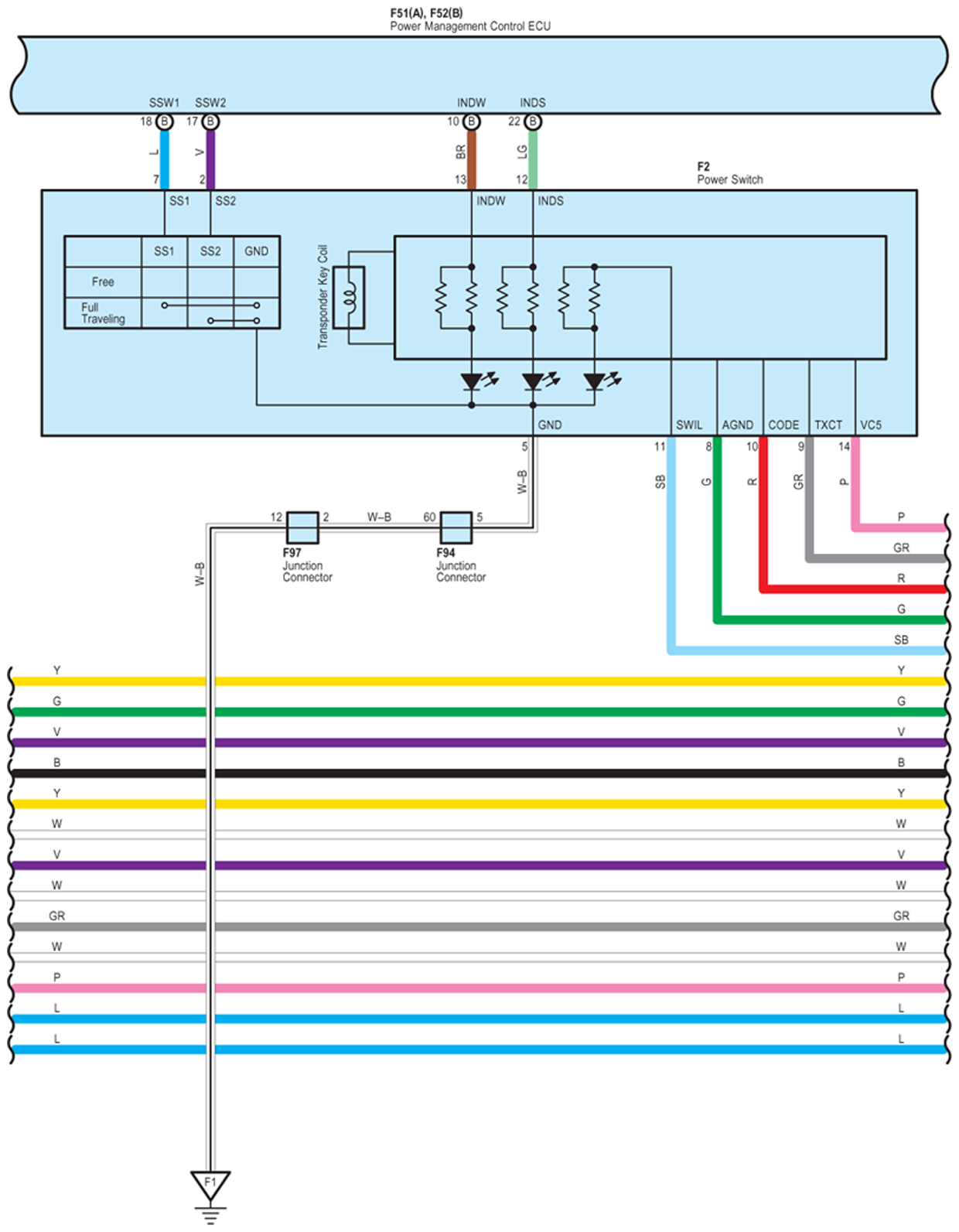

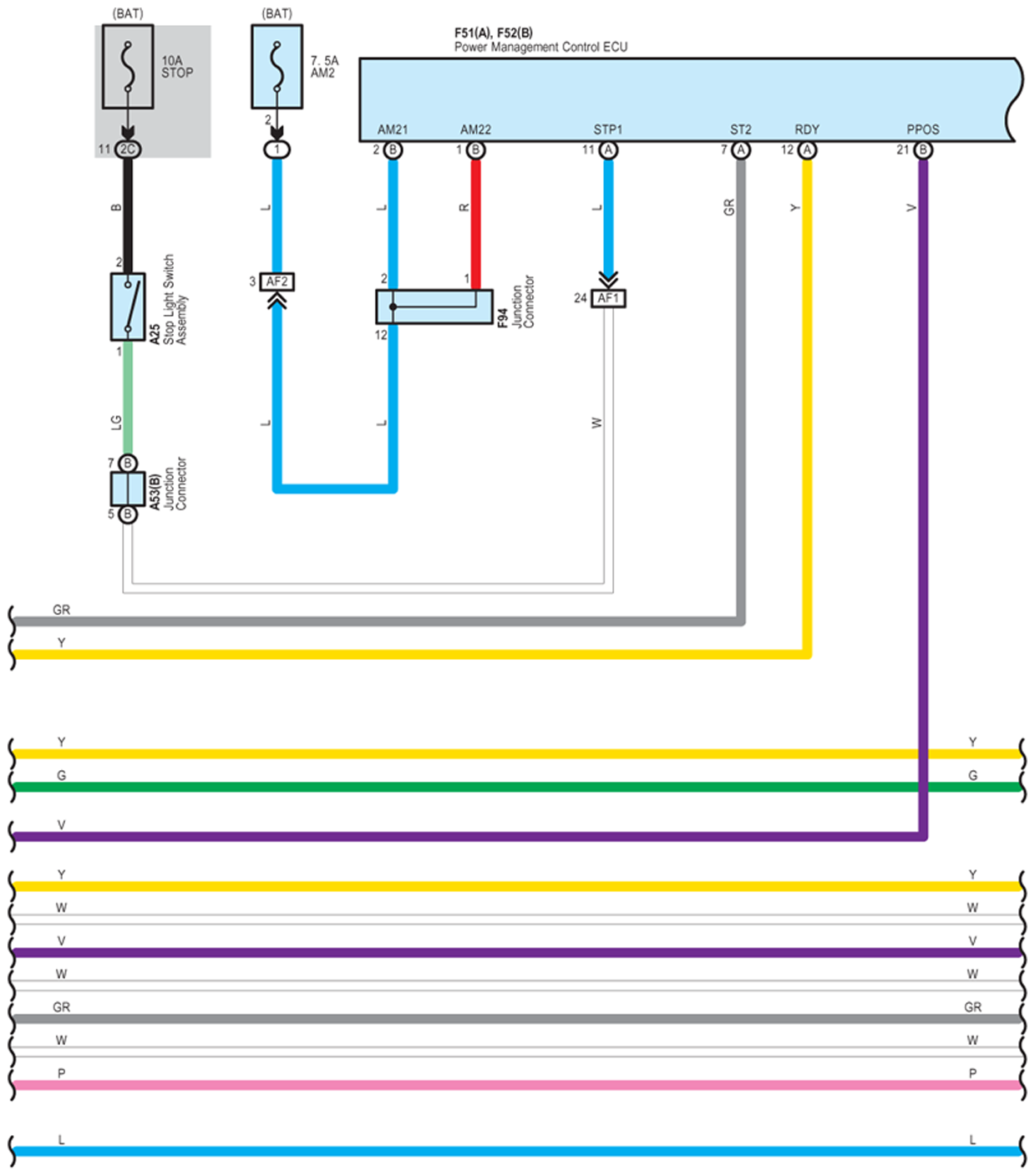

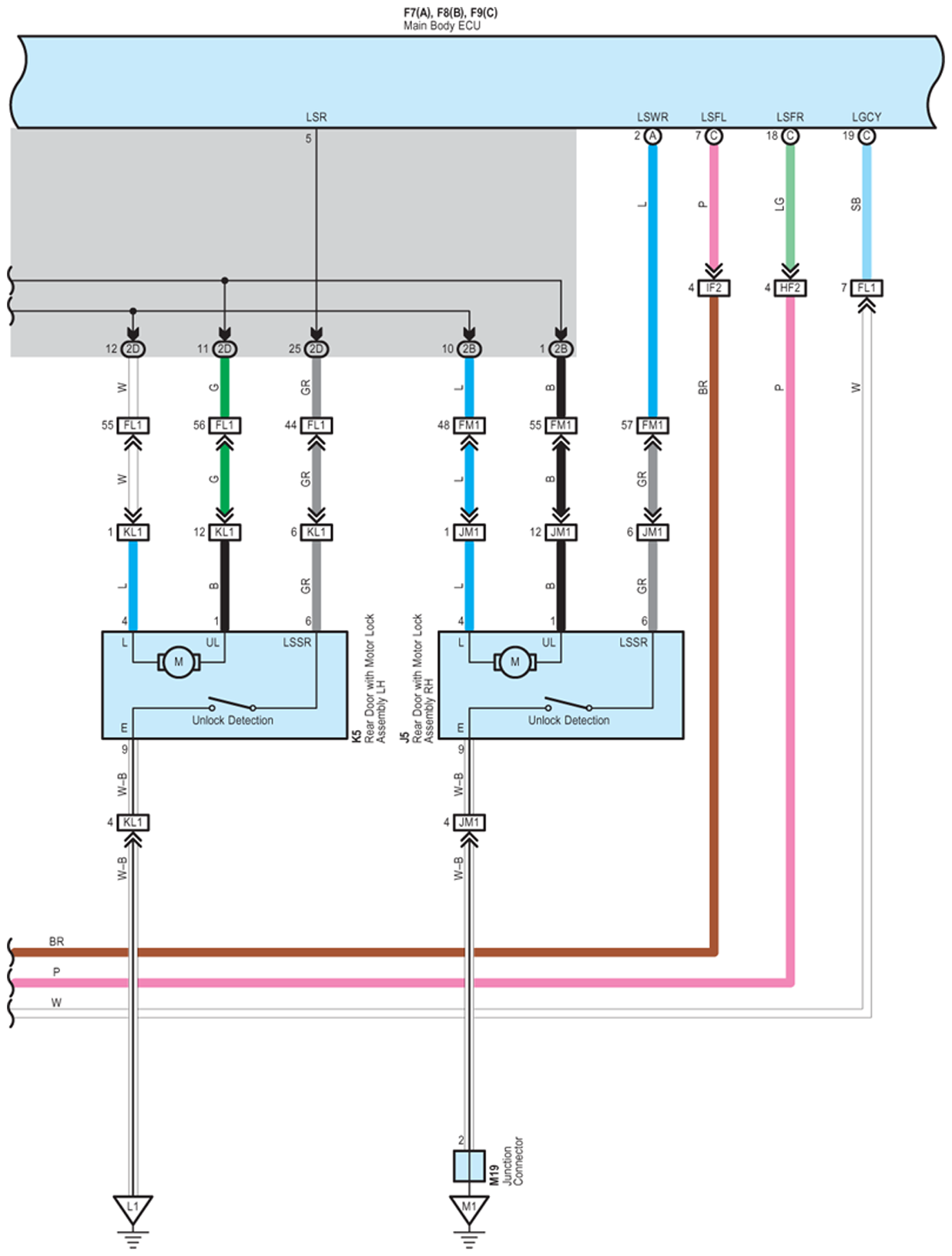

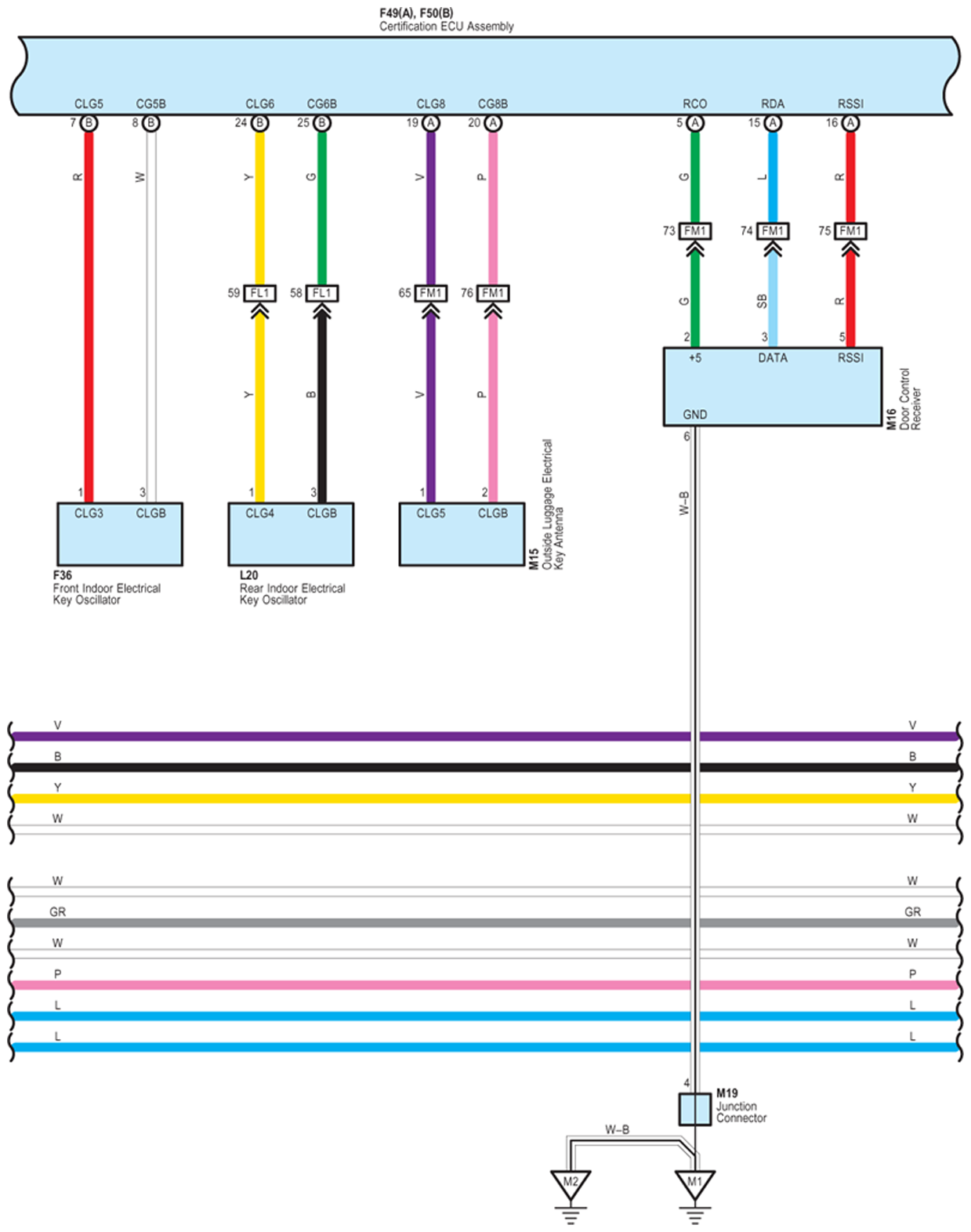

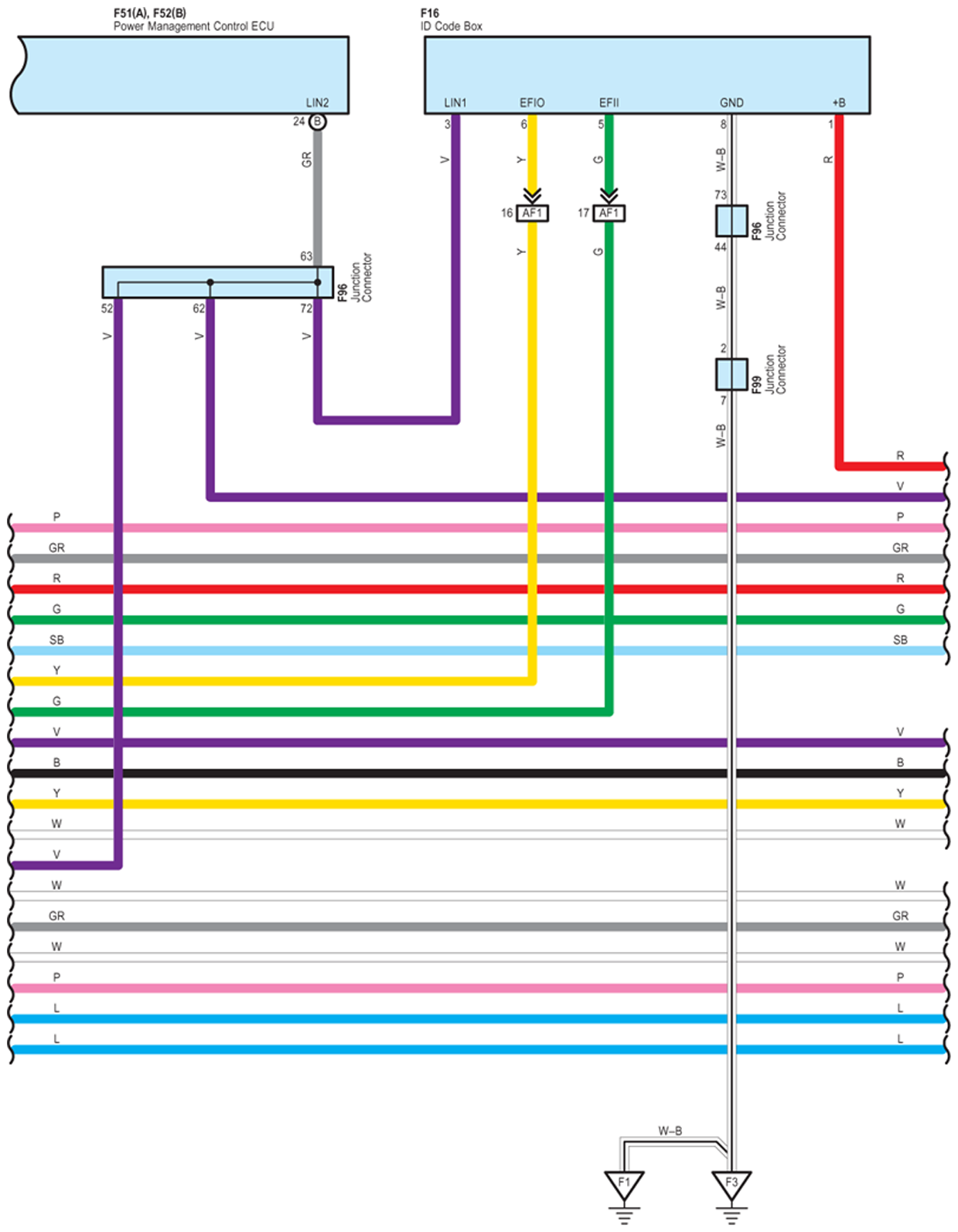

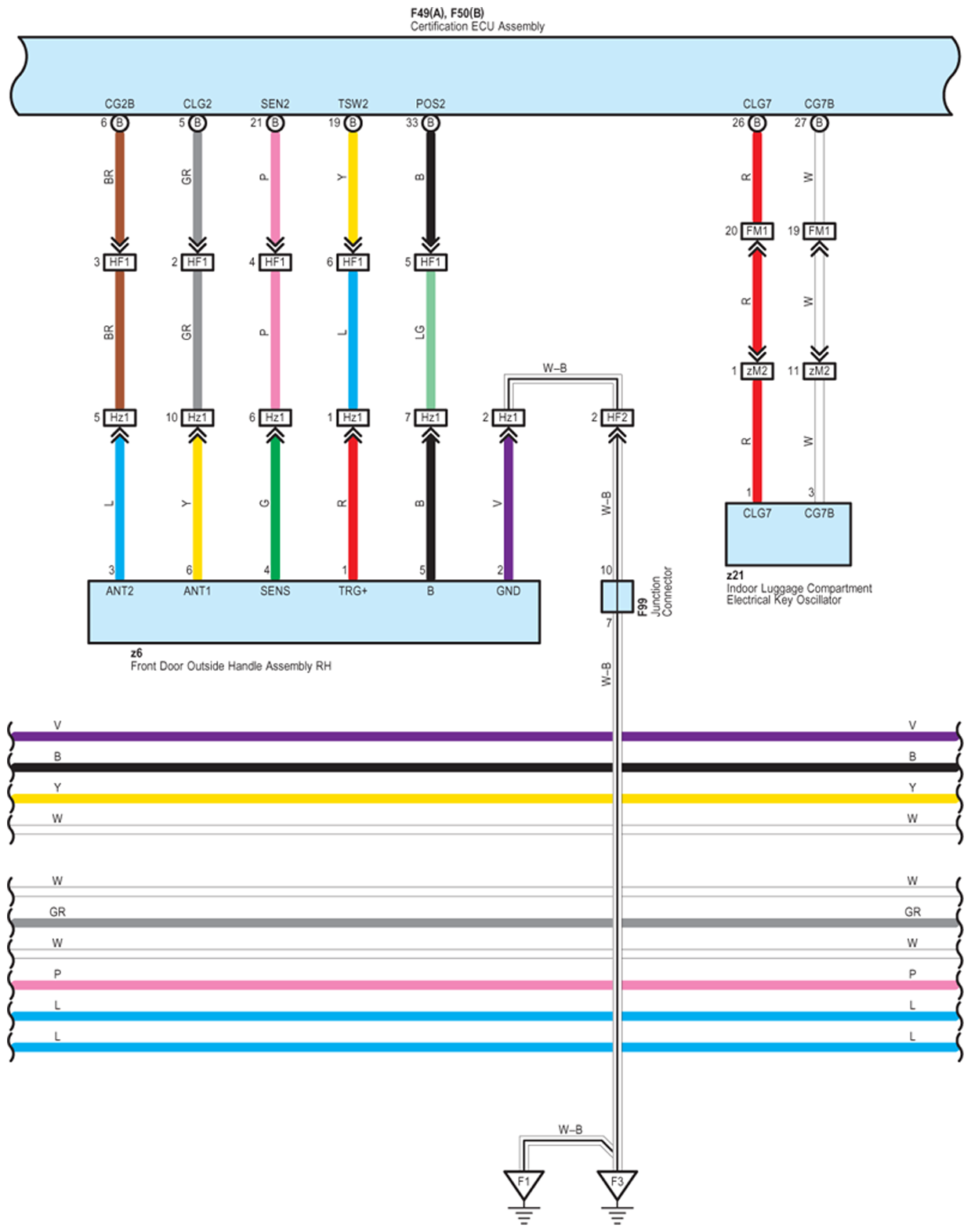

Fig 1: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (1 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

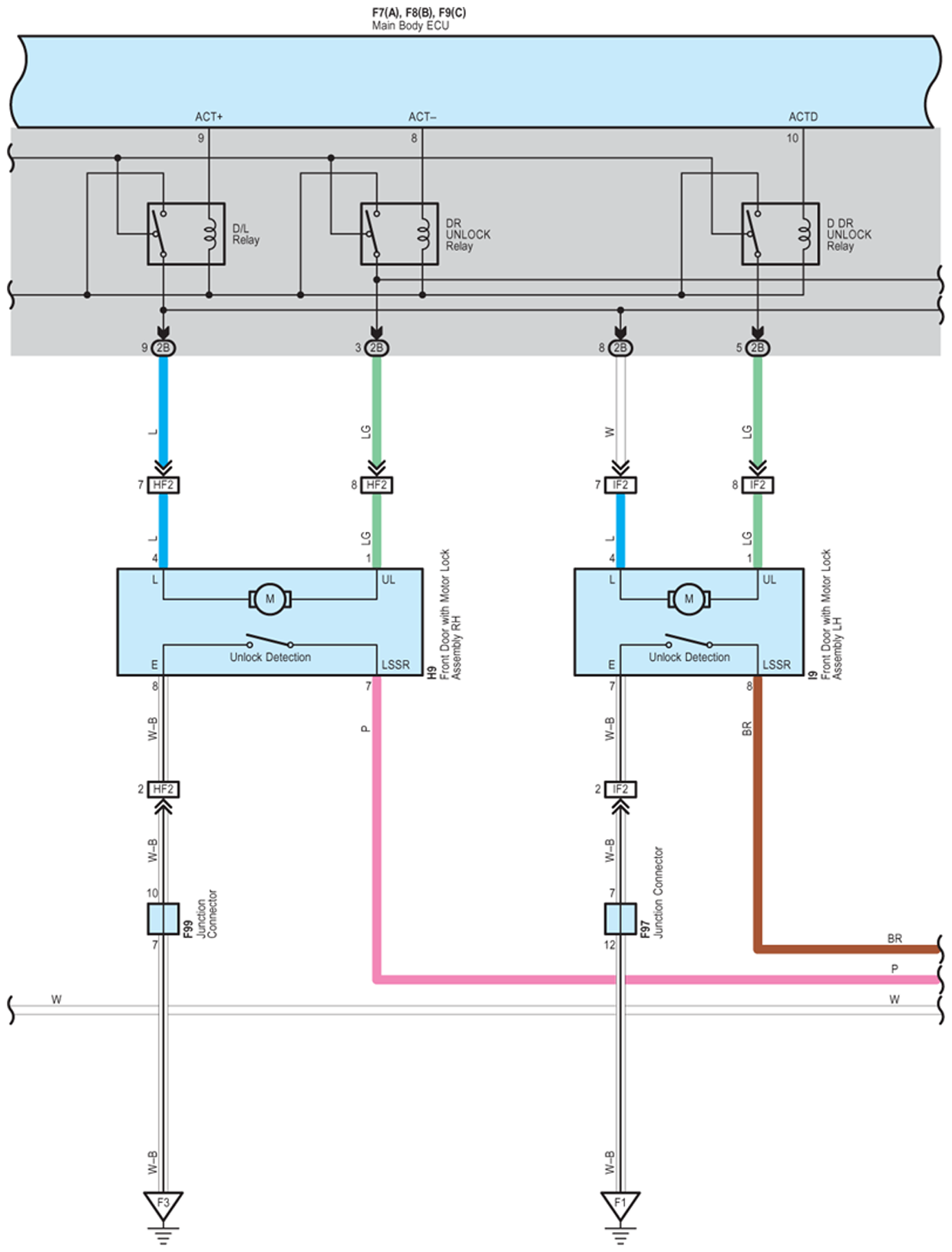

Fig 2: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (2 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

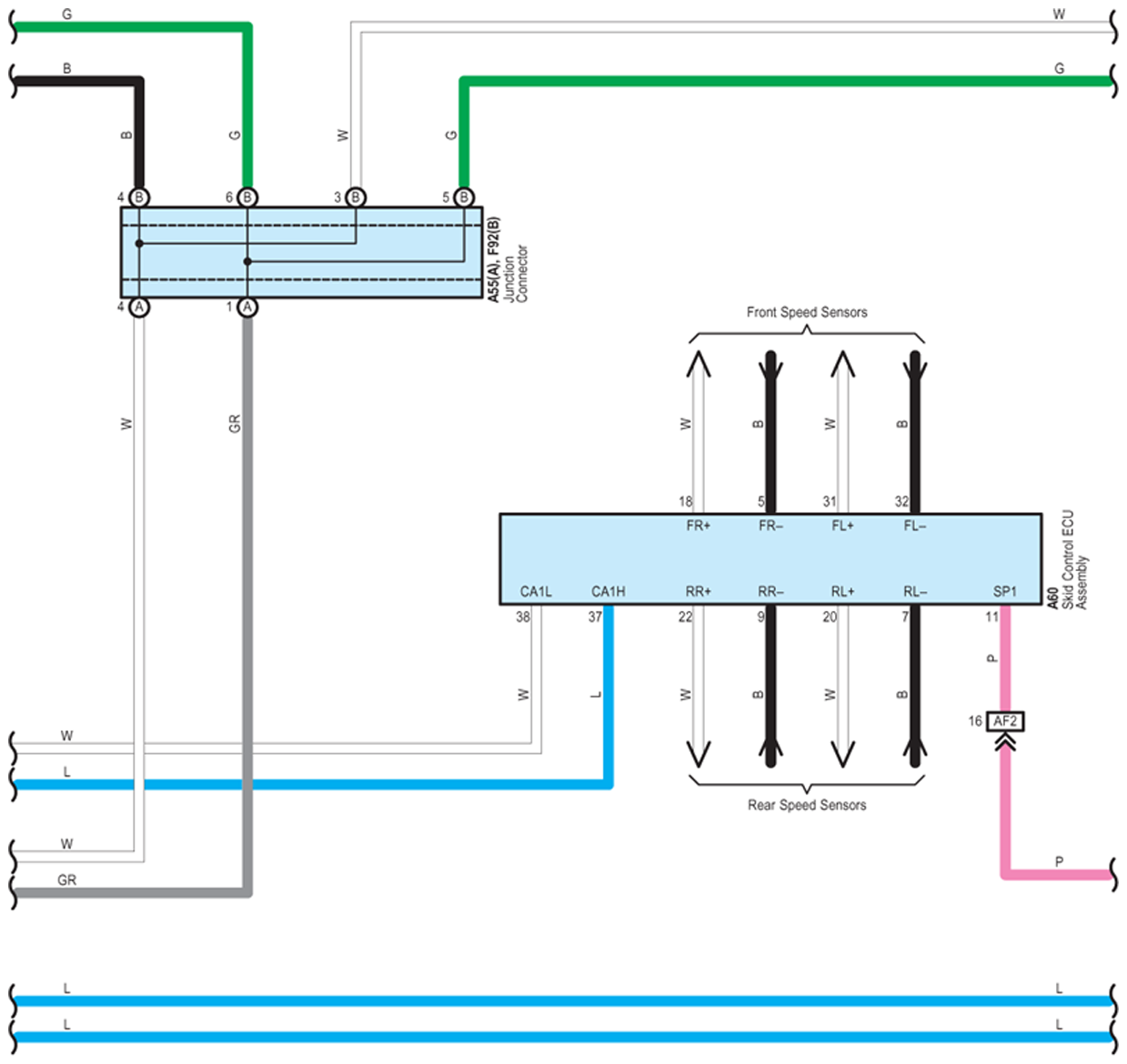

Fig 3: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (3 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

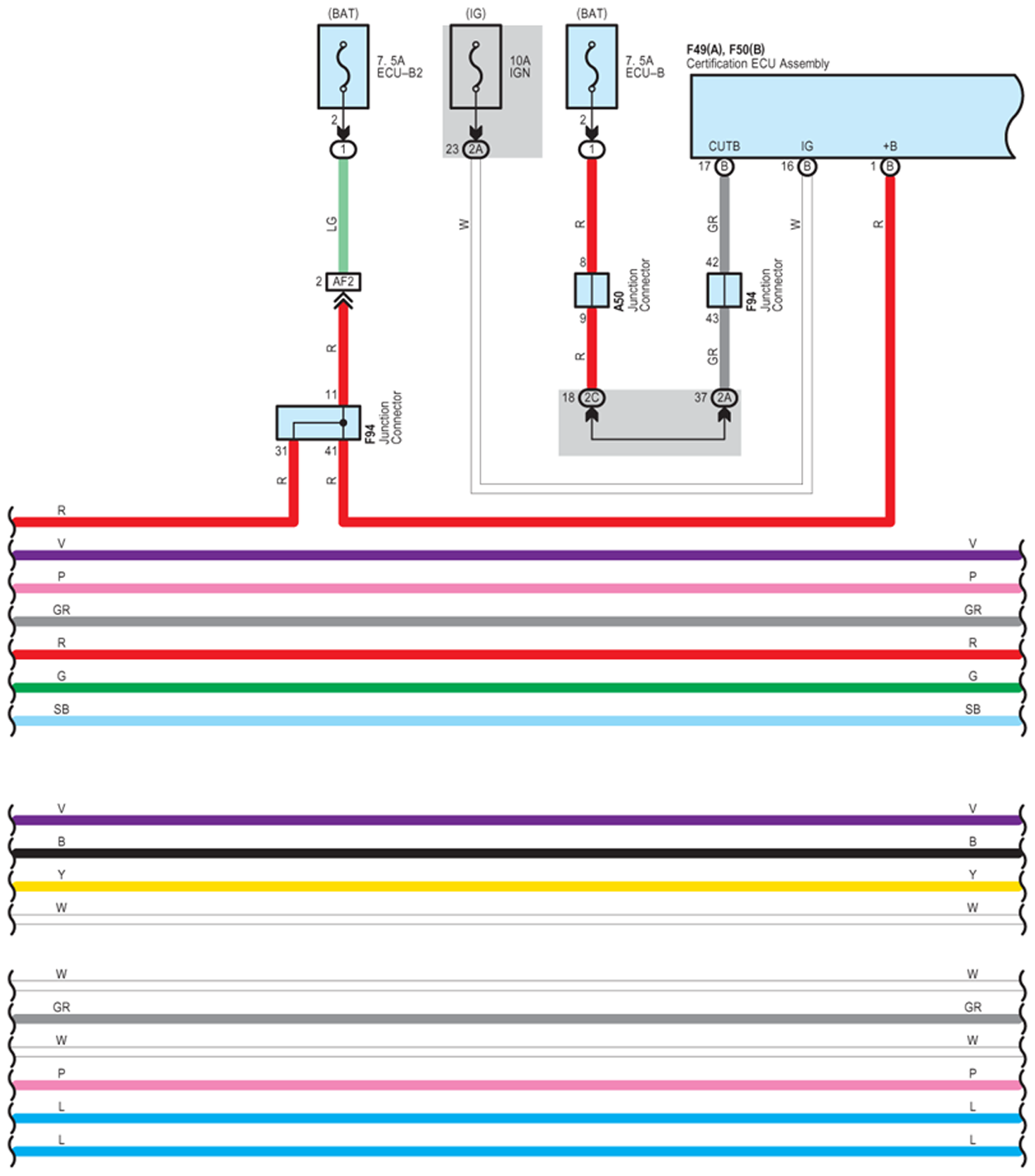

Fig 4: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (4 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

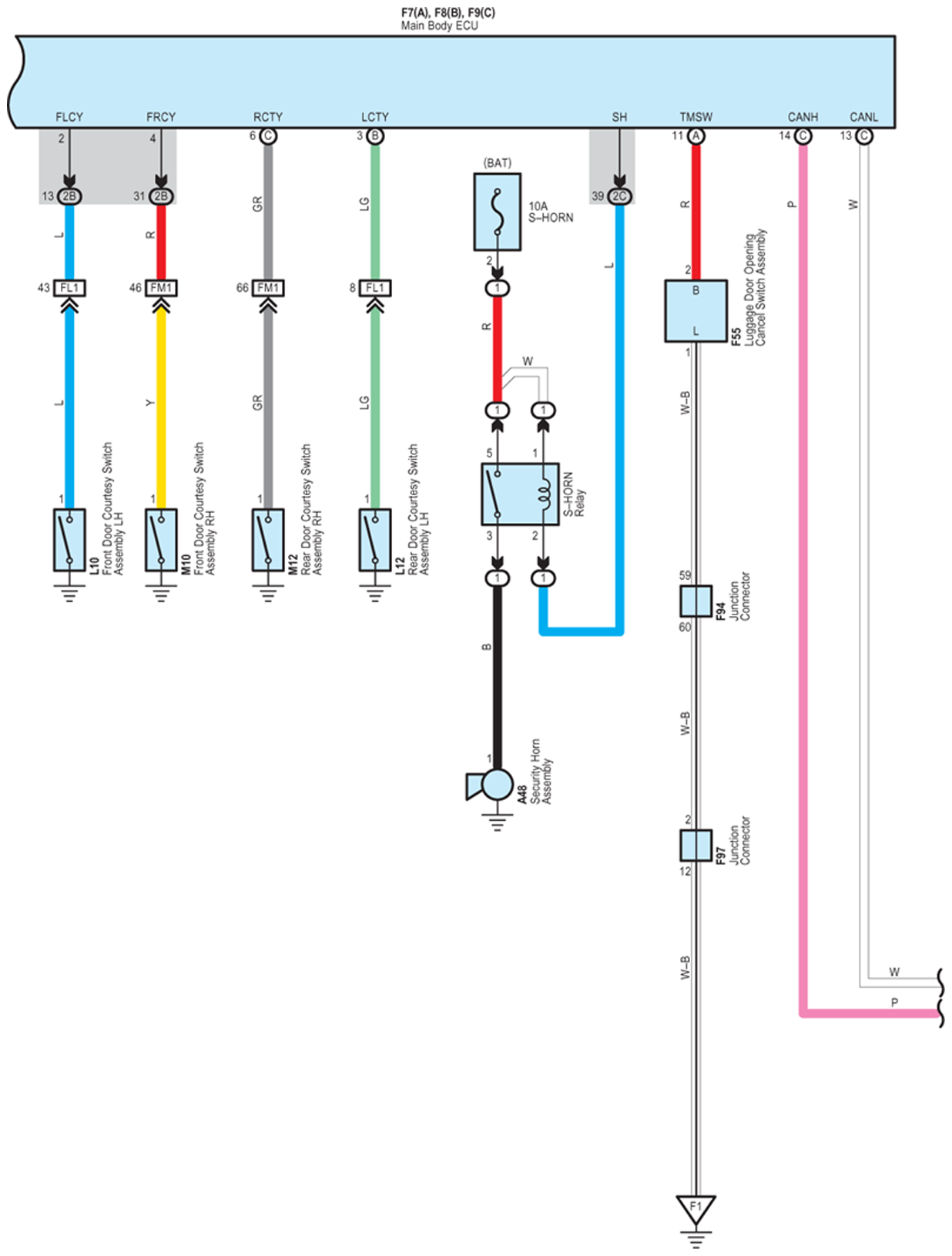

Fig 5: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (5 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

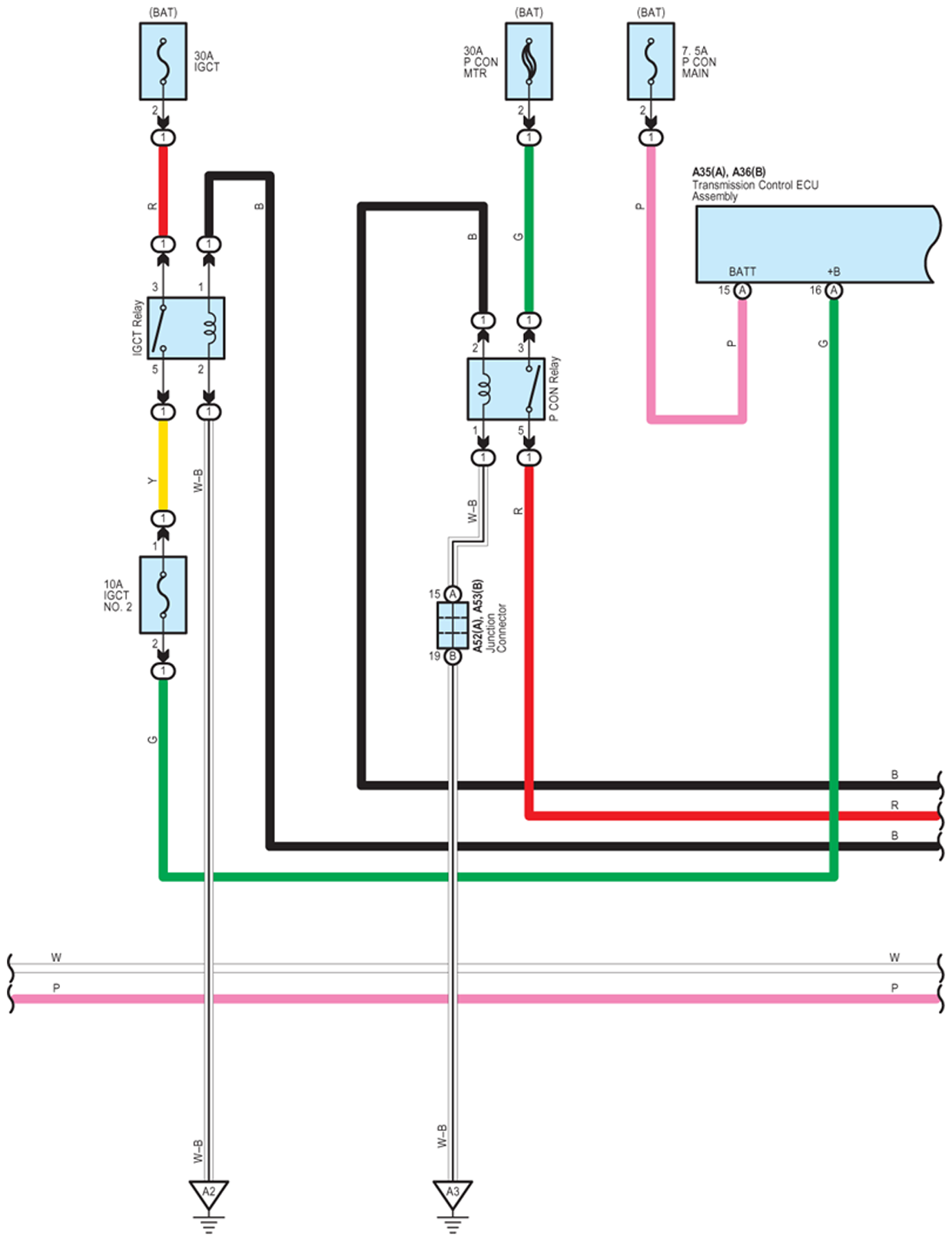

Fig 6: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (6 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

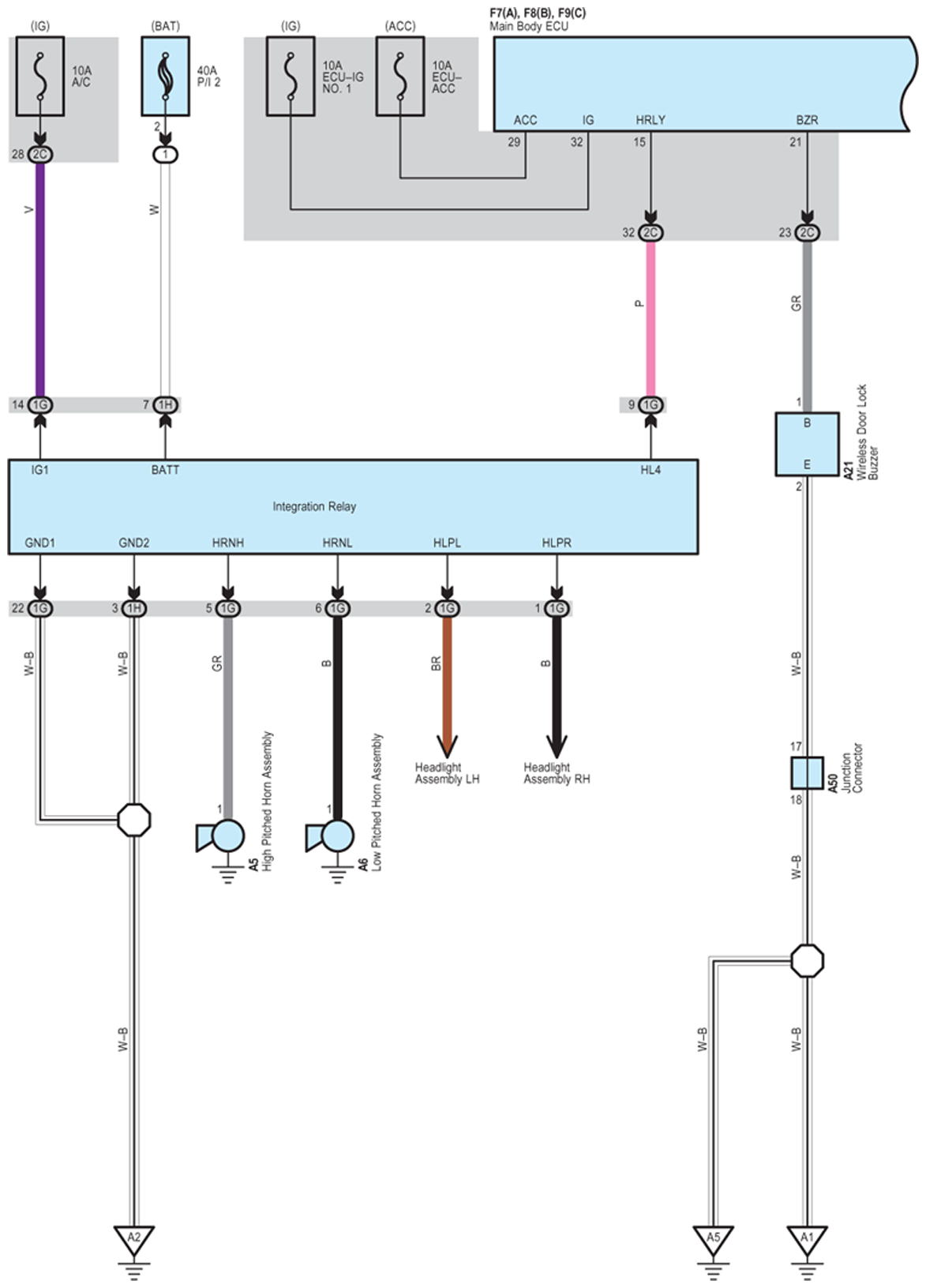

Fig 7: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (7 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

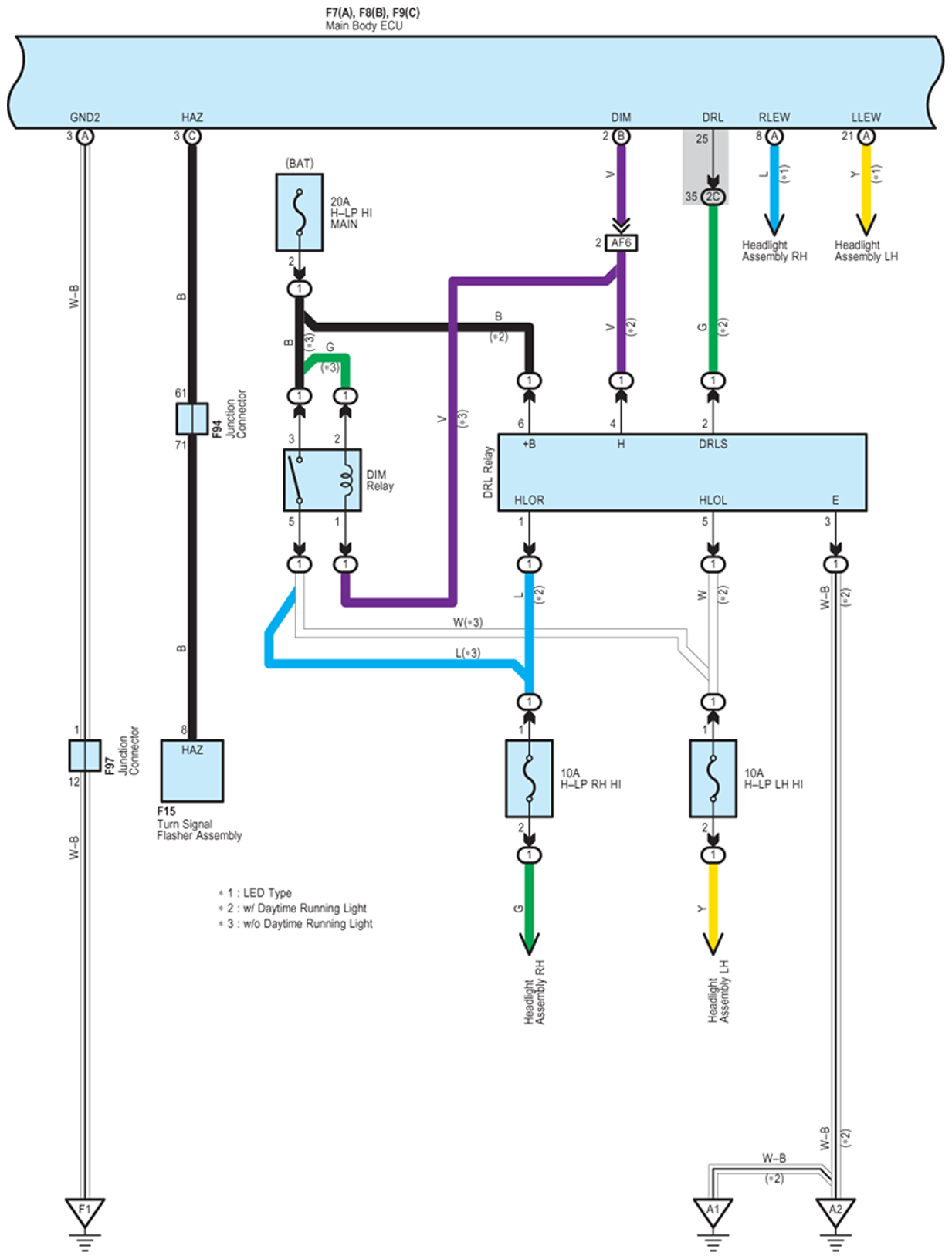

Fig 8: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (8 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

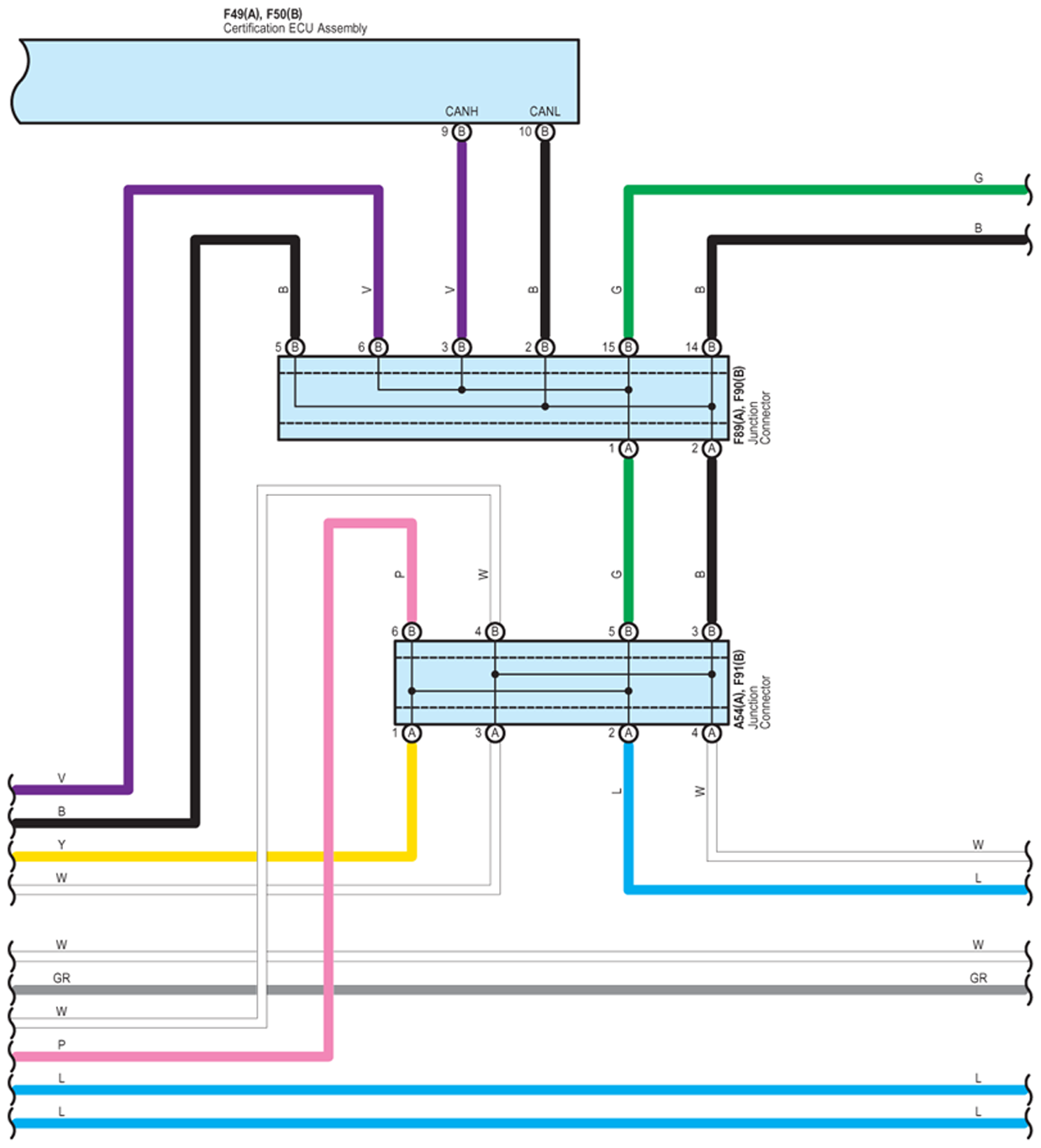

Fig 9: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (9 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

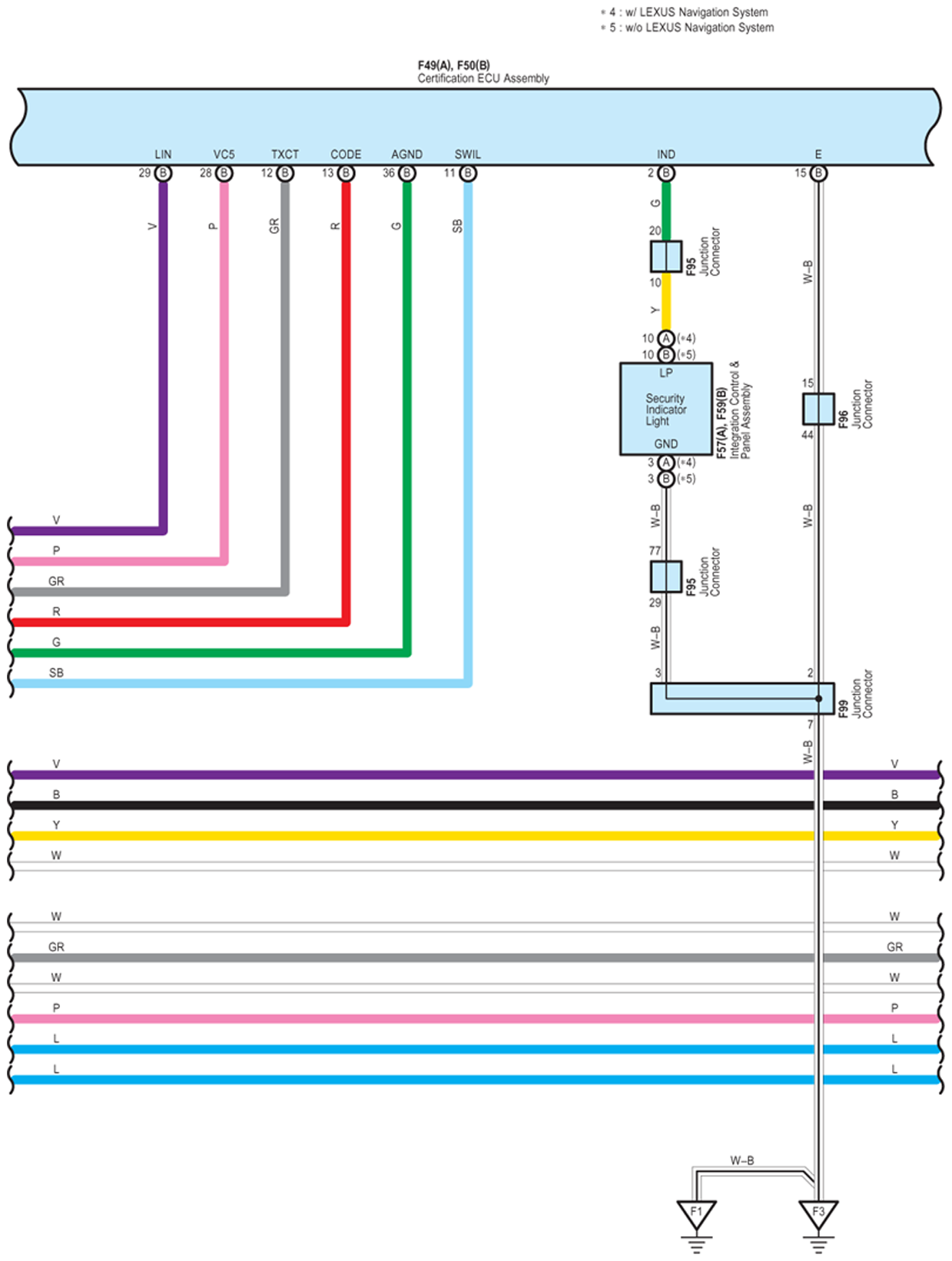

Fig 10: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (10 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

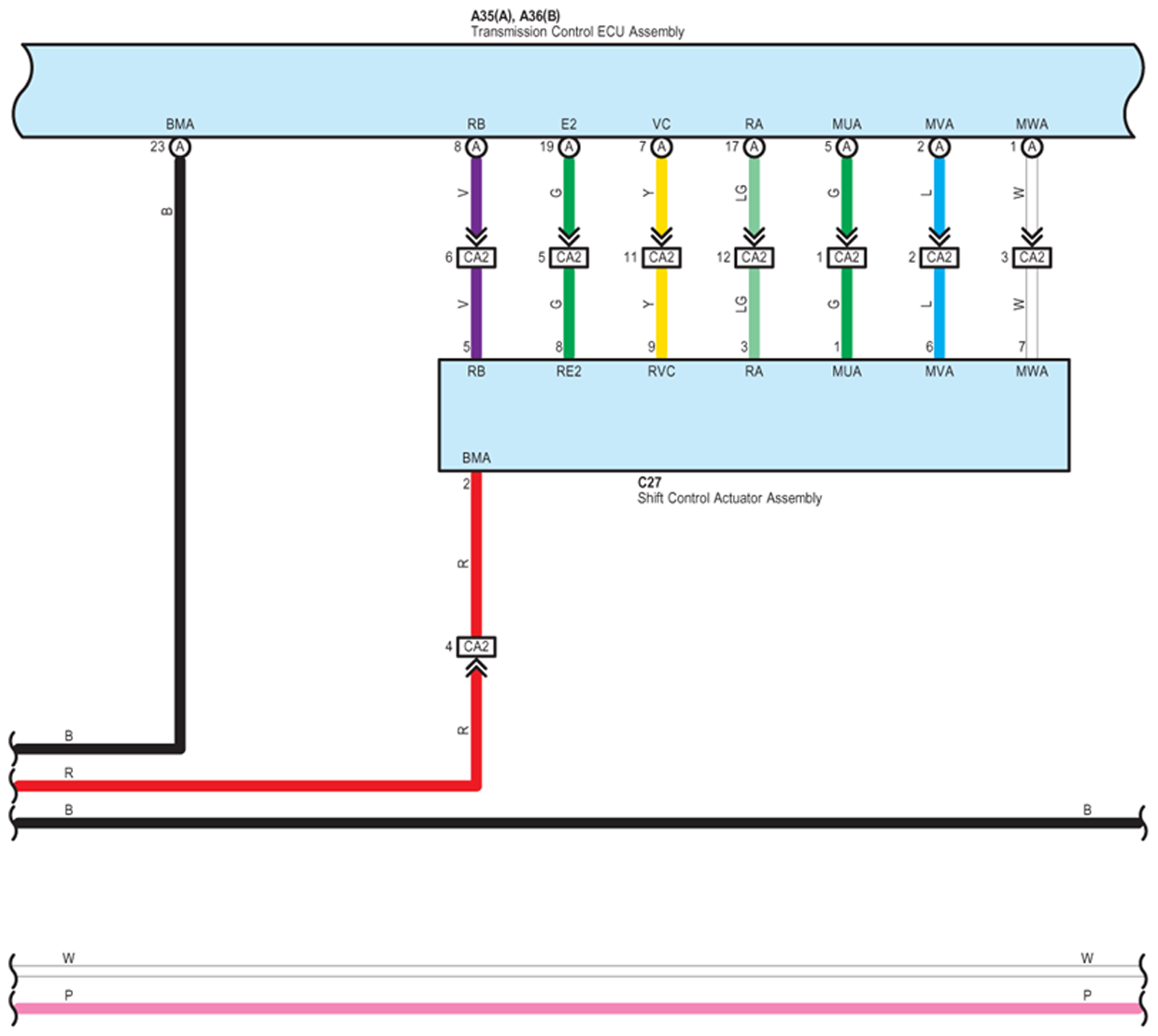

Fig 11: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (11 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

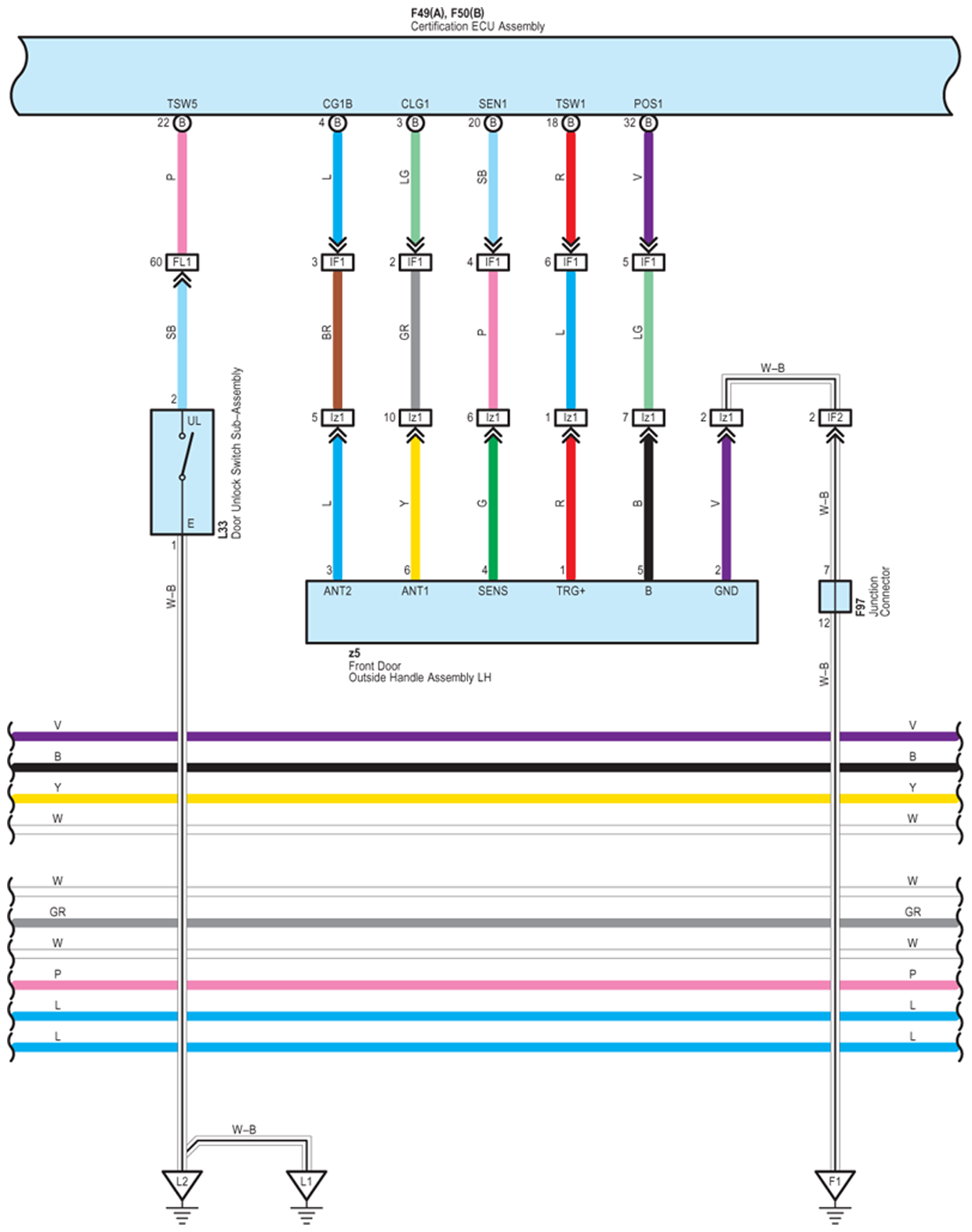

Fig 12: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (12 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

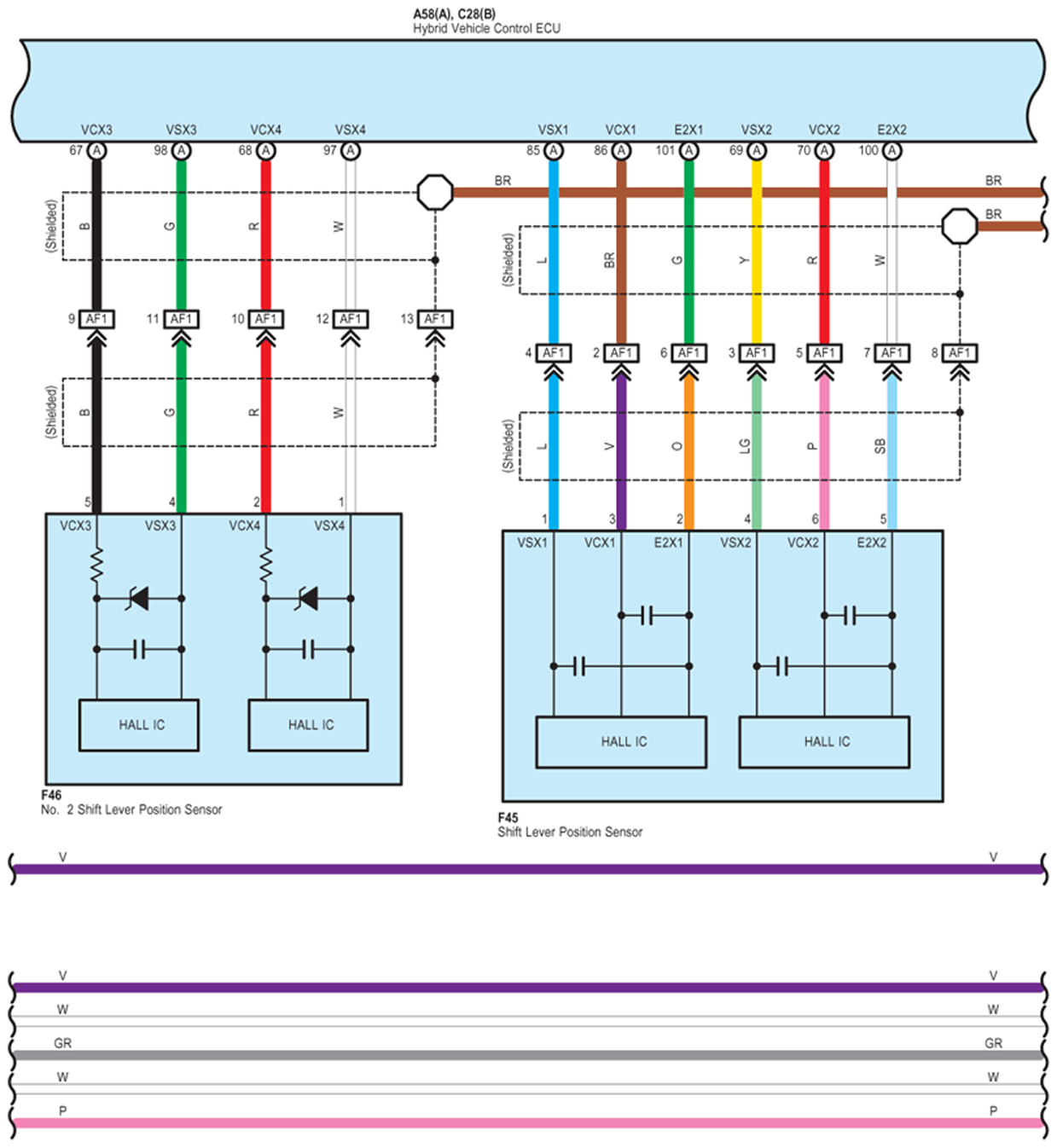

Fig 13: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (13 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

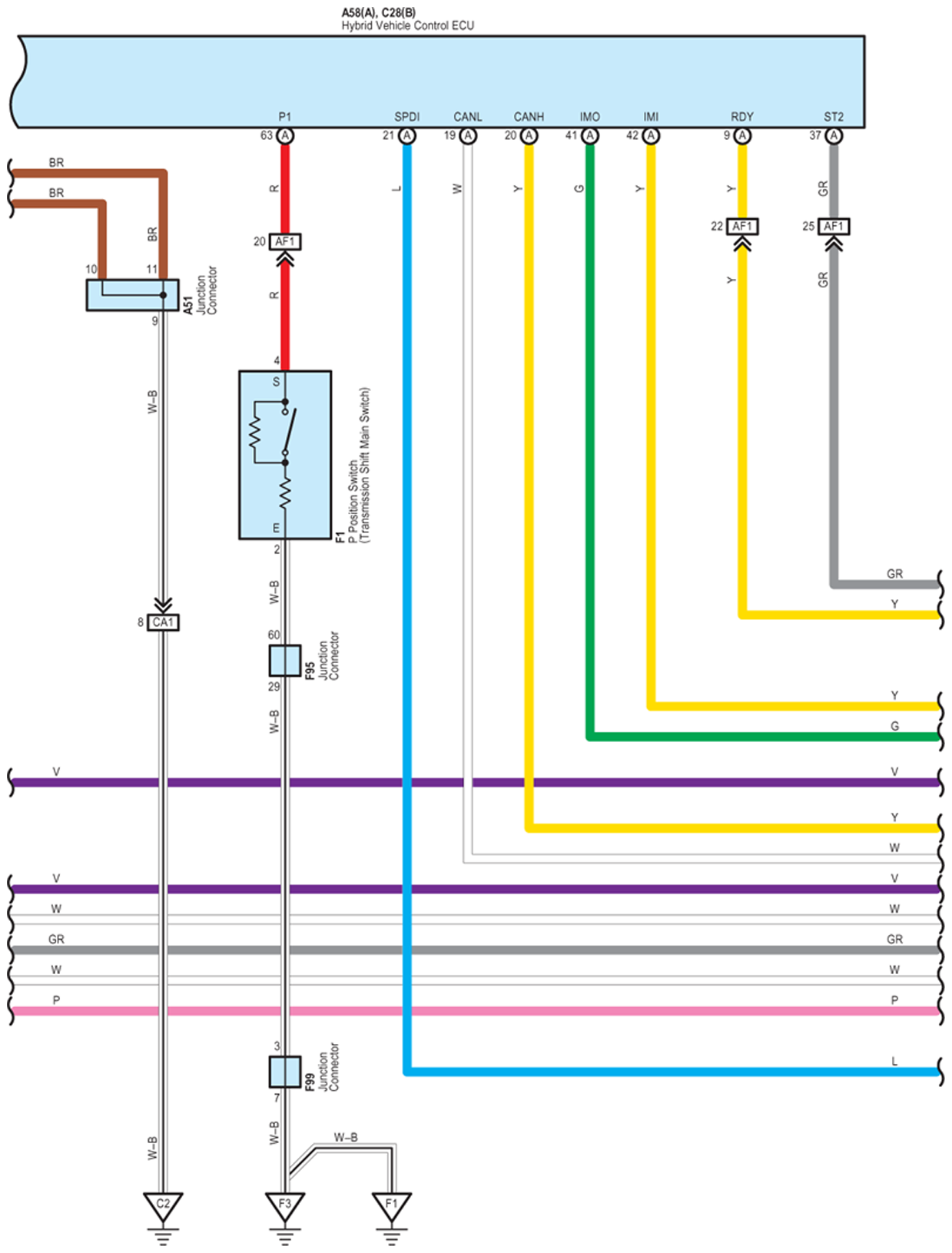

Fig 14: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (14 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

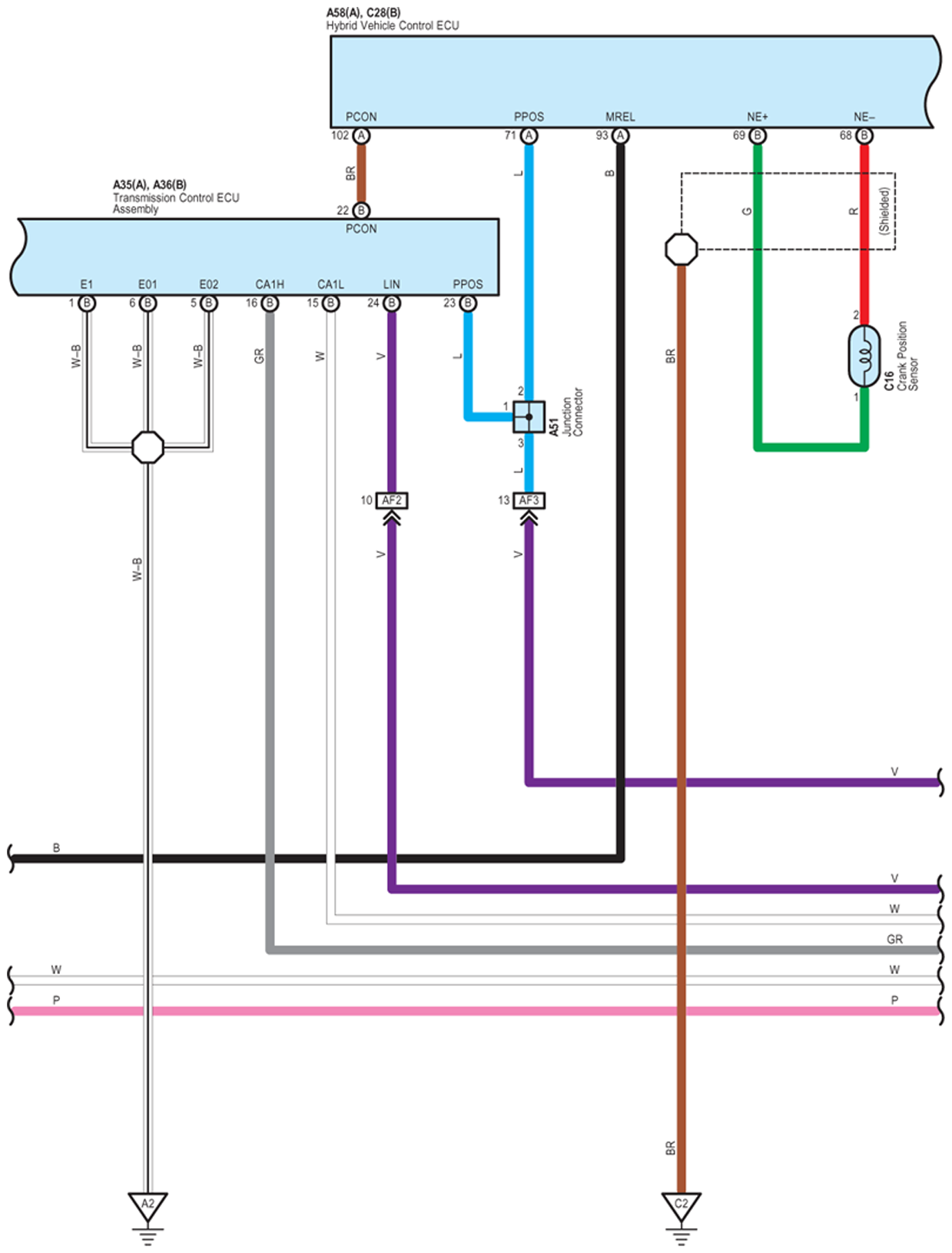

Fig 15: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (15 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

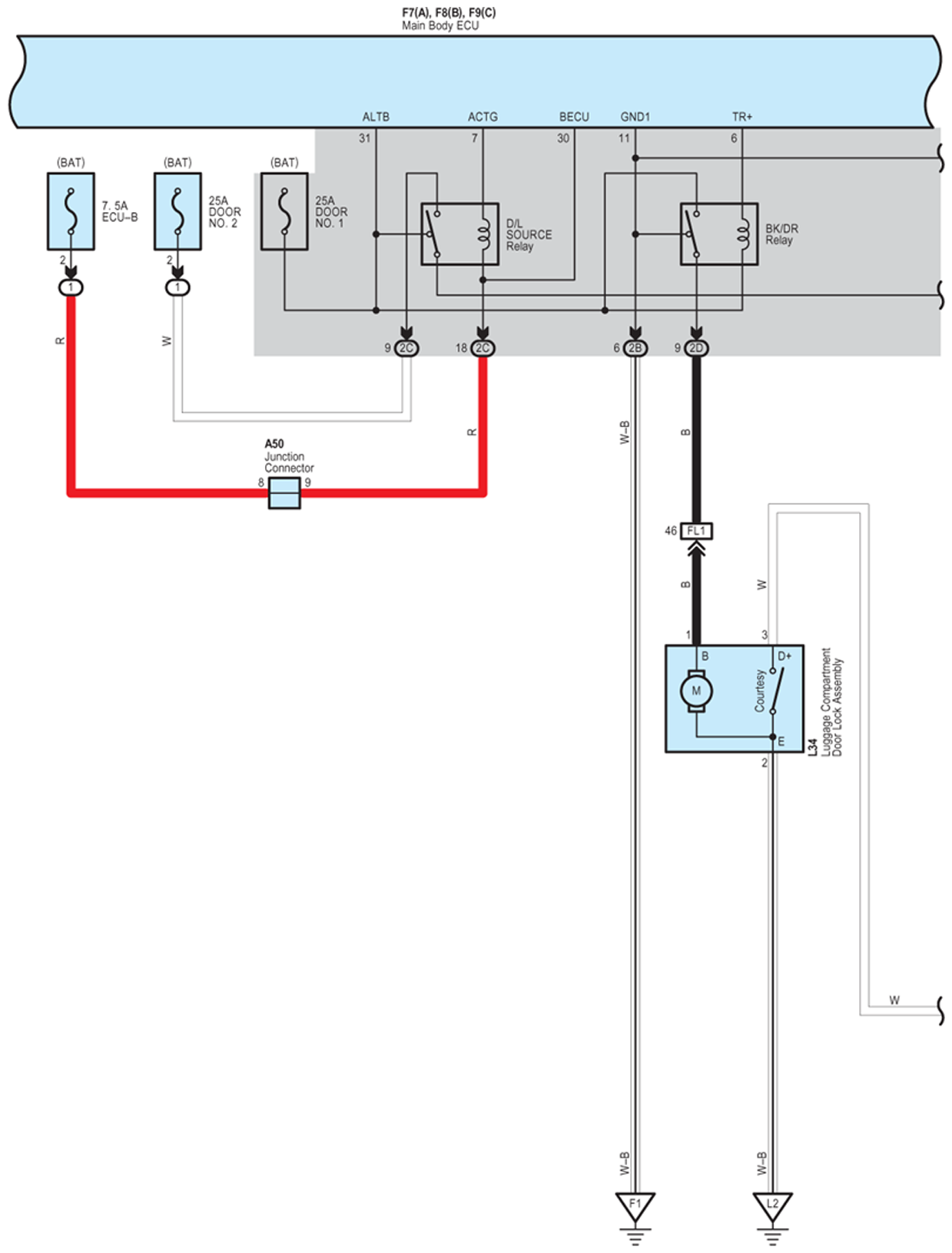

Fig 16: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (16 Of 23)

Fig 17: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (17 Of 23)

Fig 18: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (18 Of 23)

Fig 19: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (19 Of 23)

Fig 20: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (20 Of 23)

Fig 21: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (21 Of 23)

Fig 22: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (22 Of 23)

Fig 23: Smart Access System With Push-Button Start And Luggage Compartment Door Opener - Circuit Diagram (23 Of 23)
