Parts Location: Illustration

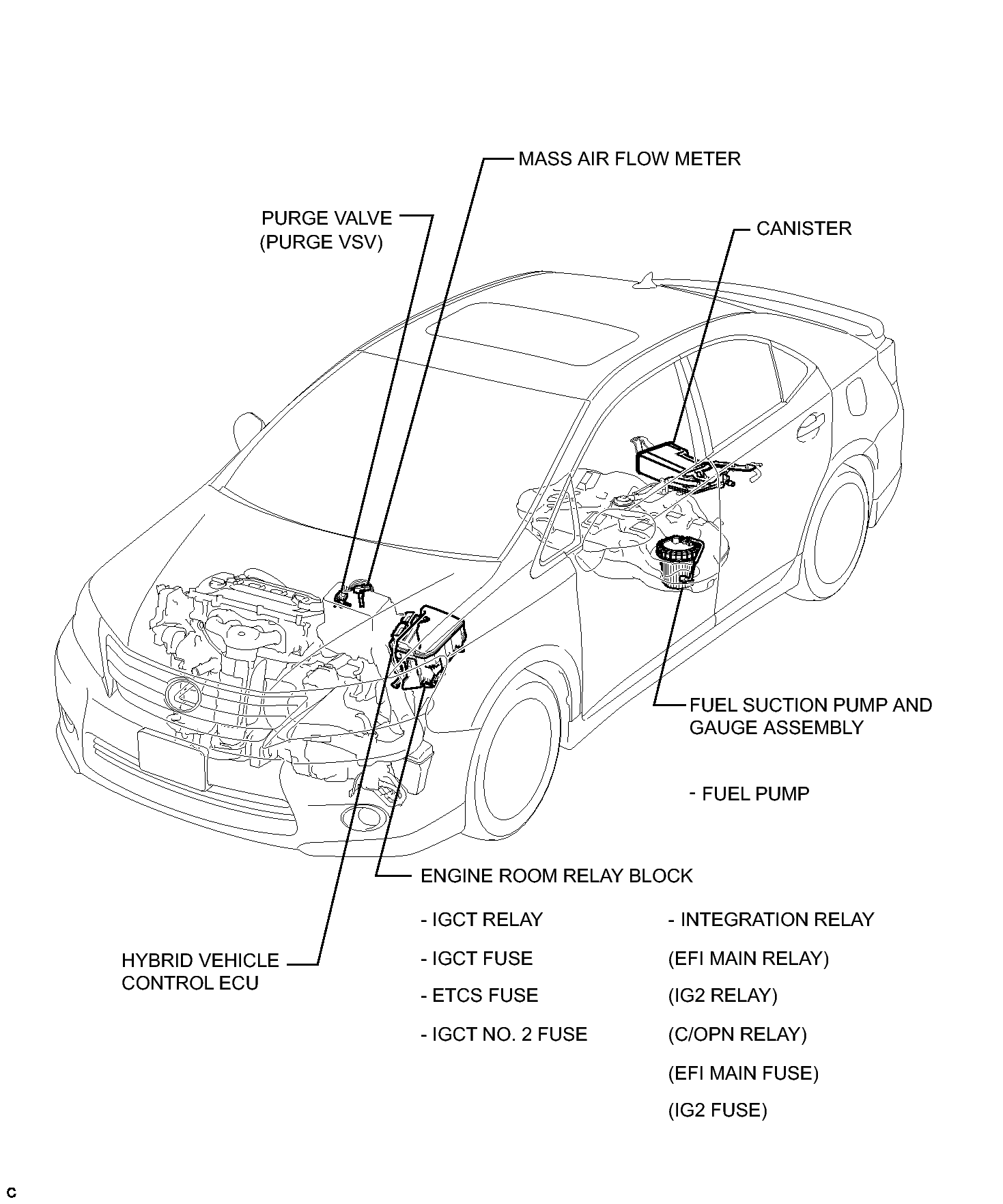

Fig 1: Identifying Engine Control System Components Location (1 Of 3)
GTY267324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

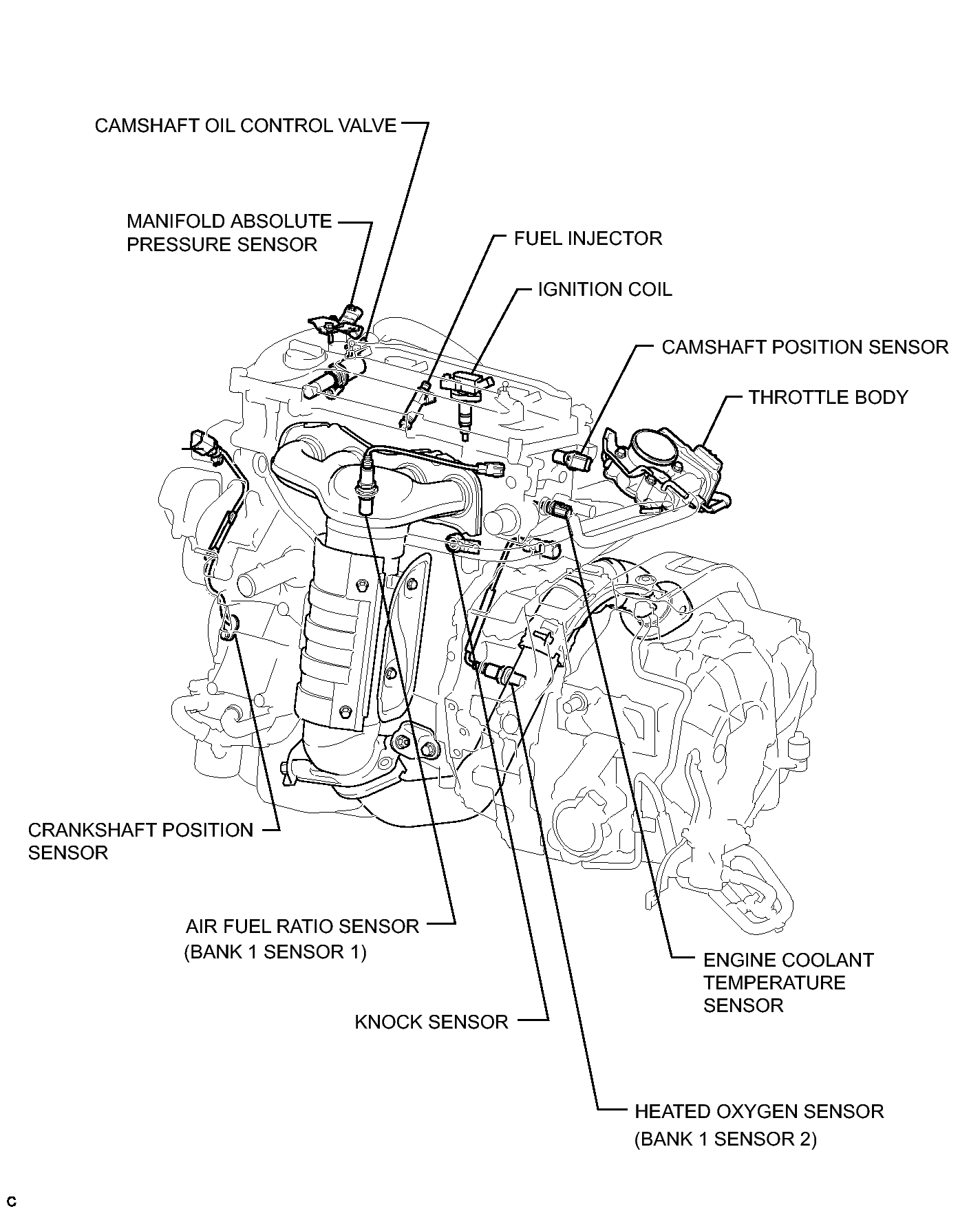

Fig 1: Identifying Engine Control System Components Location (2 Of 3)
GTY281318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

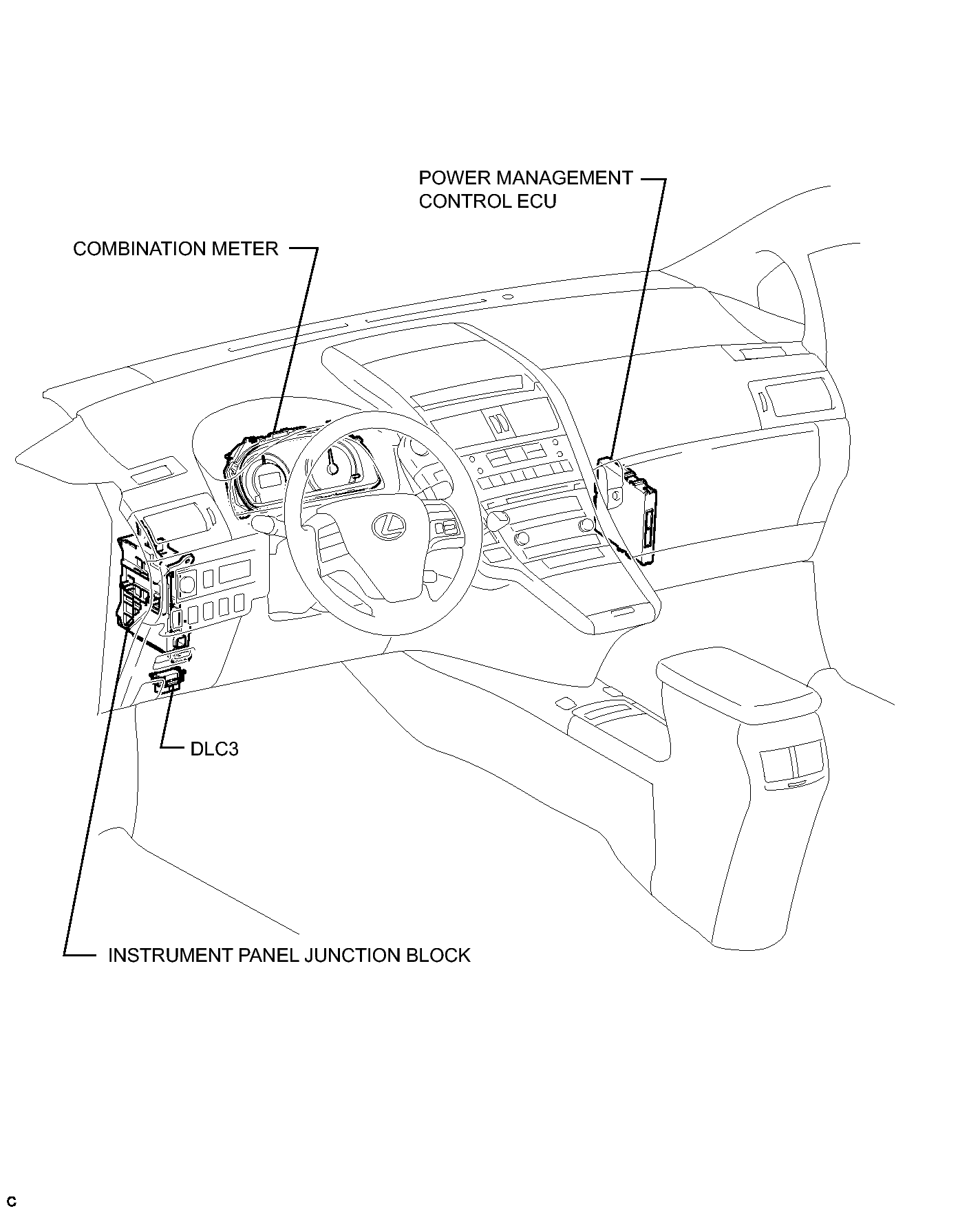

Fig 1: Identifying Engine Control System Components Location (3 Of 3)
GTY260006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
