Multiplex Communication System (AVC-LAN): Notes

WARNING: This page is about a different car, the 2010 Lexus HS 250h. However, it is still accessible from the selected car via links, so may be relevant.

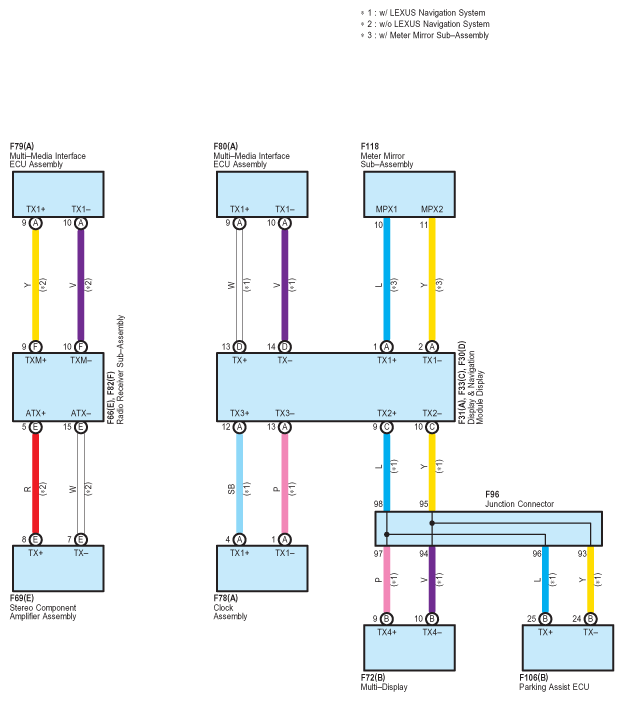

Fig 1: Multiplex Communication System (AVC-LAN) - Circuit Diagram
G07558442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
