Torque Specifications

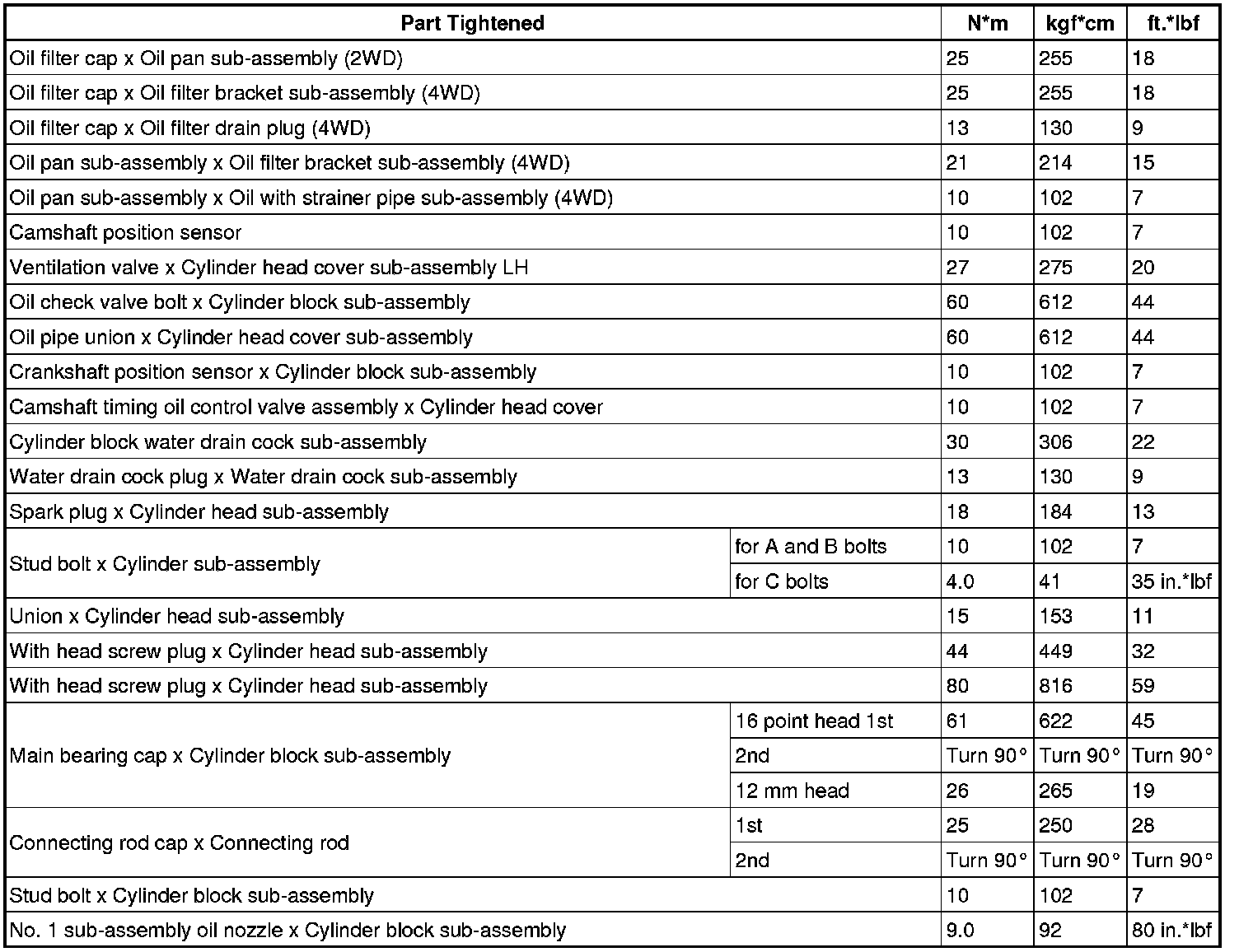

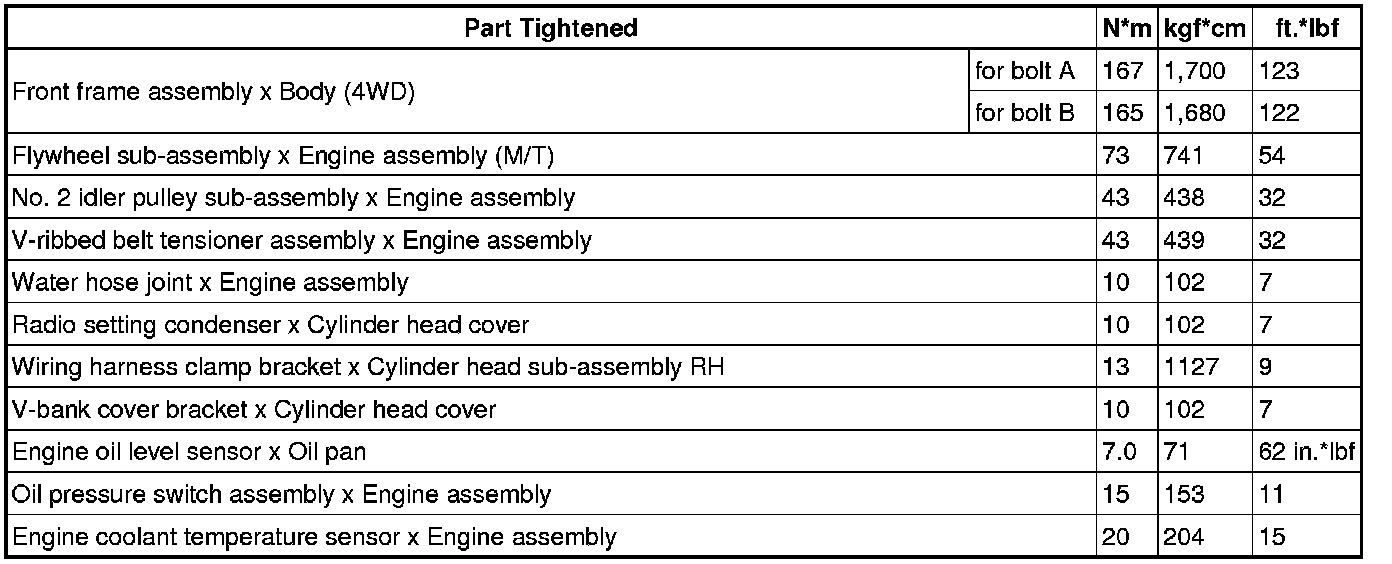

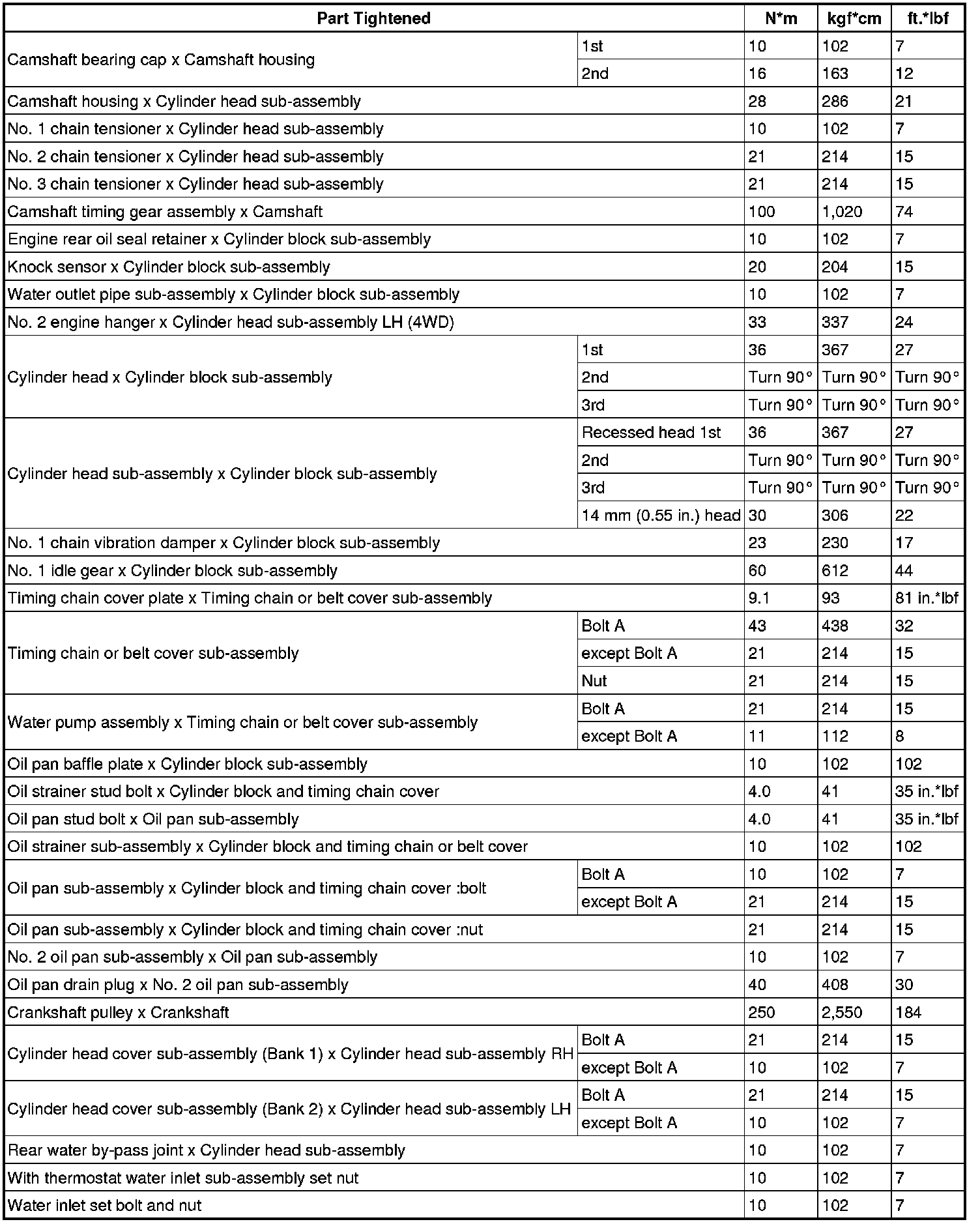

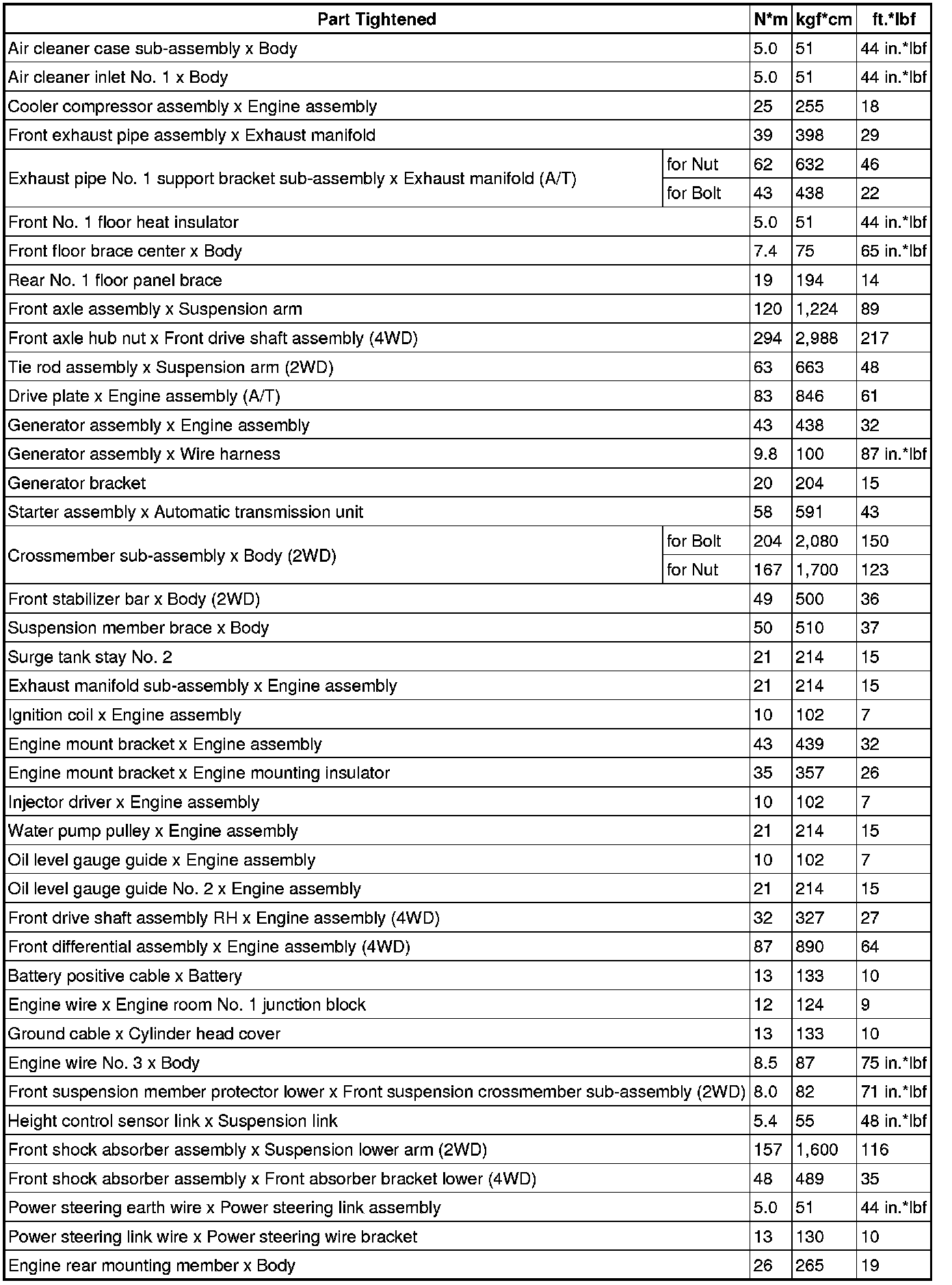

SERVICE SPECIFICATIONS: 4GR-FSE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

DRIVE BELT





ENGINE FRONT OIL SEAL





ENGINE ASSEMBLY









ENGINE UNIT
