Power Source: Notes

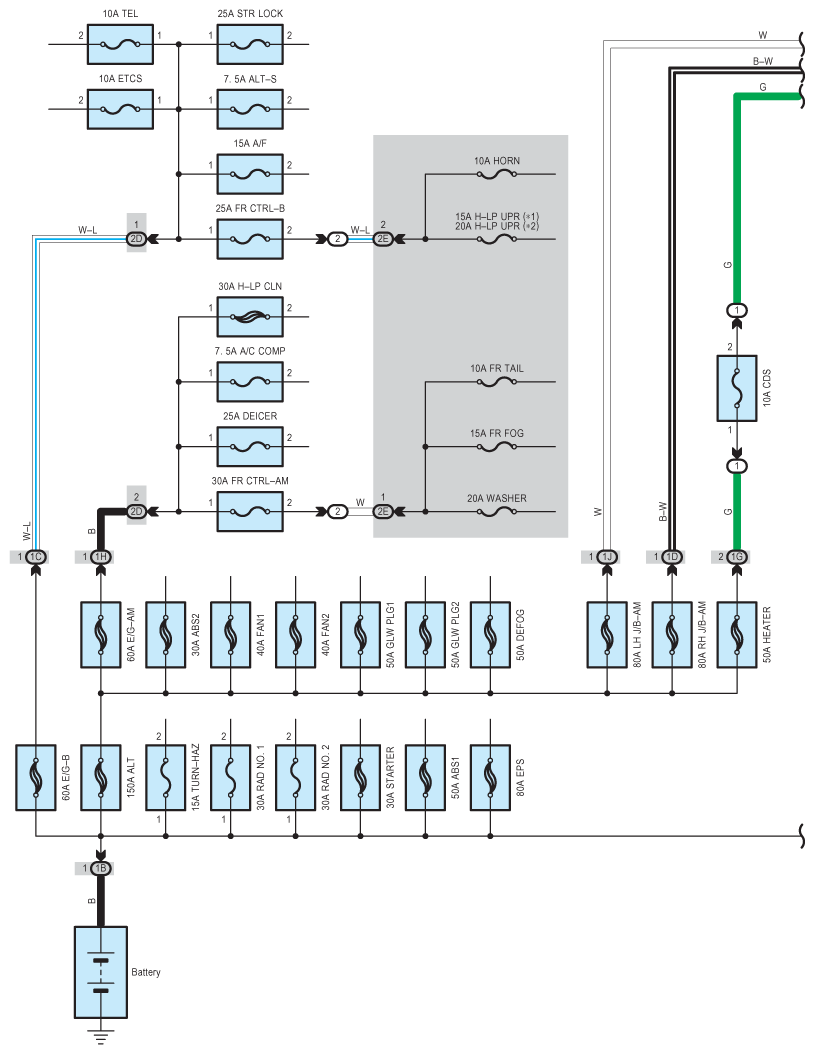

Fig 1: Power Source - Circuit Diagram (1 Of 5)
G07581140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

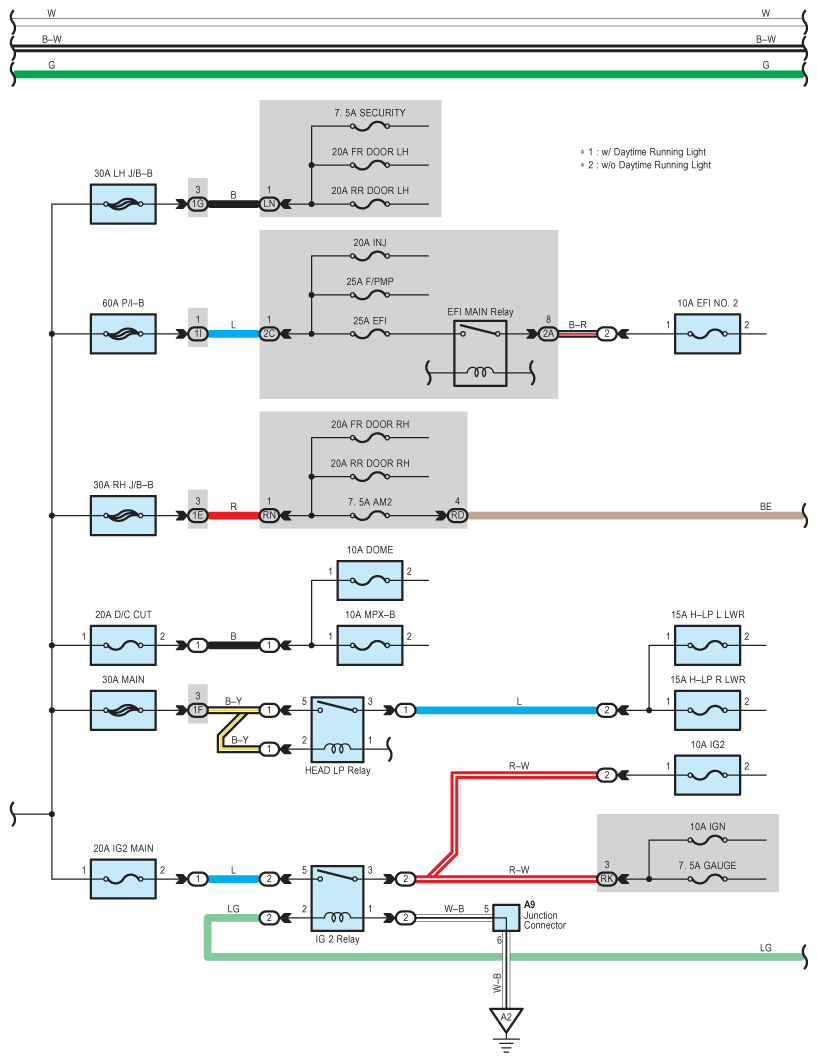

Fig 2: Power Source - Circuit Diagram (2 Of 5)
G07581141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

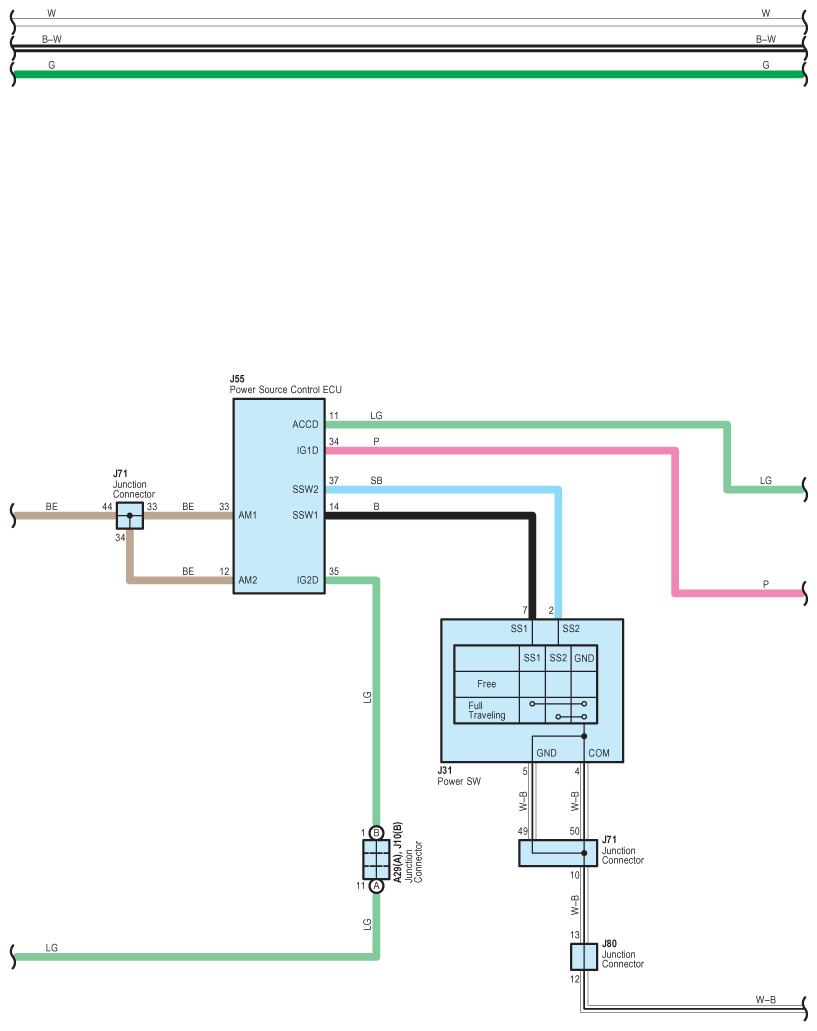

Fig 3: Power Source - Circuit Diagram (3 Of 5)
G07581142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

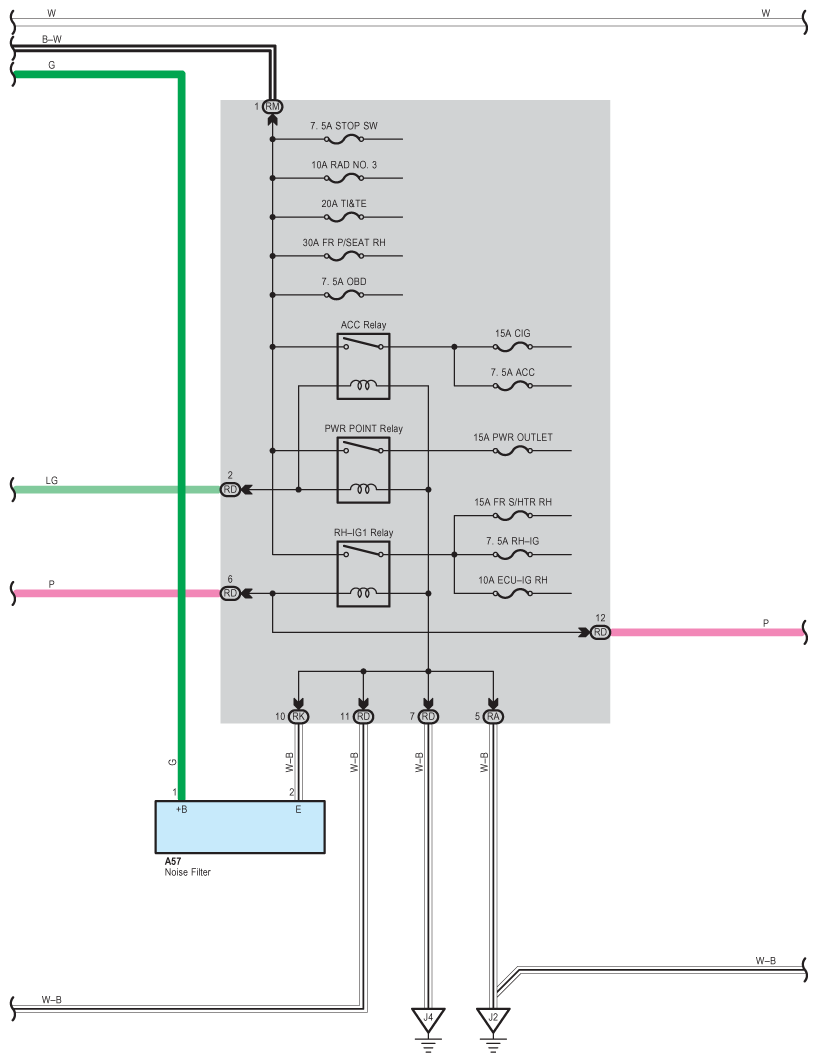

Fig 4: Power Source - Circuit Diagram (4 Of 5)
G07581143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

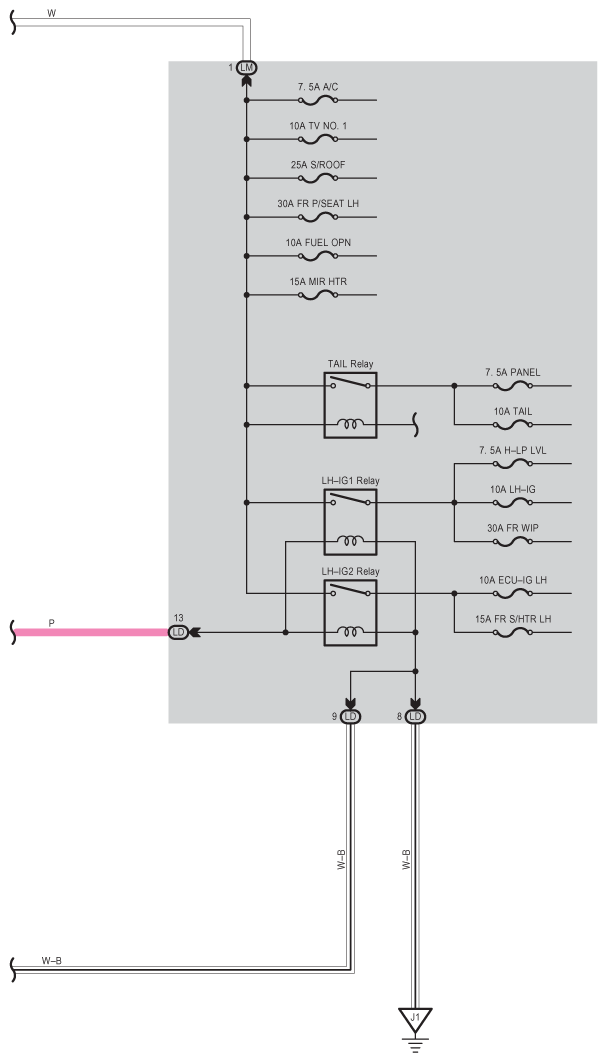

Fig 5: Power Source - Circuit Diagram (5 Of 5)
G07581144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
