Throttle Body: Installation: Installation

INSTALL THROTTLE BODY
1. Install a new gasket to the intake air surge tank.

  Fig 1: Aligning Protrusion Of Gasket On Intake Air Surge Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Align the protrusion of the gasket with the groove on the intake air surge tank.
2. Connect the 2 water by-pass hoses to the throttle body.

  Fig 2: Identifying Throttle Body & Water By-Pass Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the throttle body with the 4 bolts.

  Fig 3: Identifying Throttle Body & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N.m (102 kgf cm, 7 ft. lbf)
4. Connect the throttle motor connector.
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
1. Install the air cleaner cap with air cleaner hose with the 4 clamps and hose clamp.

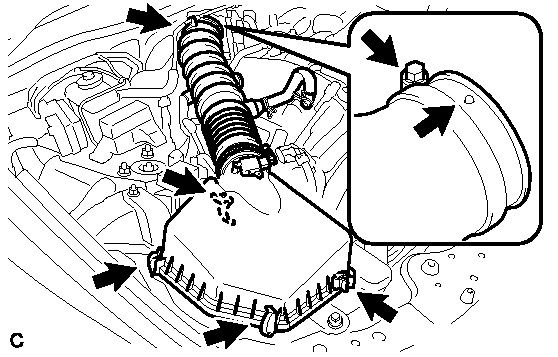

  Fig 4: Locating Air Cleaner Cap, Air Cleaner Hose & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Be sure to install the air cleaner assembly so that the screw part of the hose clamp is as shown in the illustration.
2. Install the VSV hose to the air cleaner hose.

  Fig 5: Air Cleaner Cap, Air Cleaner Hose & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the MAF meter connector and clamp to the air cleaner.

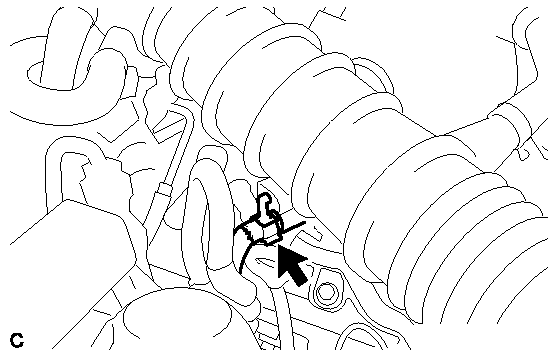

  Fig 6: Identifying MAF Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 2 VENTILATION HOSE
1. Connect the ventilation hose to the cylinder head cover with the clamp.

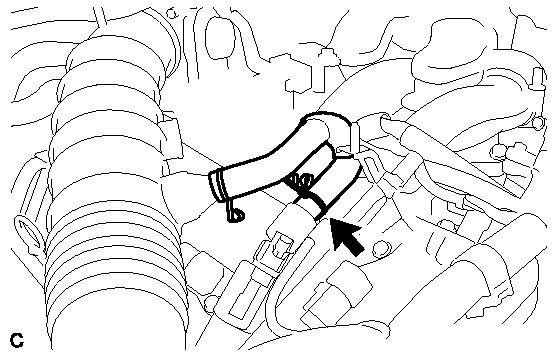

  Fig 7: Identifying Ventilation Hose & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD ENGINE COOLANT . Refer to ON-VEHICLE INSPECTION - Step 5
INSPECT FOR COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL ENGINE UNDER COVER
CHECK FUNCTION OF THROTTLE BODY See step 1
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 5
INSTALL ENGINE ROOM SIDE COVER RH
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 118
