Cold Start Injector: Inspection: Inspection

  1. INSPECT COLD START INJECTOR
    1. Check the cold start injector resistance.

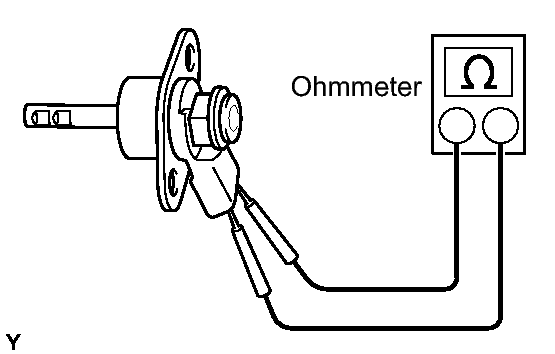

      Fig 1: Checking Cold Start Injector Resistance
      GTY146269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      1.5 to 6.5 Ω at 20°C (68°F)
