Fuel Pressure Sensor: Installation: Installation

  1. INSTALL FUEL PRESSURE SENSOR
    1. Install a new gasket to the fuel pressure sensor.
    2. Using SST, install the fuel pressure sensor to the No. 1 delivery pipe.
      • SST: 09922-10240
      • SST: 09961-01270

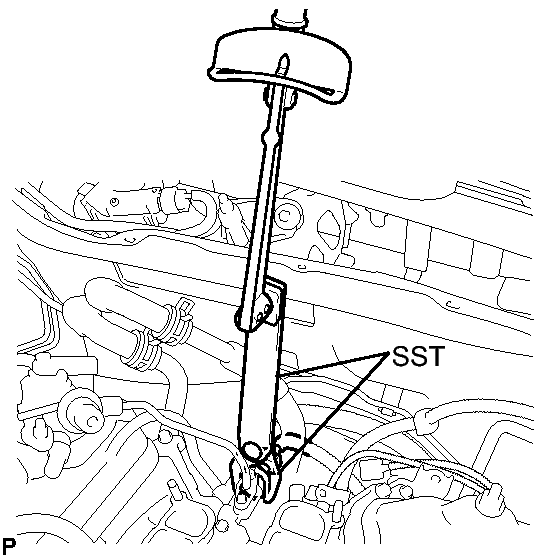

      Fig 1: Installing Fuel Pressure Sensor To No. 1 Delivery Pipe Using SST
      GTY348437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      without SST

      Torque: 42 N.m (428 kgf cm, 31 ft. lbf)

      with SST

      Torque: 23 N.m (235 kgf cm, 17 ft. lbf)

      HINT:

      • This torque value is effective when SST is parallel to the torque wrench.
      • This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and SST with a fulcrum length of 240 mm (9.45 in.).
      • If using a torque wrench with a length that is not 300 mm (11.8 in.), calculate the torque specification for the torque wrench and SST based on the "without SST" torque specification. Refer to PRECAUTION .
    3. Connect the connector with the clamp.
      Fig 2: Locating Connector With Clamp
      GTY137394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 FUEL PIPE  See step  9
  3. CONNECT WATER HOSE JOINT  See step  11
  4. INSTALL INTAKE MANIFOLD  See step  12
  5. INSTALL INTAKE AIR SURGE TANK  See step  13
  6. INSTALL COLD START INJECTOR  See step  14
  7. INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY  . Refer to INSTALLATION - Step 1
  8. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE  . Refer to INSTALLATION - Step 2
  9. CONNECT NO. 2 VENTILATION HOSE  . Refer to INSTALLATION - Step 3
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL  . Refer to INSTALLATION - Step 93
  11. ADD ENGINE COOLANT  . Refer to ON-VEHICLE INSPECTION - Step 5
  12. INSPECT FOR COOLANT LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  13. INSPECT FOR FUEL LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  14. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 3
  15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to INSTALLATION - Step 4
  16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to INSTALLATION - Step 5
  17. INSTALL FRONT WIPER ARM HEAD CAP  . Refer to INSTALLATION - Step 6
  18. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
  19. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
  20. INSTALL FRONT UPPER FENDER PROTECTOR LH  . Refer to INSTALLATION - Step 9
  21. INSTALL FRONT UPPER FENDER PROTECTOR RH

    HINT:

    Installation procedure of the RH side is the same as that of the LH side.

  22. INSTALL V-BANK COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 115
  23. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 116
  24. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 117
  25. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 118
  26. CHECK FUNCTION OF THROTTLE WITH MOTOR BODY ASSEMBLY  . Refer to ON-VEHICLE INSPECTION - Step 1
