Fuel Tank: Installation: Installation

1. Install the No. 2 fuel tank protector to the fuel tank assembly.
   Fig 1: Identifying No. 2 Fuel Tank Protector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install 11 new fuel tank cushions shown in the illustration.
   Fig 2: Identifying Fuel Tank Cushions

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the fuel tank vent hose to the fuel tank.
   Fig 3: Connecting Fuel Tank Vent Hose To Fuel Tank

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the fuel tank to filler pipe hose to the fuel tank with the clamp.
   Fig 4: Identifying Fuel Tank To Filler Pipe Hose At Fuel Tank

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the hose clamp bolt.

1. Install the edge protector with the 2 clamps.
   Fig 5: Identifying 2 Clamps And Edge Protector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a fuel tank main tube and fuel tank return vent tube with the clamp.
   Fig 6: Identifying Fuel Tank Main Tube & Fuel Tank Return Vent Tube With Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new gasket to the No. 1 fuel tank breather tube sub-assembly.
2. Install the No. 1 fuel tank breather tube sub-assembly with the 4 bolts.
   Fig 7: Identifying Bolts, No 1 Fuel Tank Breather Tube Sub-Assembly And Gasket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 1.5 N.m (15 kgf cm, 13 in. lbf)

1. Set a engine lifter to the fuel tank and lift it up.
   Fig 8: Identifying Bolts, Fuel Tank Bands And Fuel Tank Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 fuel tank bands with the 4 bolts.

   Torque: 39 N.m (400 kgf cm, 29 ft. lbf)

1. Connect the fuel tank to canister tube sub-assembly.
   Fig 9: Connecting Fuel Tank To Canister Tube Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Push in the fuel tube connector to the pipe and push up the retainer to engage the claws.
      NOTE:

      • Check for damage or foreign objects on the connected part.
      • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.

1. Connect the No. 3 fuel hose sub-assembly with the clip.
   Fig 10: Connecting No. 3 Fuel Hose Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel hose clamp.

1. Connect the fuel tank to filler pipe hose with the clamp.
   Fig 11: Identifying Fuel Tank To Filler Pipe Hose With Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

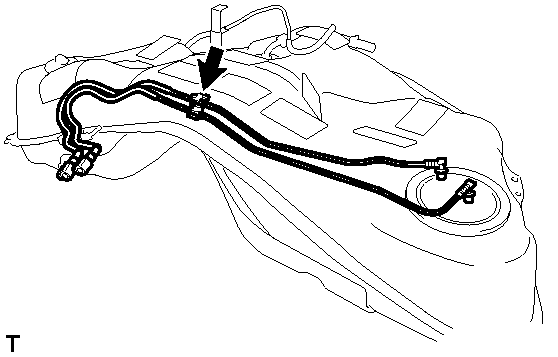

1. Connect the fuel tank main tube.
   Fig 12: Connecting Fuel Tank Main Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Push in the fuel tube connector to the pipe and push up the retainer to engage the claws.
      NOTE:

      • Check for damage or foreign objects on the connected part.
      • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
2. Connect the fuel tank return vent tube.
   Fig 13: Connecting Fuel Tank Return Vent Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Push in the fuel tube connector to the pipe and push up the retainer to engage the claws.
      NOTE:

      • Check for damage or foreign objects on the connected part.
      • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.

Fig 14: Connecting Parking Brake Cables With Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the 4 clamps.
2. Connect the 2 parking brake cables with the 4 bolts.

   Torque: 6.0 N.m (61 kgf cm, 53 in. lbf)

   for bolt A

   Torque: 19 N.m (194 kgf cm, 14 ft. lbf)

   for bolt B

1. Install the suspension member brace lower LH with the 4 bolts.
   Fig 15: Identifying Bolts And Suspension Member Brace Lower RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 19 N.m (195 kgf cm, 14 ft. lbf)

1. Install the suspension member brace lower RH with the 4 bolts.
   Fig 16: Identifying Bolts And Suspension Member Brace Lower LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 19 N.m (195 kgf cm, 14 ft. lbf)

HINT:

Refer to INSTALLATION .

HINT:

Refer to INSTALLATION .

1. Install the fuel sender gauge with the 5 bolts to the fuel tank.
   Fig 17: Locating Fuel Sender Gauge Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 1.5 N.m (15 kgf cm, 13 in. lbf)

2. Connect the fuel sender gauge connector.
   Fig 18: Locating Fuel Sender Gauge Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the service hole cover with new butyl tape.
   Fig 19: Identifying Rear Floor Service Hole Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
