Fuel Pressure Sensor: Components: Illustration

Fig 1: Fuel Injector Replacement Components (1 Of 4) with Torque Specifications
GTY358100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Fuel Pressure Sensor Replacement Components (2 Of 3) With Torque Specifications
GTY146142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

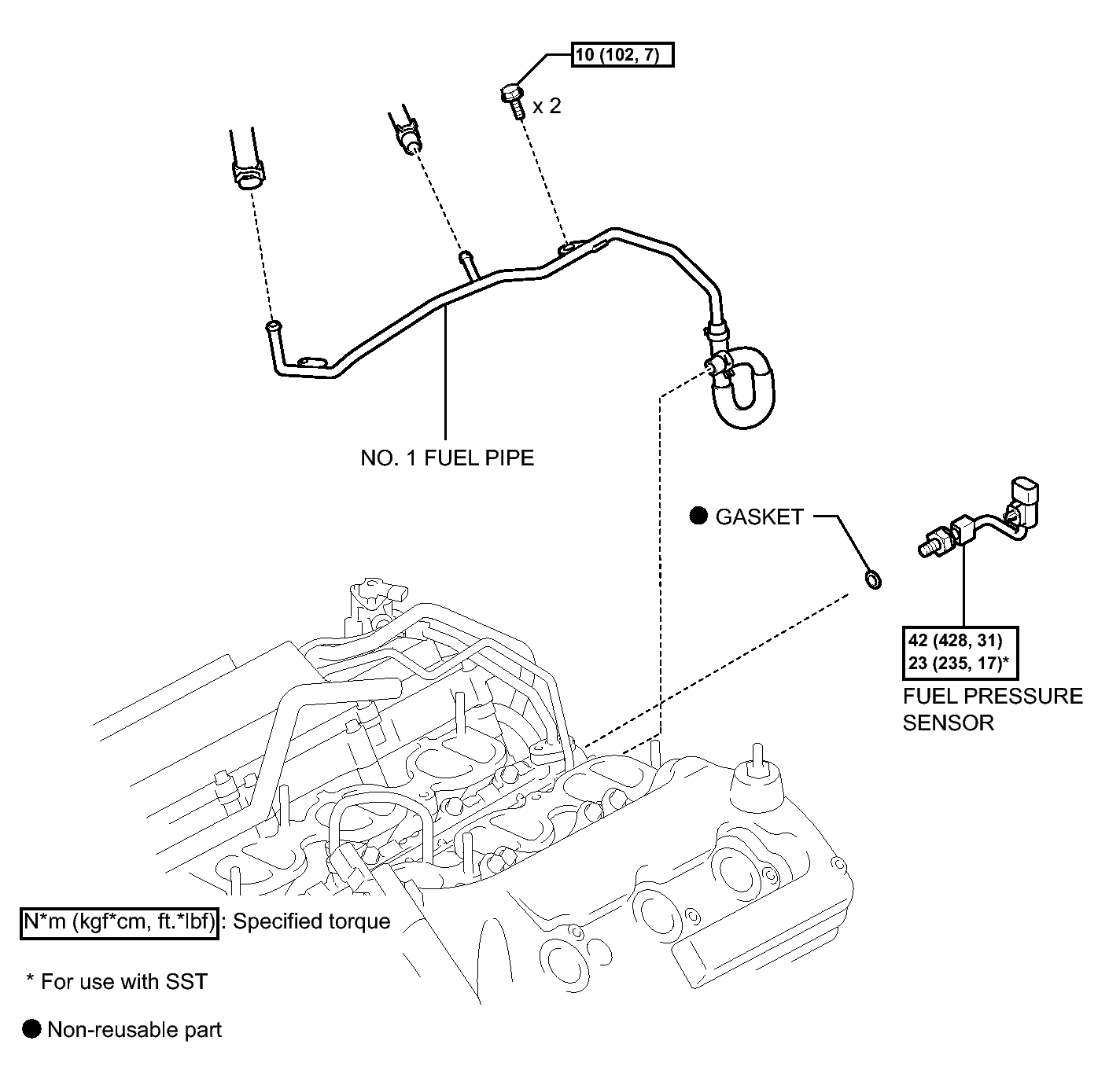

Fig 1: Fuel Pressure Sensor Replacement Components (3 Of 3) With Torque Specifications
GTY358540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
