Engine Control System (Service Information): ECM: Removal: Removal

REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 1
REMOVE ENGINE ROOM SIDE COVER LH . Refer to REMOVAL - Step 2
REMOVE ECM COVER
1. Remove the 3 bolts and ECM cover.

  Fig 1: Identifying ECM Cover & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Remove all water on and around the ECM cover.
  - Perform the inspection indoors to avoid rain.
  - Be sure to prevent water intrusion to the ECM (connectors and screw parts).
REMOVE ECM
1. Disconnect the ECM connectors.
  1. Using a screwdriver, disconnect the connector holder.

    Fig 2: Identifying Connector Holder
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disconnect the 6 ECM connectors.
2. Remove the 2 nuts and ECM.

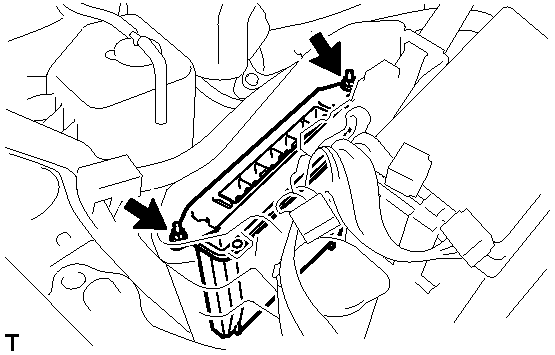

  Fig 3: Identifying ECM Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
