Mirror Heater and Rear Window Defogger: Notes

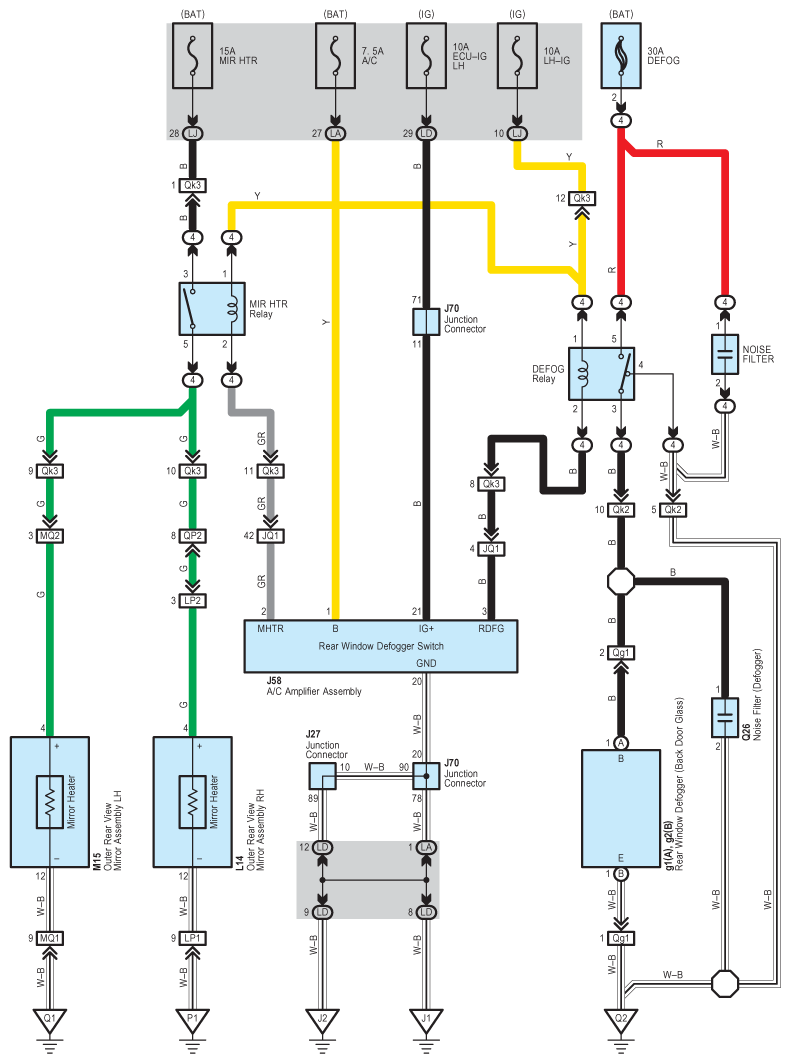

Fig 1: Mirror Heater And Rear Window Defogger - Circuit Diagram
G07585643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
