INSTALL YAW RATE AND ACCELERATION SENSOR
1. Connect the connector.

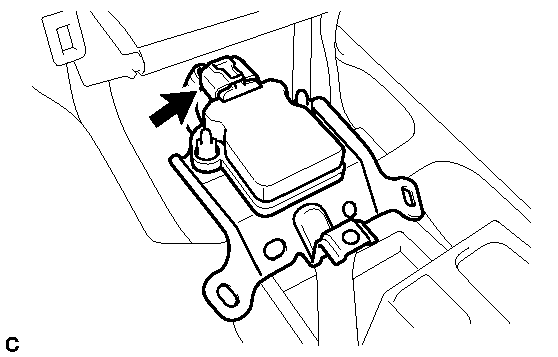

  Fig 1: Location of Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the yaw rate and acceleration sensor with the 2 bolts.

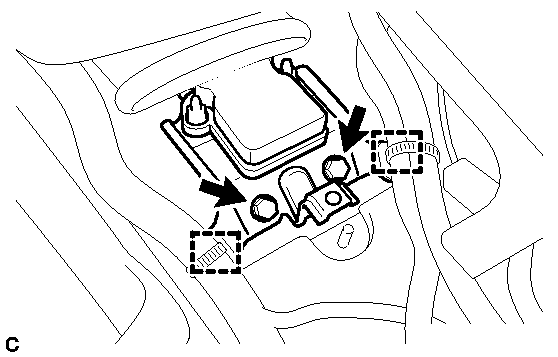

  Fig 2: Identifying Yaw Rate And Acceleration Sensor, Wire Harness Clamps, & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 15 N*m (148 kgf*cm, 11 ft.*lbf)
  NOTE:
  - Do not damage the yaw rate and acceleration sensor.
  - Make sure that the yaw rate and acceleration sensor is installed securely.
3. Install the 2 wire harness clamps.
INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission) . Refer to INSTALLATION - Step 7
INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission) . Refer to INSTALLATION - Step 6
INSTALL CONSOLE BOX
HINT:

Refer to the instructions for installation of the console box. Refer to INSTALLATION .
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM YAW RATE AND ACCELERATION SENSOR ZERO POINT CALIBRATION
HINT:

Refer to CALIBRATION .
INSPECT SENSOR SIGNAL
HINT:

Refer to TEST MODE PROCEDURE .
