Audio System (w/o LEXUS Navigation System): Notes

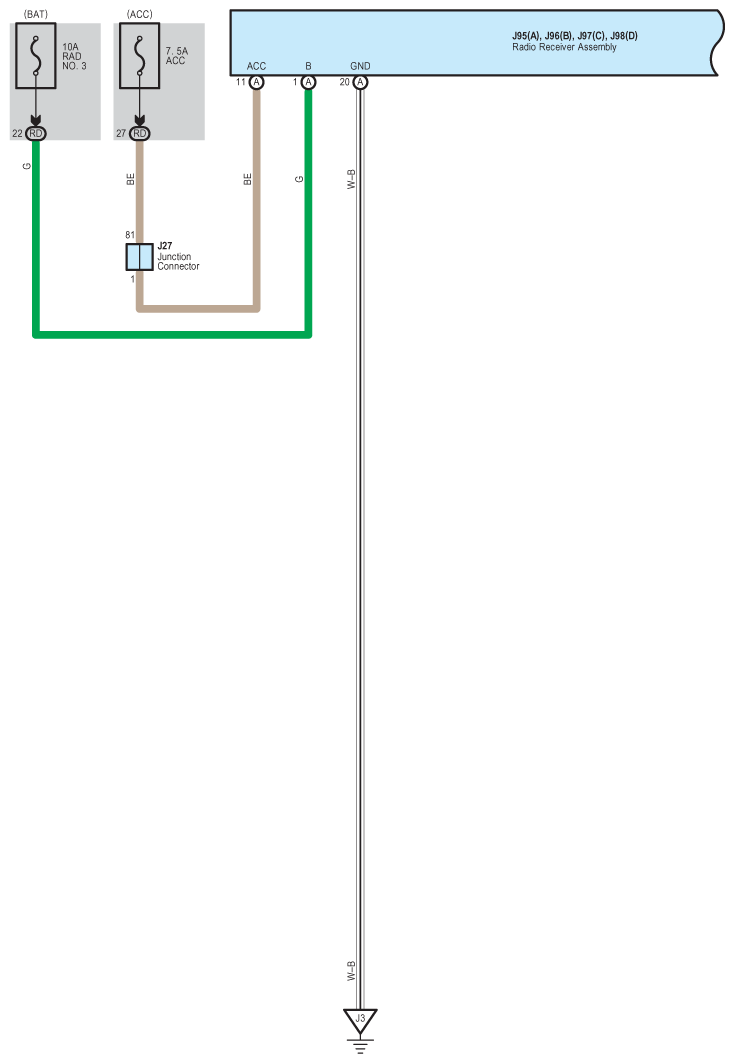

Fig 1: Audio System (W/O Lexus Navigation System) - Circuit Diagram (1 Of 10)
G07585672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

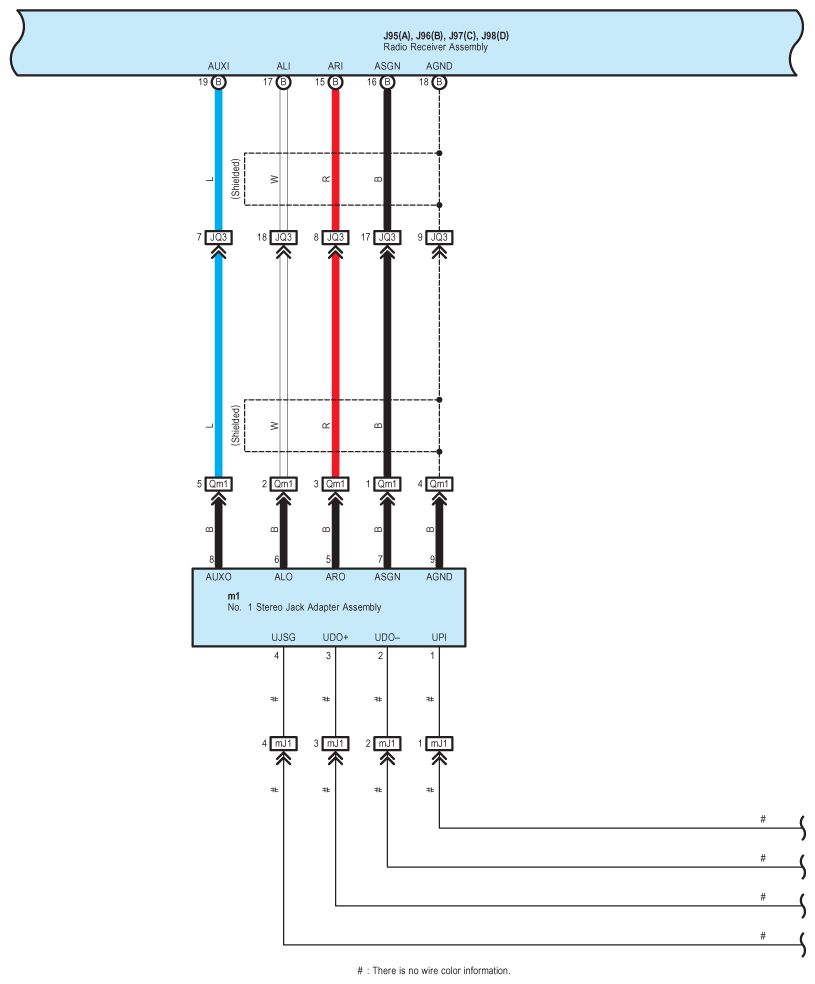

Fig 2: Audio System (W/O Lexus Navigation System) - Circuit Diagram (2 Of 10)
G07585673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

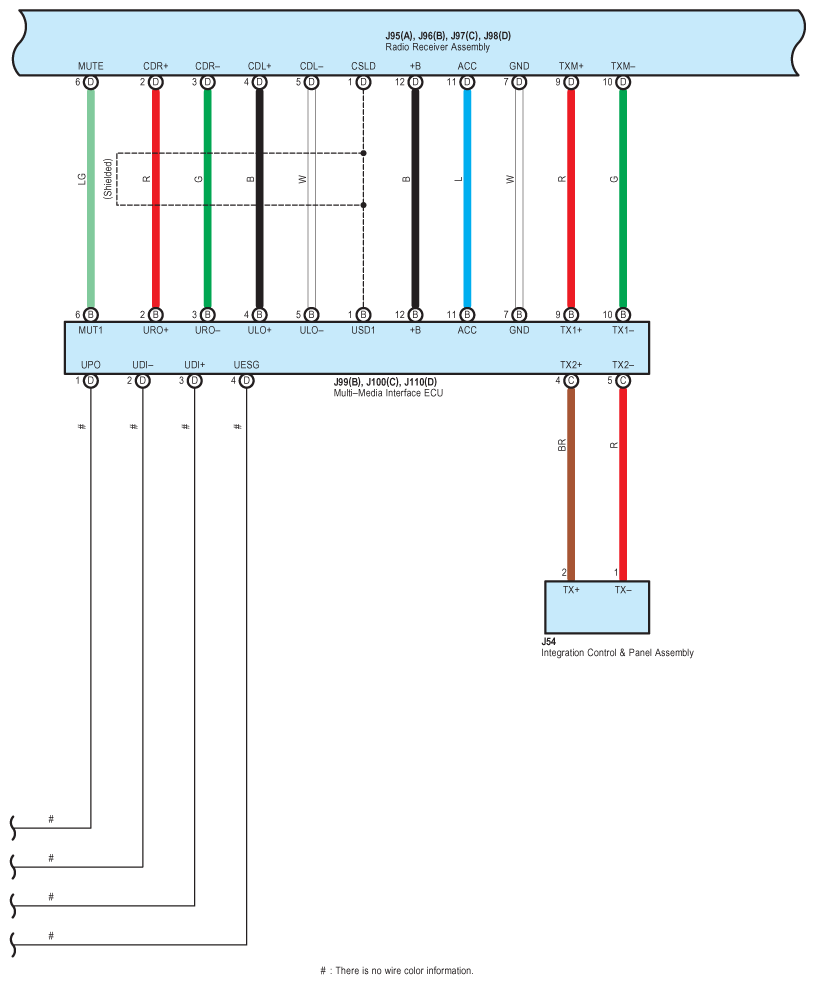

Fig 3: Audio System (W/O Lexus Navigation System) - Circuit Diagram (3 Of 10)
G07585674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

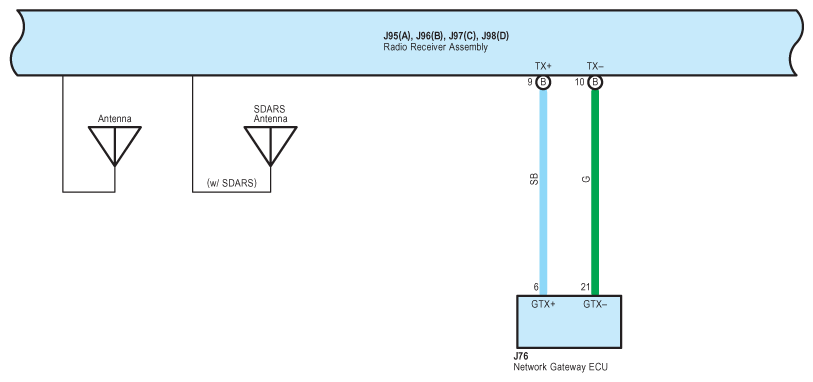

Fig 4: Audio System (W/O Lexus Navigation System) - Circuit Diagram (4 Of 10)
G07585675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

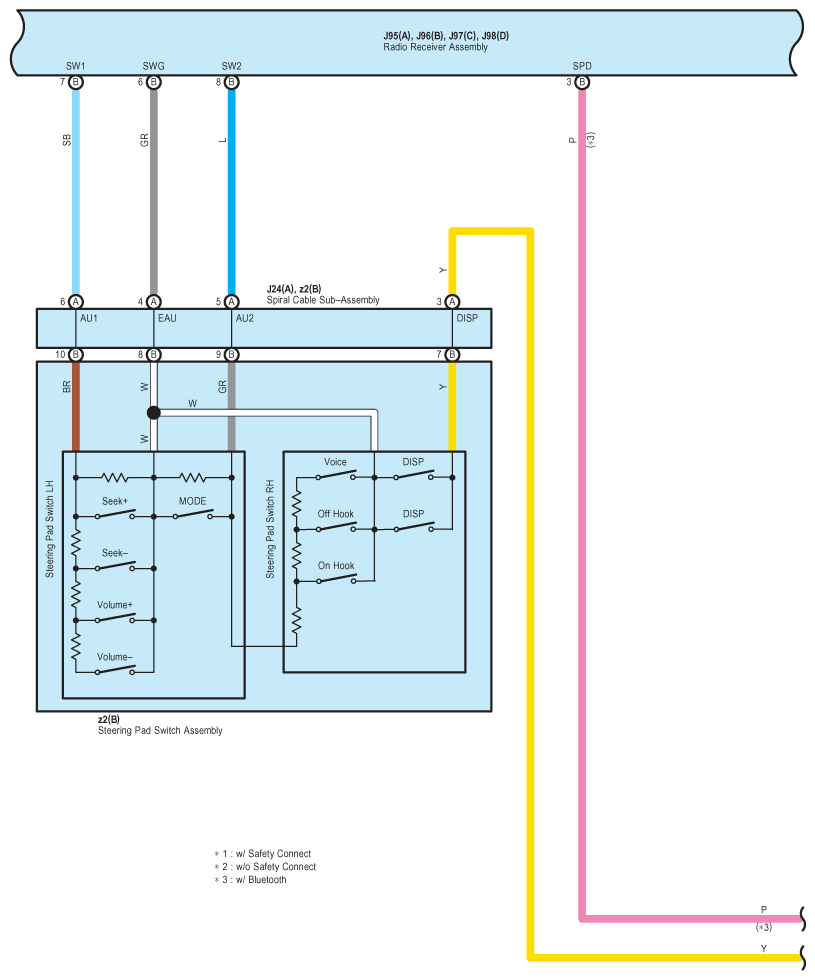

Fig 5: Audio System (W/O Lexus Navigation System) - Circuit Diagram (5 Of 10)
G07585676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

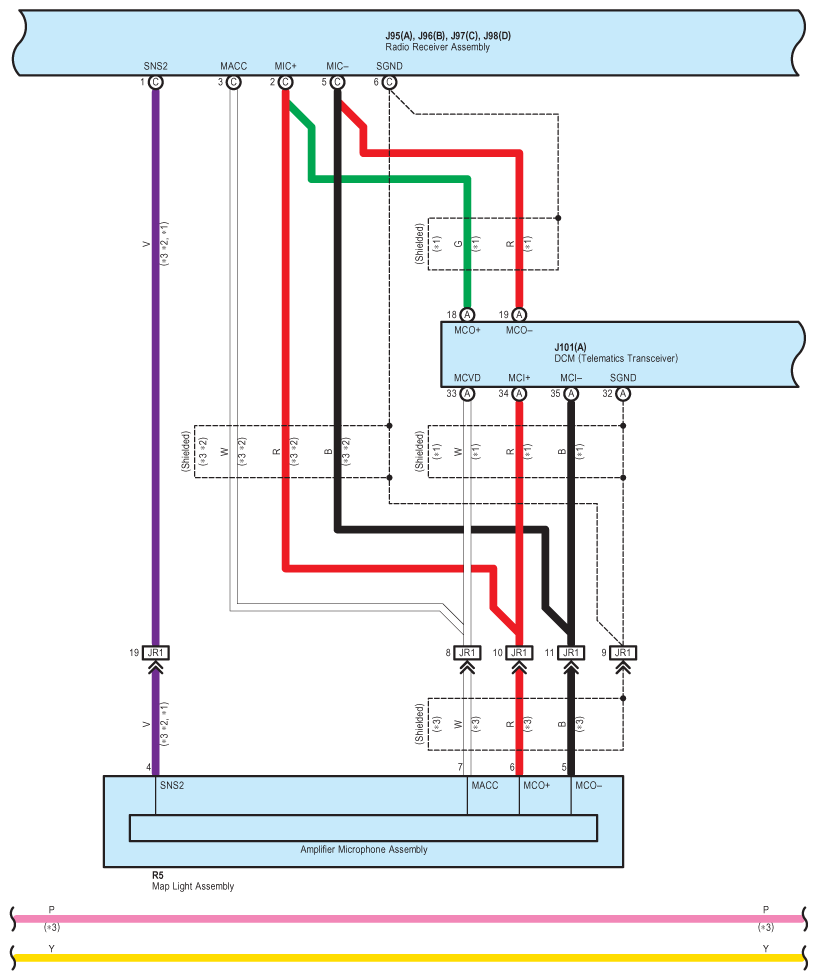

Fig 6: Audio System (W/O Lexus Navigation System) - Circuit Diagram (6 Of 10)
G07585677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

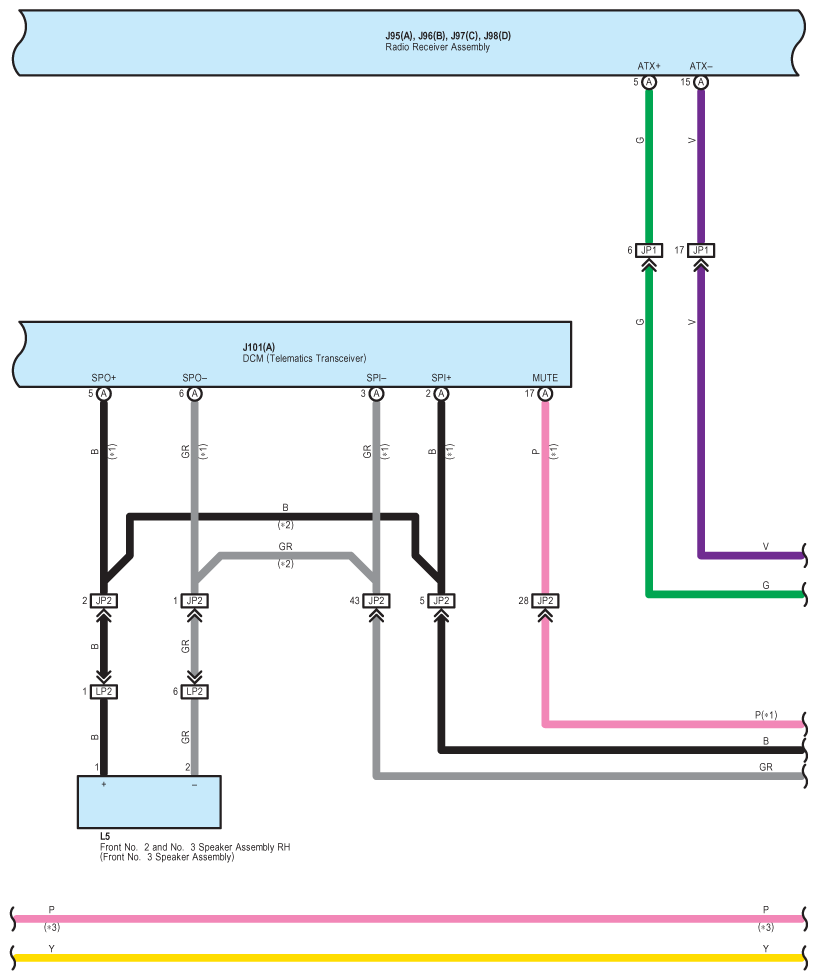

Fig 7: Audio System (W/O Lexus Navigation System) - Circuit Diagram (7 Of 10)
G07585678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

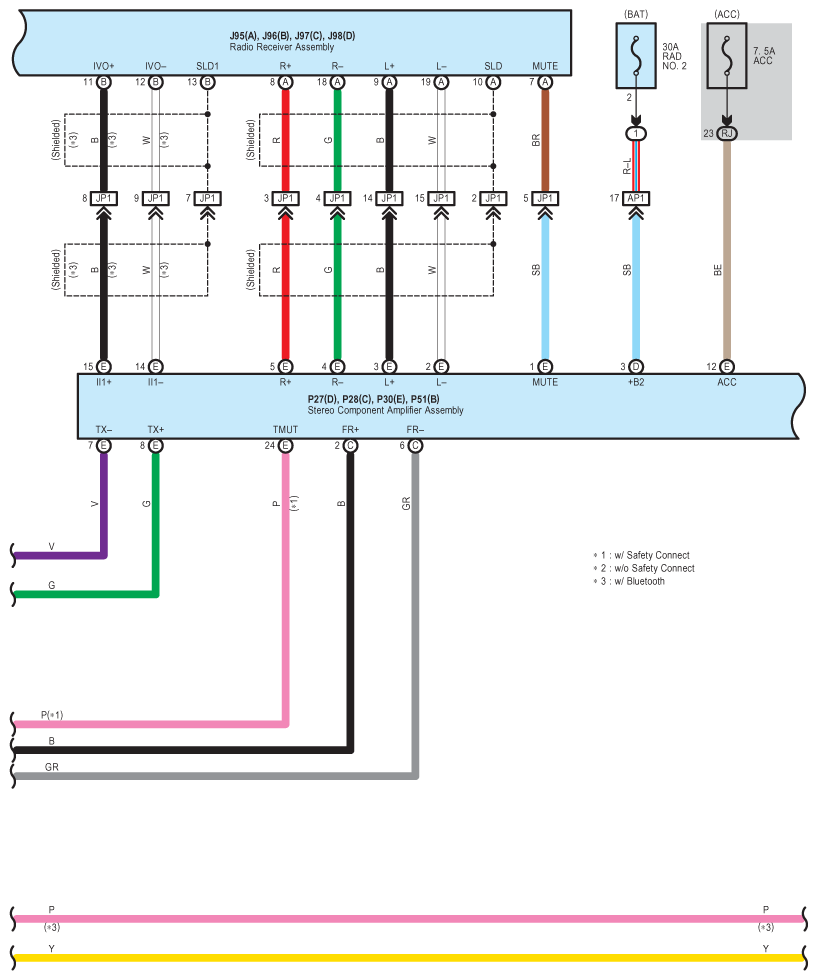

Fig 8: Audio System (W/O Lexus Navigation System) - Circuit Diagram (8 Of 10)
G07585679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

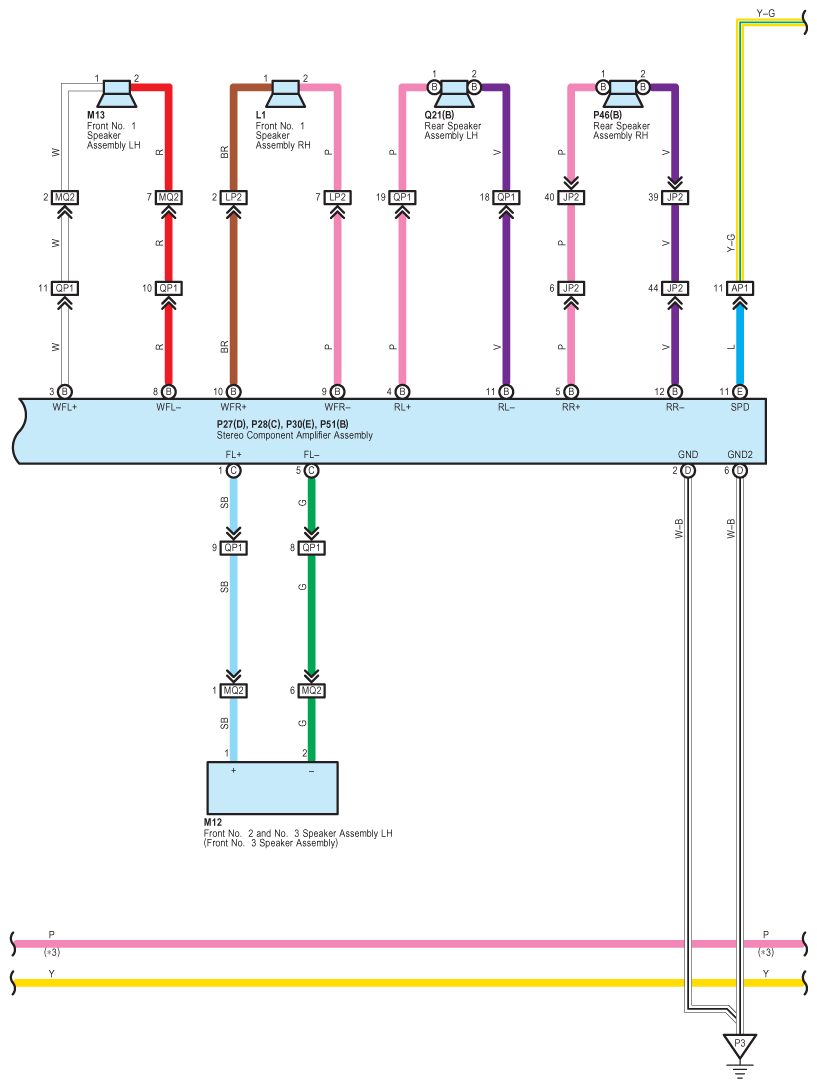

Fig 9: Audio System (W/O Lexus Navigation System) - Circuit Diagram (9 Of 10)
G07585680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

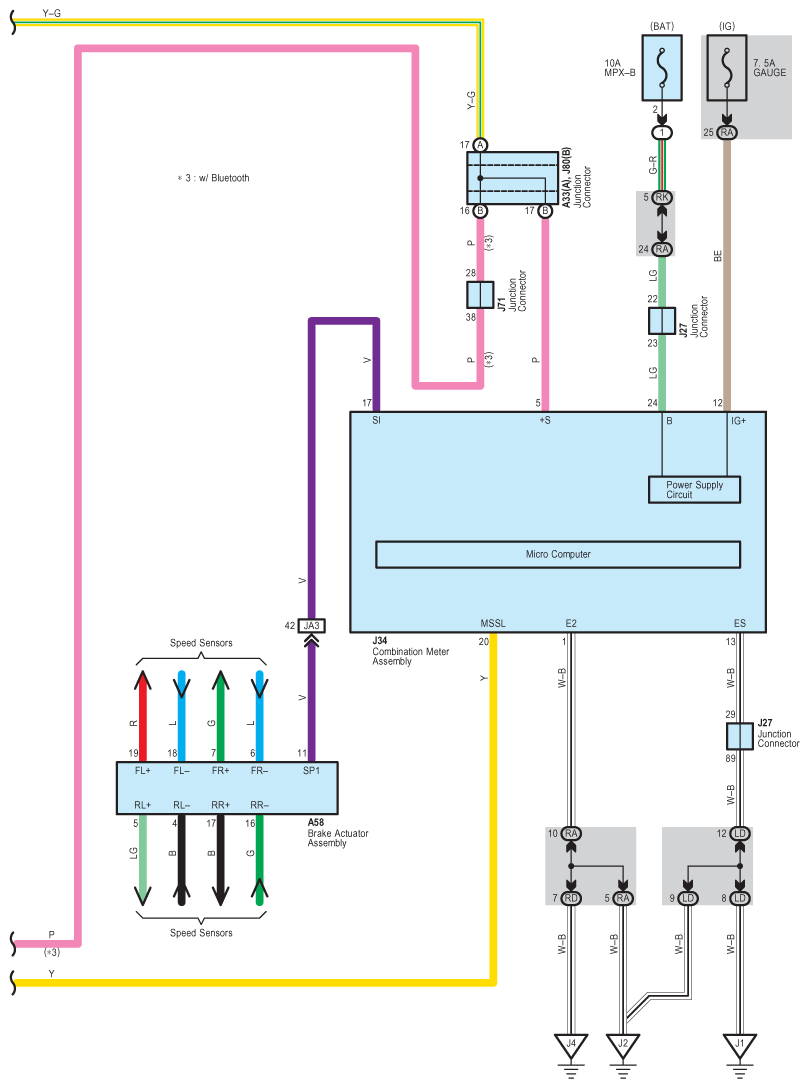

Fig 10: Audio System (W/O Lexus Navigation System) - Circuit Diagram (10 Of 10)
G07585681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
