Front Fog Light: Notes — 2011 Lexus IS 250C Standard Service Manual ~ LEMON Manuals

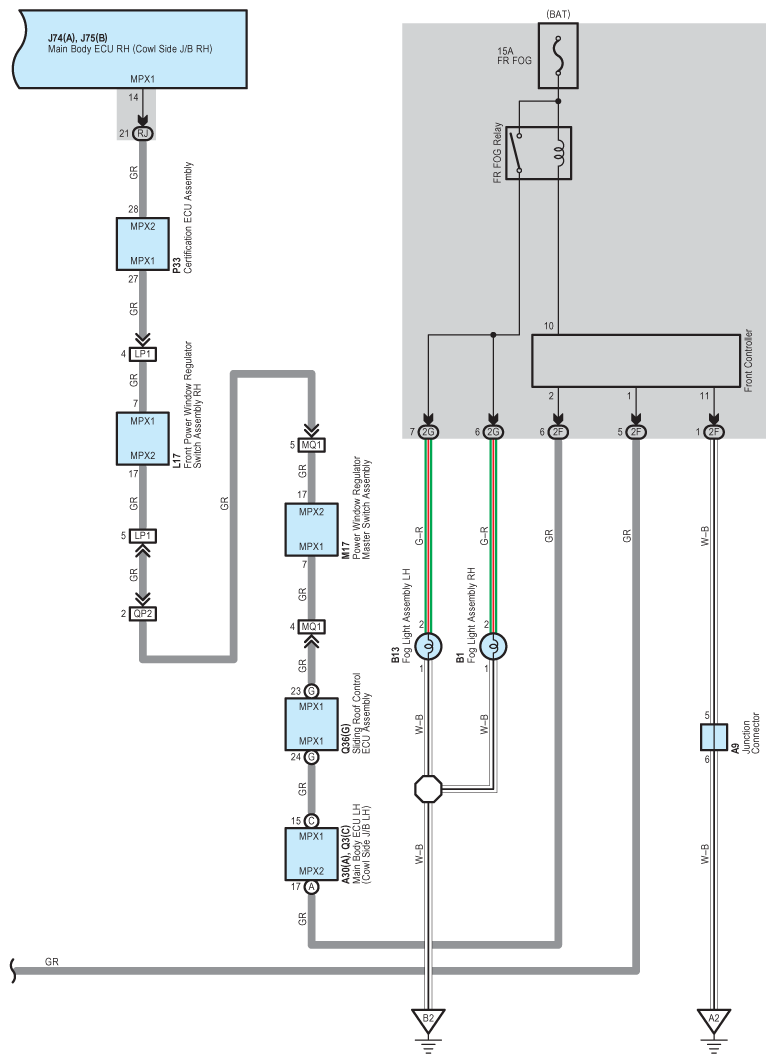

Fig 1: Front Fog Light - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

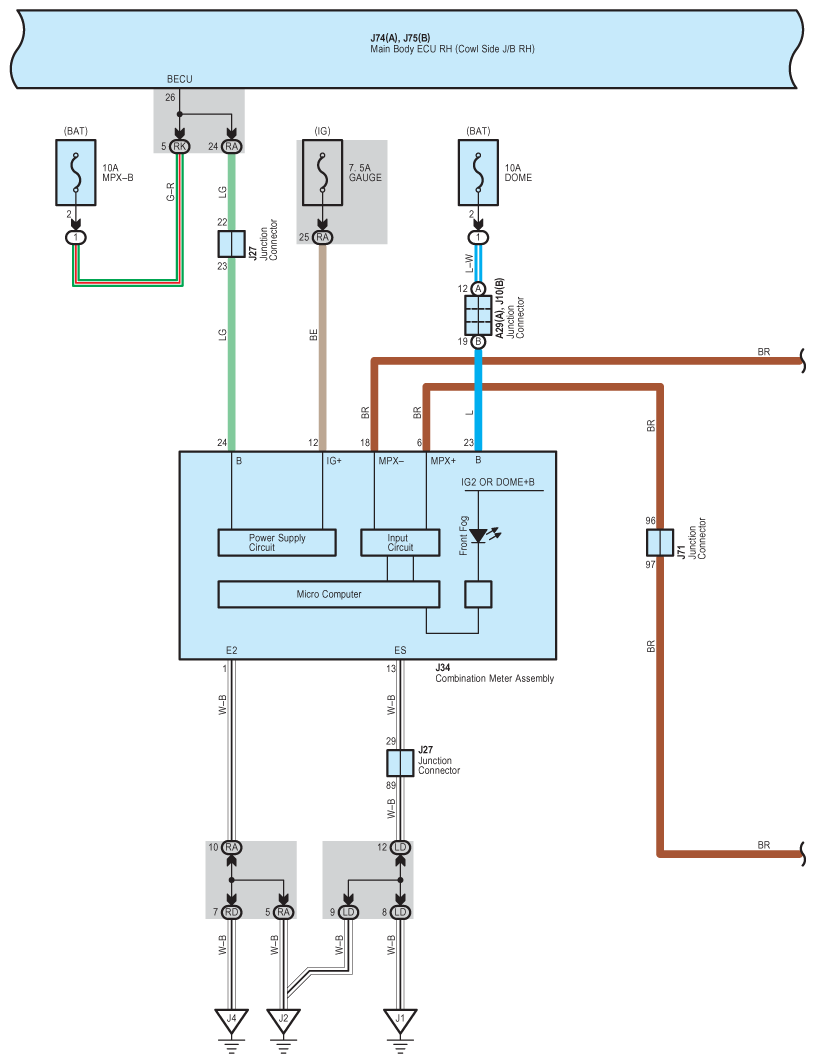

Fig 2: Front Fog Light - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

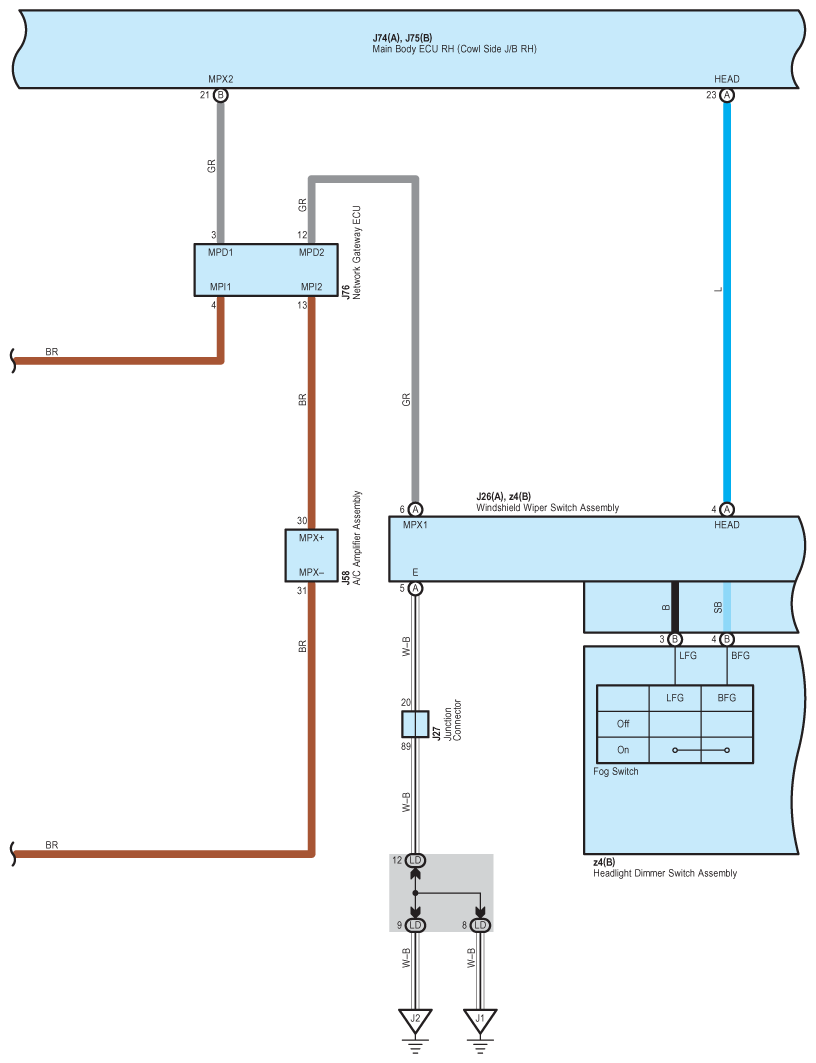

Fig 3: Front Fog Light - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

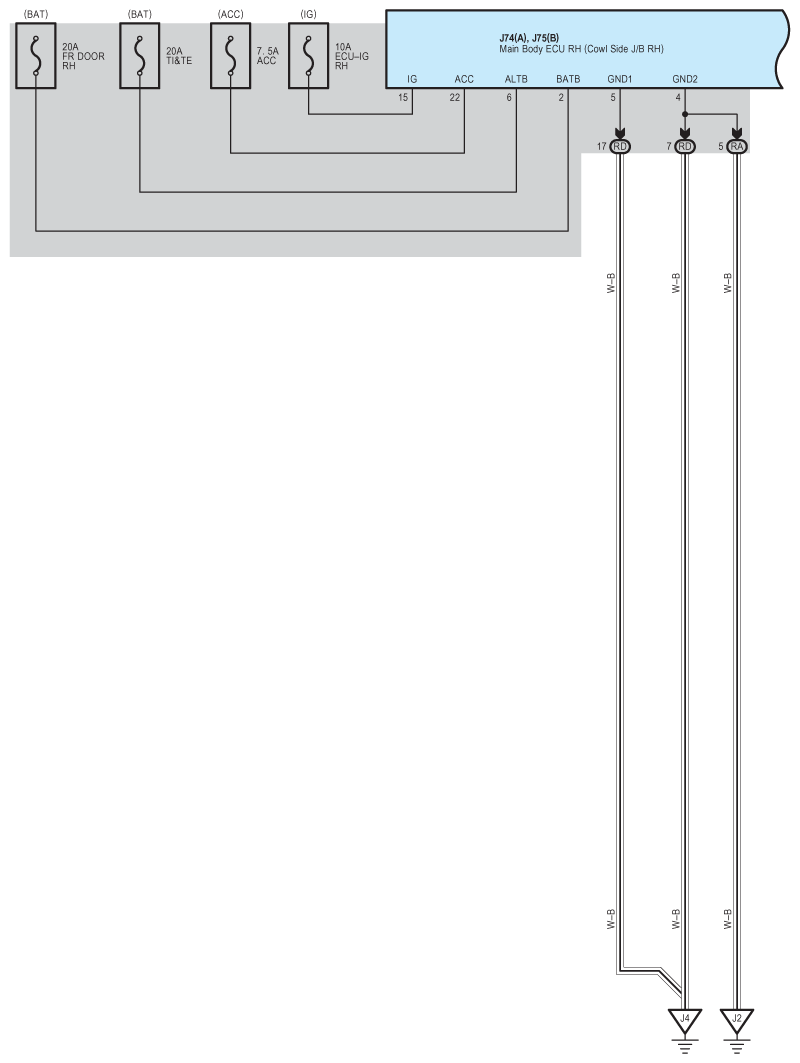

Fig 4: Front Fog Light - Circuit Diagram (4 Of 5)

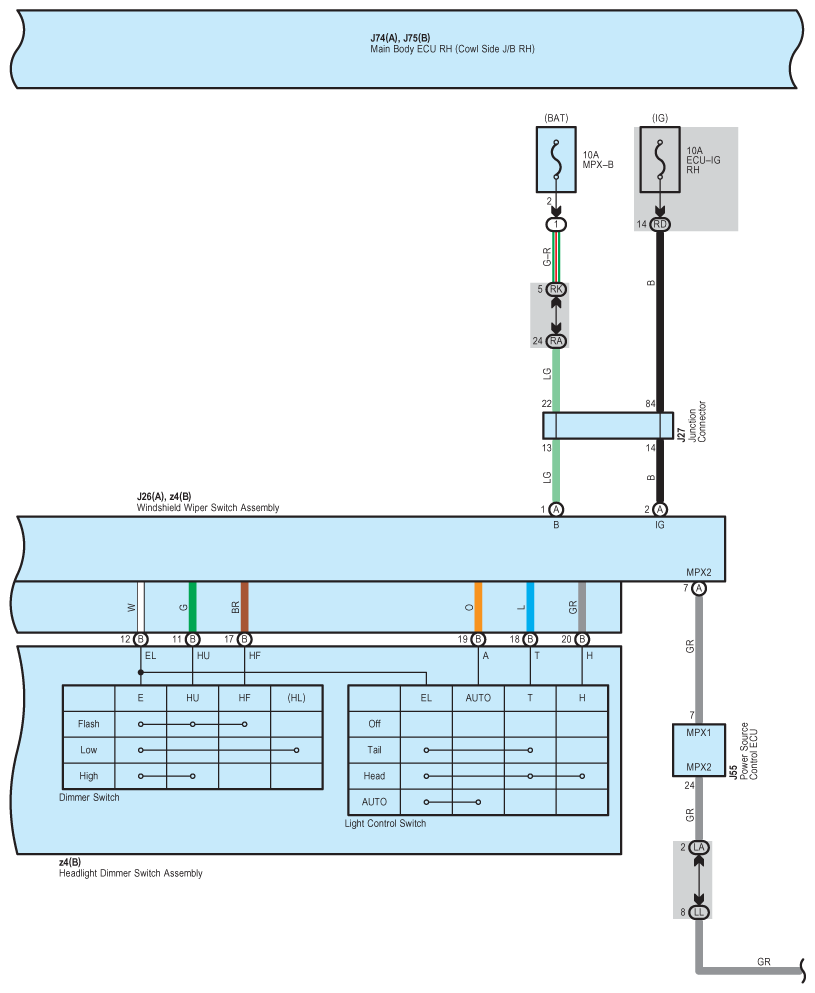

Fig 5: Front Fog Light - Circuit Diagram (5 Of 5)
