Steering Column Assembly: Installation: Installation

INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering column assembly to connect the No. 2 steering intermediate shaft assembly to the steering column assembly.

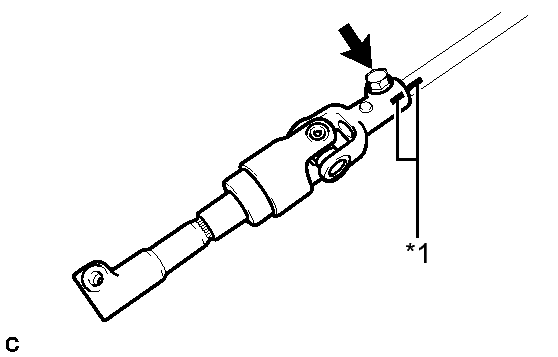

  Fig 1: Identifying No. 2 Steering Intermediate Shaft Assembly Matchmark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Matchmark
2. Install the bolt.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY
1. Align the matchmarks on the steering sliding yoke sub-assembly and the No. 2 steering intermediate shaft assembly to connect the steering sliding yoke sub-assembly to the No. 2 steering intermediate shaft assembly.

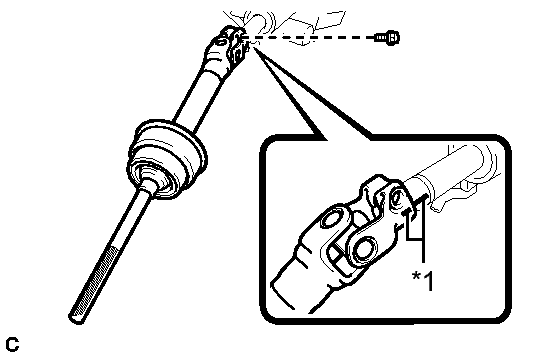

  Fig 2: Identifying Steering Sliding Yoke Sub-Assembly Matchmark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Matchmark
2. Temporarily install the bolt.
  HINT:

  Tighten the bolt after connecting the steering sliding yoke sub-assembly to the power steering link assembly.
INSTALL STEERING POST ASSEMBLY
1. Install the steering post assembly with the 4 nuts.

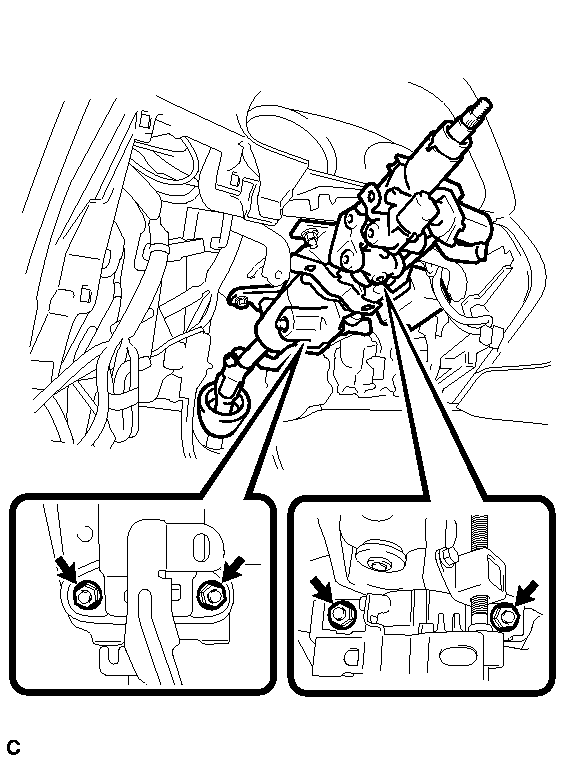

  Fig 3: Location of Steering Column Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)
2. Connect the connectors and wire harness clamps to the steering post assembly.
3. Tighten the clamp to the steering column hole shield.

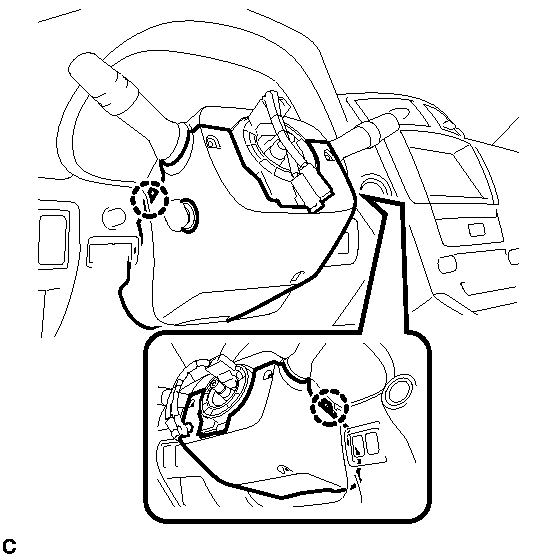

  Fig 4: Clamp From Steering Column Hole Shield
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BRAKE PEDAL RETURN SPRING . Refer to INSTALLATION - Step 7
INSTALL NO. 1 AIR DUCT
1. Engage the 2 claws to install the No. 1 air duct.

  Fig 5: Identifying No. 1 Air Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT STEERING SLIDING YOKE SUB-ASSEMBLY . Refer to INSTALLATION - Step 4
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
HINT:

Refer to the instructions for Installation of the driver side knee airbag assembly. Refer to INSTALLATION .
ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

Using pliers, expand the clamp.

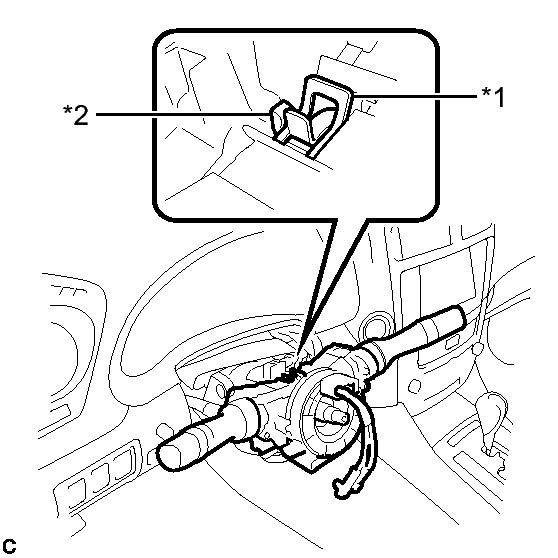

Fig 6: Identifying Turn Signal Switch Assembly Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Clip
*2	Claw

While holding the clamp expanded, install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly and engage the claw.
Return the clamp to its original position.
Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.

INSTALL TILT AND TELESCOPIC SWITCH See step 1
INSTALL STEERING COLUMN COVER (for Upper Side)
1. Engage the 4 clips and 2 guides to install the steering column cover (upper side) onto the instrument panel cluster finish panel.

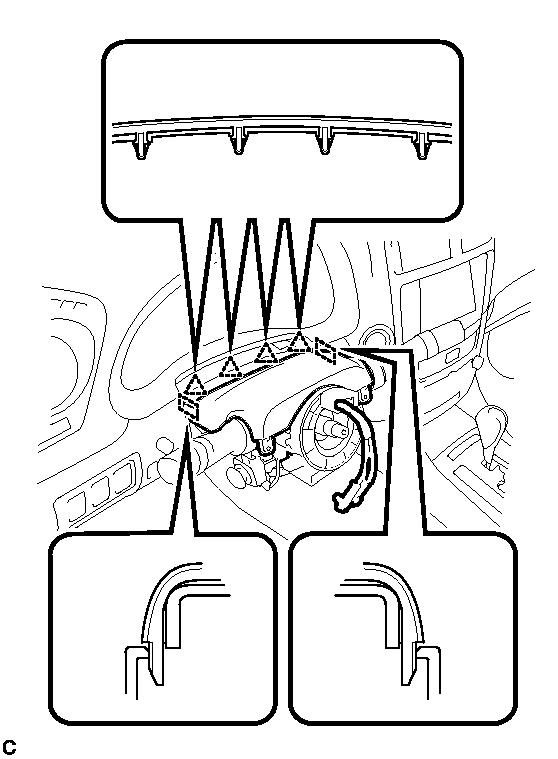

  Fig 7: Identifying Upper Steering Column Cover Clips And Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw to install the steering column cover (upper side).

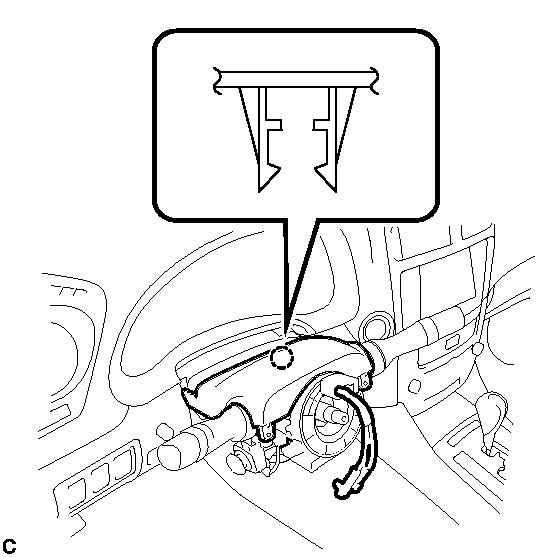

  Fig 8: Identifying Upper Steering Column Cover Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER (for Lower Side)
1. Engage the 2 claws to install the steering column cover (lower side).

  Fig 9: Identifying Lower Steering Column Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the tilt and telescopic switch.
2. Install the 3 screws.

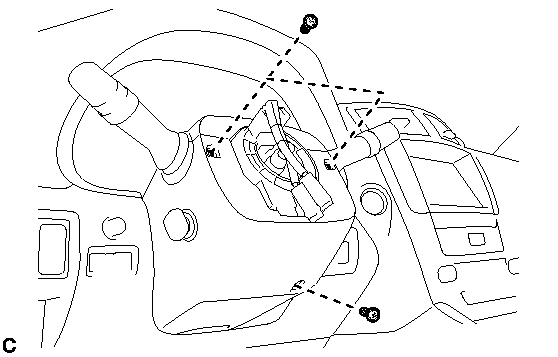

  Fig 10: Identifying Steering Column Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
ADJUST SPIRAL CABLE . Refer to INSTALLATION - Step 6
INSTALL STEERING WHEEL ASSEMBLY See step 10
INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
INSTALL LOWER NO. 3 STEERING WHEEL COVER . Refer to INSTALLATION - Step 2
INSTALL LOWER NO. 2 STEERING WHEEL COVER . Refer to INSTALLATION - Step 3
INSPECT STEERING WHEEL CENTER POINT
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Make sure that the cable has been disconnected from the battery terminal for at least 2 seconds before reconnecting the cable.
- Connect the cable to the negative (-) battery terminal with the front wheels facing straight ahead.
- Reset the auto away/return function setting to the previous condition by changing the customize parameter. Refer to CUSTOMIZE PARAMETERS .
INSPECT STEERING PAD . Refer to INSTALLATION - Step 5
REGISTER ECU CODE
NOTE:
When replacing the steering lock actuator assembly, perform initialization. Refer to REGISTRATION .
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
