Service Data

WHEEL ALIGNMENT SPECIFICATIONS


Measurement Points:
A: Ground clearance of front lower suspension arm bushing set bolt center

B: Ground clearance of rear No. 2 suspension arm adjust bolt center

C: Ground clearance of front wheel center

D: Ground clearance of rear wheel center






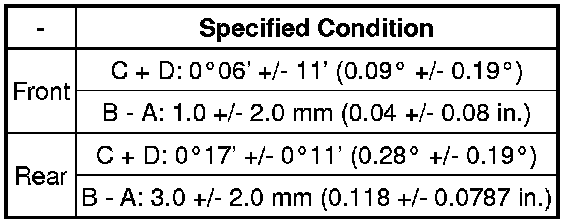

Vehicle Height (Unloaded Vehicle)

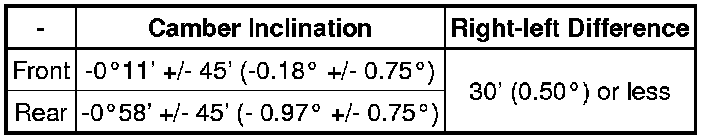

Camber (Unloaded Vehicle)

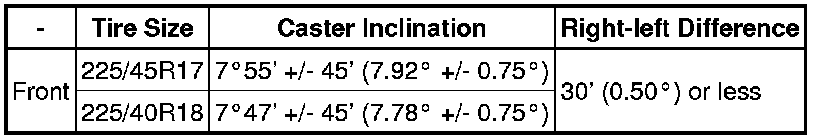

Caster (Unloaded Vehicle)





Steering Axis (Unloaded Vehicle)





Toe-in (Unloaded Vehicle)





Wheel Turning Angle (Unloaded Vehicle)
