Service Data





SPECIFICATIONS: A960E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

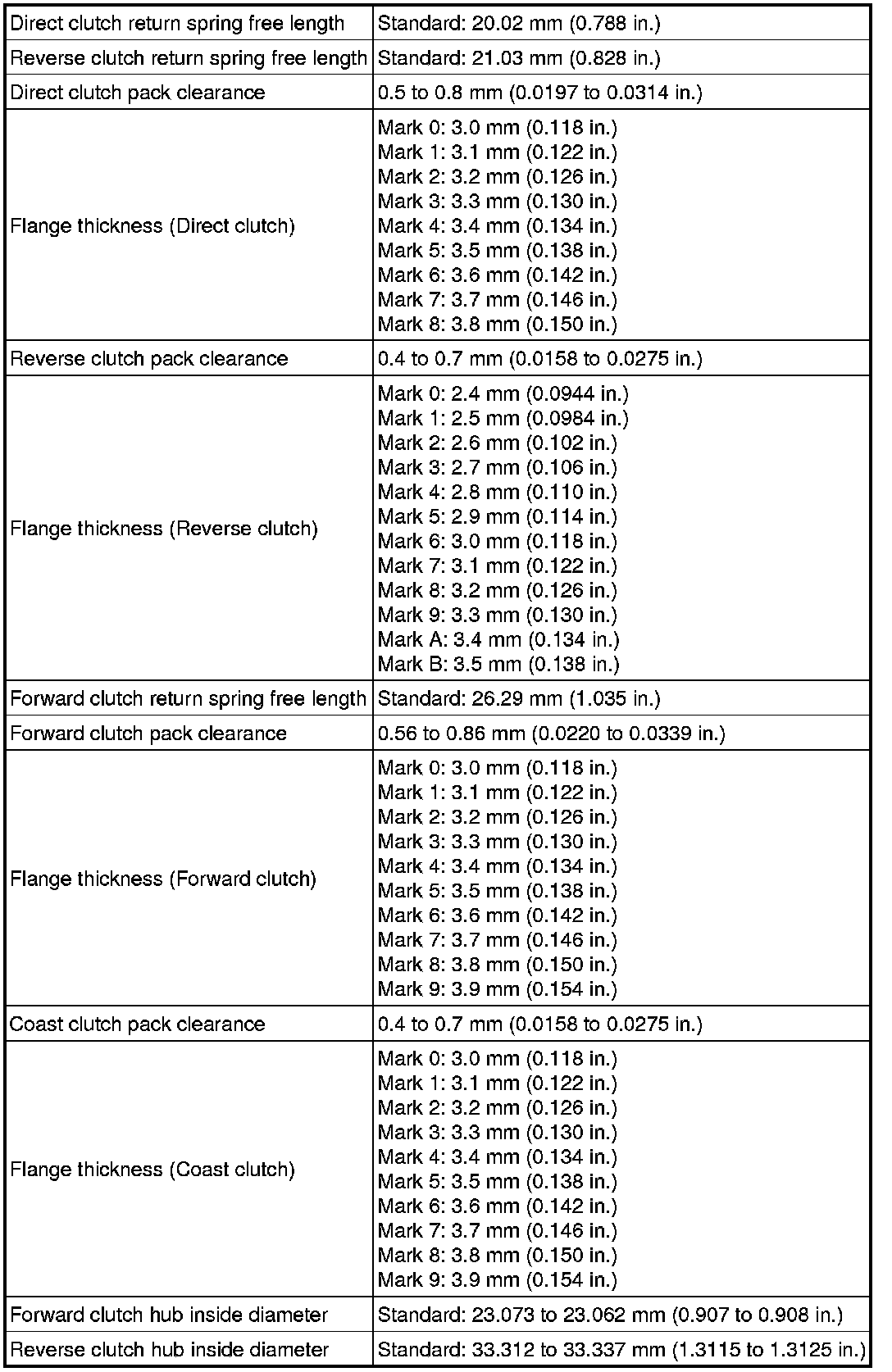

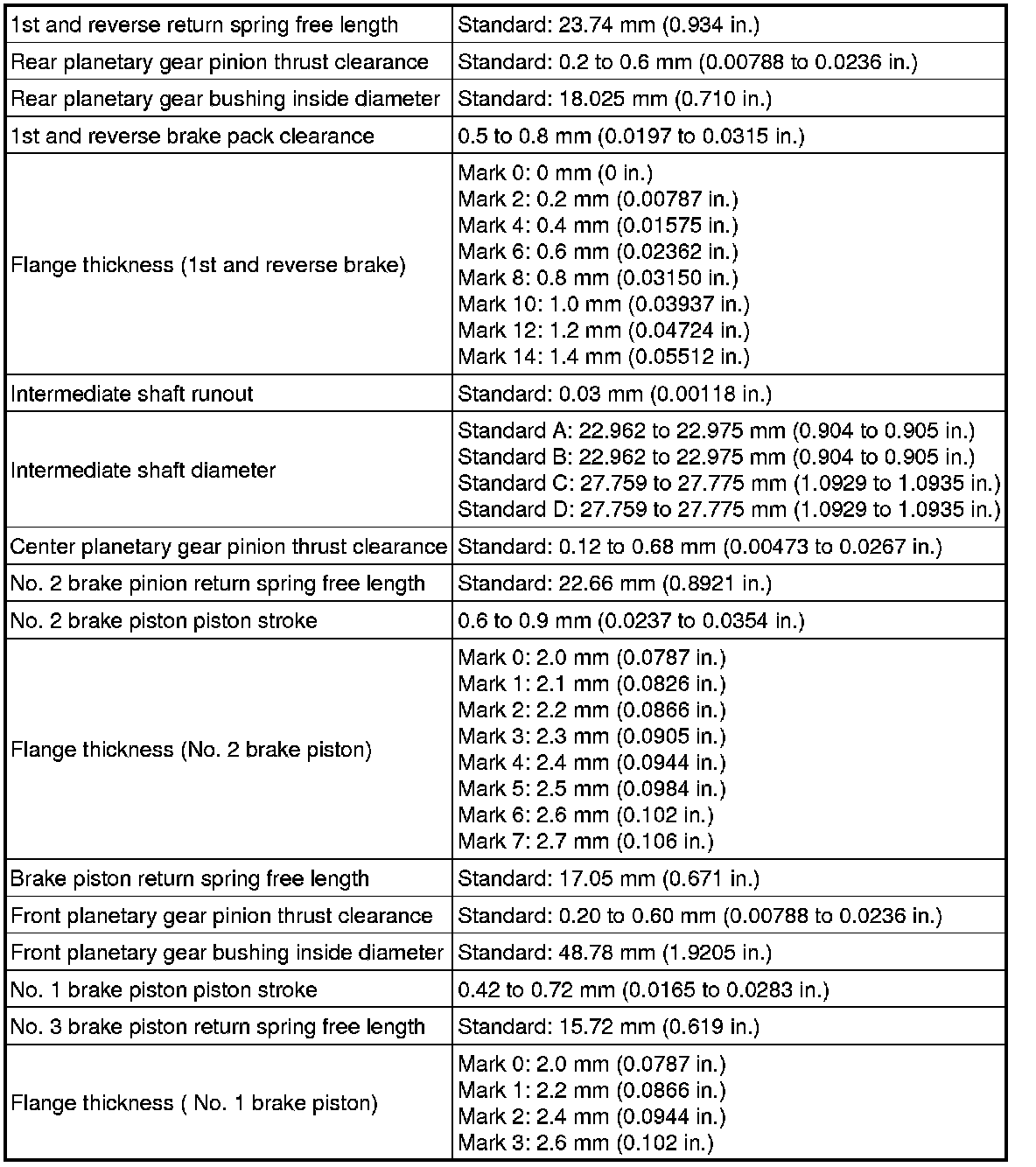

Automatic Transmission Unit:

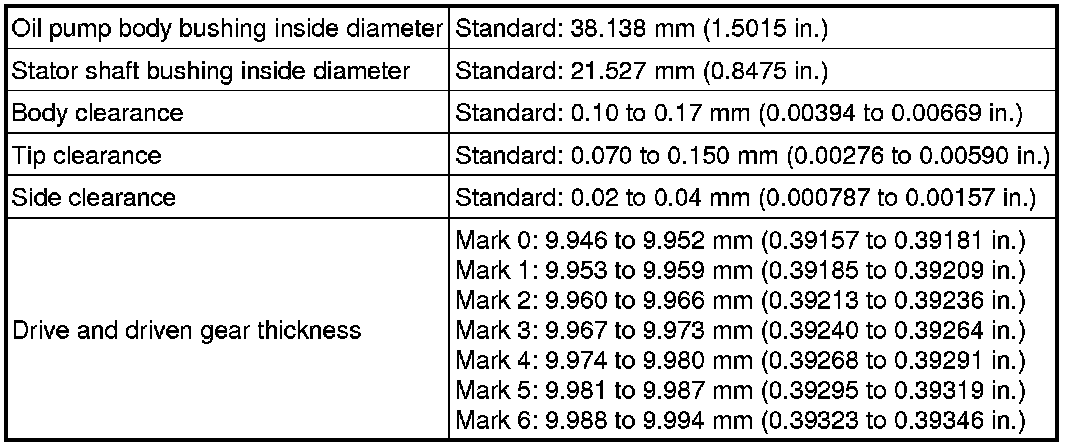

Oil Pump:

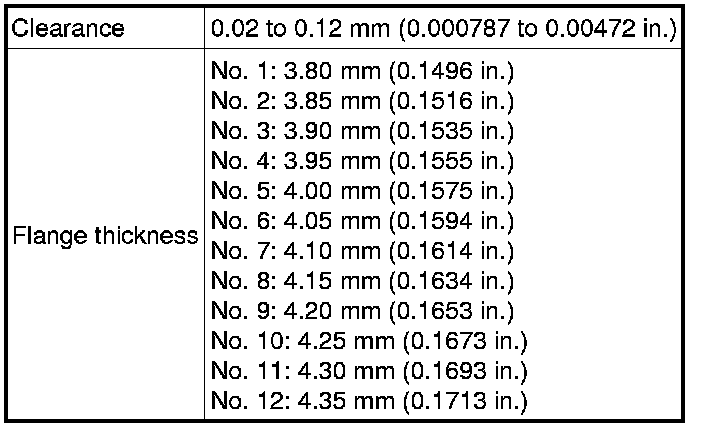

Clutch Drum And Input Shaft:

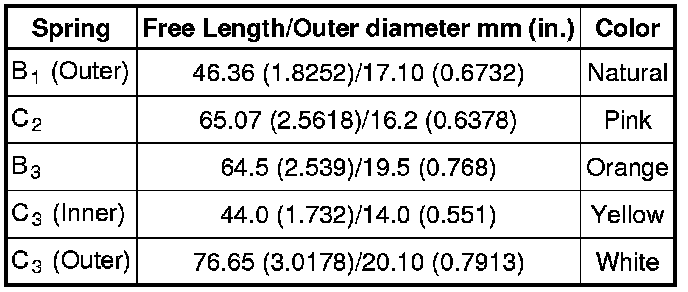

Accumulator:





Output Shaft Bearing:
