Components
COMPONENTS
a.

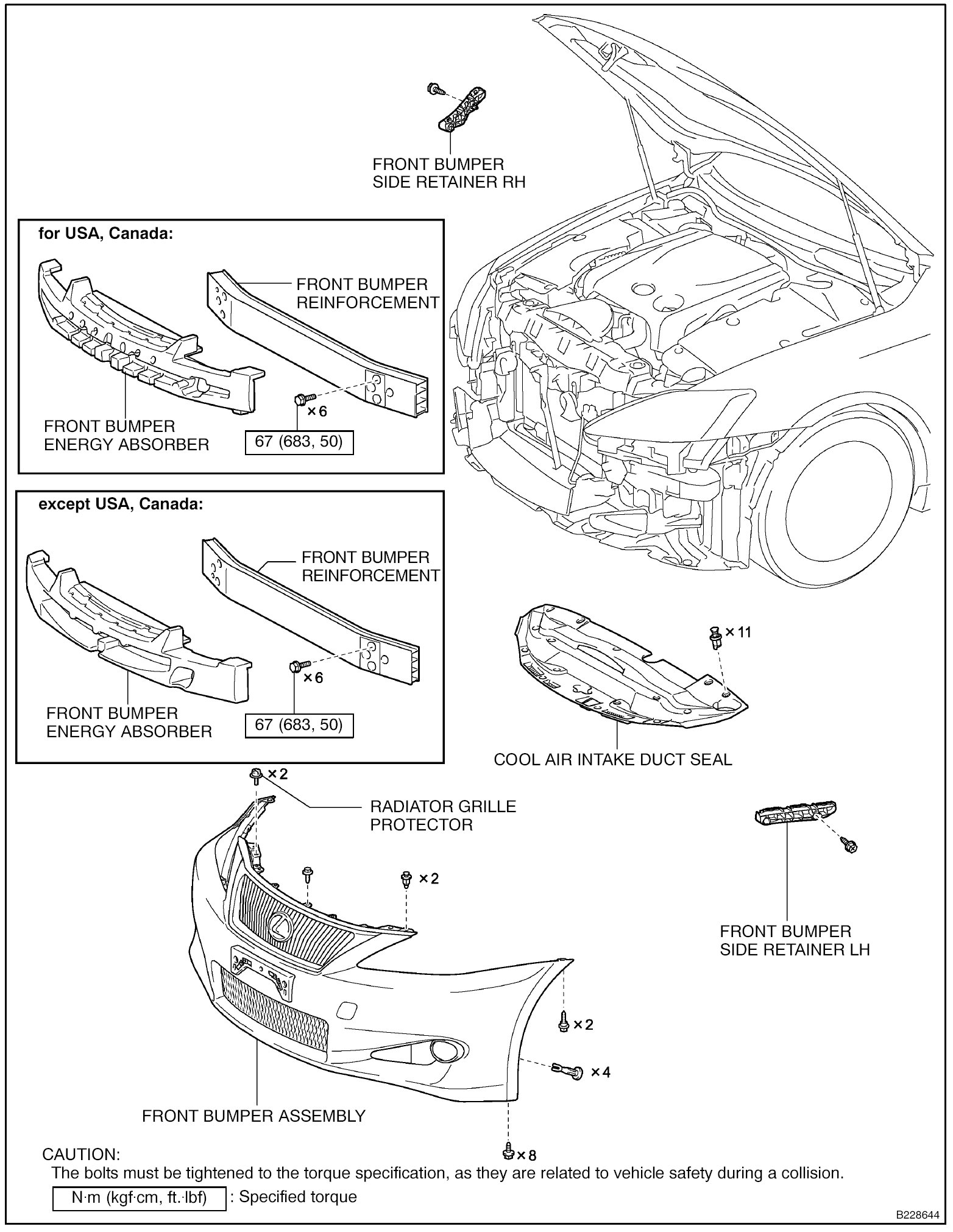

FRONT
BUMPER
b.

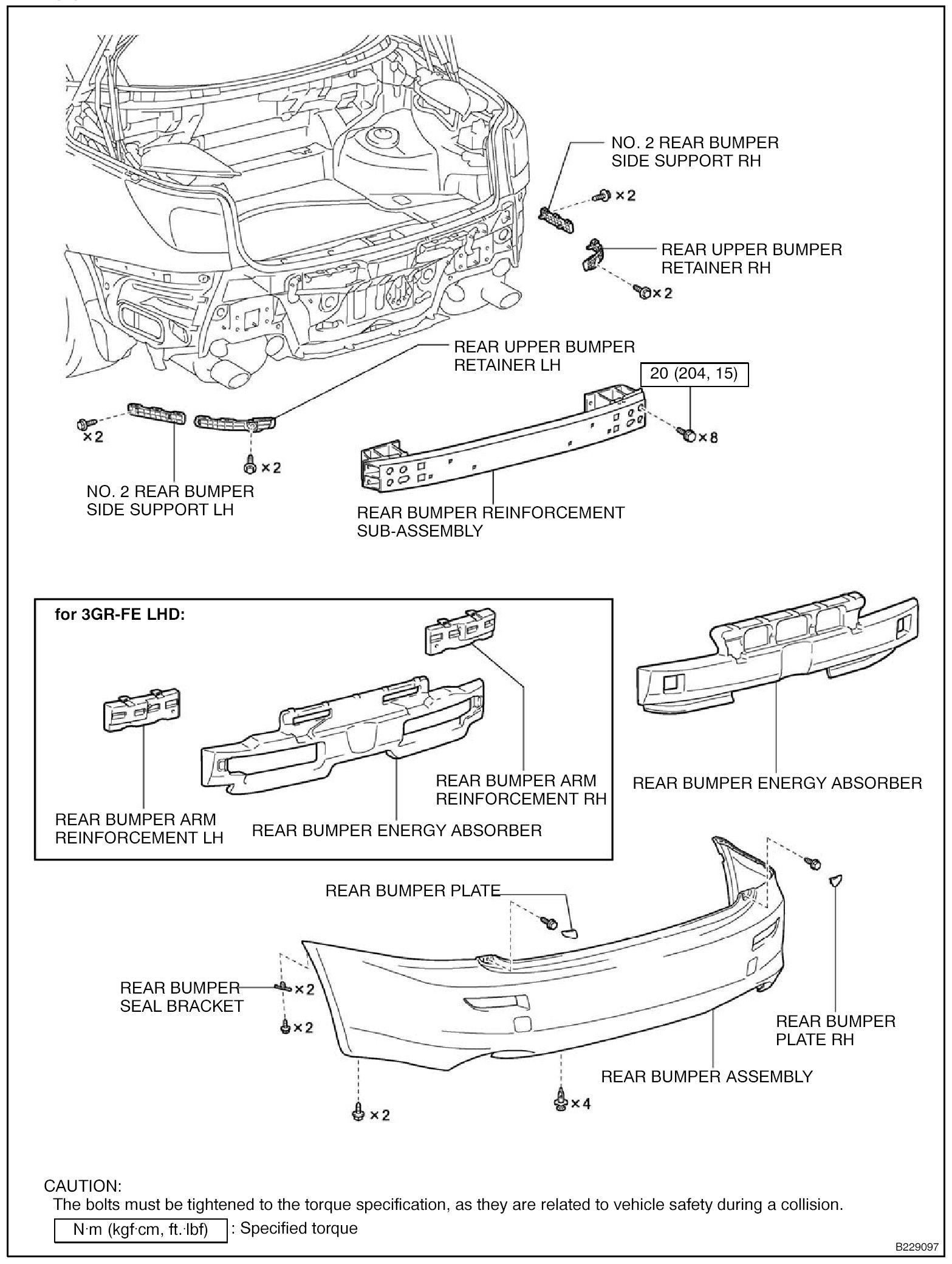

REAR
BUMPER
c.

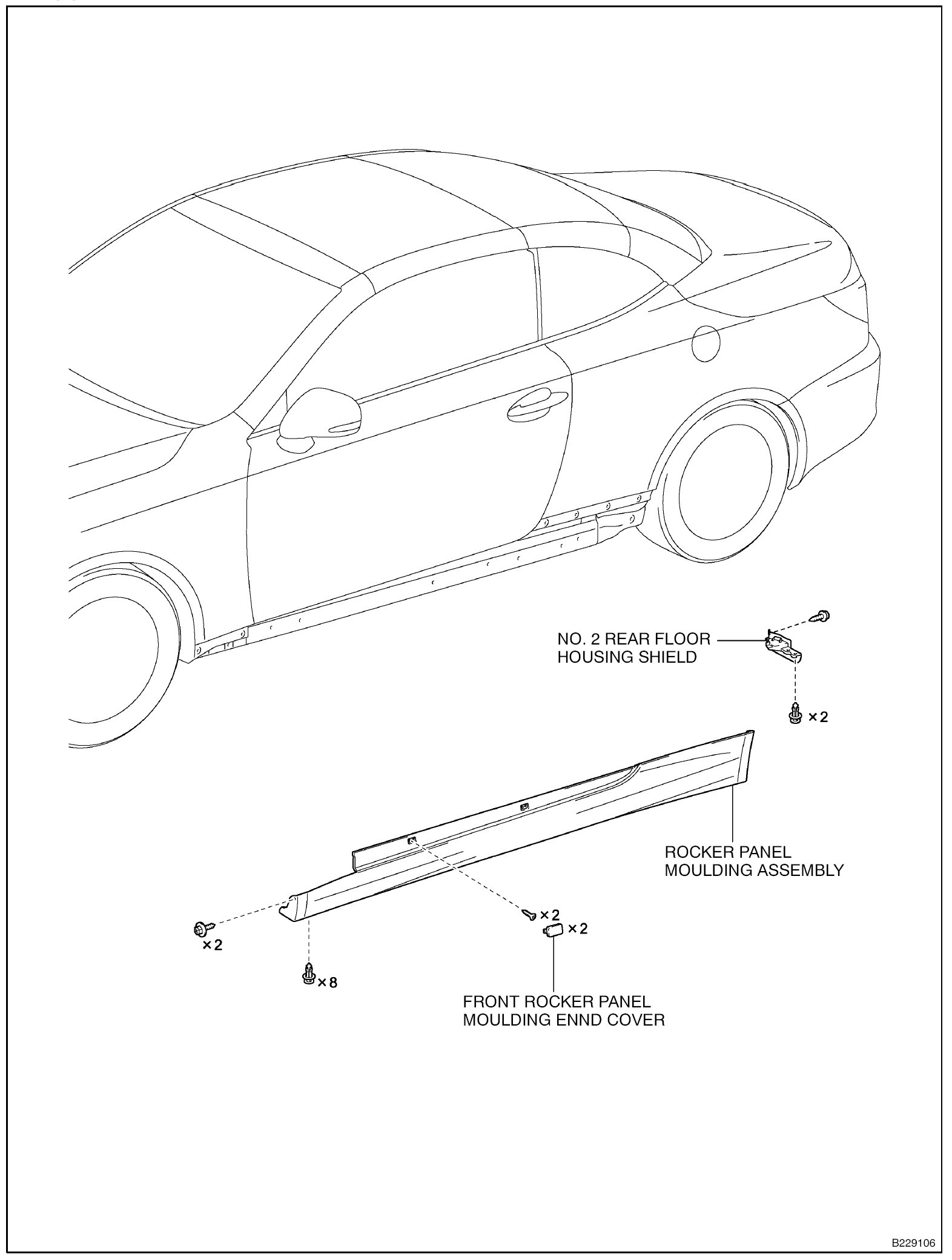

MOULDING
d.

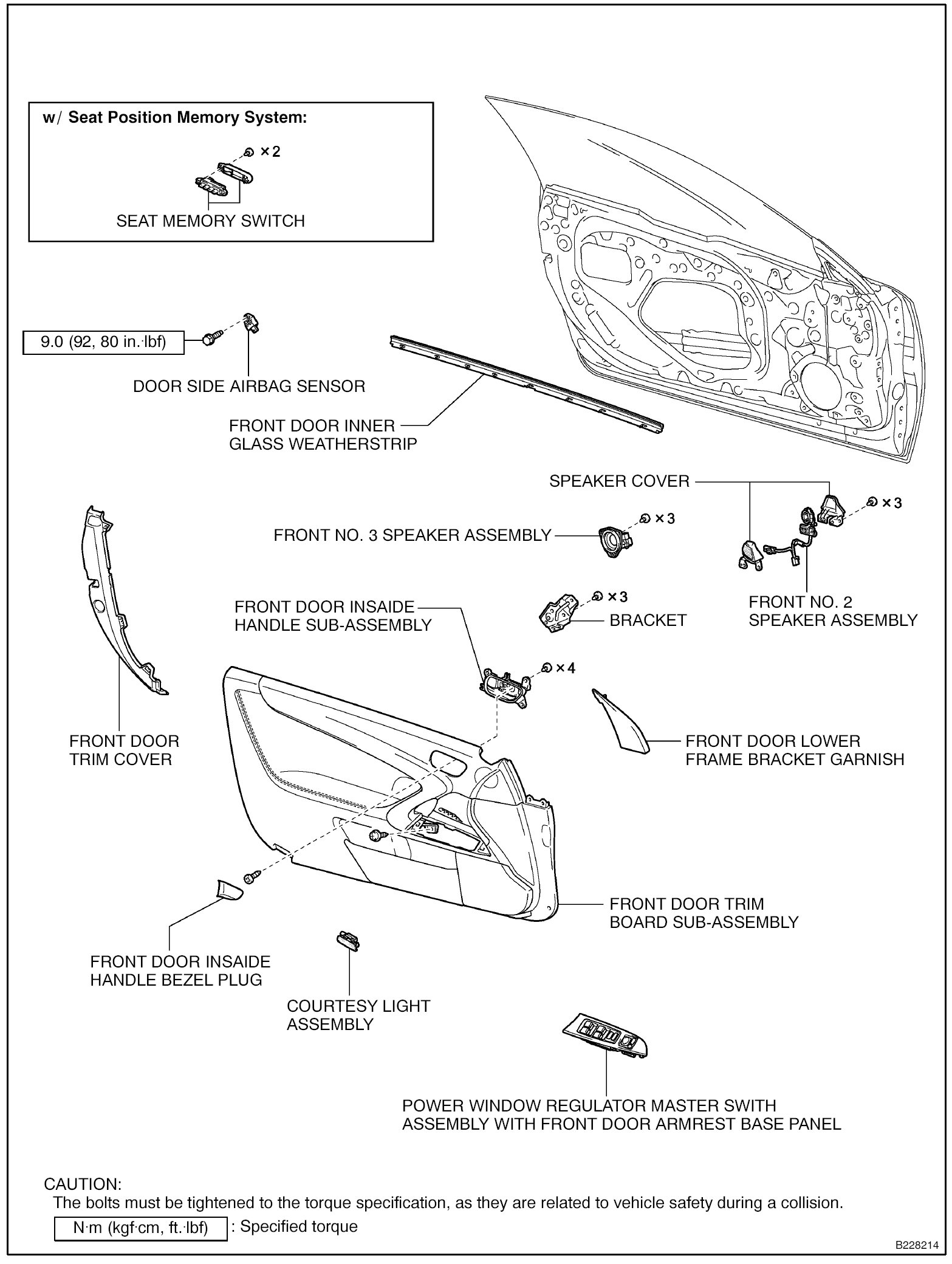

DOOR
e.

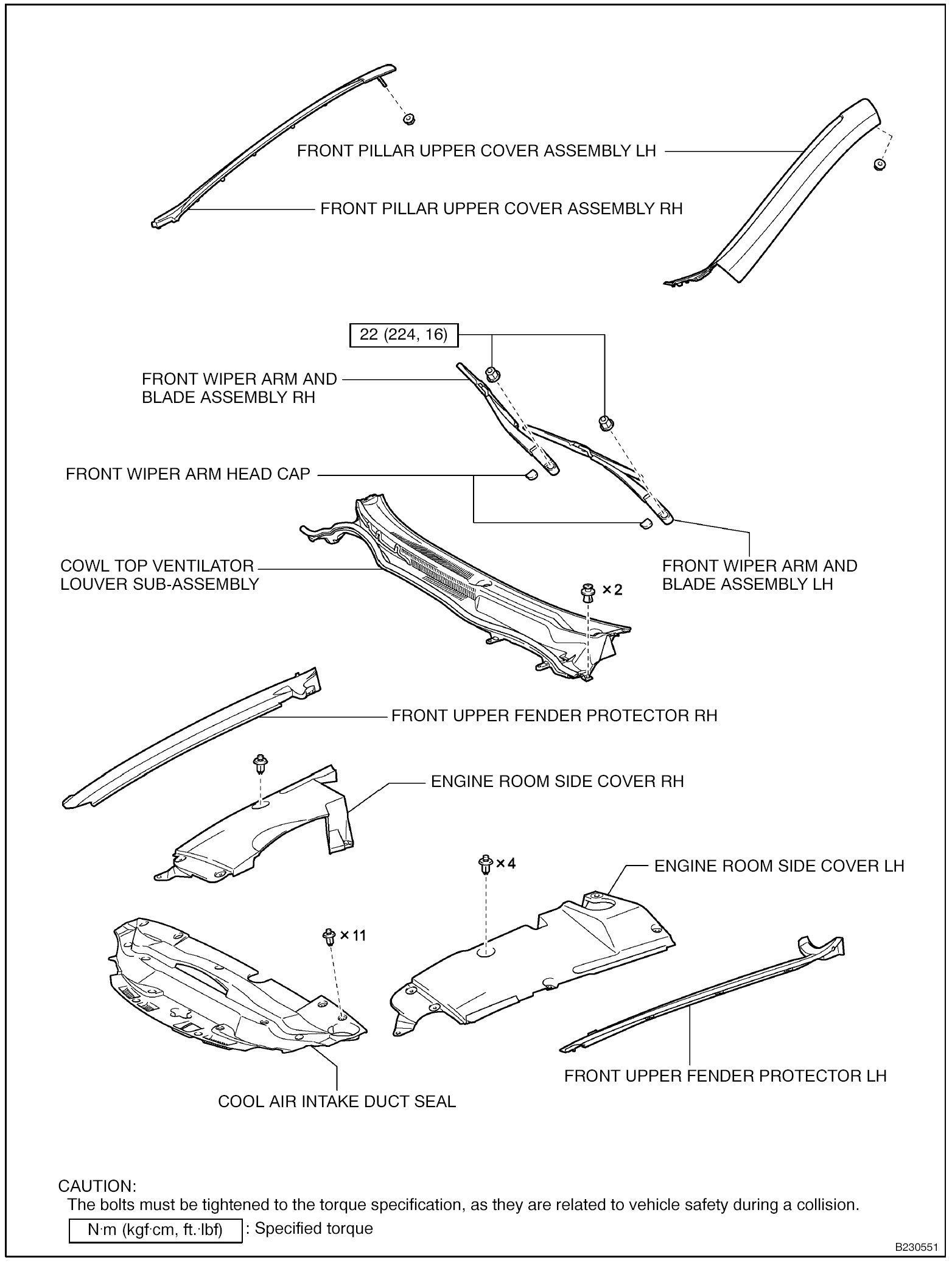

COWL TOP VENTILATOR LOUVER
f.

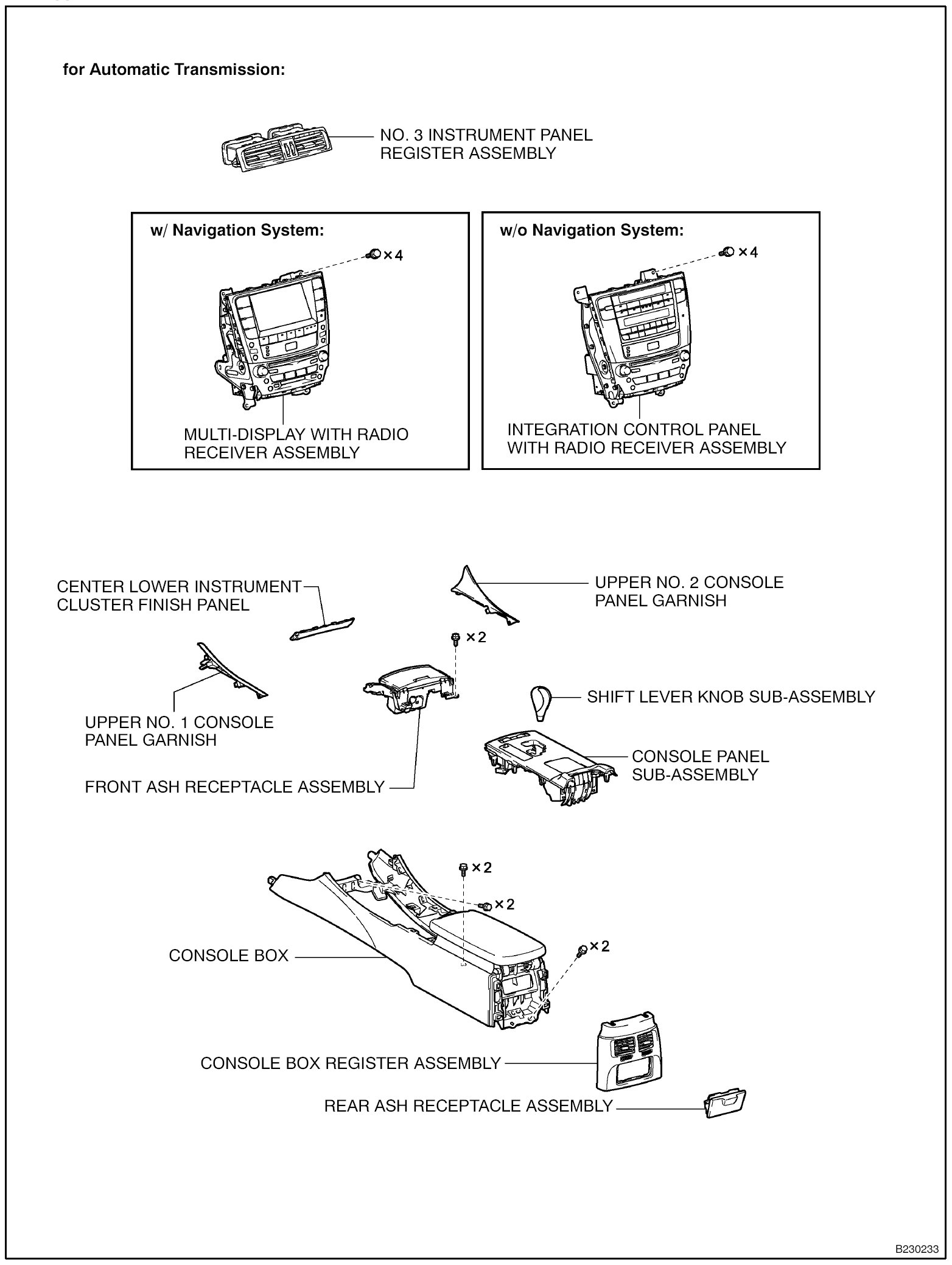

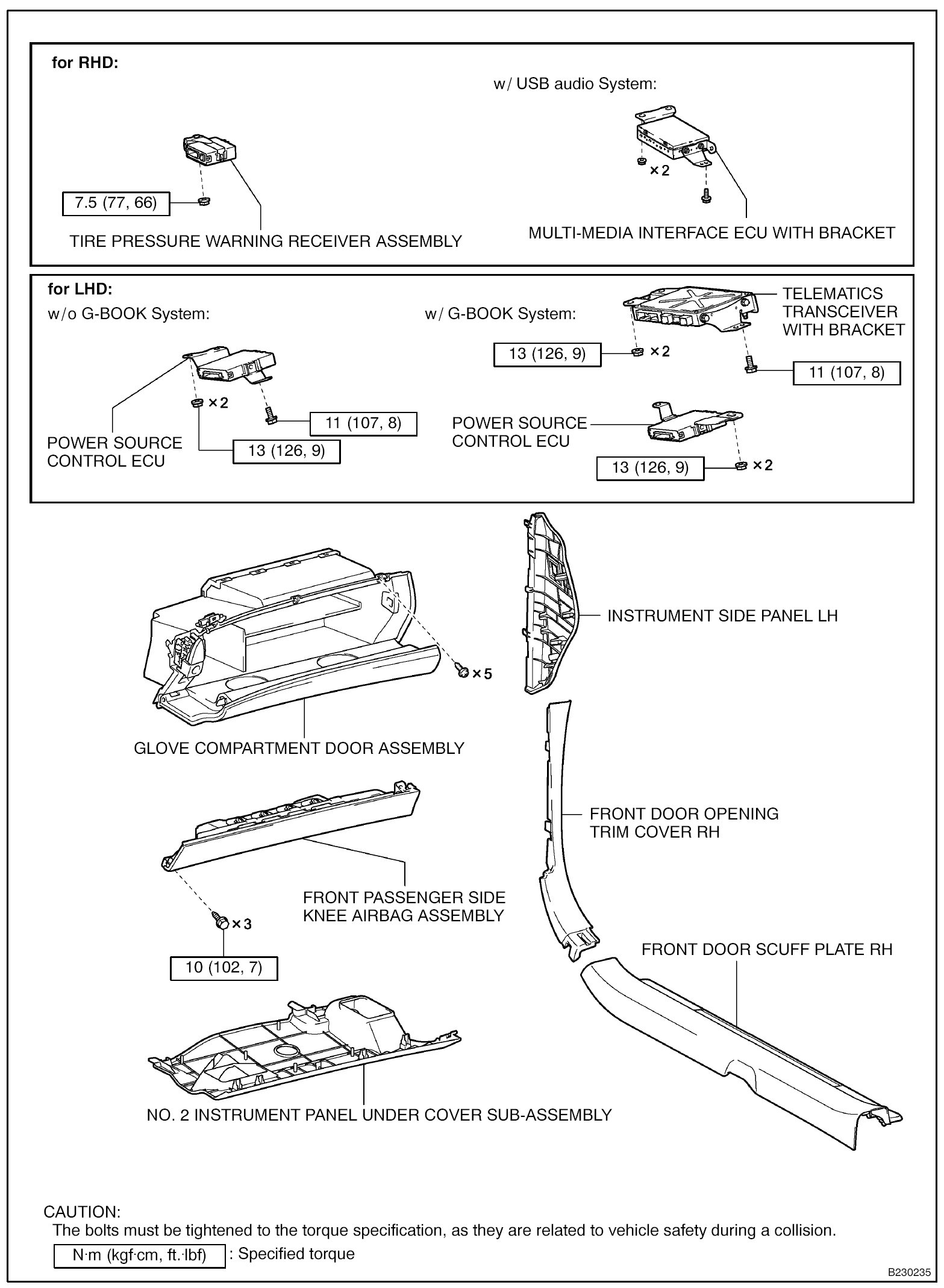

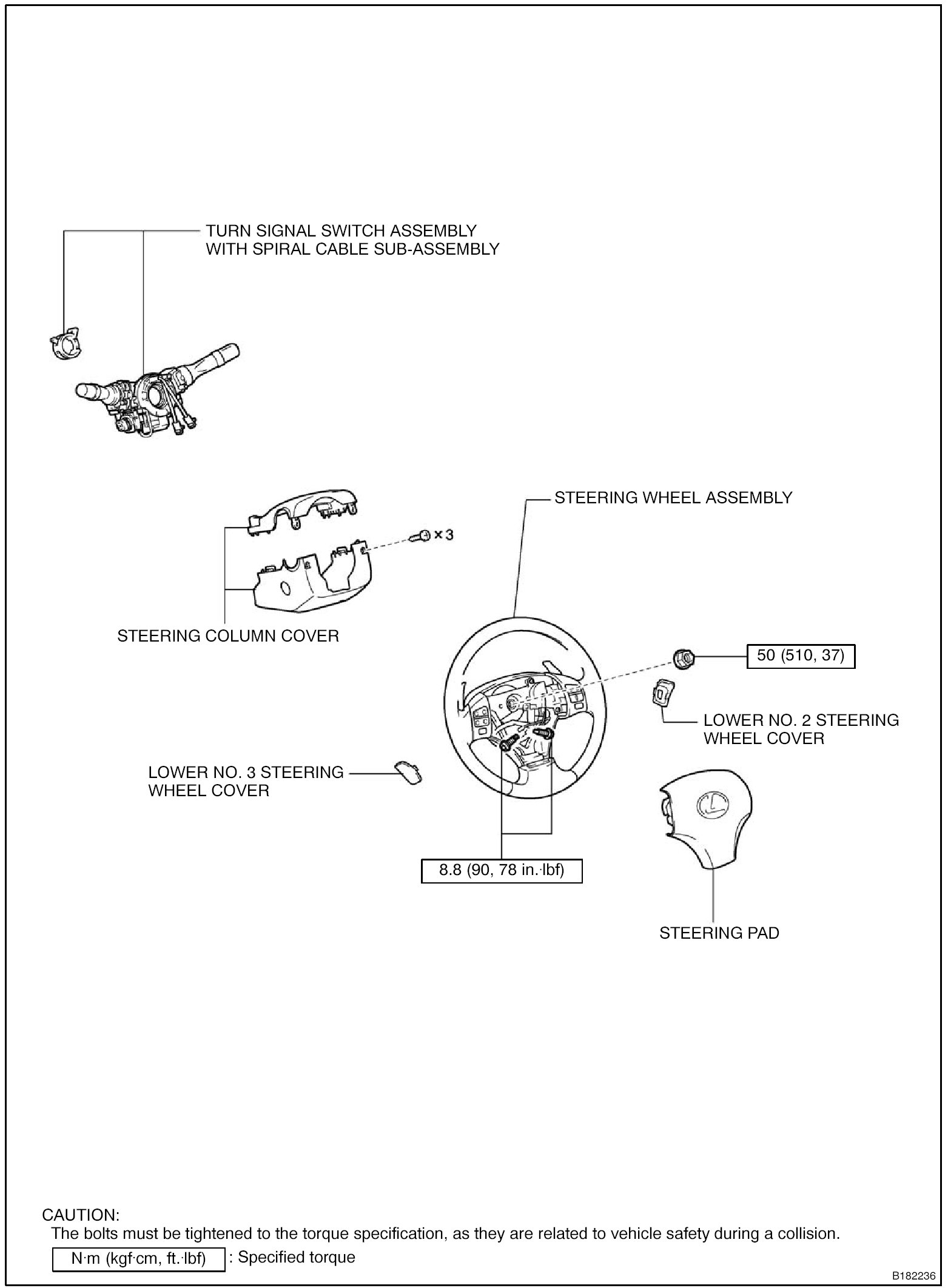

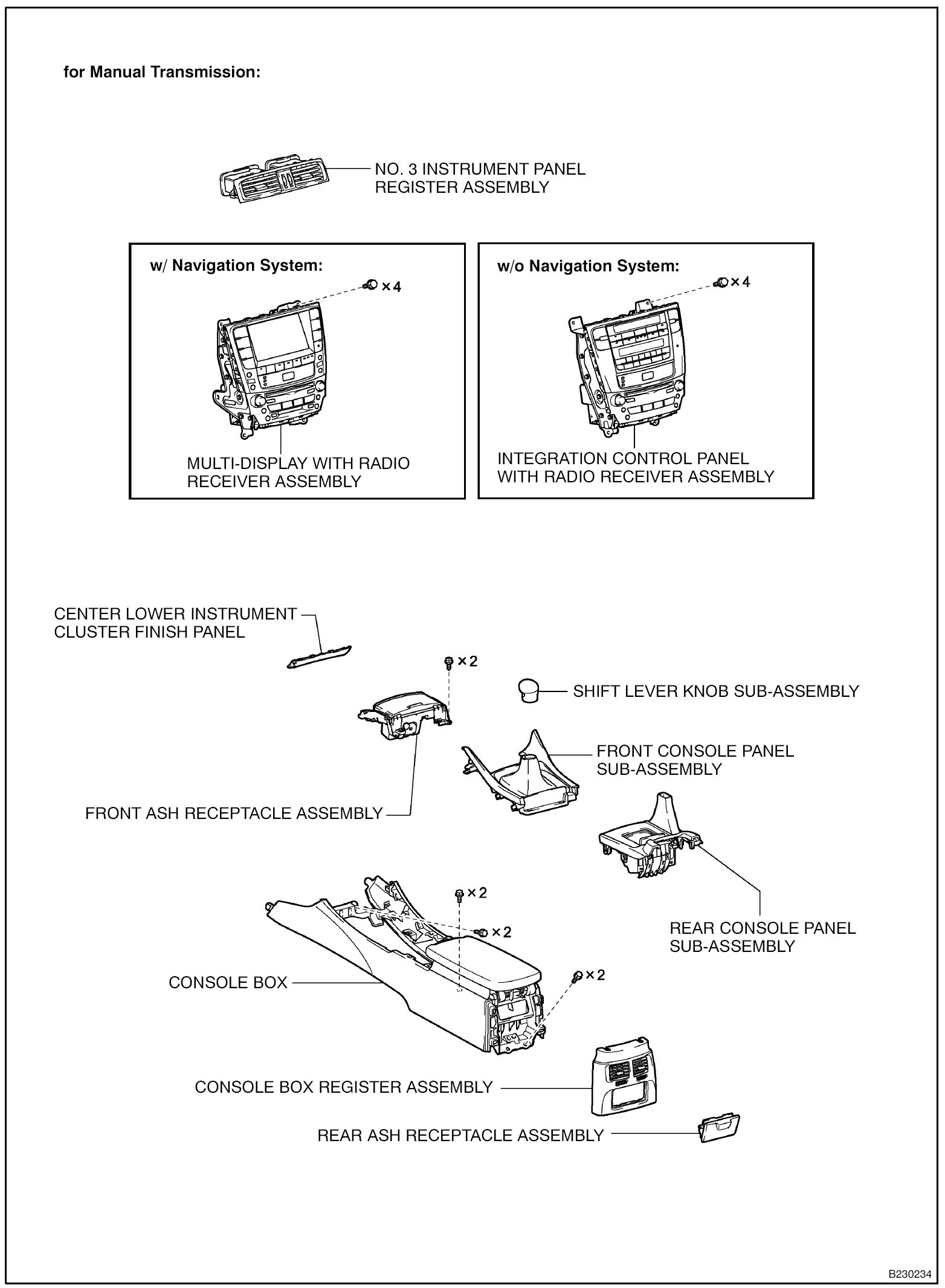

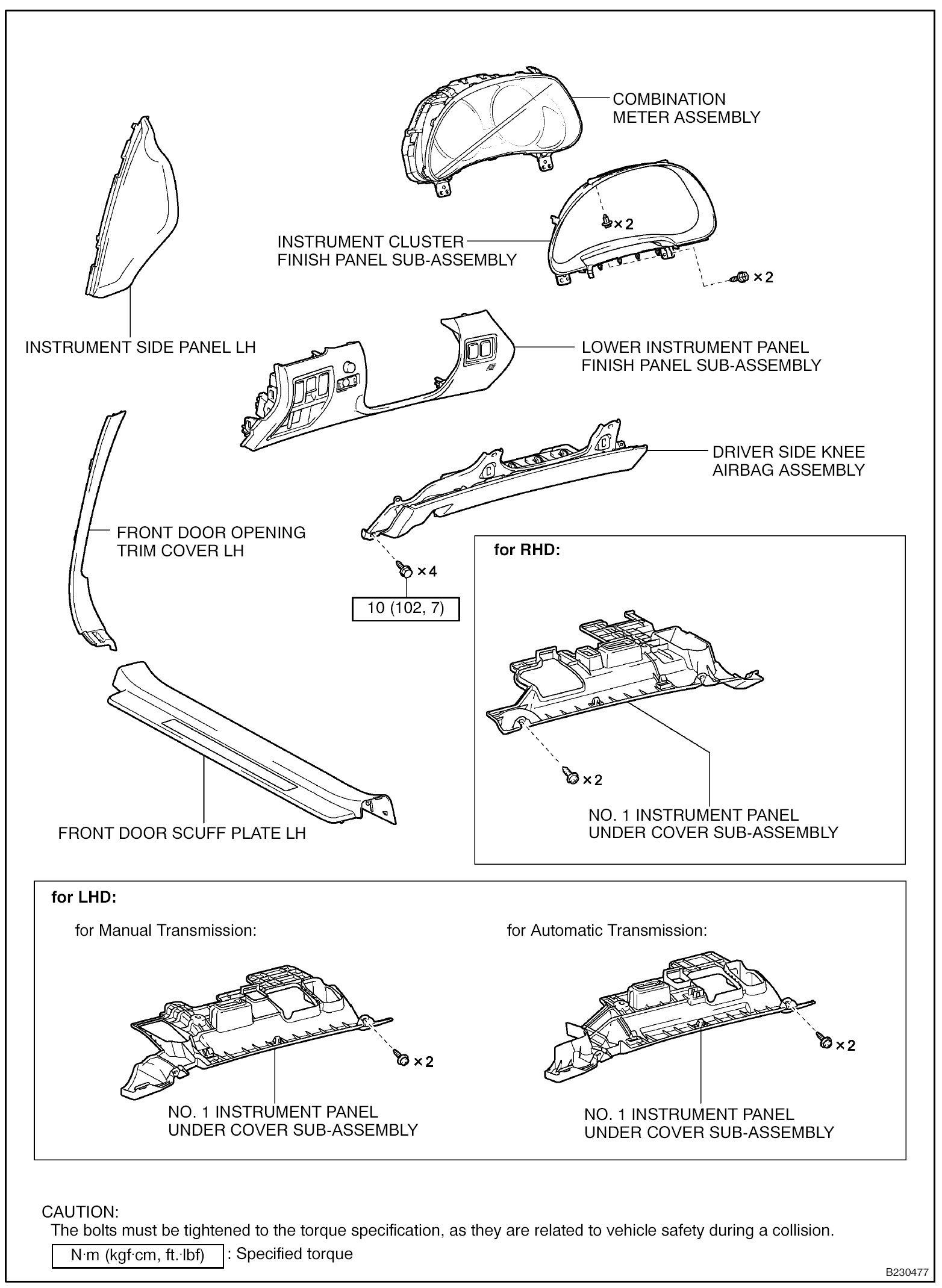

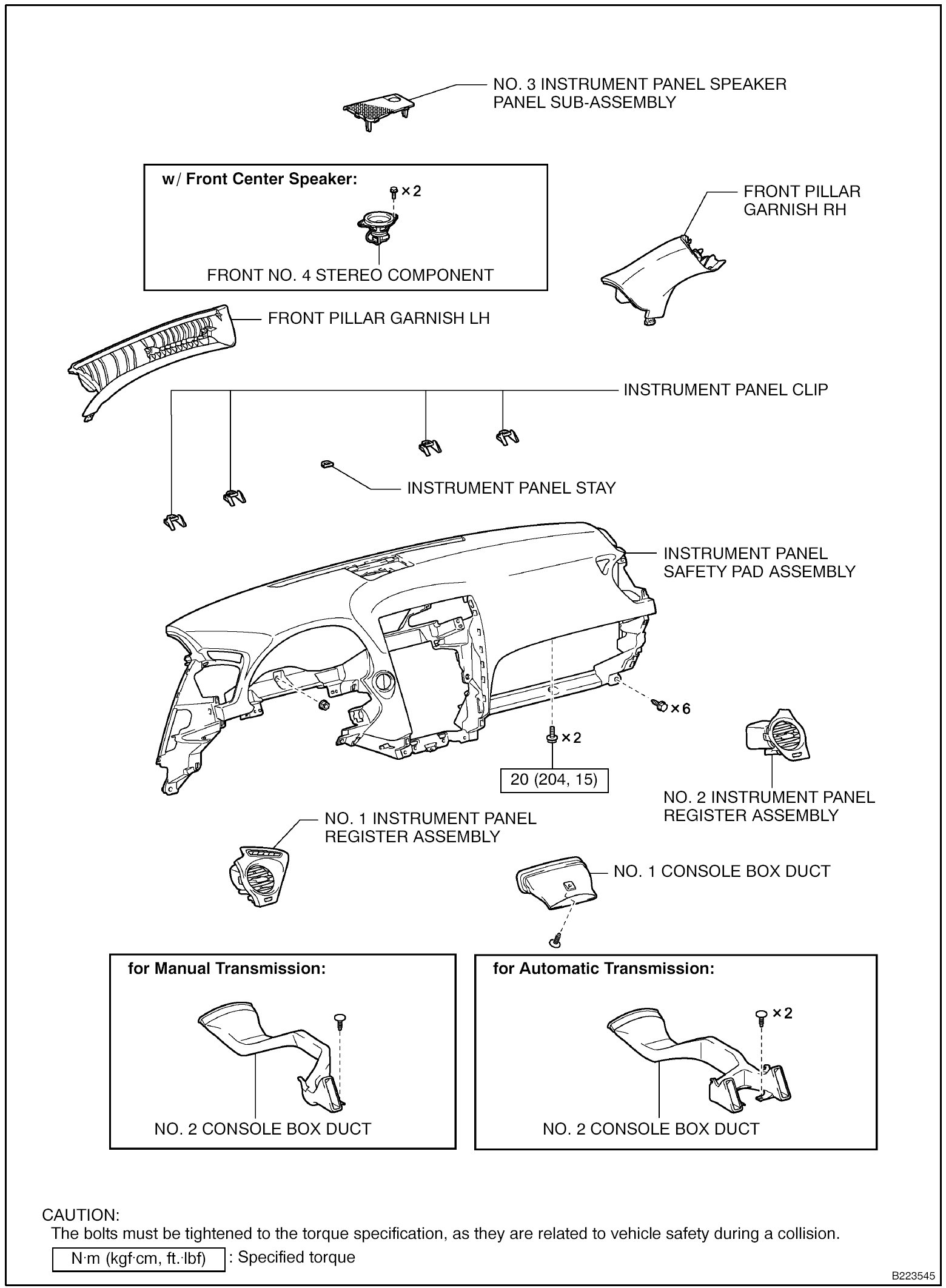

INSTRUMENT PANEL
g.

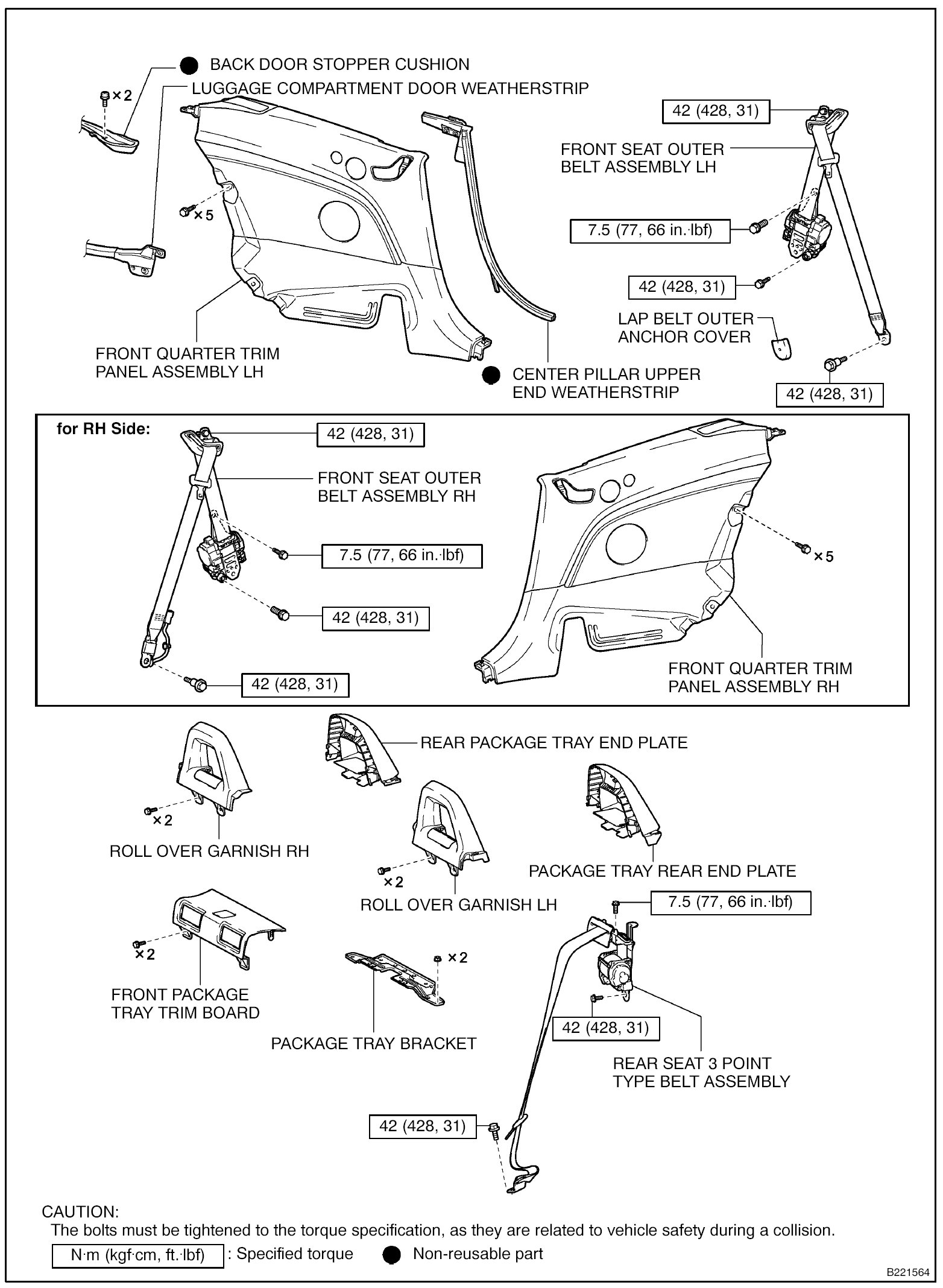

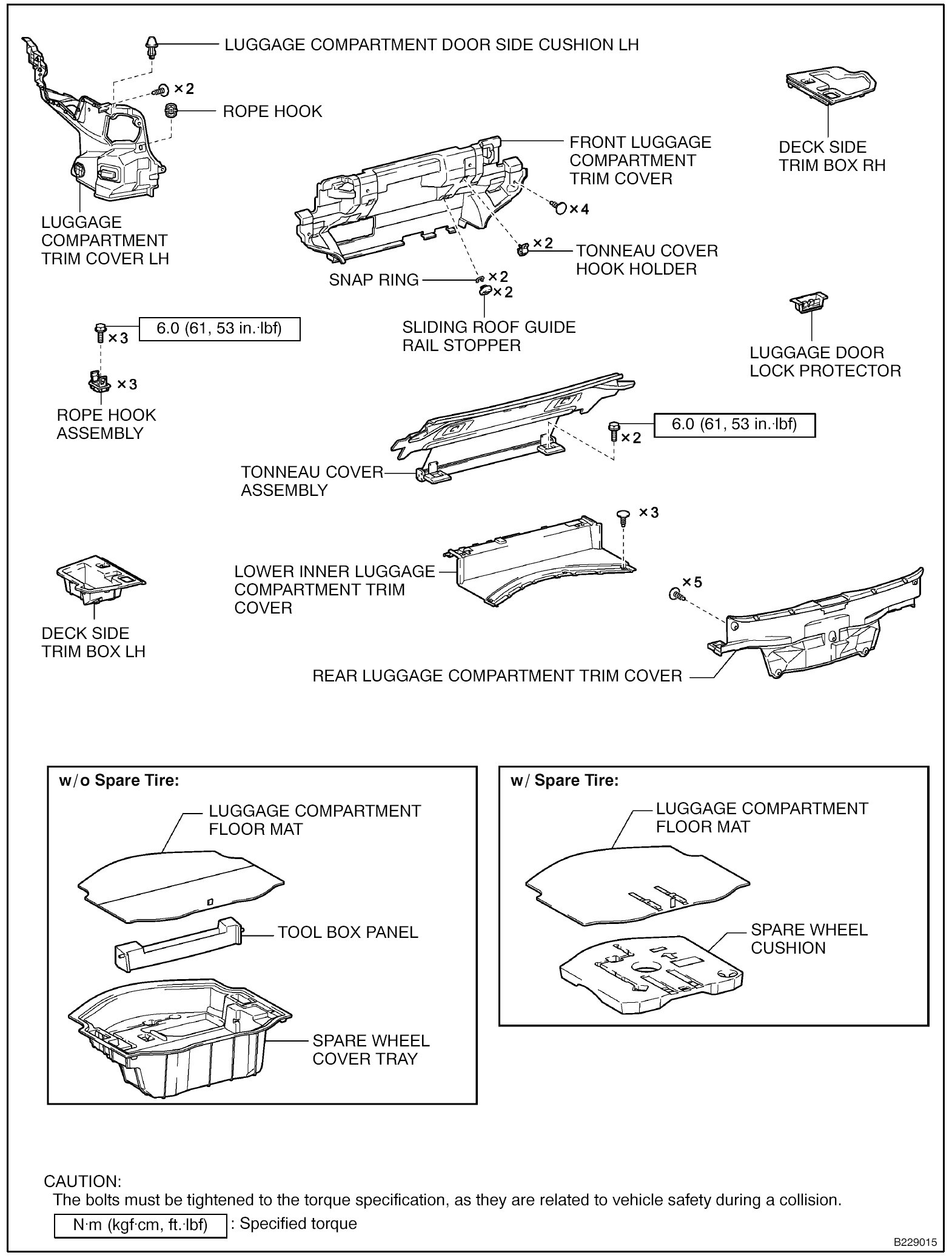

INTERIOR TRIM
h.

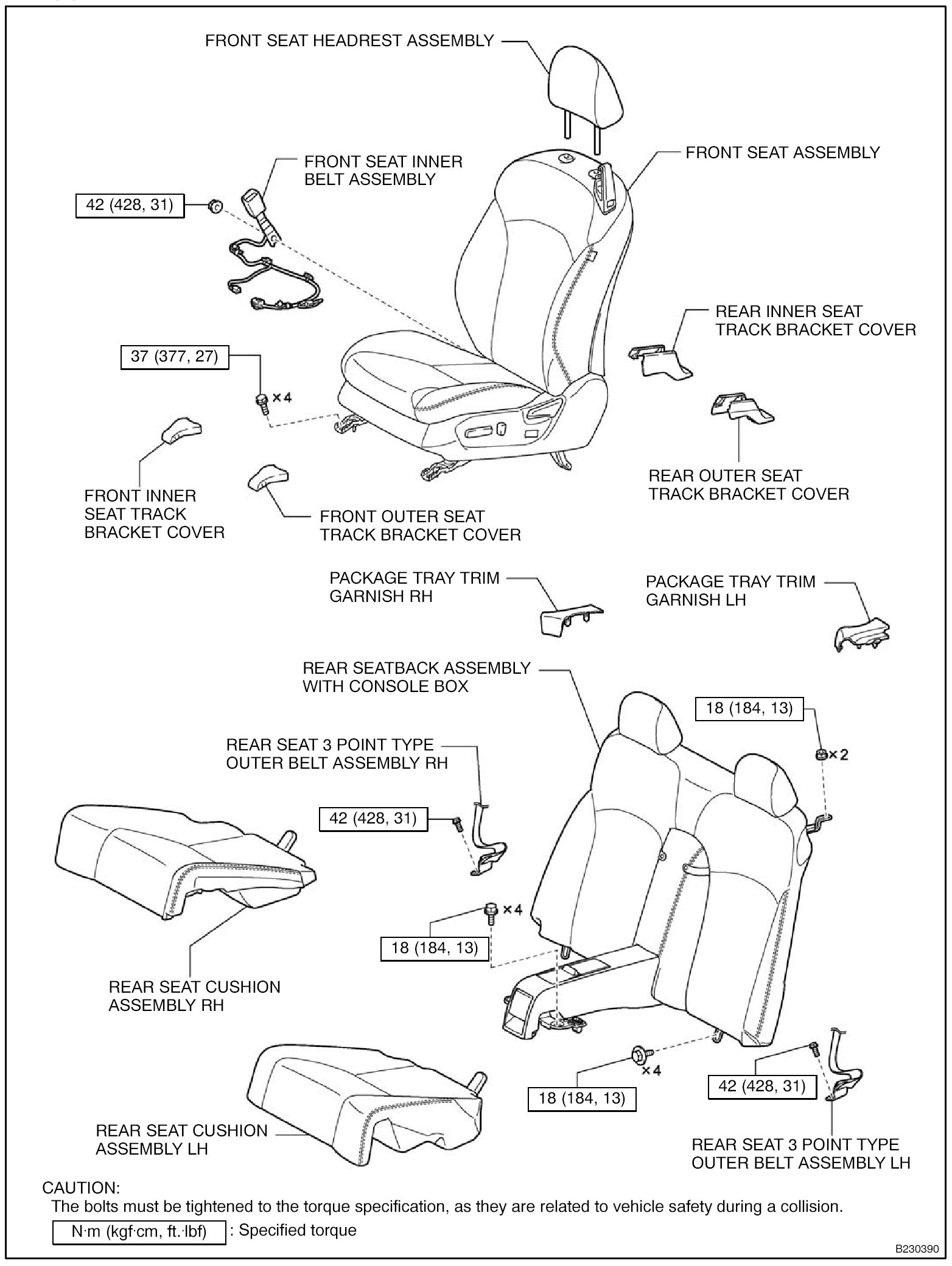

SEAT
