VSC Off Switch: Installation: Installation

  1. INSTALL VSC OFF SWITCH
    1. Install the VSC off switch into the instrument panel safety pad sub-assembly.

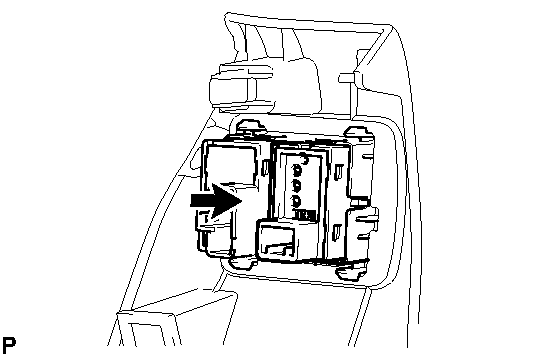

      Fig 1: Identifying Traction Off Switch
      GTY123532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 25
  3. INSTALL SIDE INSTRUMENT PANEL LH  . Refer to INSTALLATION - Step 27
  4. INSTALL FRONT DOOR OPENING TRIM COVER LH  . Refer to INSTALLATION - Step 86
  5. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 90
