VSC Off Switch: Removal: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 52
  2. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL - Step 56
  3. REMOVE SIDE INSTRUMENT PANEL LH  . Refer to REMOVAL - Step 30
  4. REMOVE LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 32
  5. REMOVE VSC OFF SWITCH
    1. Using a screwdriver, remove the VSC off switch from the instrument panel safety pad sub-assembly.

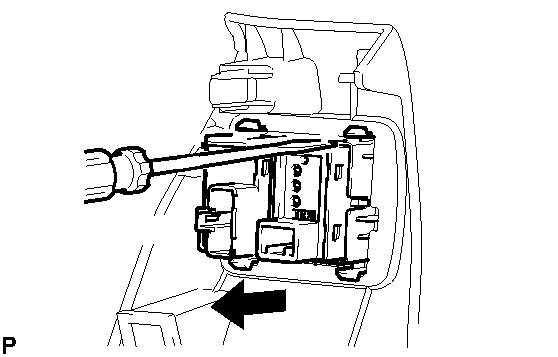

      Fig 1: Identifying Traction Off Switch
      GTY112765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
