Parts Location: Illustration

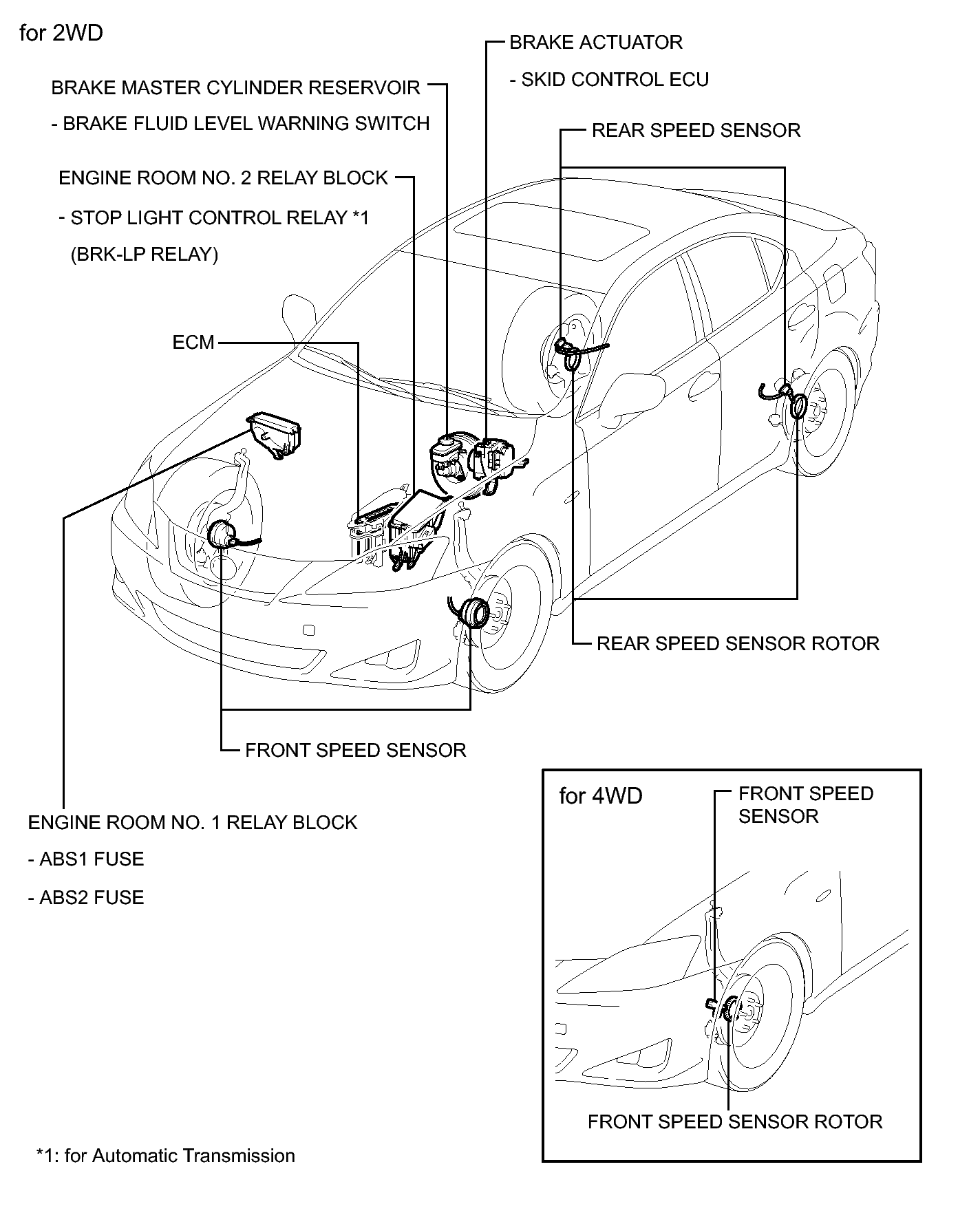

Fig 1: Identifying Tability Control System Components (1 Of 2)
GTY355879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

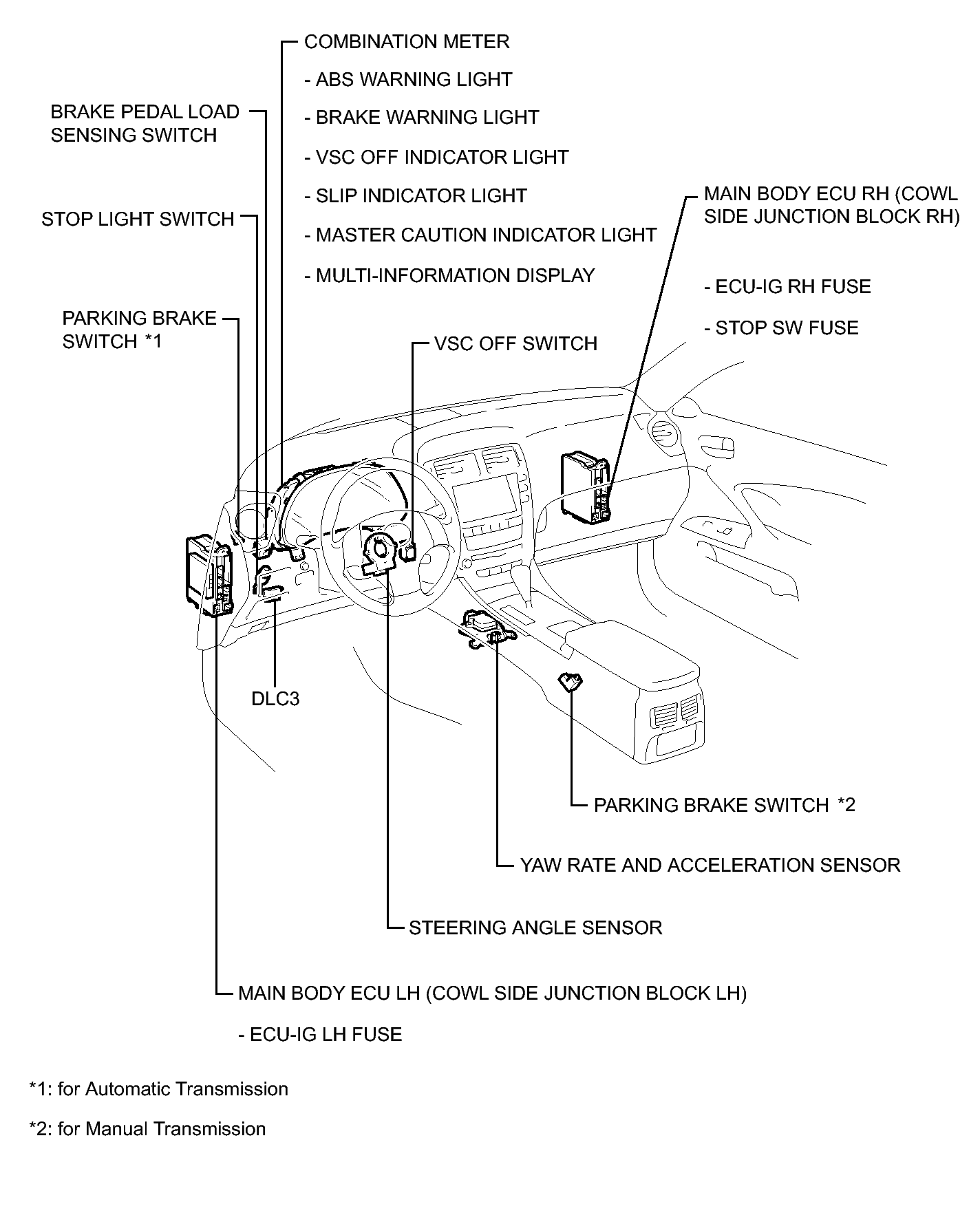

Fig 1: Identifying Tability Control System Components (2 Of 2)
GTY352756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
