Ignition (4GR-FSE): Notes

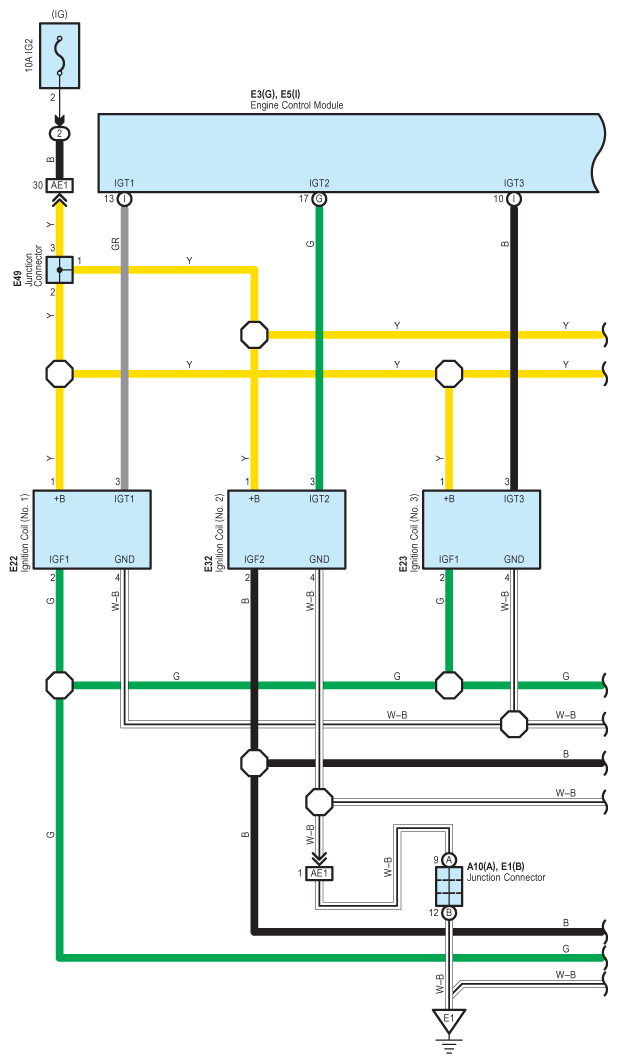

Fig 1: Ignition (4GR-FSE) - Circuit Diagram (1 Of 2)
G07581167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

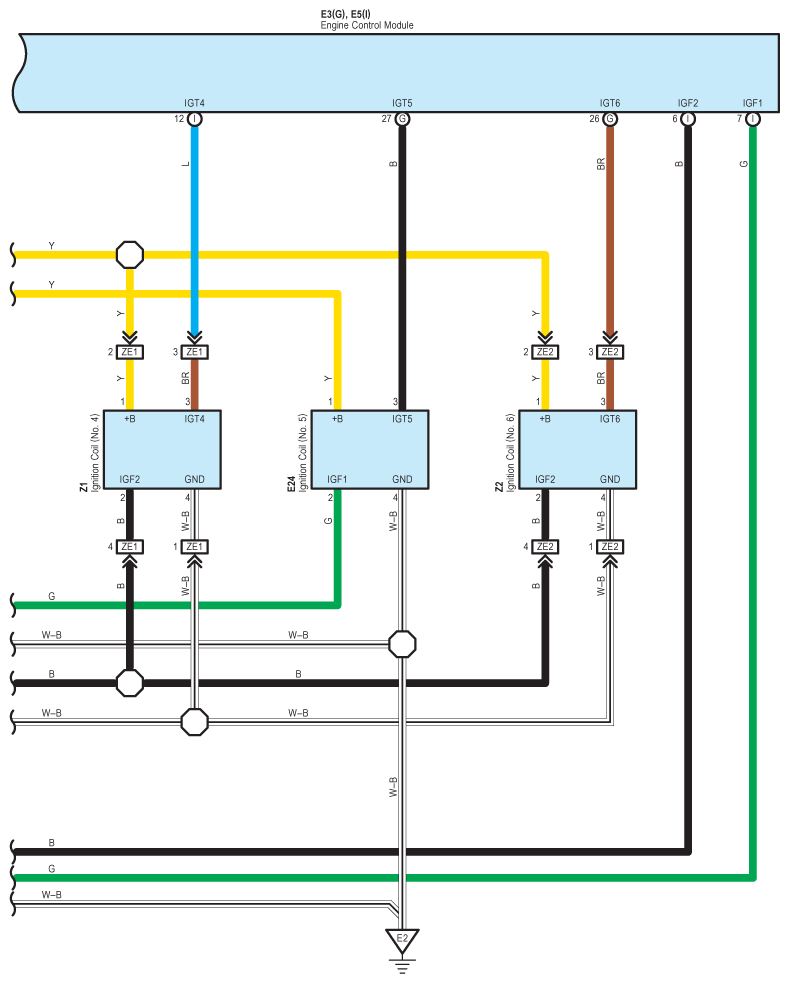

Fig 2: Ignition (4GR-FSE) - Circuit Diagram (2 Of 2)
G07581168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
