Turn Signal and Hazard Warning Light: Notes

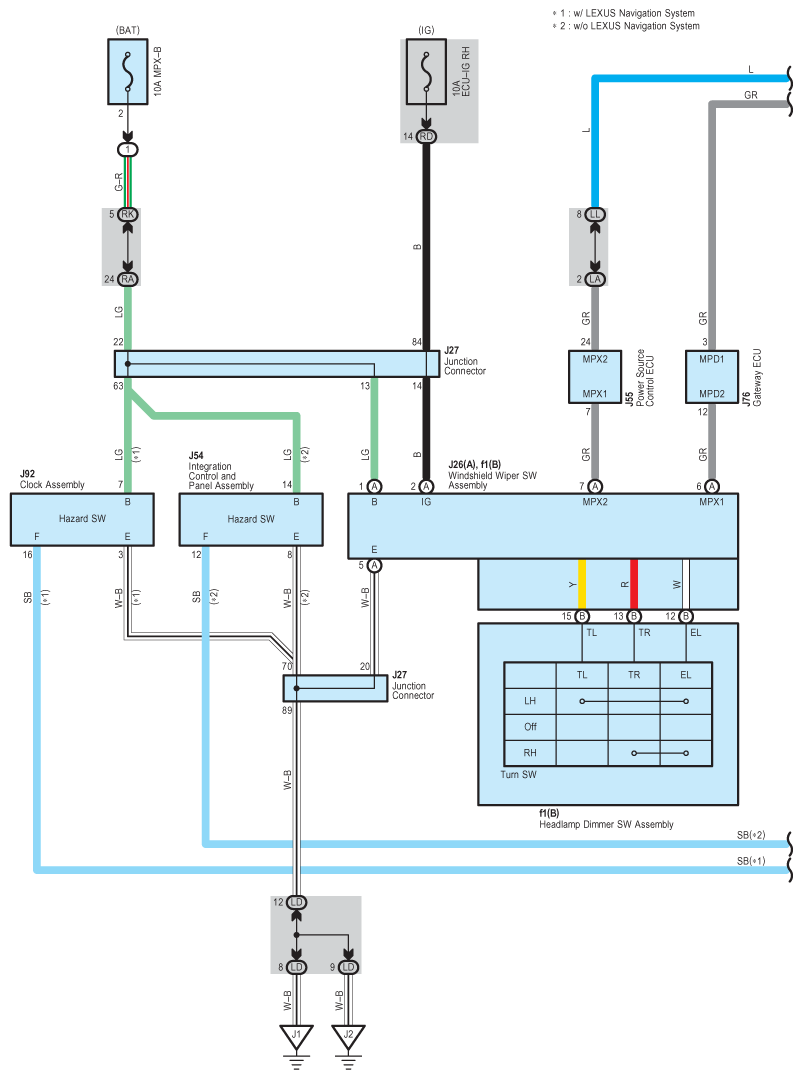

Fig 1: Turn Signal And Hazard Warning Light - Circuit Diagram (1 Of 5)
G07581232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

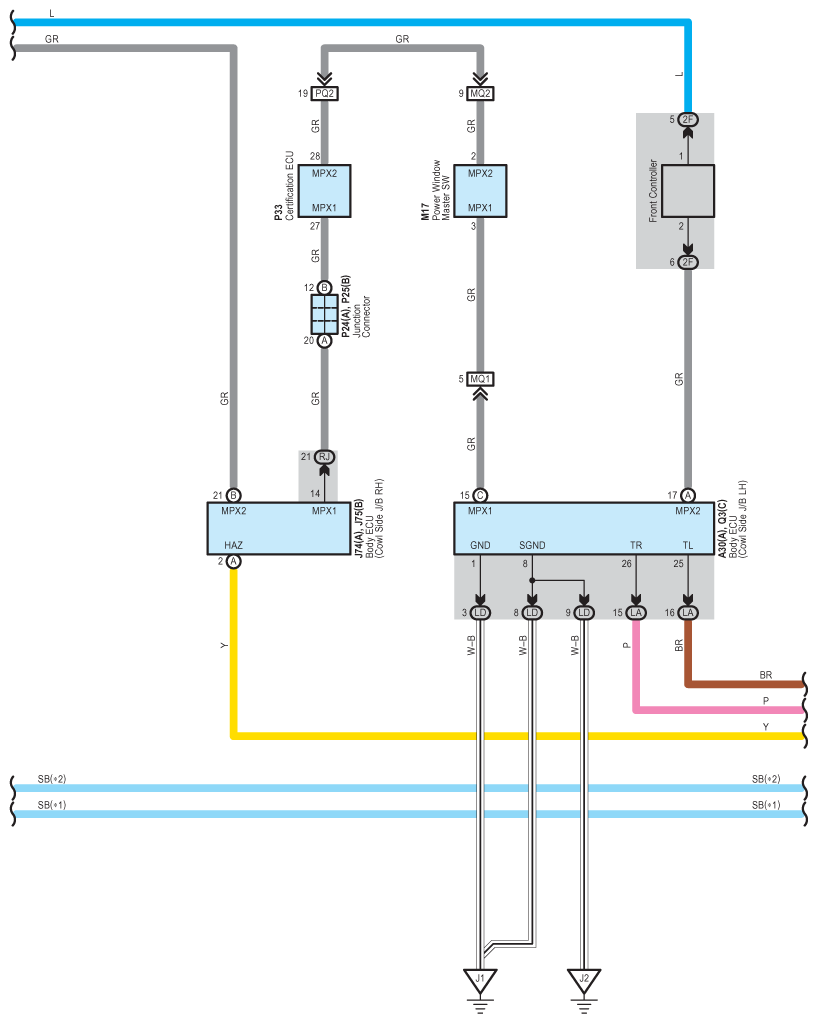

Fig 2: Turn Signal And Hazard Warning Light - Circuit Diagram (2 Of 5)
G07581233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

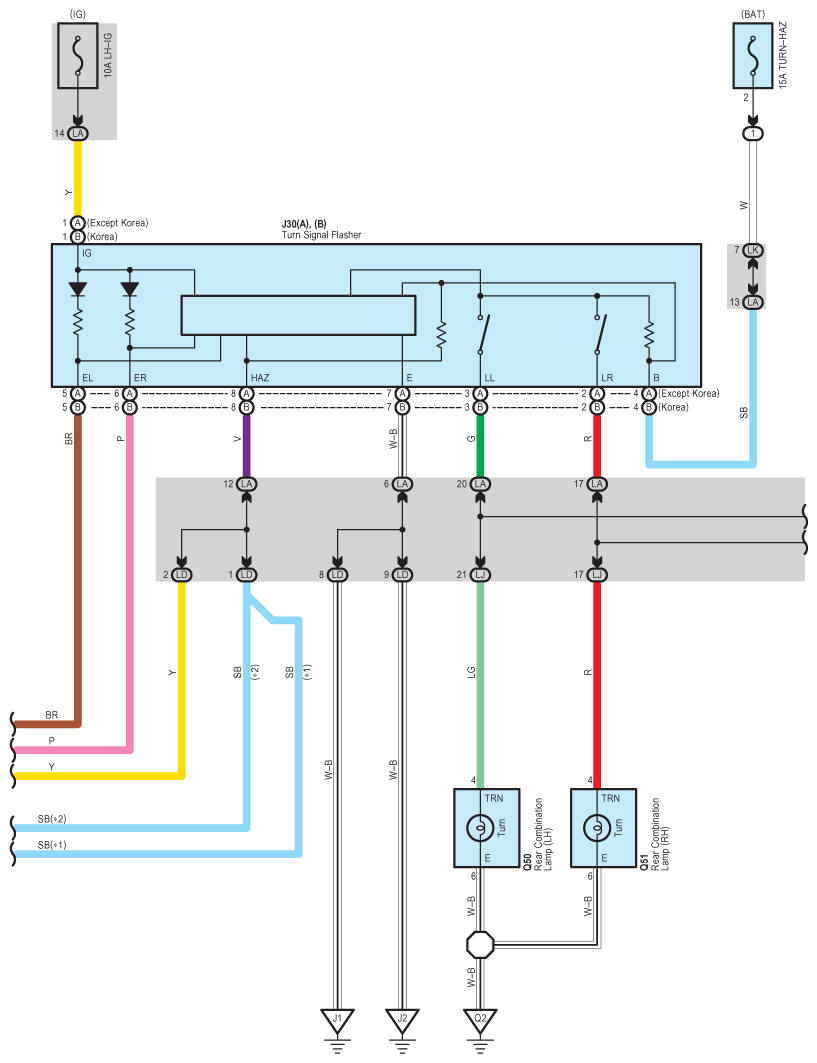

Fig 3: Turn Signal And Hazard Warning Light - Circuit Diagram (3 Of 5)
G07581234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

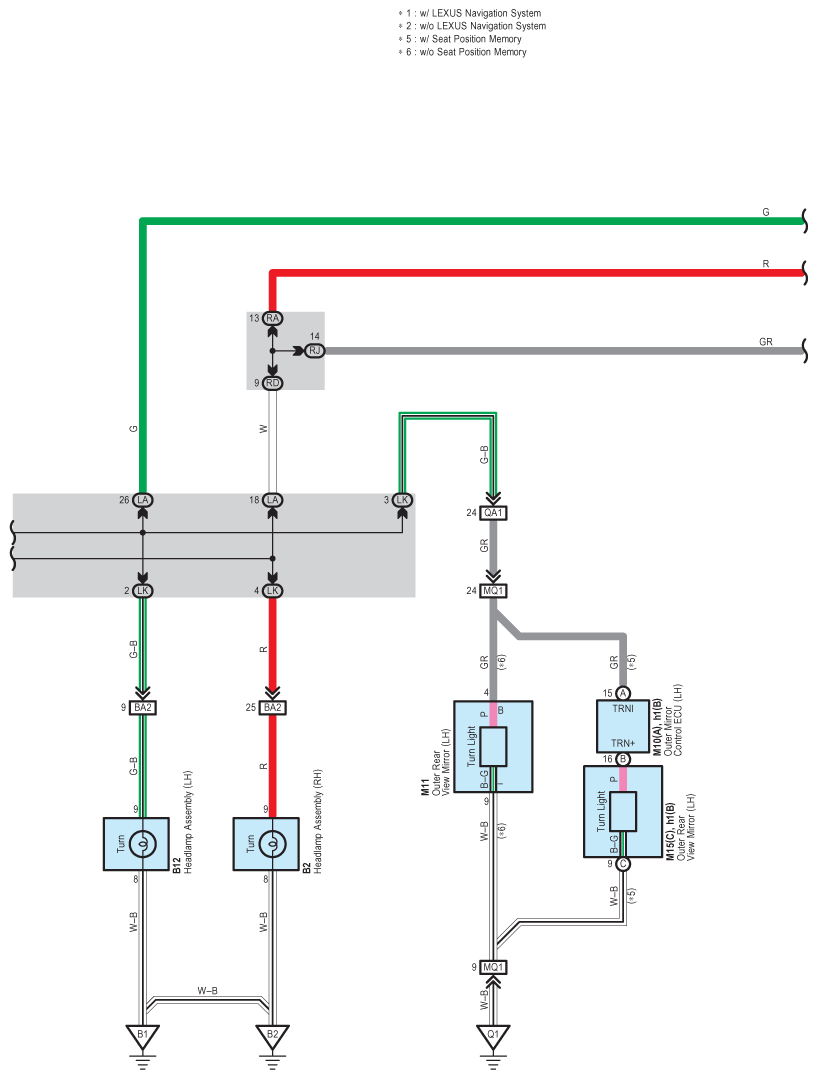

Fig 4: Turn Signal And Hazard Warning Light - Circuit Diagram (4 Of 5)
G07581235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

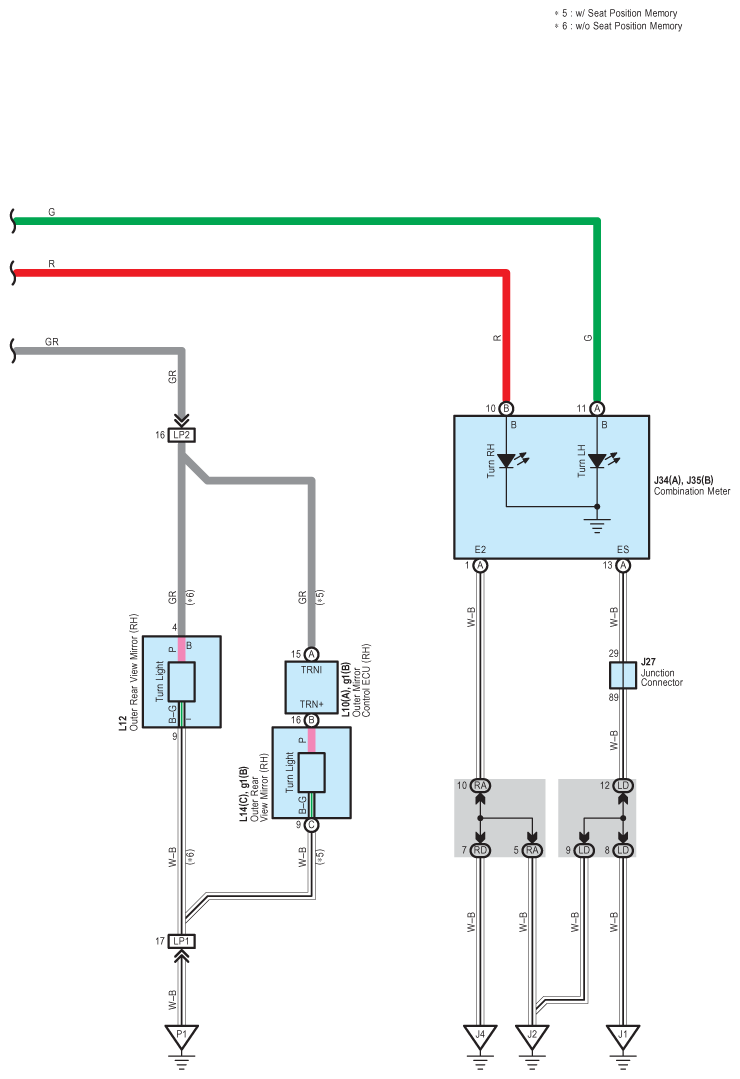

Fig 5: Turn Signal And Hazard Warning Light - Circuit Diagram (5 Of 5)
G07581236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
