Engine Switch: Removal: Removal

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to REMOVAL - Step 4
  2. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH  . Refer to REMOVAL - Step 6
  3. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH  . Refer to REMOVAL - Step 7
  4. REMOVE CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 8
  5. REMOVE FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray)  . Refer to REMOVAL - Step 12
  6. REMOVE INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray)  . Refer to REMOVAL - Step 11
  7. REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/ Ashtray)  . Refer to REMOVAL - Step 14
  8. REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/o Ashtray)  . Refer to REMOVAL - Step 13
  9. REMOVE CONSOLE BOX  . Refer to REMOVAL - Step 15
  10. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to REMOVAL - Step 16
  11. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  . Refer to REMOVAL - Step 17
  12. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  . Refer to REMOVAL - Step 14
  13. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  . Refer to REMOVAL - Step 18
  14. REMOVE ENGINE SWITCH
    1. Disconnect the switch connector.

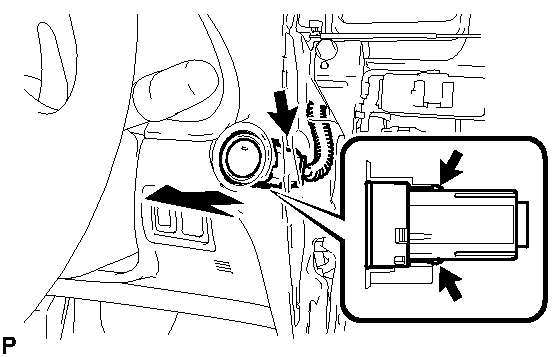

      Fig 1: Identifying Claws & Switch
      GTY134818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and remove the switch.
