4WD Control Ecu: Installation: Installation

INSTALL 4WD CONTROL ECU
1. Connect the connector and clamp to the 4WD control ECU.

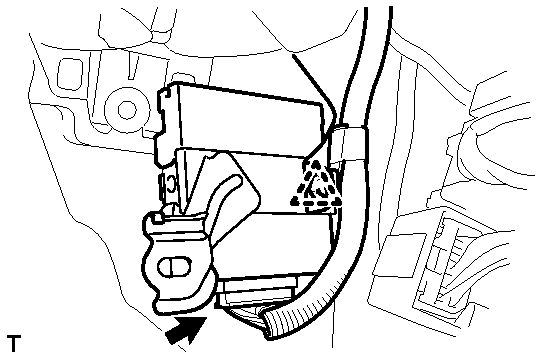

  Fig 1: Identifying Connector & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 4WD control ECU with the bolt and nut.

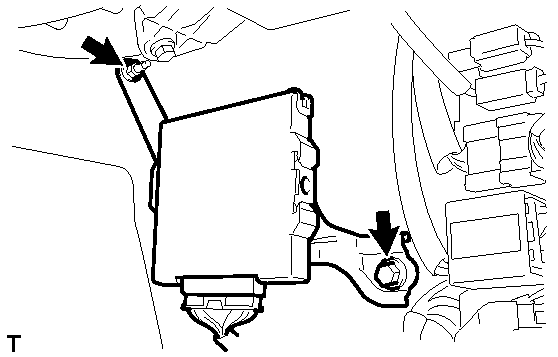

  Fig 2: Identifying 4WD Control ECU With Bolt & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bolt

  Torque: 14 N.m (137 kgf cm, 10 ft. lbf)

  Nut

  Torque: 6.0 N.m (61 kgf cm, 54 in. lbf)
3. Connect the junction connector with the 2 clips.

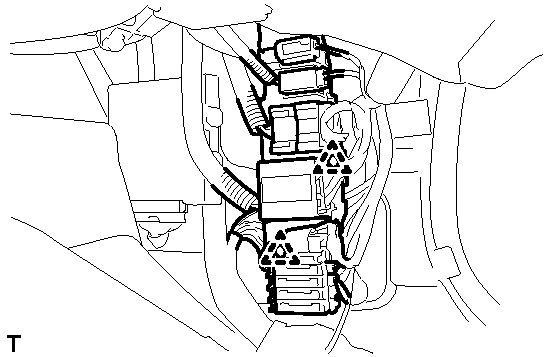

  Fig 3: Connecting Junction Connector With 2 Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 17
INSTALL SIDE INSTRUMENT PANEL RH . Refer to INSTALLATION - Step 18
INSTALL FRONT DOOR OPENING TRIM COVER RH . Refer to INSTALLATION - Step 19
INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
HINT:

Use the same procedures for the RH side and the LH side. Refer to INSTALLATION - Step 29 .
INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
HINT:

Use the same procedures for the RH side and the LH side. Refer to INSTALLATION - Step 30 .
