Transfer Valve Body Assembly: Installation: Installation

  1. INSTALL TRANSFER CONTROL SOLENOID  See step  4
  2. INSTALL TRANSFER VALVE BODY ASSEMBLY
    1. Connect the transfer wire connector to the transfer control solenoid.

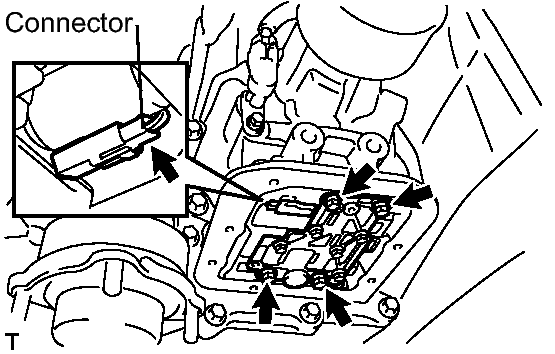

      Fig 1: Identifying Transfer Valve Body Assembly
      GTY100519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the transfer upper valve body with the 4 bolts.

      Torque: 9.8 N.m (100 kgf cm, 87 in. lbf)

  3. INSTALL TRANSFER OIL PAN  See step  2
  4. INSTALL TRANSFER DYNAMIC DAMPER  See step  3
  5. INSTALL ENGINE REAR MOUNTING MEMBER  See step  4
  6. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE)  . Refer to INSTALLATION - Step 3
  7. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 2GR-FSE)  . Refer to INSTALLATION - Step 4
  8. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE)  . Refer to INSTALLATION - Step 4
  9. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE)  . Refer to INSTALLATION - Step 4
  10. INSTALL HEATED OXYGEN SENSOR (for 4GR-FSE)  . Refer to INSTALLATION - Step 6
  11. INSTALL HEATED OXYGEN SENSOR (for 2GR-FSE)  . Refer to INSTALLATION - Step 6
  12. INSTALL FRONT CENTER FLOOR BRACE (for 4GR-FSE)  . Refer to INSTALLATION - Step 7
  13. INSTALL FRONT CENTER FLOOR BRACE (for 2GR-FSE)  . Refer to INSTALLATION - Step 7
  14. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE)  . Refer to INSTALLATION - Step 8
  15. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE)  . Refer to INSTALLATION - Step 8
  16. ADD AUTOMATIC TRANSMISSION FLUID  . Refer to INSTALLATION - Step 26
  17. CHECK FOR EXHAUST GAS LEAKS
