VSC Off Switch: Inspection: Inspection

INSPECT VSC OFF SWITCH

Measure the resistance according to the value(s) in the table below.

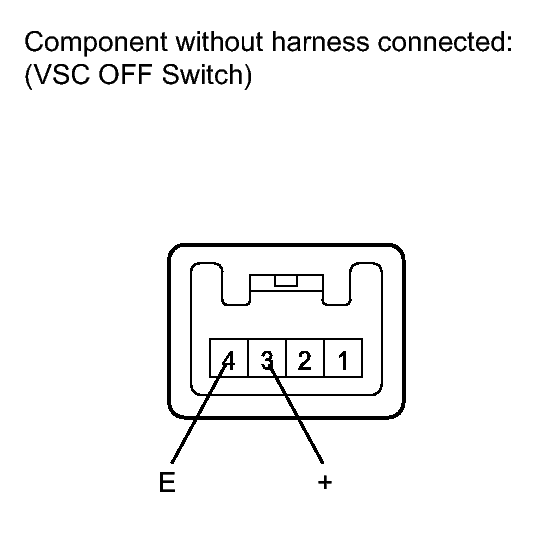

Fig 1: Identifying VSC OFF Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

Tester Connection	Switch Condition	Specified Condition
3 (+) - 4 (E)	Switch is pushed in	Below 1 Ω
3 (+) - 4 (E)	Switch is not pushed in	10 kΩ or higher

If the value is not as specified, replace the NSC off switch.
