Automatic Light Control: Notes

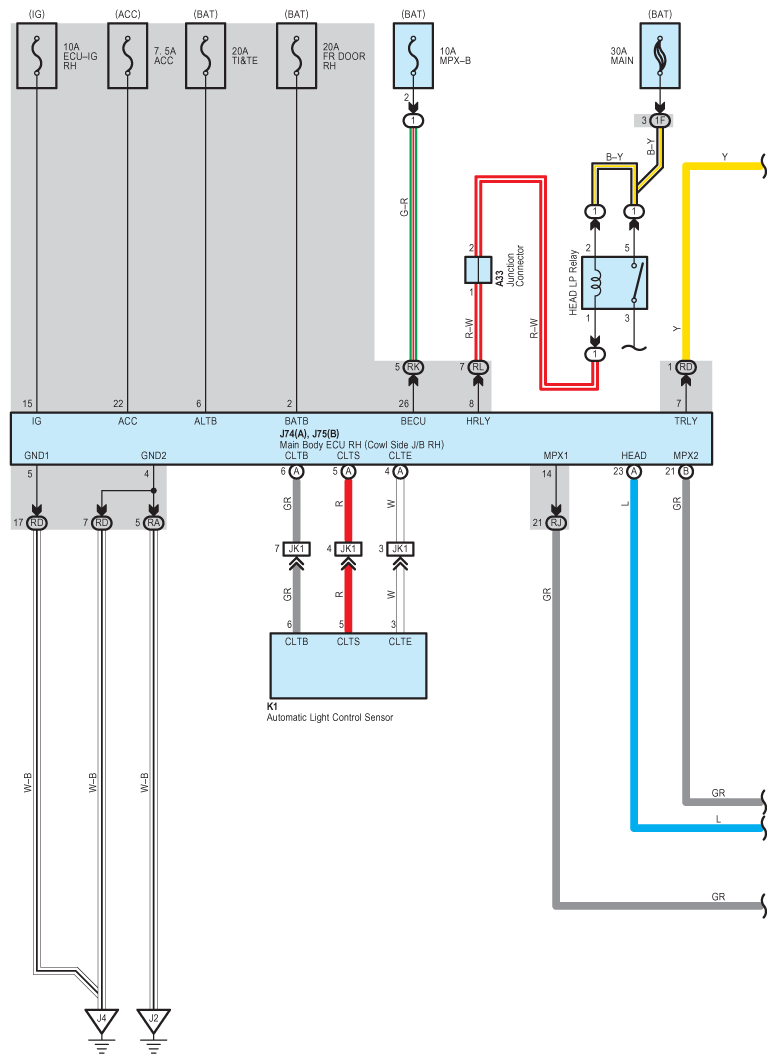

Fig 1: Automatic Light Control - Circuit Diagram (1 Of 4)
G07585433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

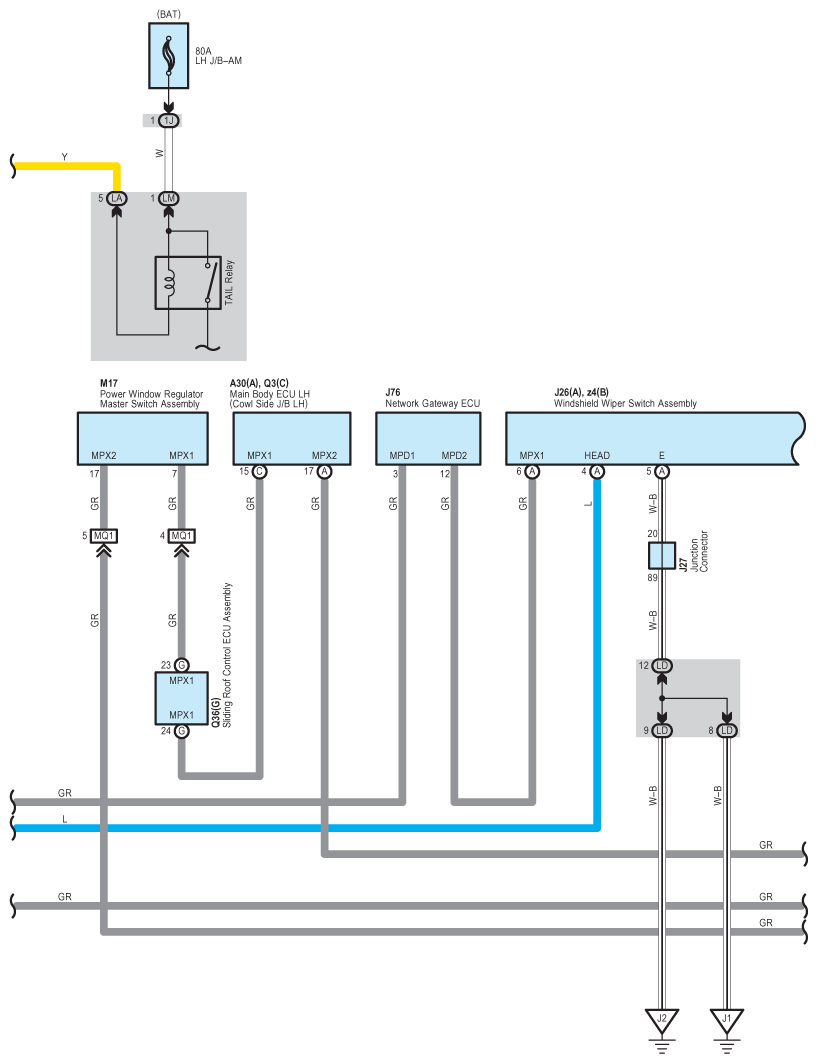

Fig 2: Automatic Light Control - Circuit Diagram (2 Of 4)
G07585434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

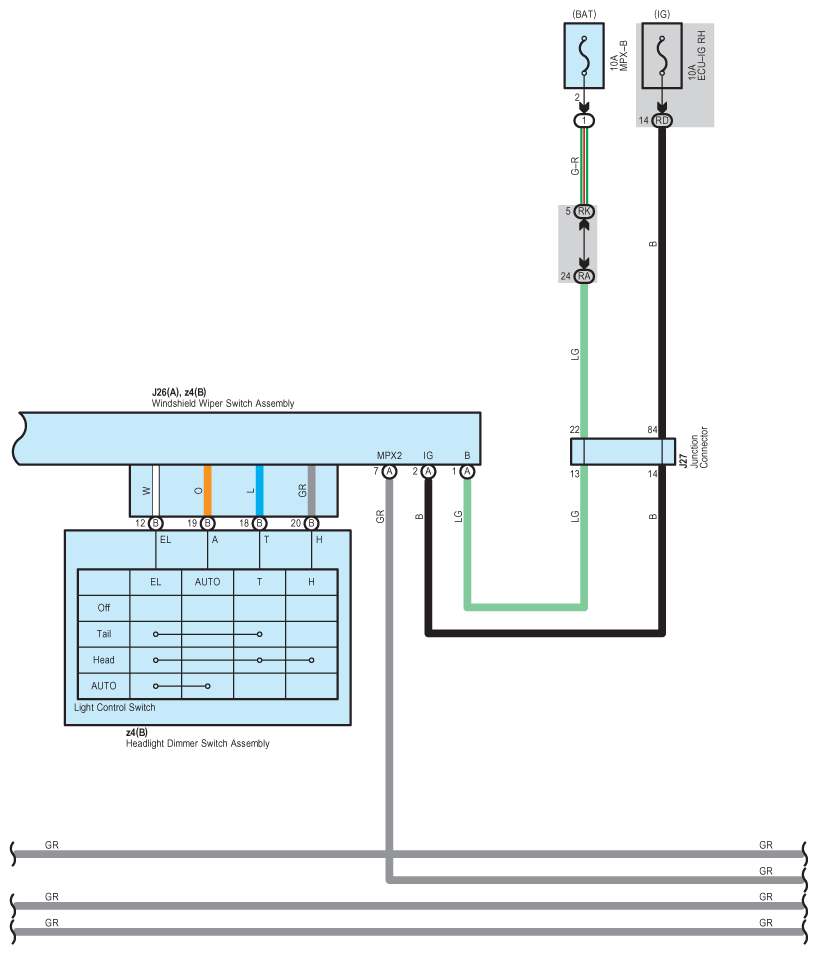

Fig 3: Automatic Light Control - Circuit Diagram (3 Of 4)
G07585435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

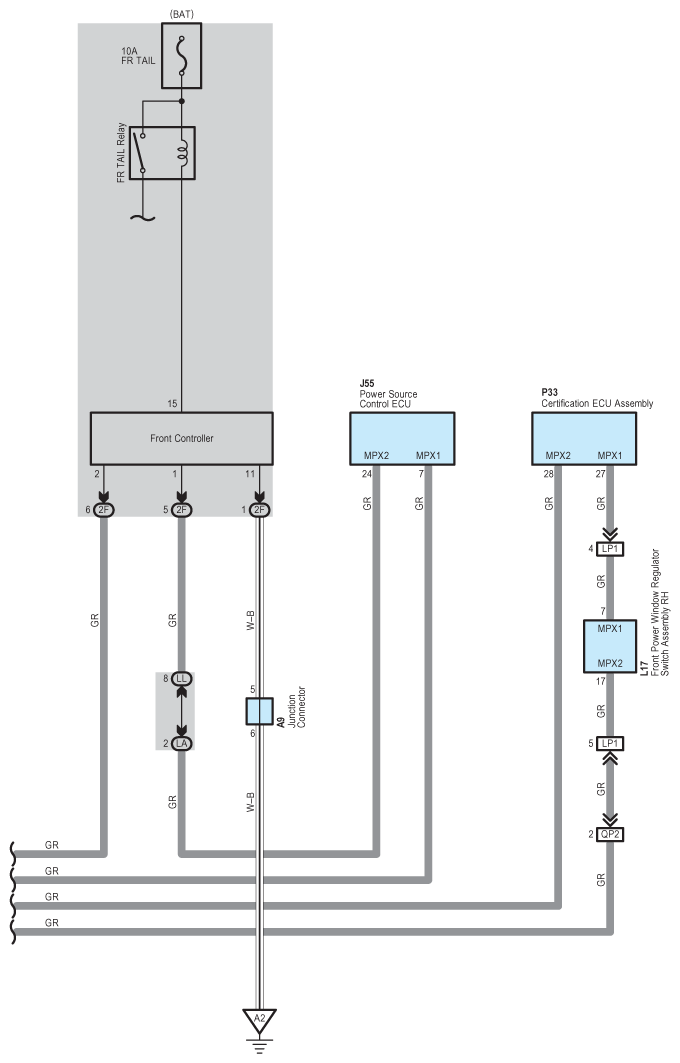

Fig 4: Automatic Light Control - Circuit Diagram (4 Of 4)
G07585436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
