Front Speed Sensor: Components: Illustration

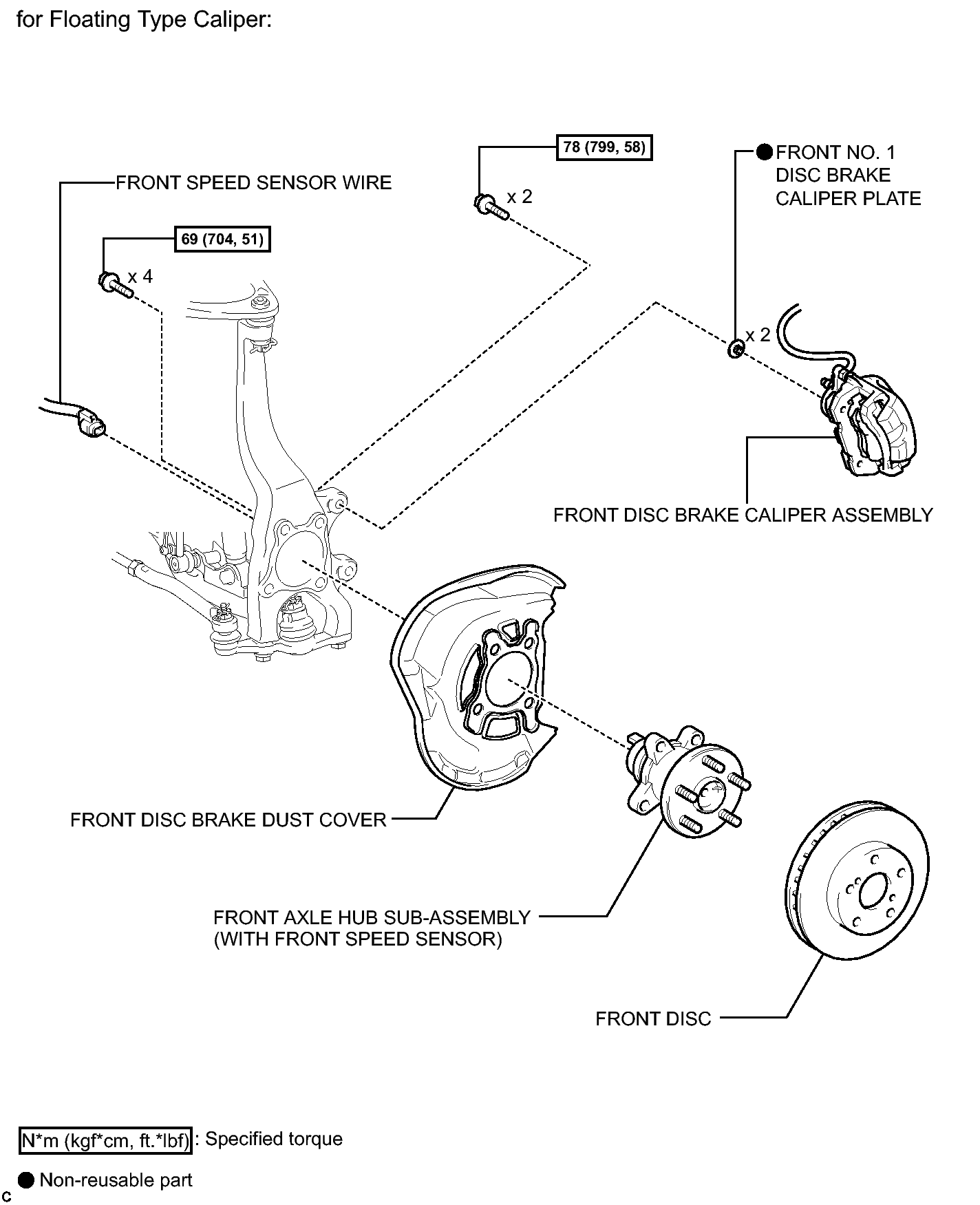

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY253847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

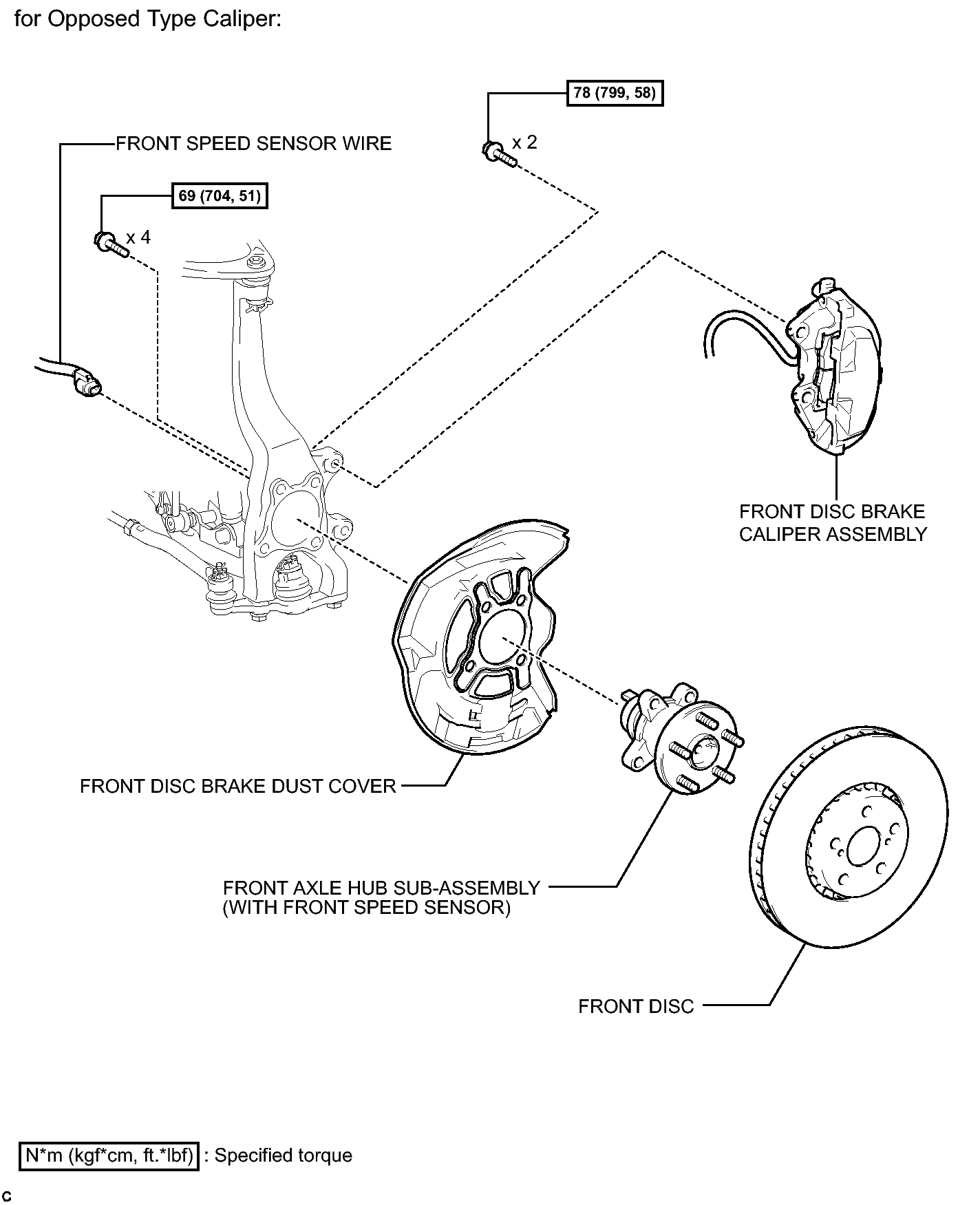

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY274738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
