Engine Oil Temperature Sensor: Installation: Installation

WARNING: This page is about a different car, the 2011 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL OIL TEMPERATURE SENSOR
1. Using SST, install the temperature sensor with a new gasket.

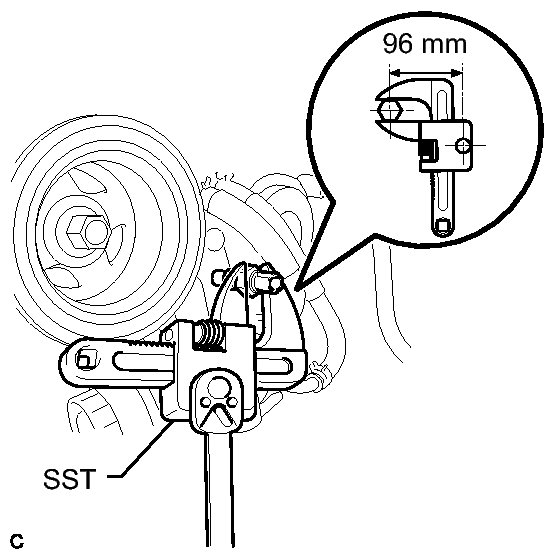

  Fig 1: Installing Temperature Sensor With Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09922-10010
  without SST

  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

  with SST

  Torque: 30 N*m (301 kgf*cm, 22 ft.*lbf)
  NOTE:
  - The "with SST" torque value is effective when using SST with a fulcrum length of 96 mm (3.78 in.).
  - The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.). Refer to PRECAUTION .
  - The "with SST" torque value is effective when SST is parallel to the torque wrench.
  - Do not subject the temperature sensor to any impacts.
  - If the sensor is subjected to an impact, replace the temperature sensor with a new one.
  - Do not allow any moisture or foreign matter to enter the temperature sensor or its connector.
2. Connect the temperature sensor connector.
INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY
1. Install the engine oil pressure switch. Refer to INSTALLATION .
INSPECT FOR OIL LEAK
