Installation

2UR-GSE ENGINE CONTROL: MASS AIR FLOW METER: INSTALLATION

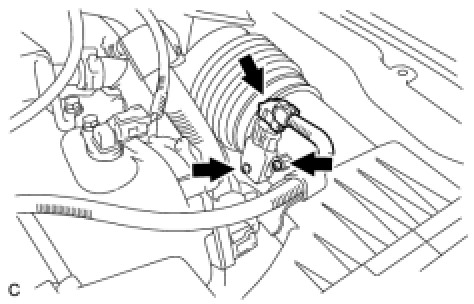

1. INSTALL MASS AIR FLOW METER

(a) Install the MAF meter with the 2 screws.





Torque : 1.0 Nm (10 kgf-cm, 9 in-lbf)

NOTICE:
Make sure that the O-ring is not pinched.

(b) Connect the MAF meter connector.

2. INSTALL ENGINE ROOM SIDE COVER RH Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL Installation

4. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
