Throttle Body: Installation: Installation

INSTALL THROTTLE BODY ASSEMBLY
1. Connect the No. 4 water by-pass hose and No. 5 water by-pass hose to the throttle body assembly.

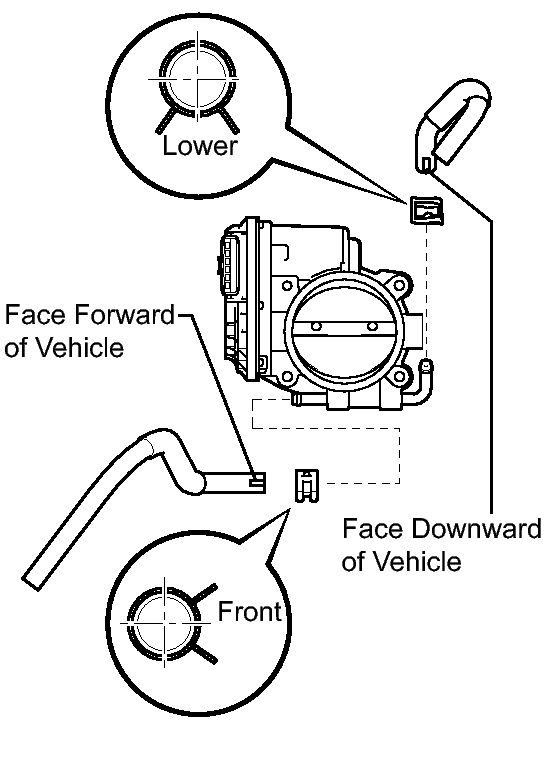

  Fig 1: Positioning Claws Of Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Position the claws of the clamps as shown in the illustration.
2. Set the throttle body assembly and new gasket with the 2 stud bolts.

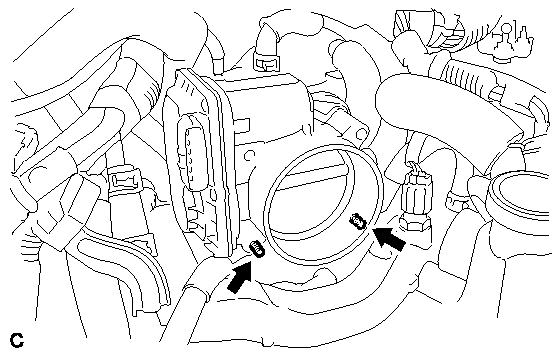

  Fig 2: Identifying Throttle Body Assembly Stud Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a "TORX" socket E6, tighten the 2 stud bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
4. Install the 2 bolts and 2 nuts.

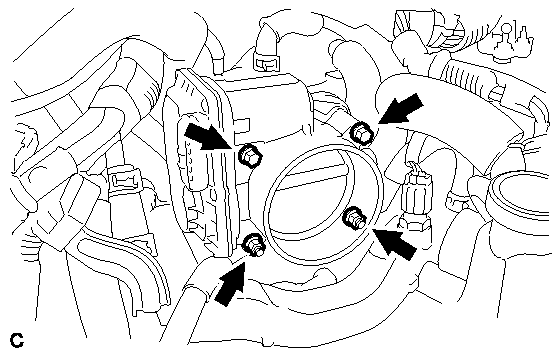

  Fig 3: Identifying Throttle Body Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
5. Connect the No. 4 water by-pass hose with the hose clamp.

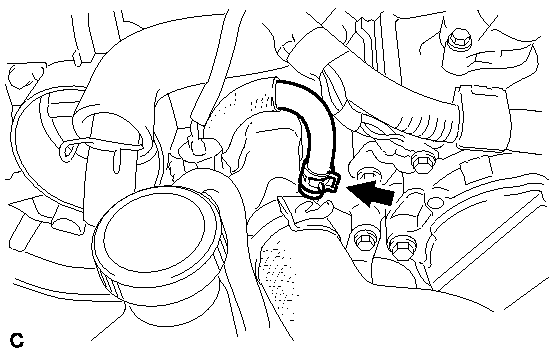

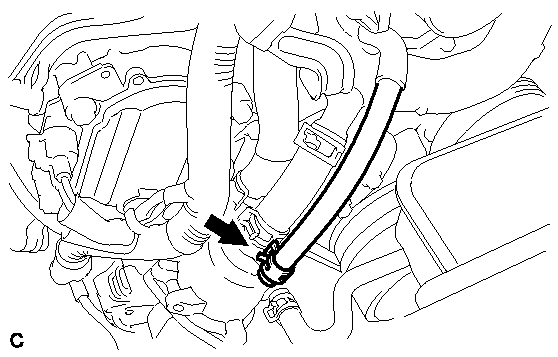

  Fig 4: Identifying No. 4 Water By-Pass Hose & Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the No. 5 water by-pass hose with the hose clamp.

  Fig 5: Identifying No. 5 Water By-Pass Hose & Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the throttle body connector.

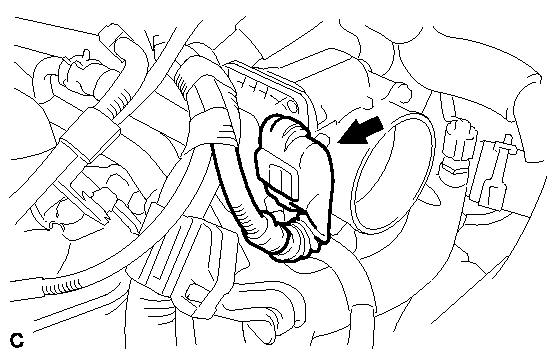

  Fig 6: Identifying Throttle Body Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP SUB-ASSEMBLY
1. Install the air cleaner cap with air cleaner hose and lock the 2 clamps.

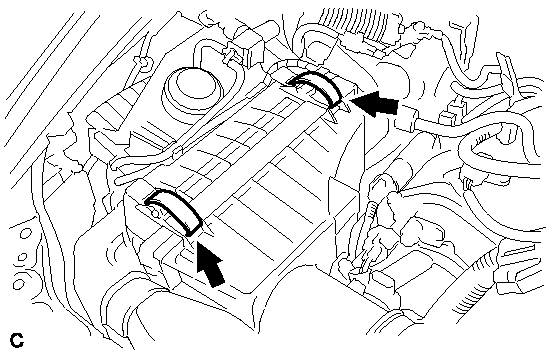

  Fig 7: Identifying Air Cleaner Cap Sub-Assembly Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tightening torque for the hose clamp located between the air cleaner cap sub-assembly and air cleaner hose assembly is as follows.

  Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)
2. Connect the air cleaner hose to the throttle body with the hose clamp.

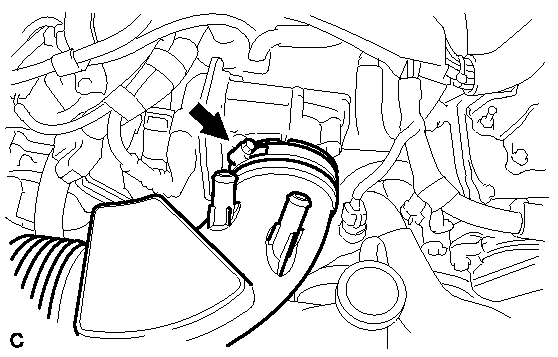

  Fig 8: Identifying Air Cleaner Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)
3. Connect the 2 ventilation hoses with the 2 hose clamps.

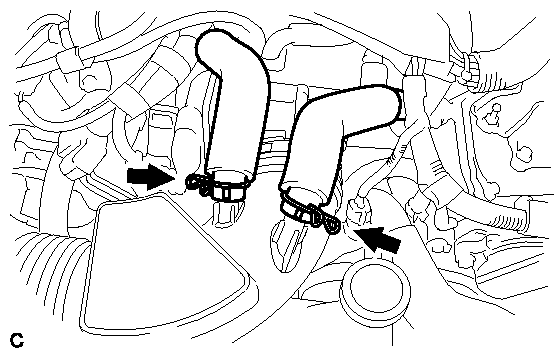

  Fig 9: Identifying Ventilation Hoses And Hose Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the mass air flow meter connector and wire harness clamp.

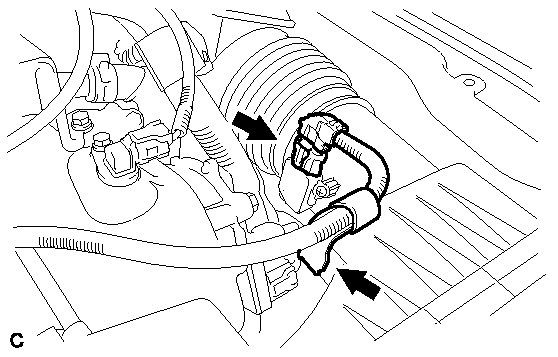

  Fig 10: Identifying Mass Air Flow Meter Connector And Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD ENGINE COOLANT . Refer to REPLACEMENT - Step 4
INSPECT FOR ENGINE COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 95
INSTALL ENGINE UNDER COVER

PERFORM INITIALIZATION

NOTE:

Be sure to perform this procedure after replacing the ECM or throttle body or cleaning the throttle valve.

Disconnect the cable from negative battery terminal. Wait at least 60 seconds and reconnect the cable to negative battery terminal.
Turn the engine switch on (IG) without operating the accelerator pedal.
NOTE:
If the accelerator pedal is operated, perform the above steps again.
Connect the Techstream to the DLC3 and clear the DTCs. Refer to DTC CHECK / CLEAR .

Start the engine and check that the MIL is not illuminated and that the idle speed is within the specified range when the A/C is switched off after the engine is warmed up.

standard

Condition	Engine Idle Speed
A/C switched off	700 to 800 rpm

NOTE:

Be sure to perform this step with all accessories off.
Make sure that the shift lever is in N.

Enter the following menus: Powertrain/ Engine and ECT/ Data List/ Throttle Pos. Sensor Output. Fully depress the accelerator pedal and check that the value is 60% or more.
Perform a road test and confirm that there are no abnormalities.
