Crankshaft Position Sensor: Removal: Removal

  1. REMOVE NO. 2 ENGINE UNDER COVER
  2. REMOVE CRANK POSITION SENSOR
    1. Disconnect the crank position sensor connector.

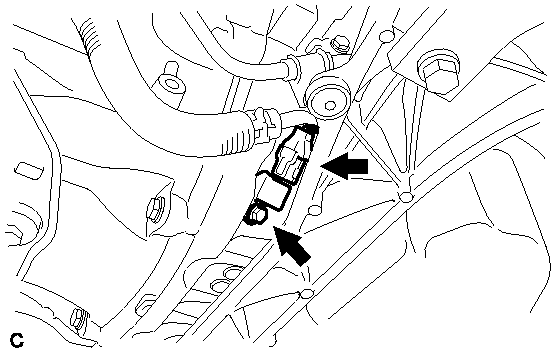

      Fig 1: Identifying Crank Position Sensor Connector And Bolt
      GTY148755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crank position sensor.
