Windshield Deicer Switch: Inspection: Inspection

  1. INSPECT FRONT WIPER DEICER SWITCH
    1. Disconnect the front wiper deicer switch connector.

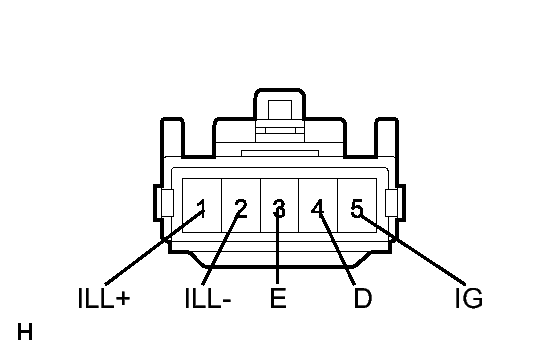

      Fig 1: Identifying Front Wiper Deicer Switch Connector
      GTY347752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage and resistance according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      1 (ILL+) - 2 (ILL-) Headlight dimmer switch OFF → ON Below 1 V → 11 to 14 V
      4 (D) - 3 (E) Engine switch on (IG) 11 to 14 V
      5 (IG) - 3 (E) Engine switch on (IG) 11 to 14 V

      Standard Resistance

      Tester Connection Condition Specified Condition
      2 (ILL-) - Body ground Always Below 1 Ω
      3 (E) - Body ground Always Below 1 Ω
    3. Reconnect the front wiper deicer connector.

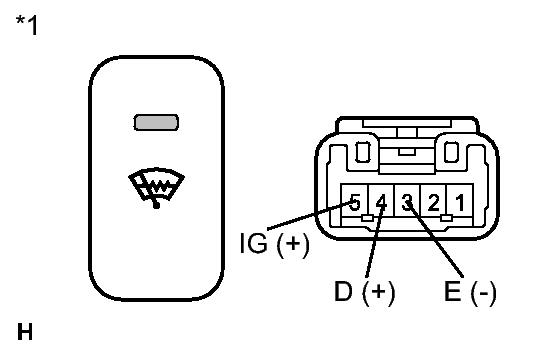

      Fig 2: Identifying Front Wiper Deicer Connector
      GTY351936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Measure the voltage and resistance according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      4 (D) - 3 (E) Engine switch on (IG), front wiper deicer switch OFF → ON 11 to 14 V → Below 1 V (after 15 +/- 3 minutes: Below 1 V)
      5 (IG) - 3 (E) Engine switch on (IG), front wiper deicer switch ON 11 to 14 V
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Front Wiper Deicer Switch)

      If the result is not as specified, replace the front wiper deicer switch.
