Luggage Compartment Door Opening: Notes

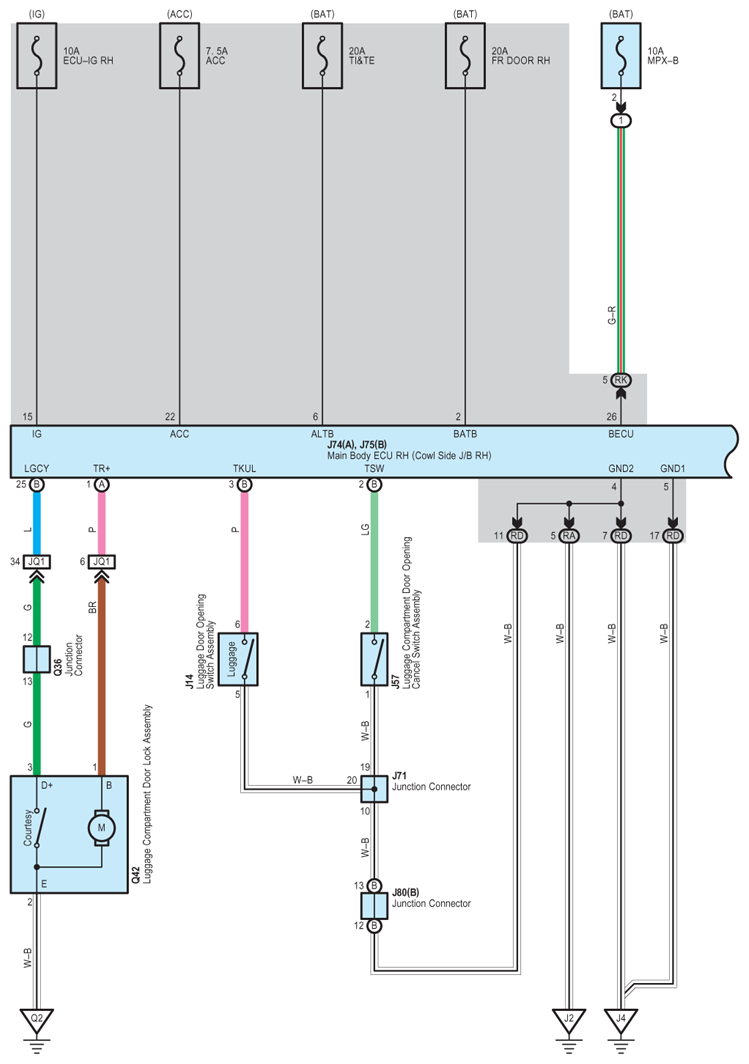

Fig 1: Luggage Compartment Door Opening - Circuit Diagram (1 Of 2)
G07580153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

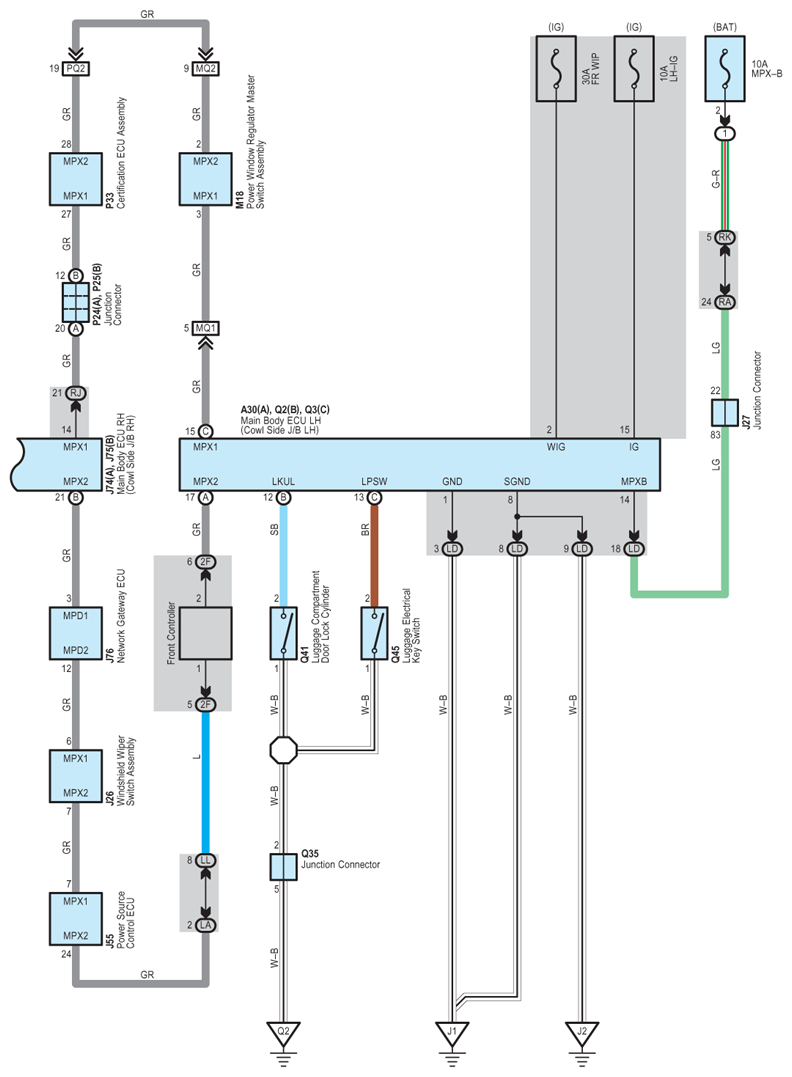

Fig 2: Luggage Compartment Door Opening - Circuit Diagram (2 Of 2)
G07580154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
