Smart Access System with Push-Button Start and Theft Deterrent: Notes

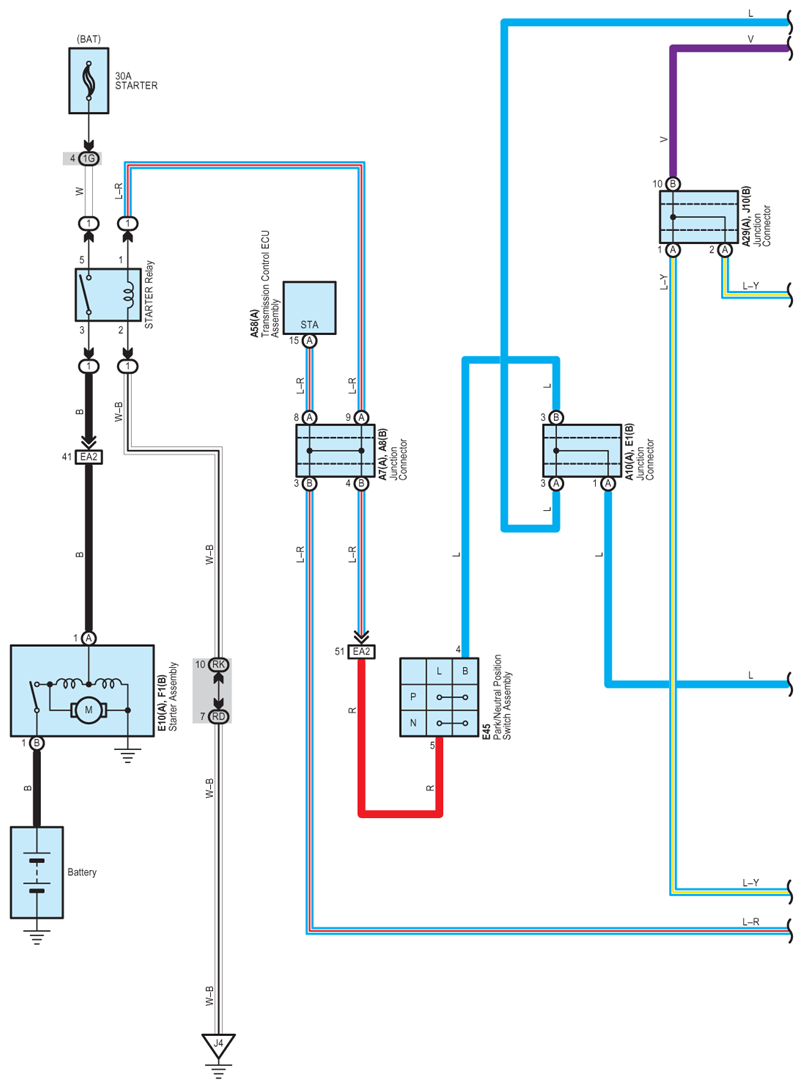

Fig 1: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (1 Of 20)

G07579935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

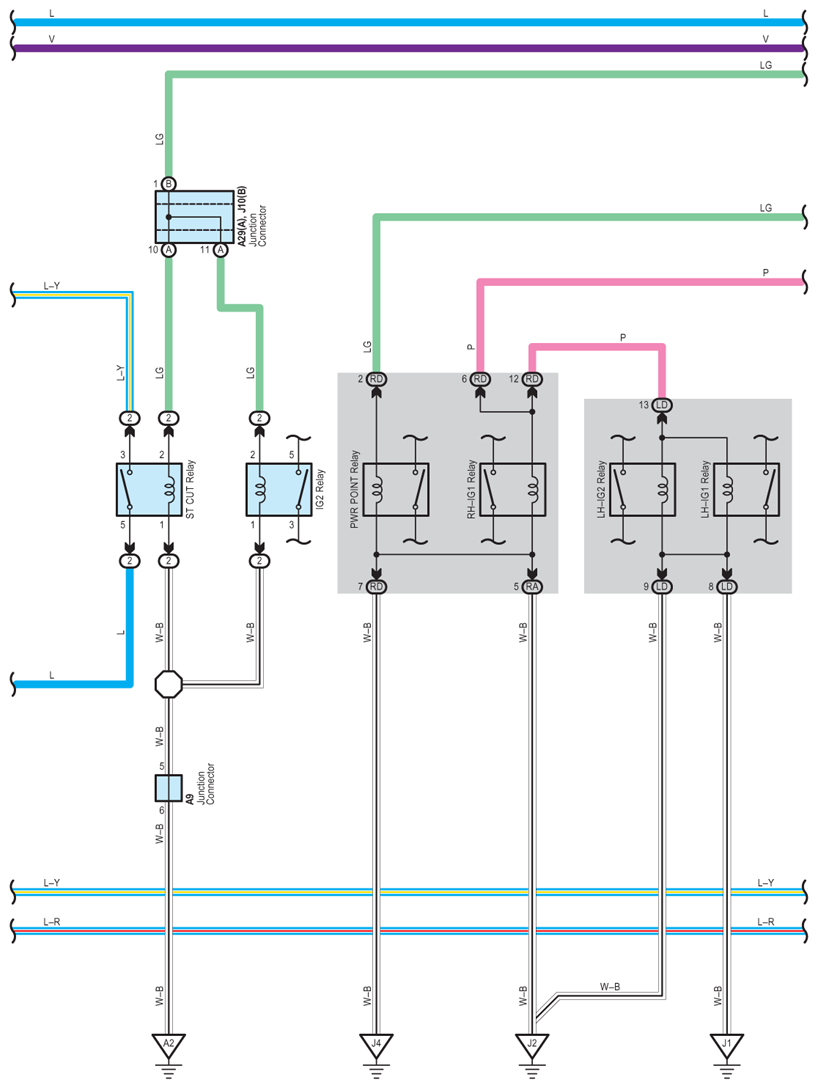

Fig 2: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (2 Of 20)

G07579936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

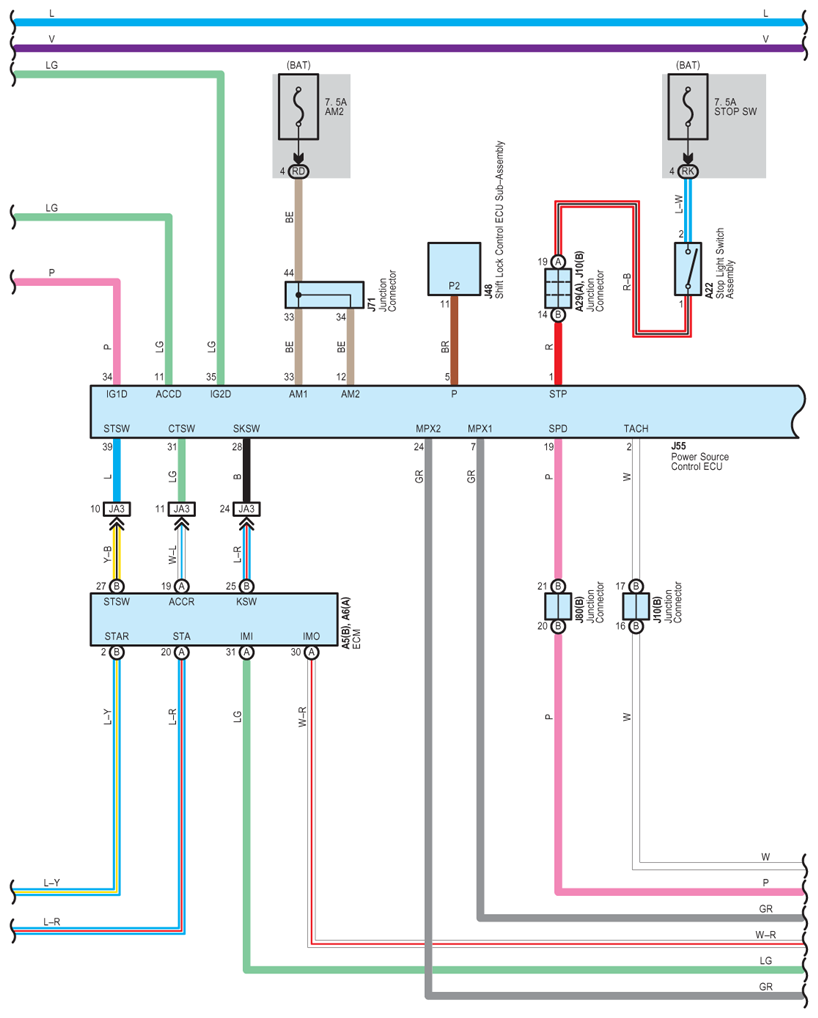

Fig 3: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (3 Of 20)

G07579937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

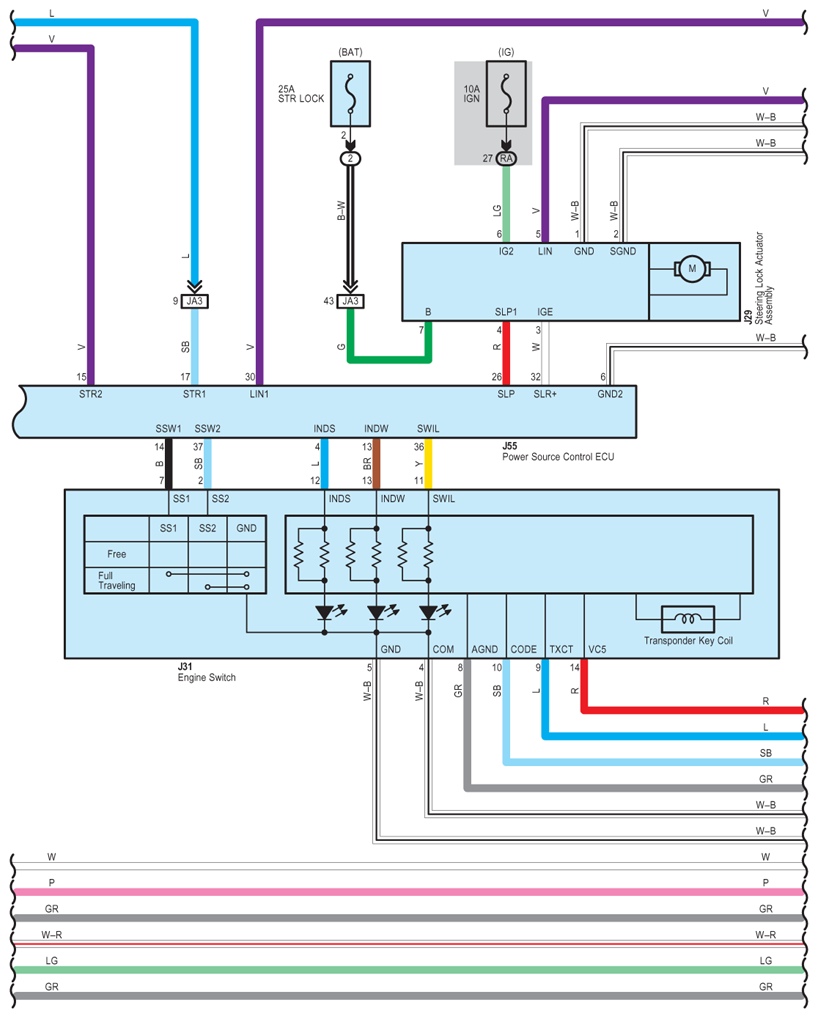

Fig 4: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (4 Of 20)

G07579938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

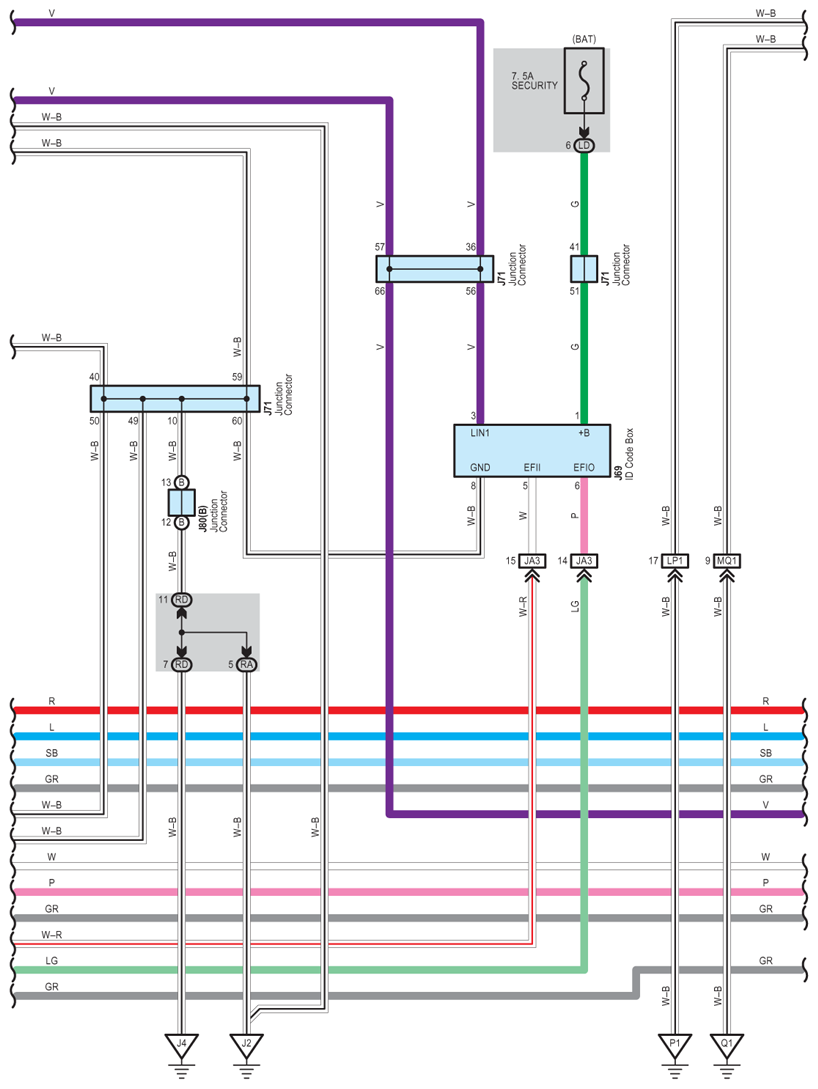

Fig 5: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (5 Of 20)

G07579939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

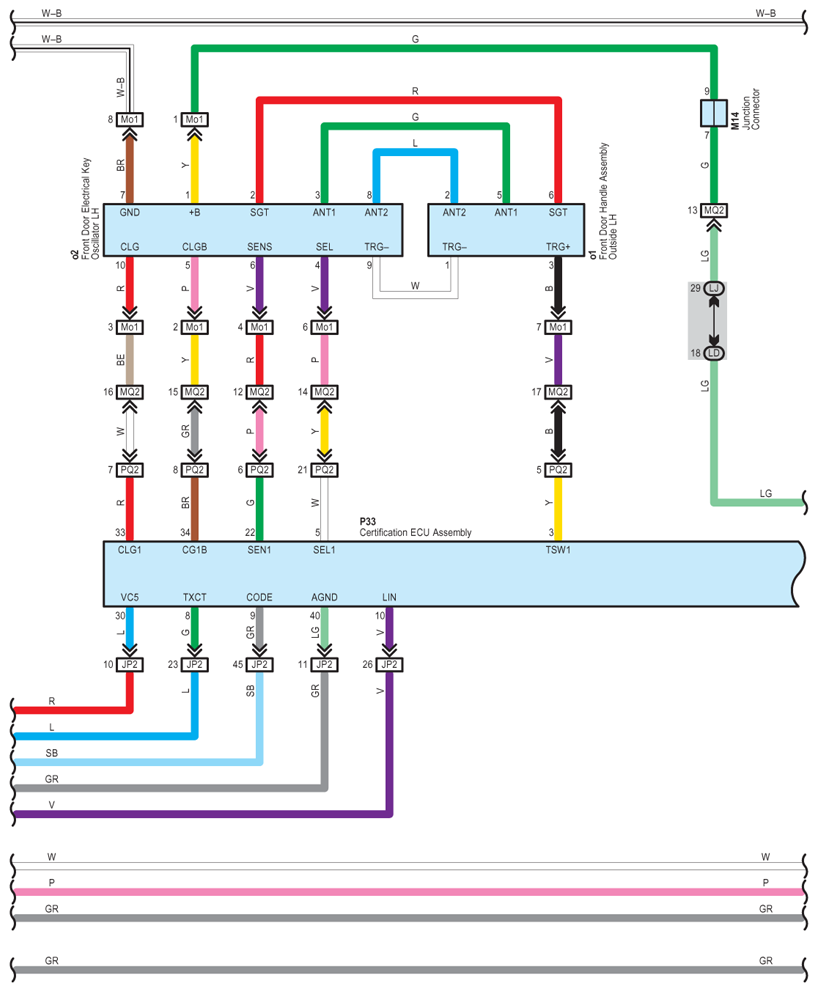

Fig 6: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (6 Of 20)

G07579940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

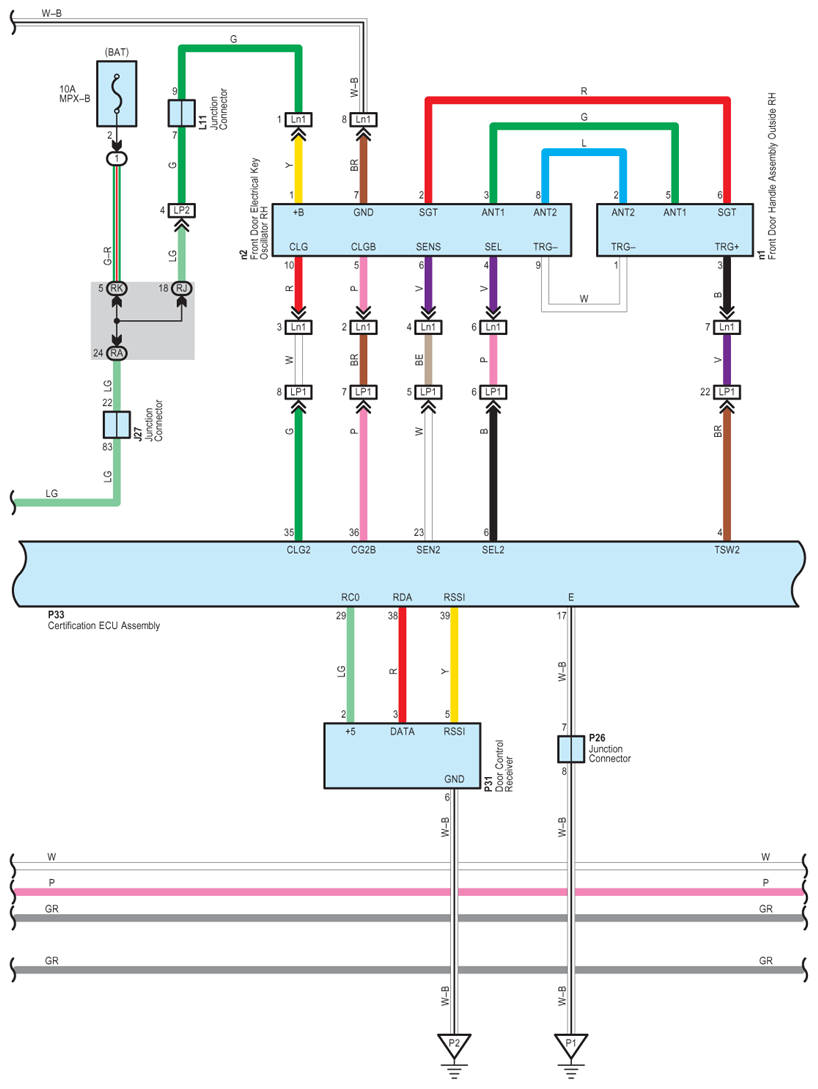

Fig 7: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (7 Of 20)

G07579941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

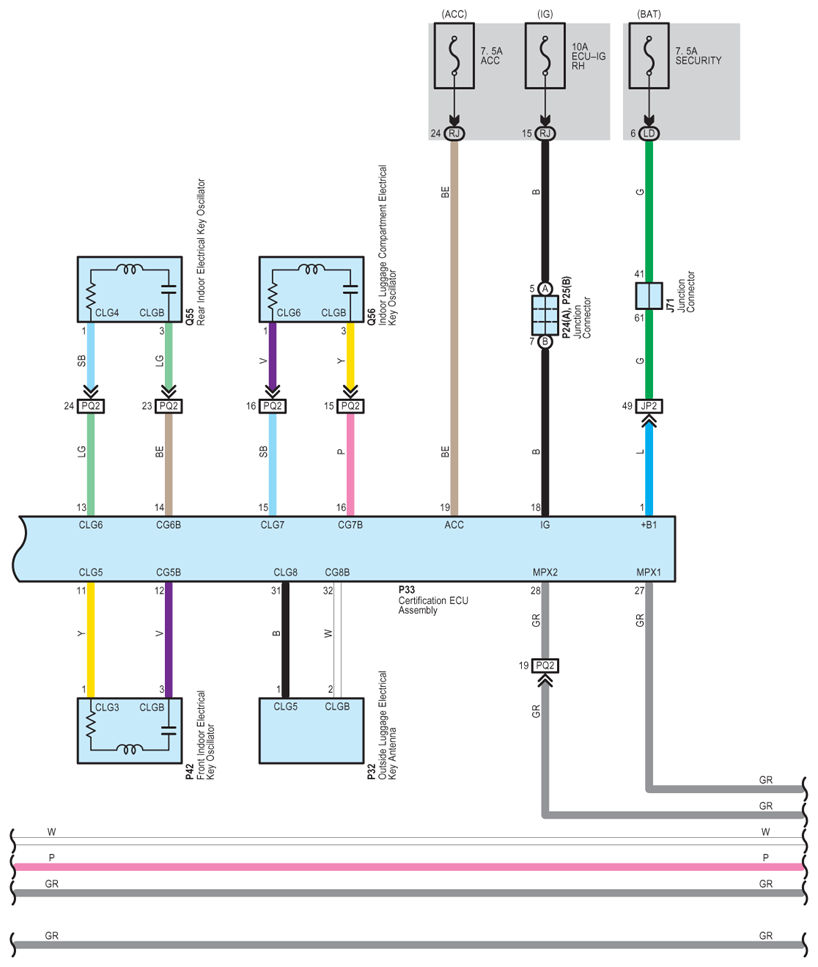

Fig 8: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (8 Of 20)

G07579942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

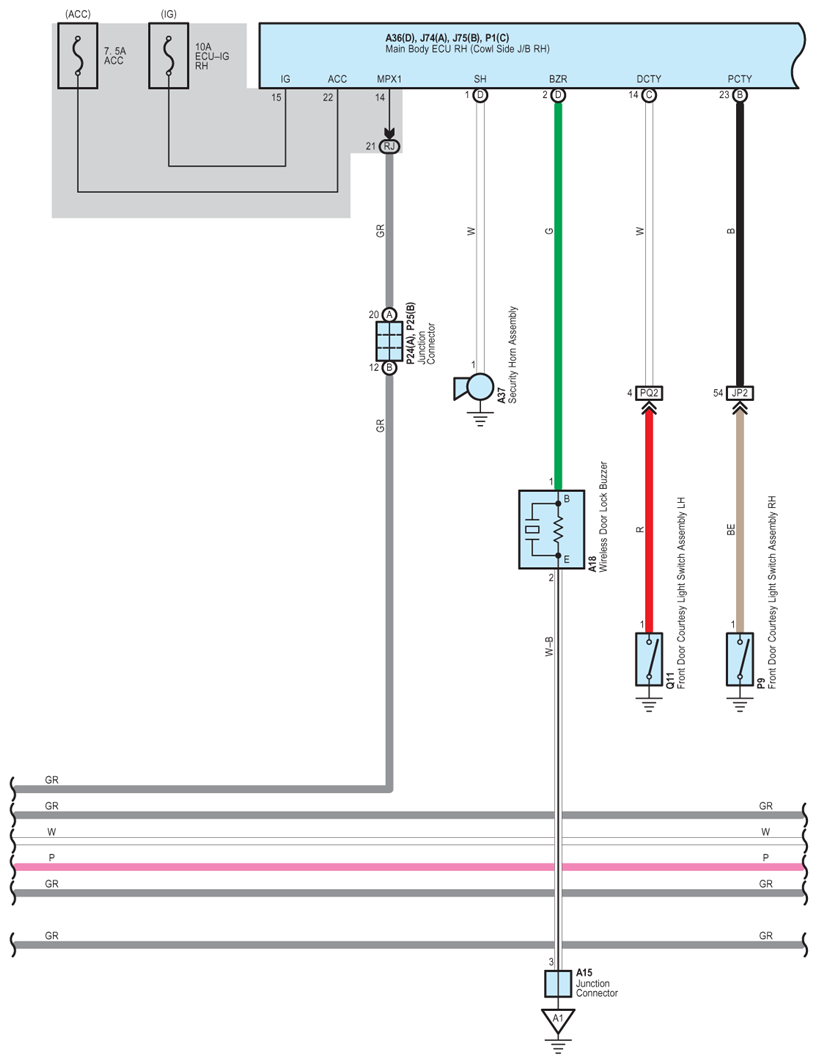

Fig 9: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (9 Of 20)

G07579943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

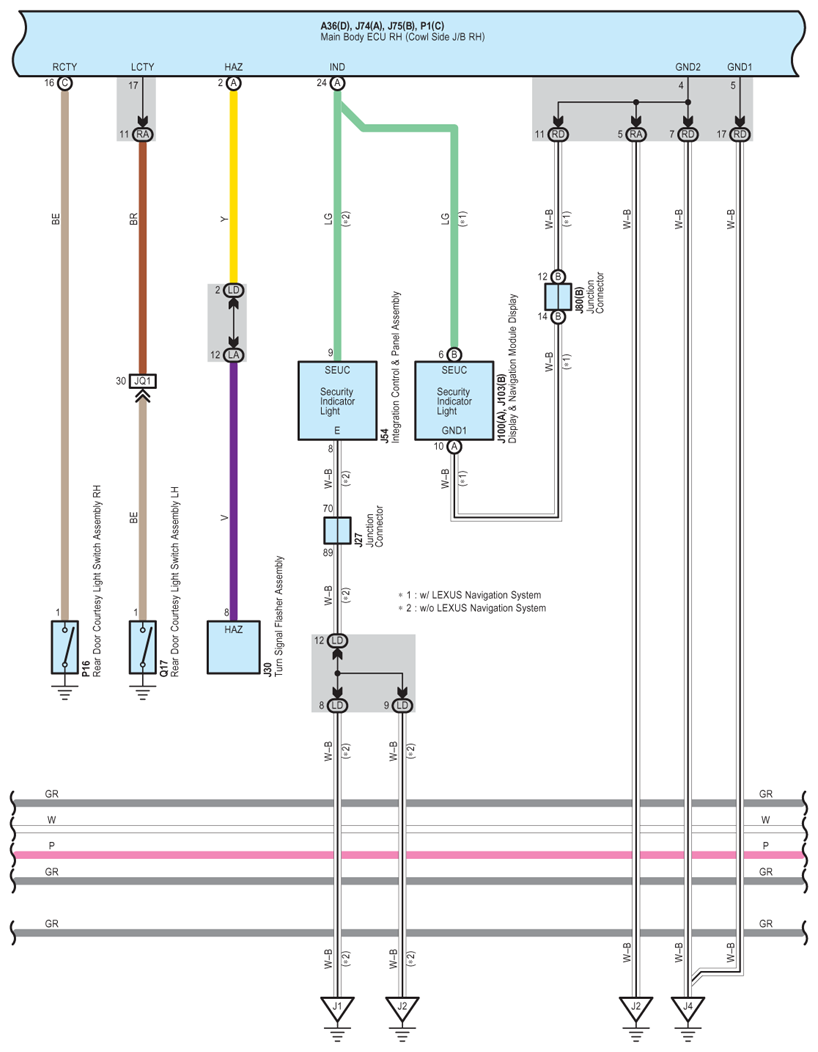

Fig 10: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (10 Of 20)

G07579944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

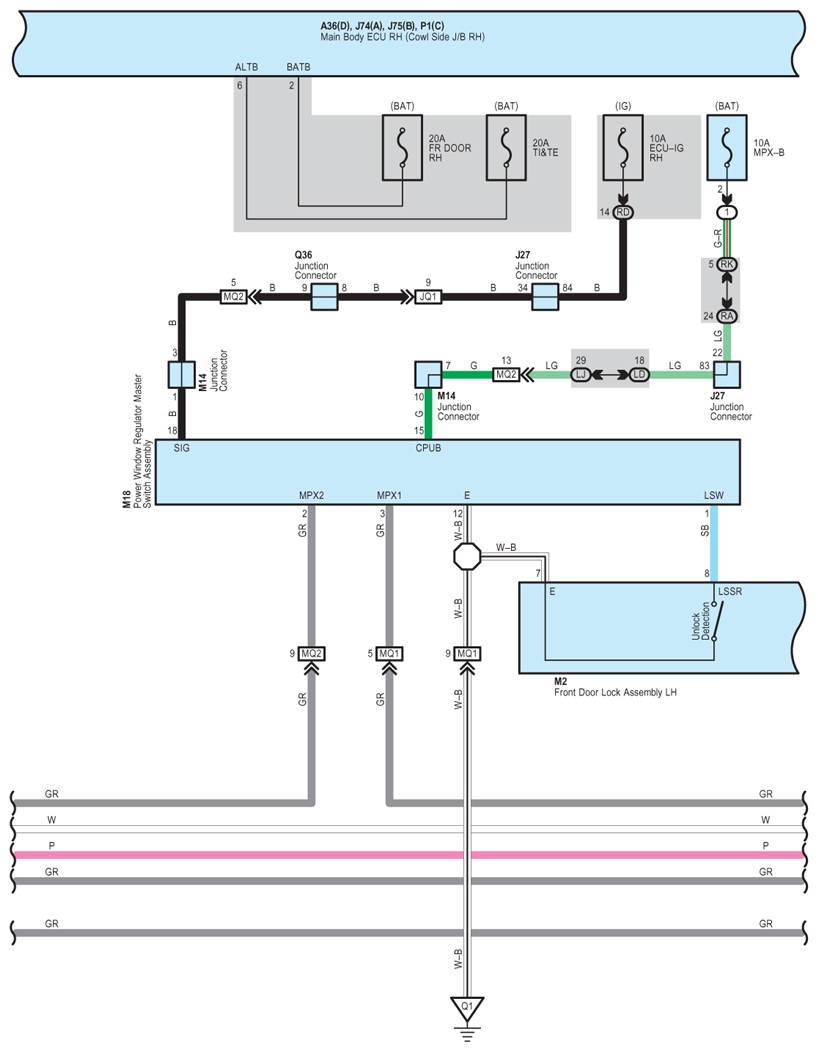

Fig 11: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (11 Of 20)

G07579945

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

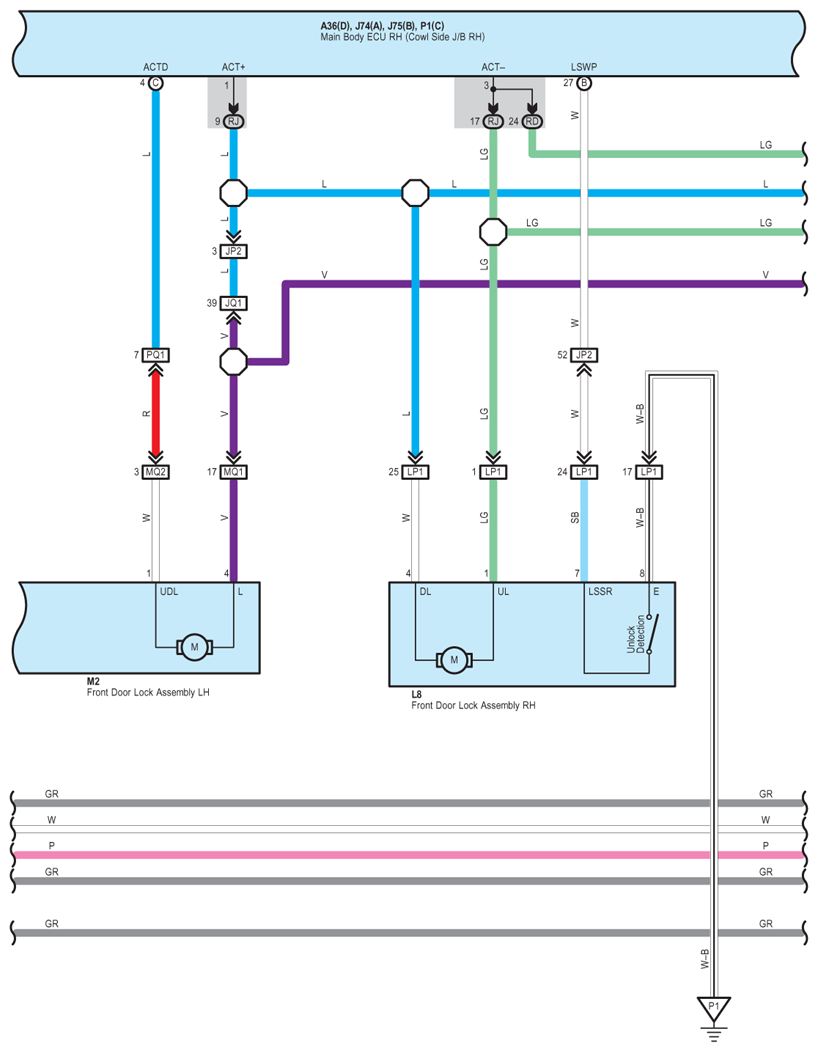

Fig 12: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (12 Of 20)

G07579946

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

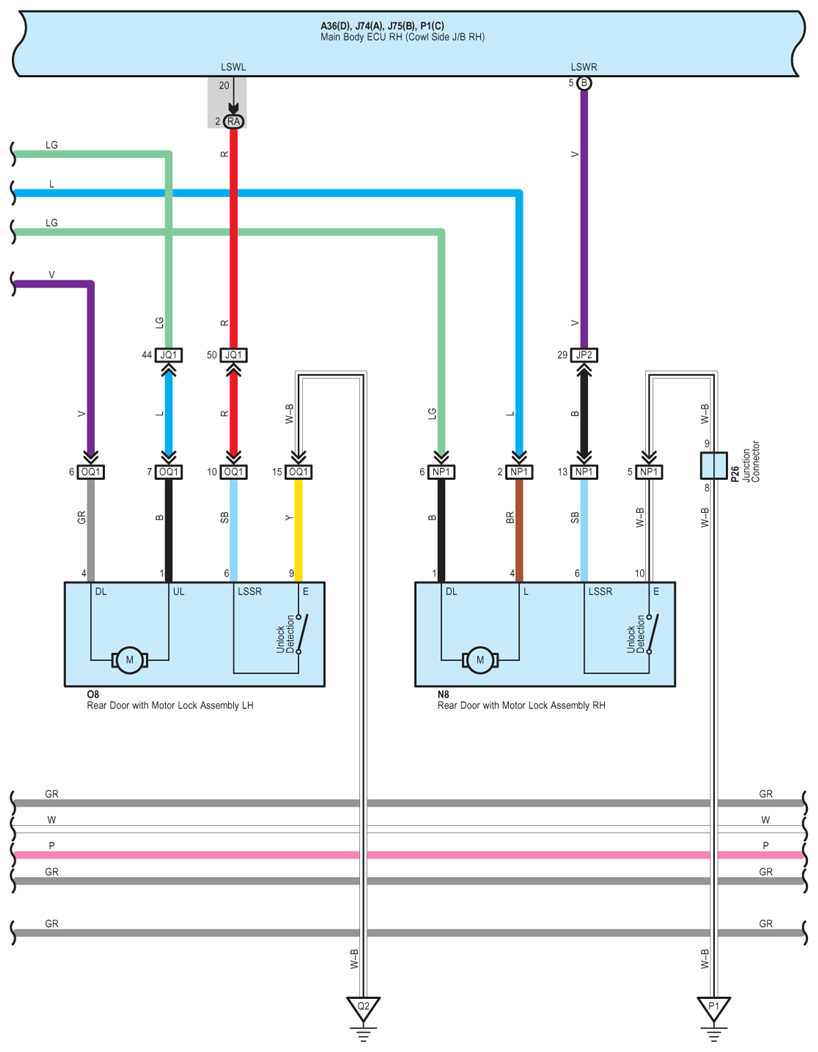

Fig 13: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (13 Of 20)

G07579947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

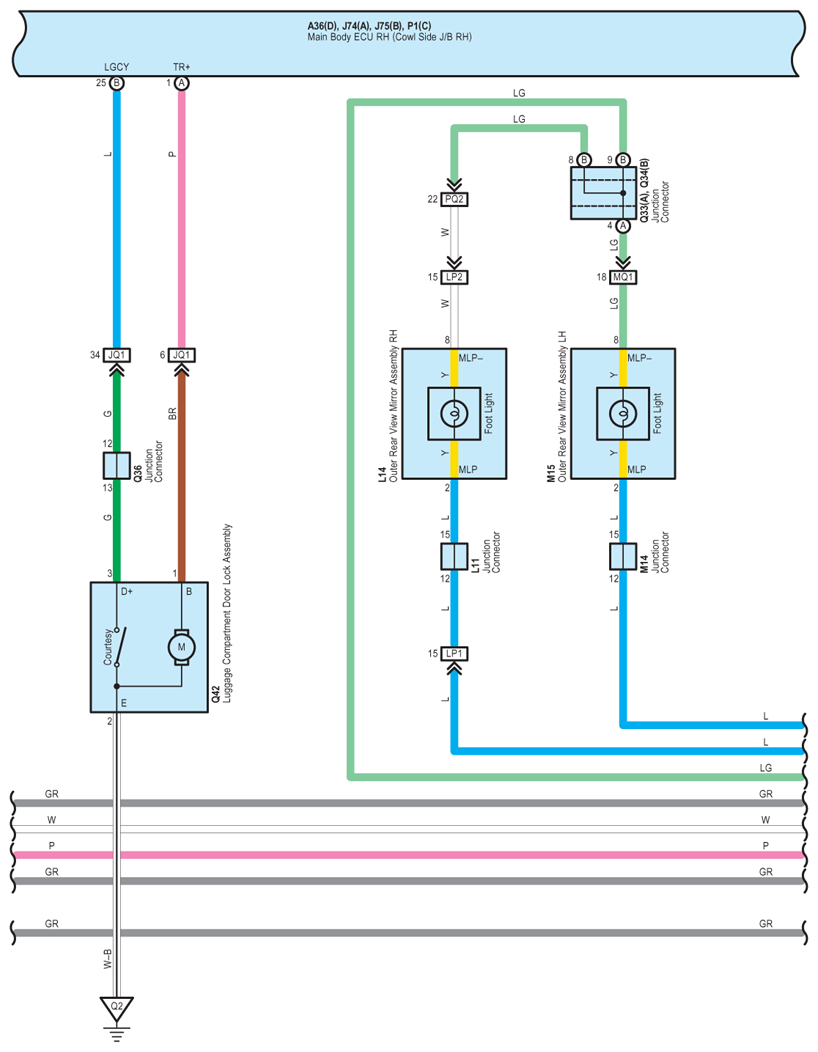

Fig 14: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (14 Of 20)

G07579948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

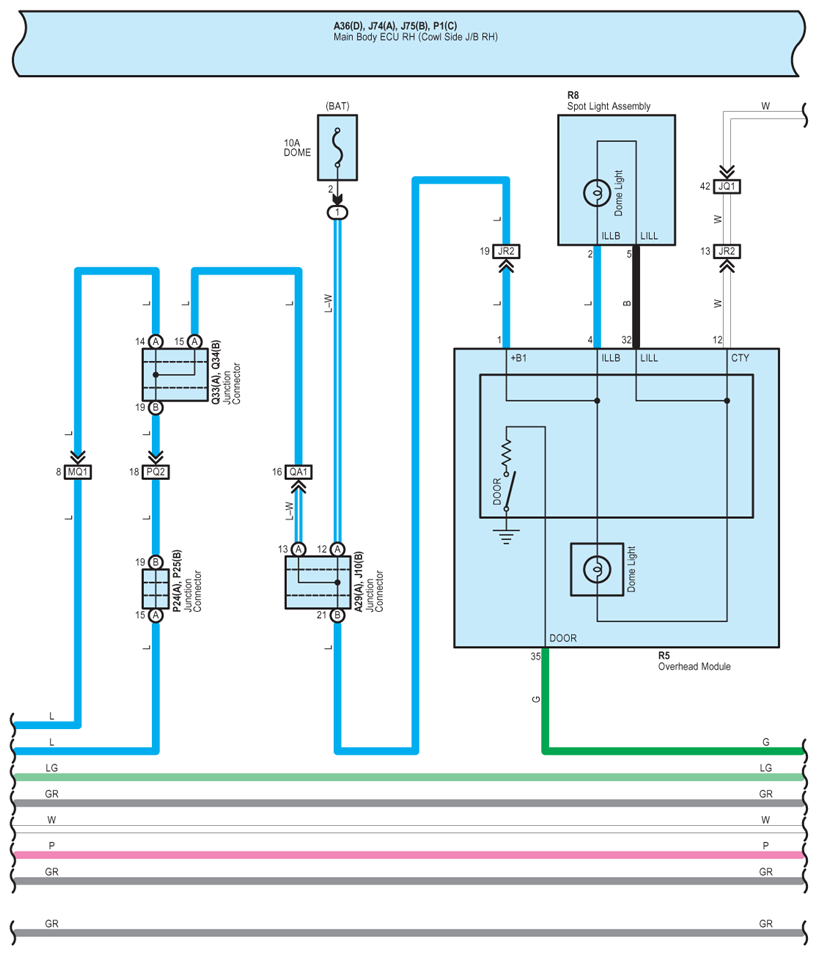

Fig 15: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (15 Of 20)

G07579949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

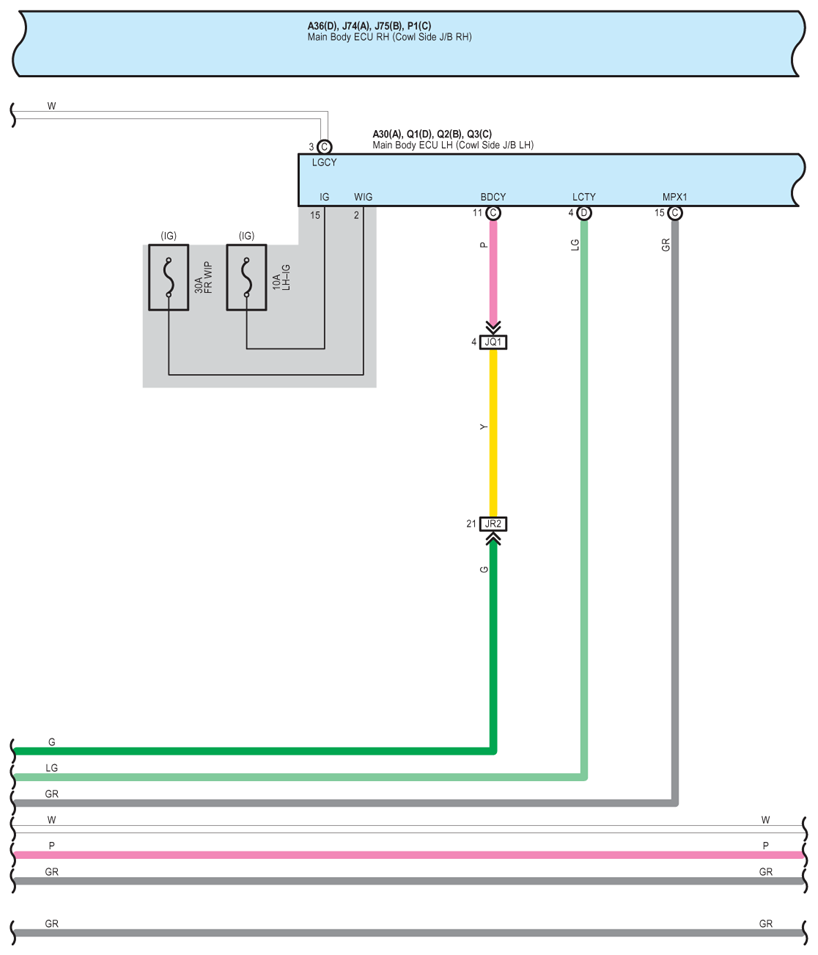

Fig 16: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (16 Of 20)

G07579950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

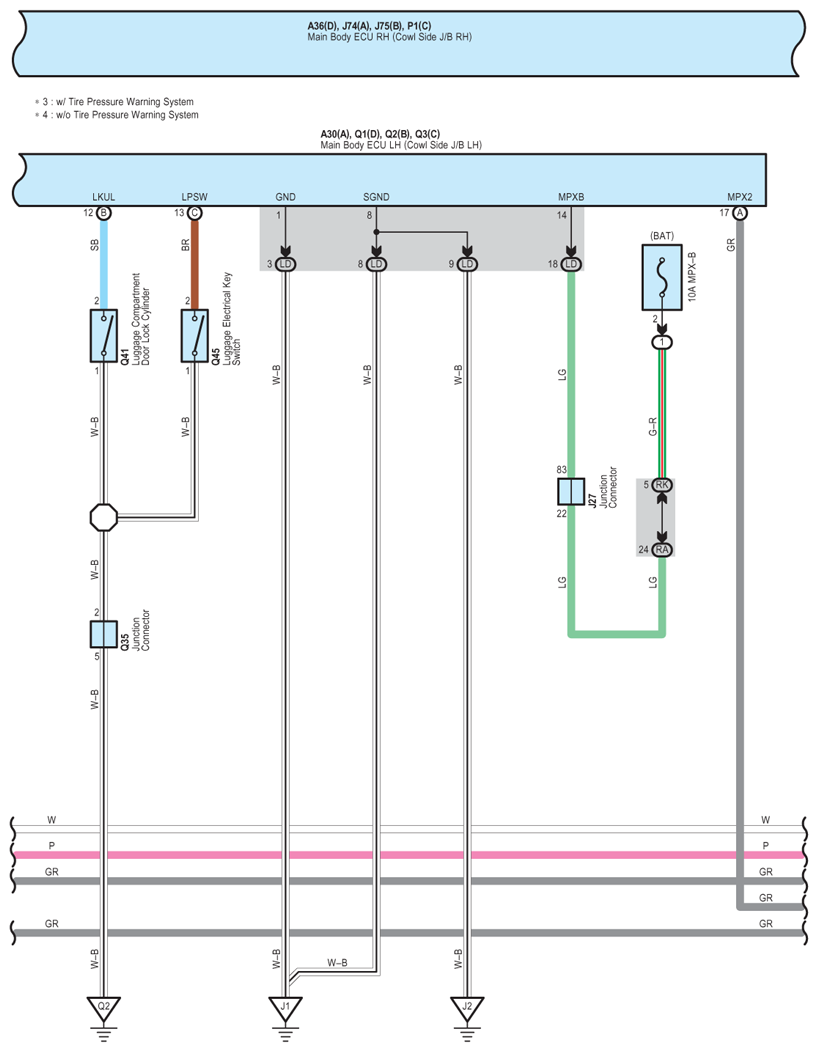

Fig 17: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (17 Of 20)

G07579951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

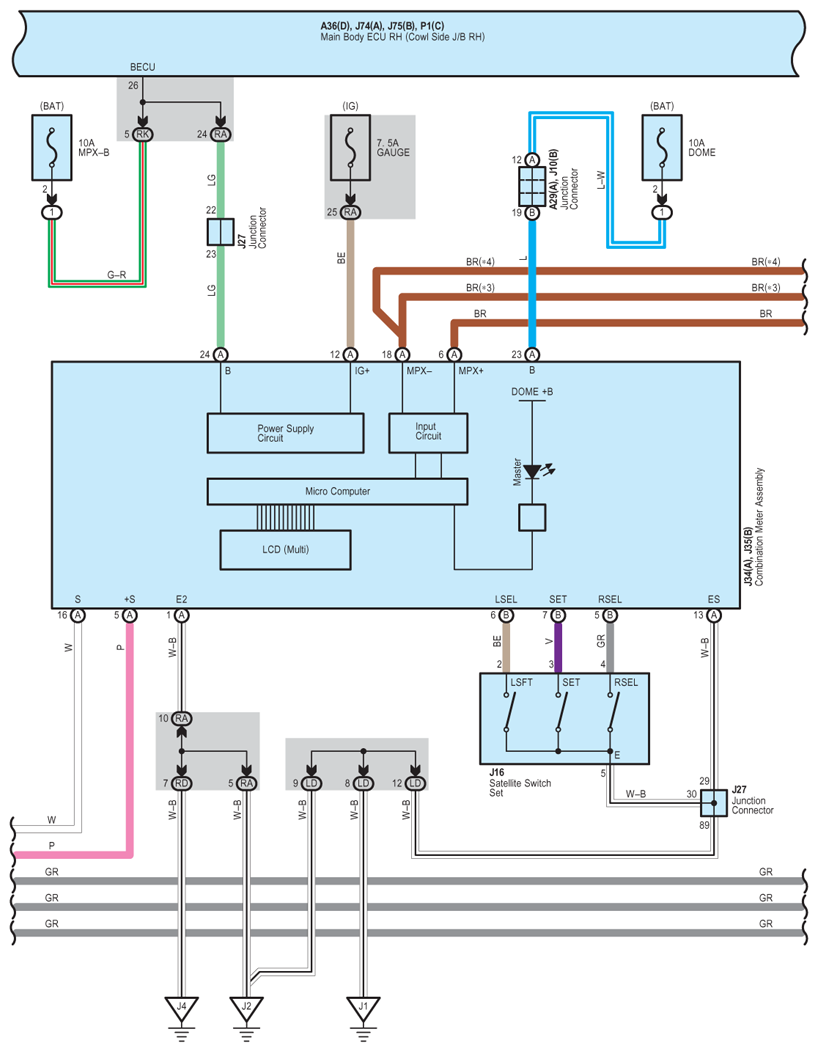

Fig 18: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (18 Of 20)

G07579952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

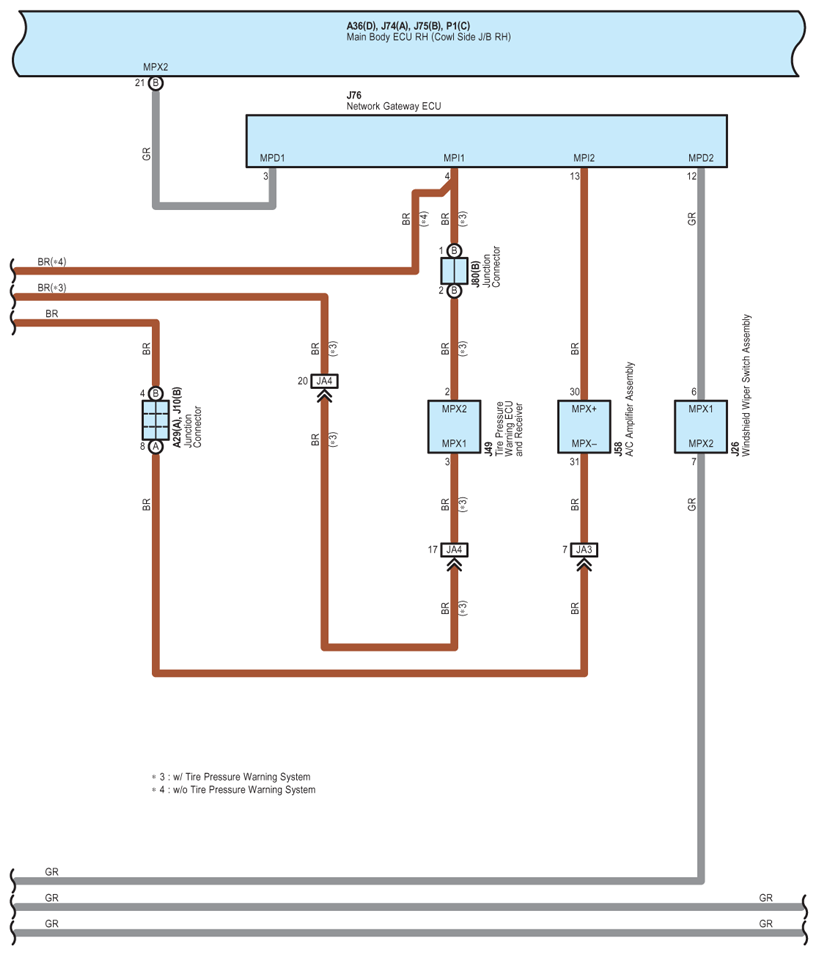

Fig 19: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (19 Of 20)

G07579953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

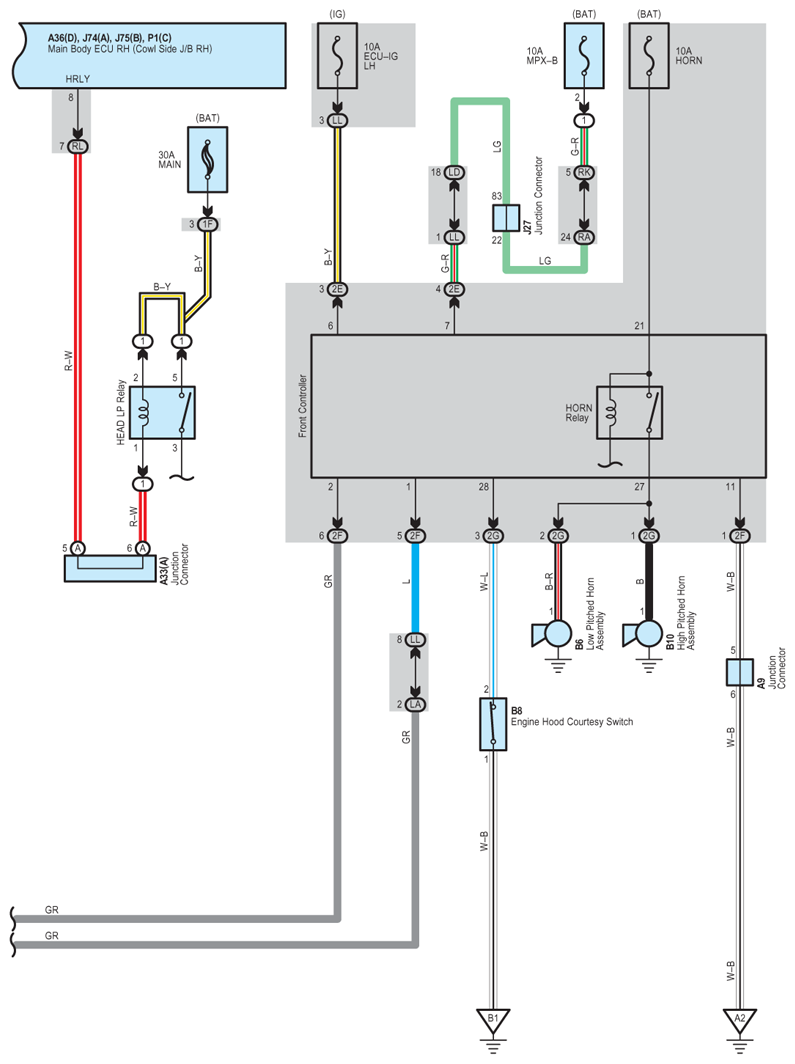

Fig 20: Smart Access System With Push-Button Start And Theft Deterrent - Circuit Diagram (20 Of 20)

G07579954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
